PCI Bus Communication Failure

For testing procedures, see Fig 1 -Fig 3 .

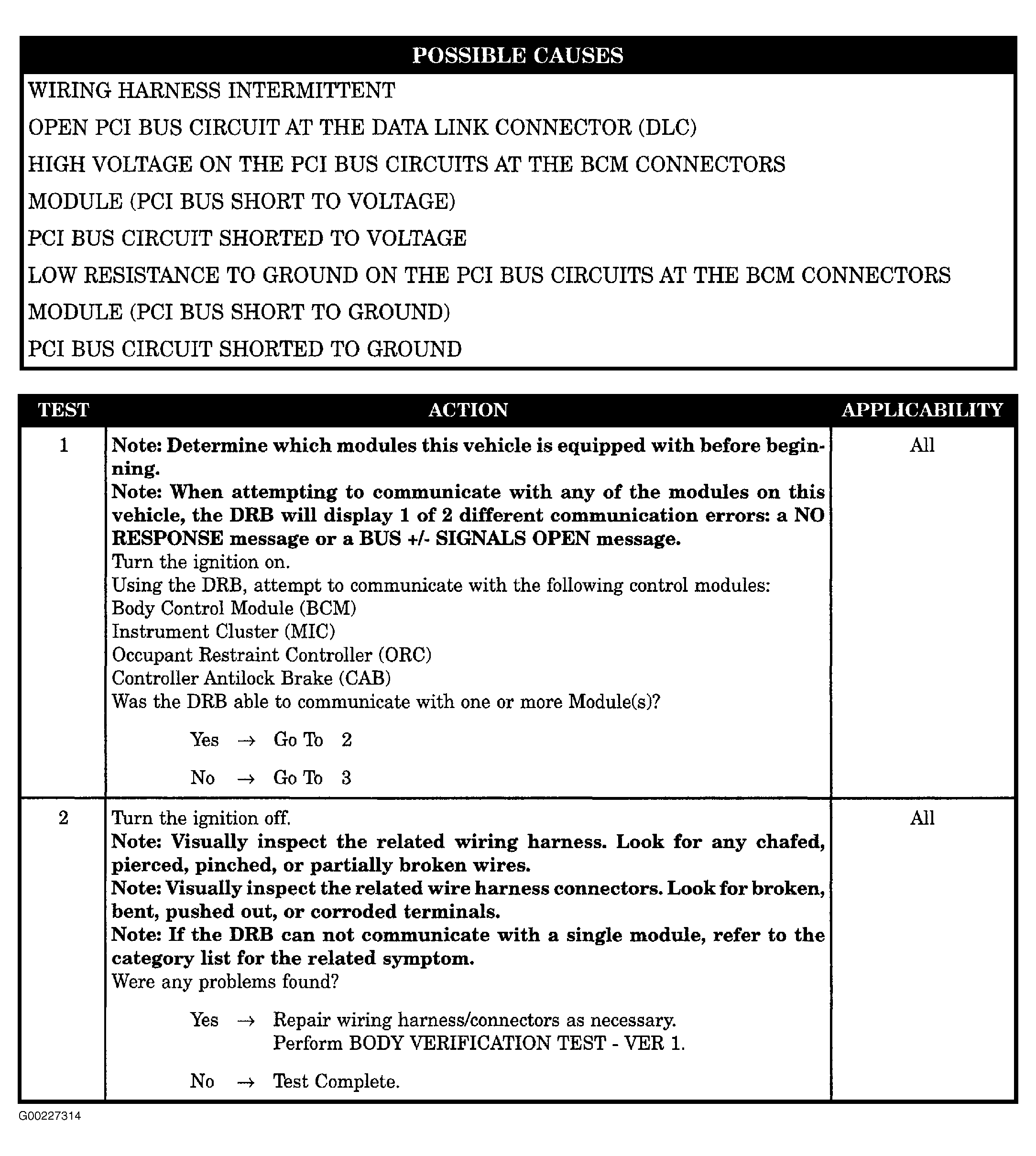

Fig 1: PCI Bus Communication Failure - Steps 1 & 2 (1 Of 3)

Courtesy of CHRYSLER CORP.

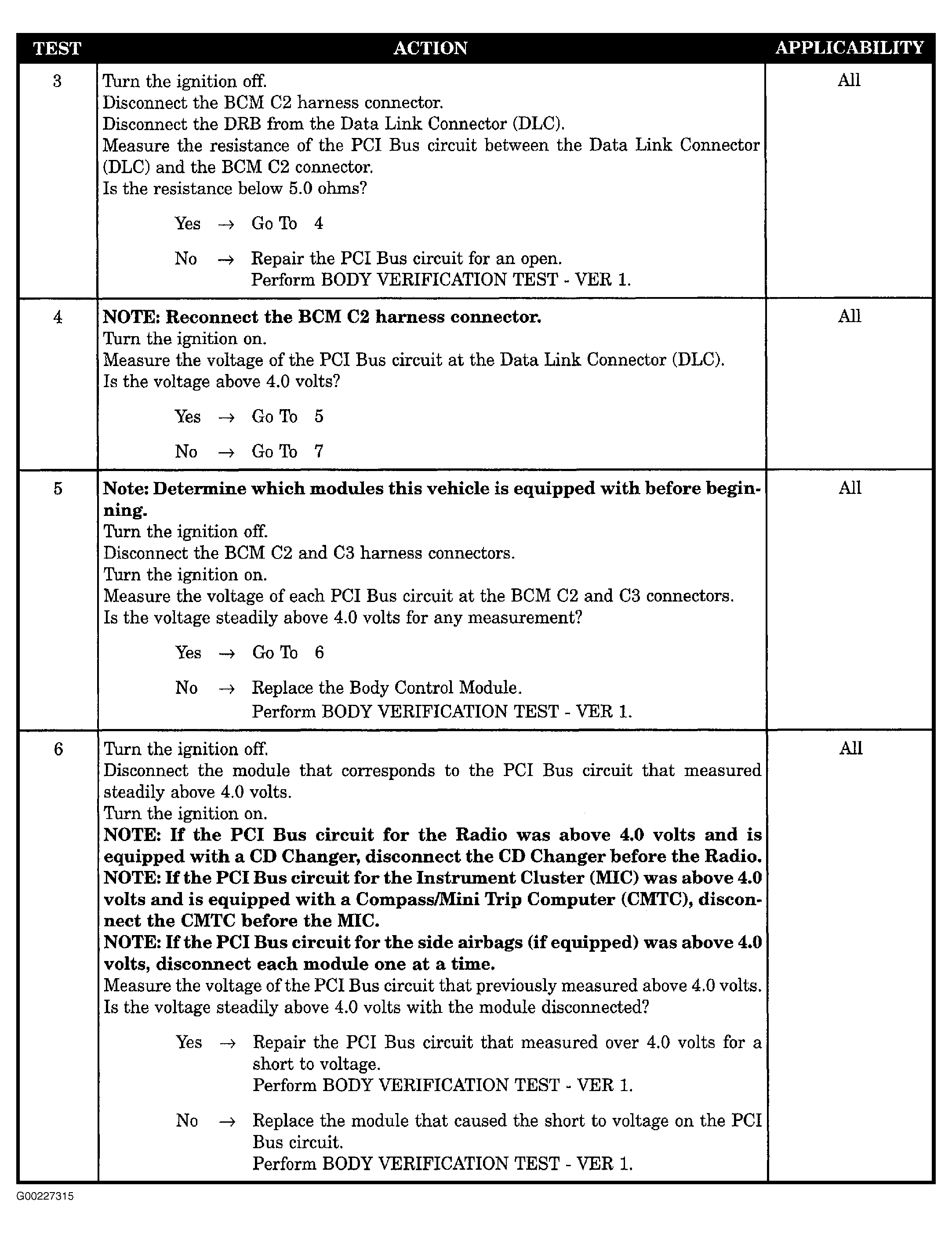

Fig 2: PCI Bus Communication Failure - Steps 3-6 (2 Of 3)

Courtesy of CHRYSLER CORP.

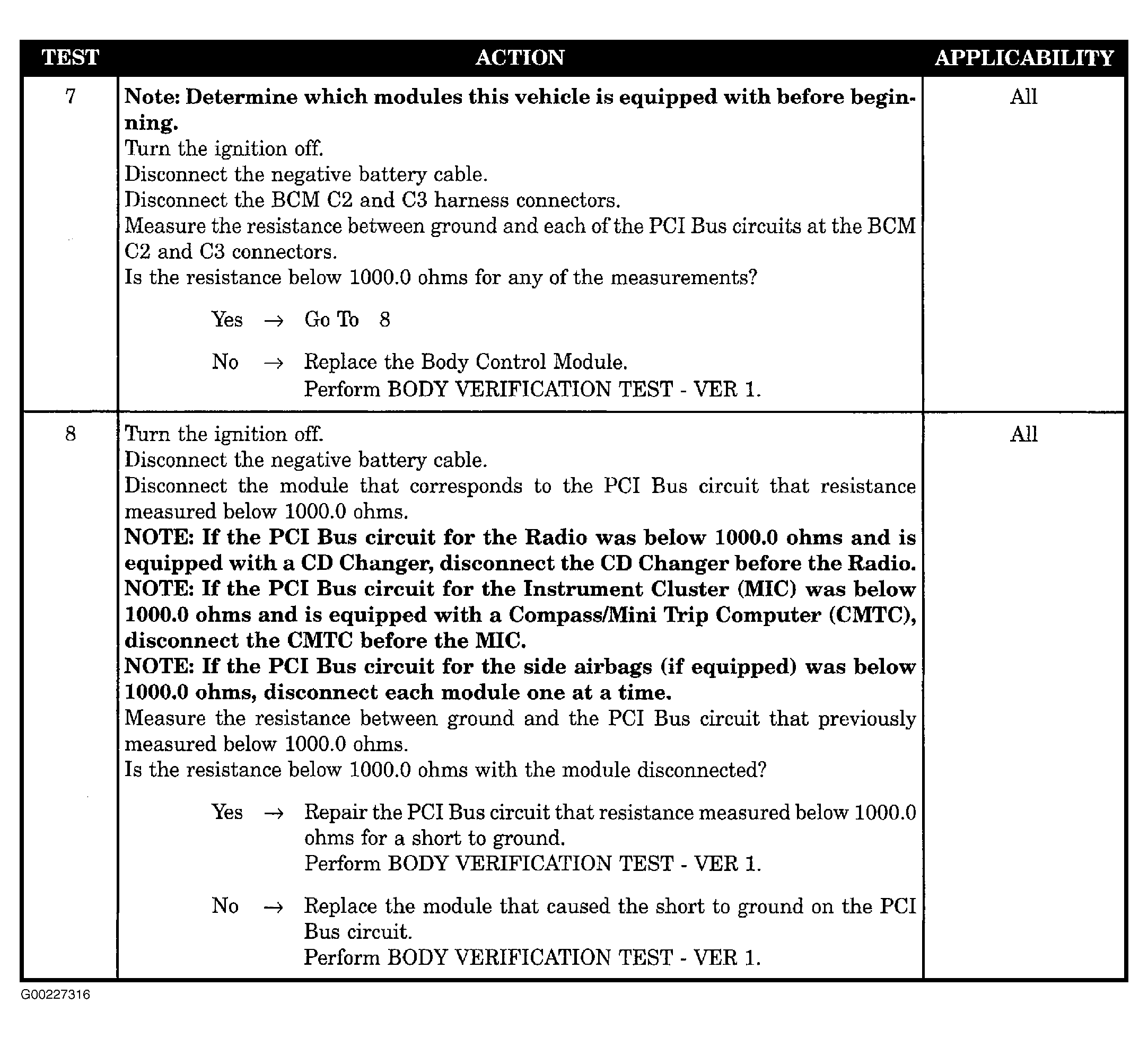

Fig 3: PCI Bus Communication Failure - Steps 7 & 8 (3 Of 3)

Courtesy of CHRYSLER CORP.
