CD Temperature High

For testing procedures, see Fig 1 .

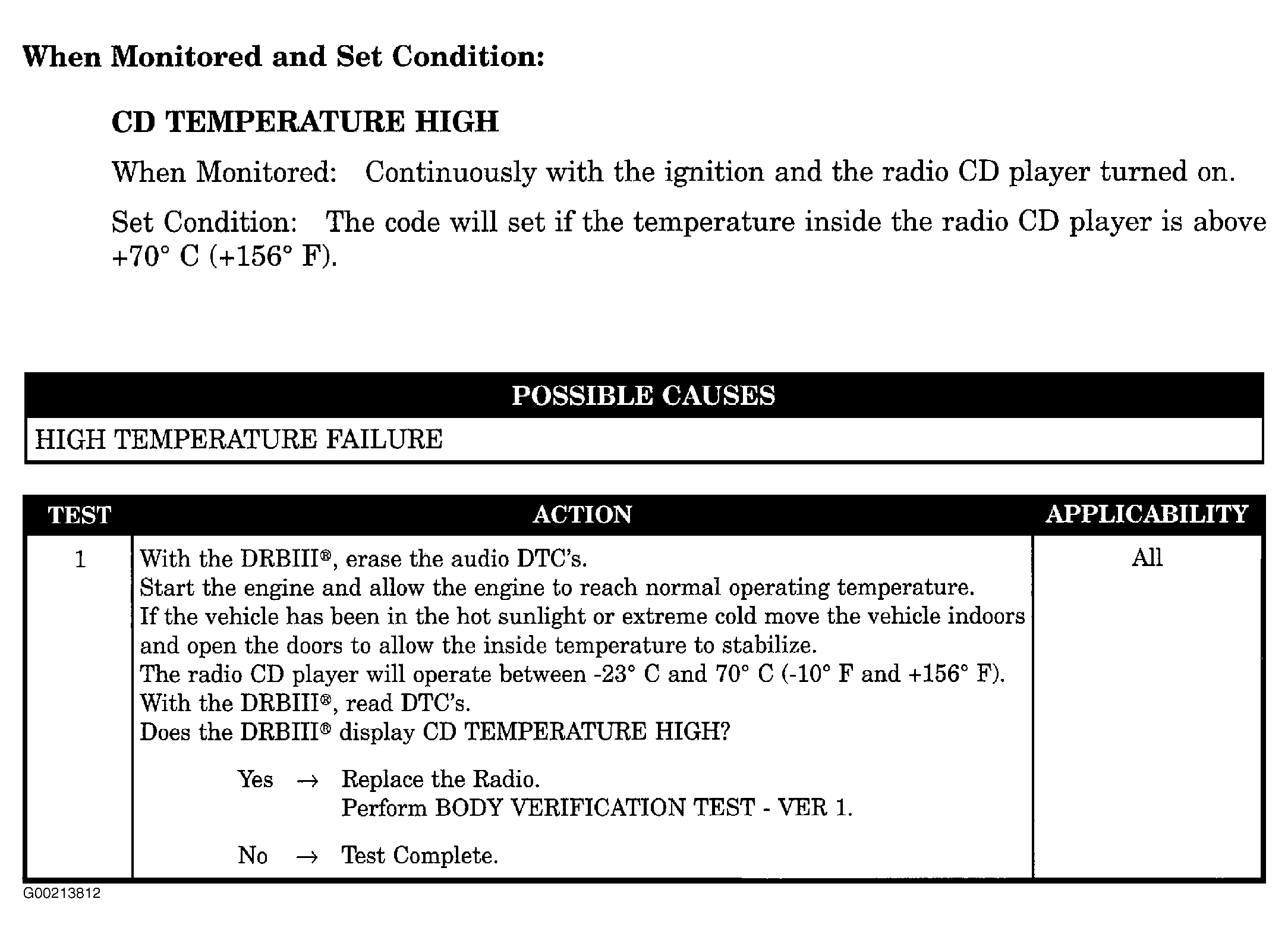

Fig 1: CD Temperature High

G00213812

Courtesy of CHRYSLER CORP.
