Home >> Chrysler >> 2002 >> Sebring GTC, 2.7 R, Automatic >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Control Modules - Except Coupe >> System Tests >> Audio >> CD Read Failure

CD Read Failure

For testing procedures, see Fig 1 .

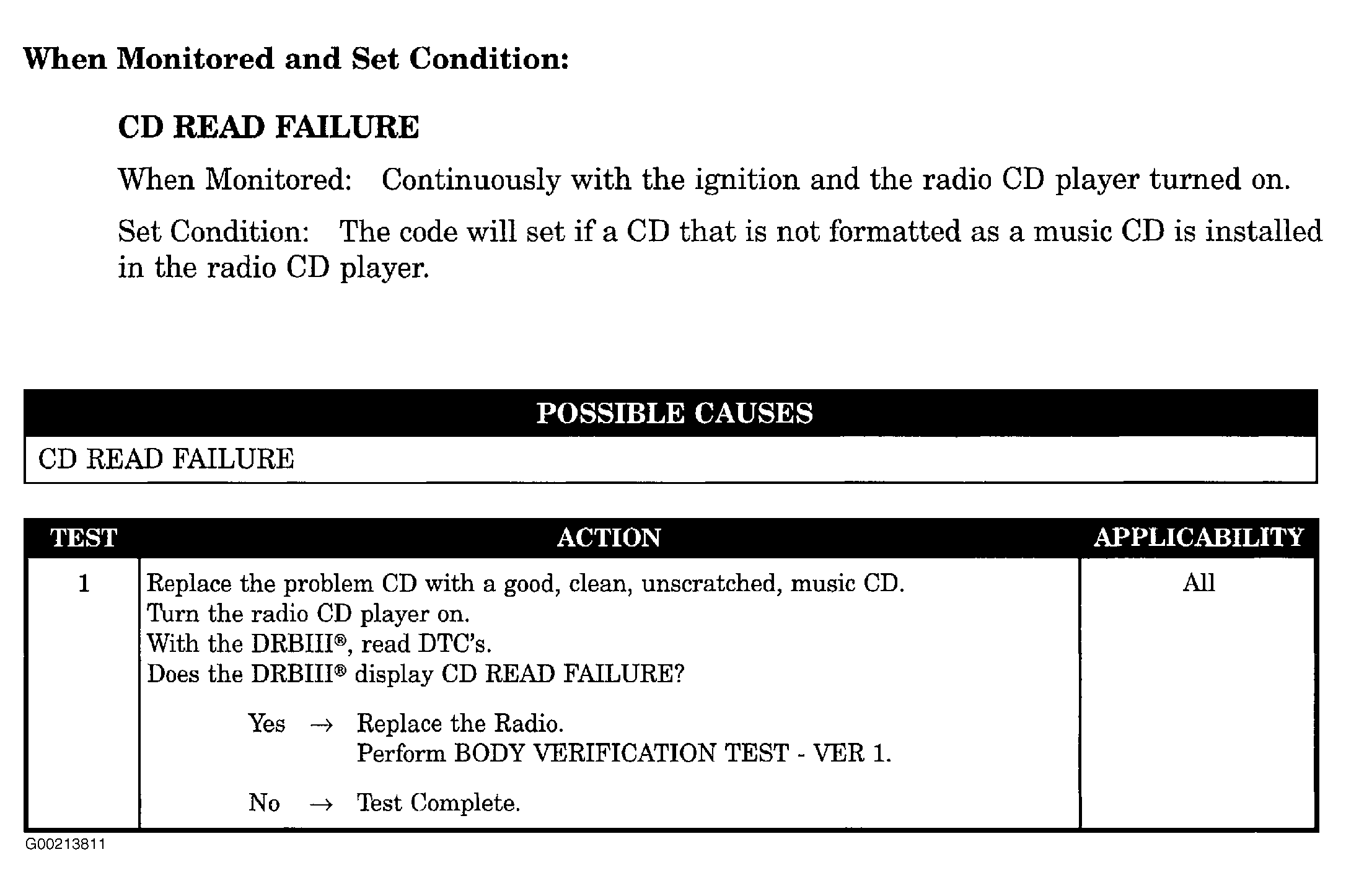

Fig 1: CD Read Failure

G00213811

Courtesy of CHRYSLER CORP.
