Wiring Diagrams
>>
Connector Pin-Outs
Connector Pin-Outs
NOTE:
A 2-Way connector is the same as a 2-Pin connector, etc.

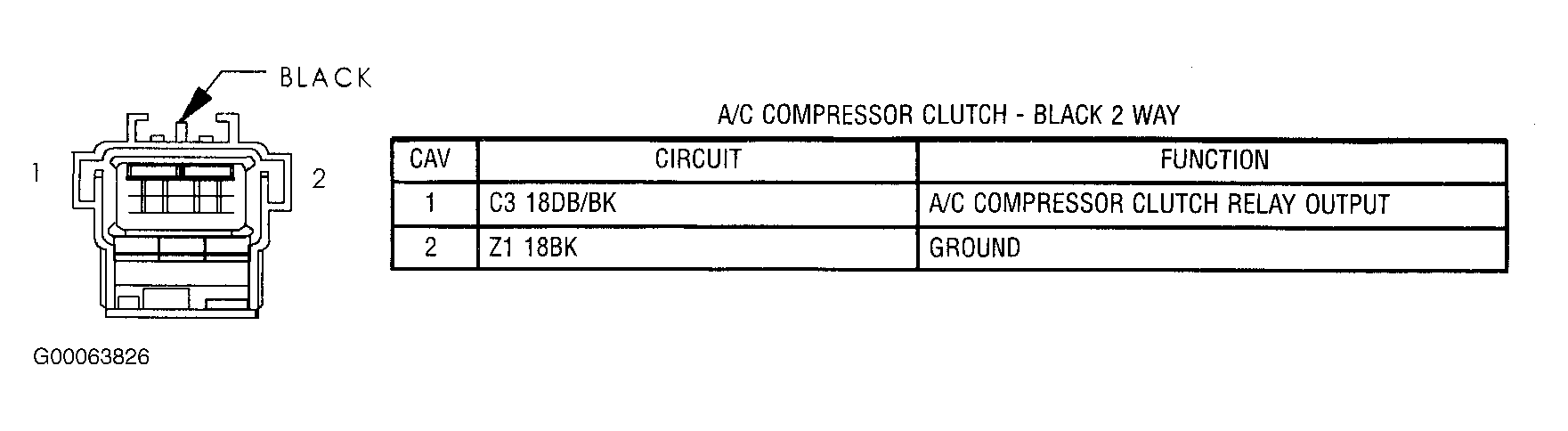

Fig 1: A/C Compressor Clutch - Black 2-Way
Courtesy of CHRYSLER CORP.

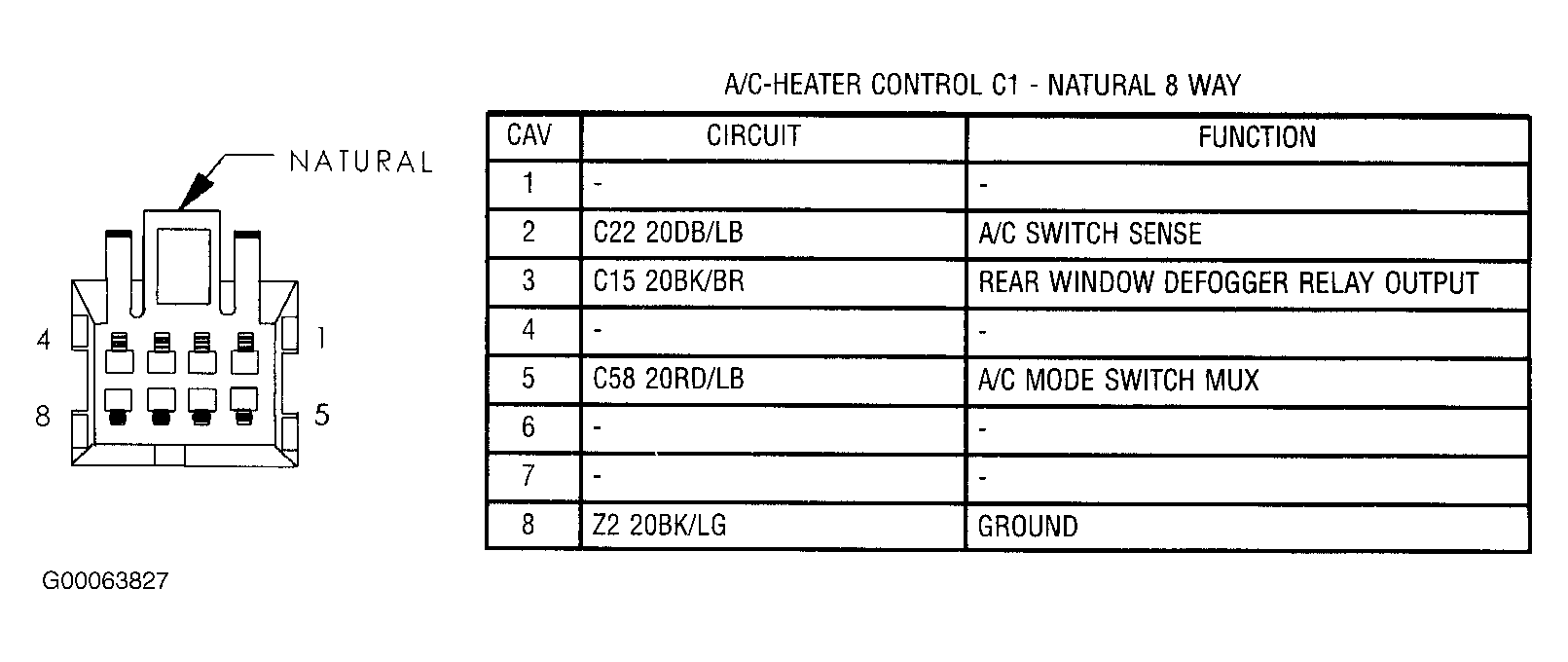

Fig 2: A/C Heater Control C1 - Natural 8-Way
Courtesy of CHRYSLER CORP.

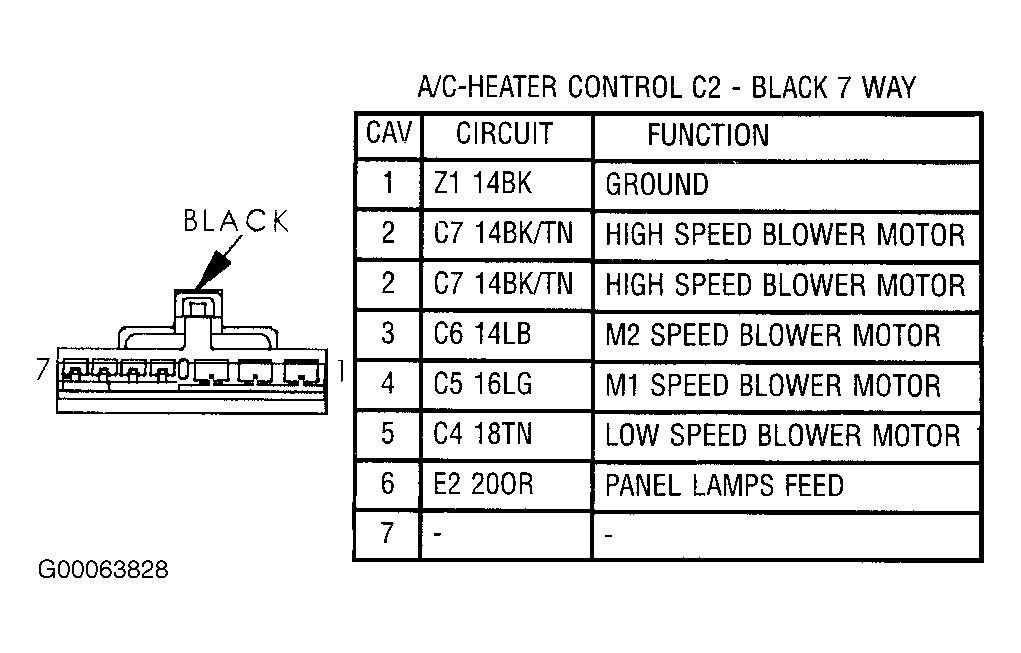

Fig 3: A/C Heater Control C2 - Black 7-Way
Courtesy of CHRYSLER CORP.

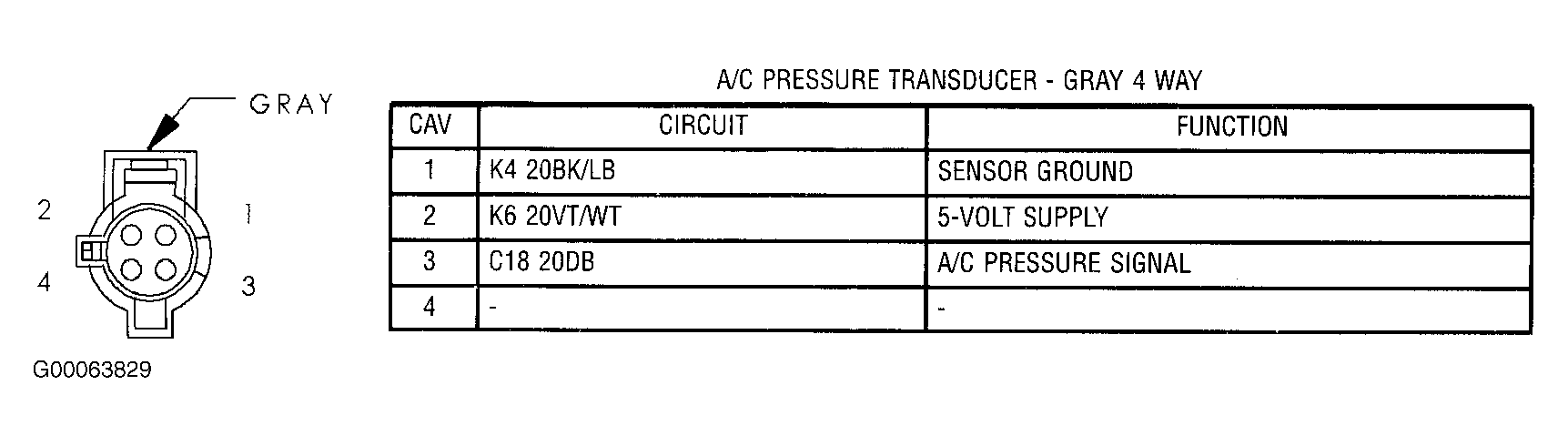

Fig 4: A/C Pressure Transducer - Gray 4-Way
Courtesy of CHRYSLER CORP.

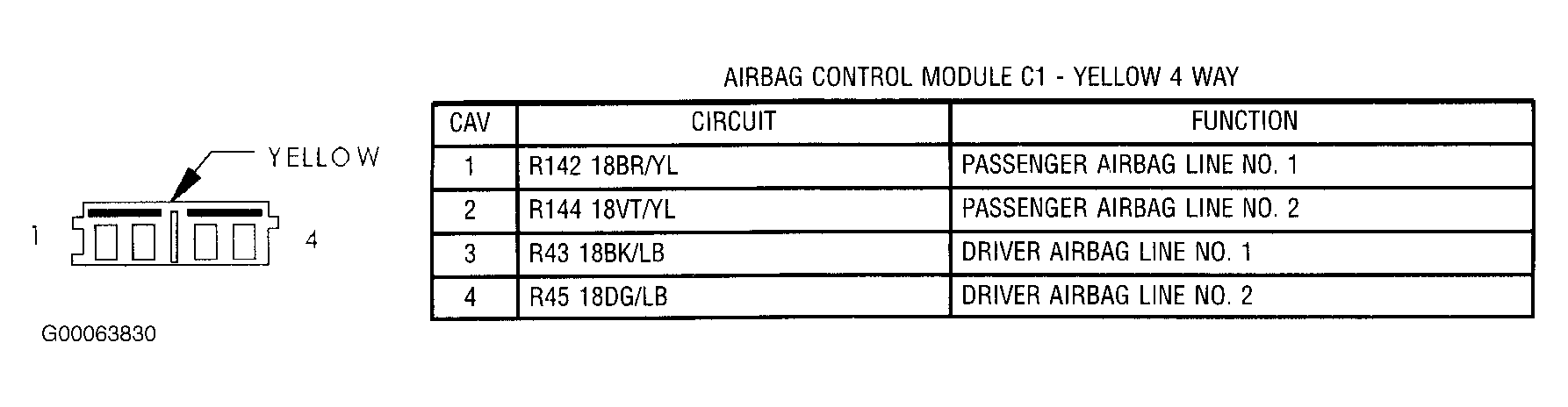

Fig 5: Airbag Control Module C1 - Yellow 4-Way
Courtesy of CHRYSLER CORP.

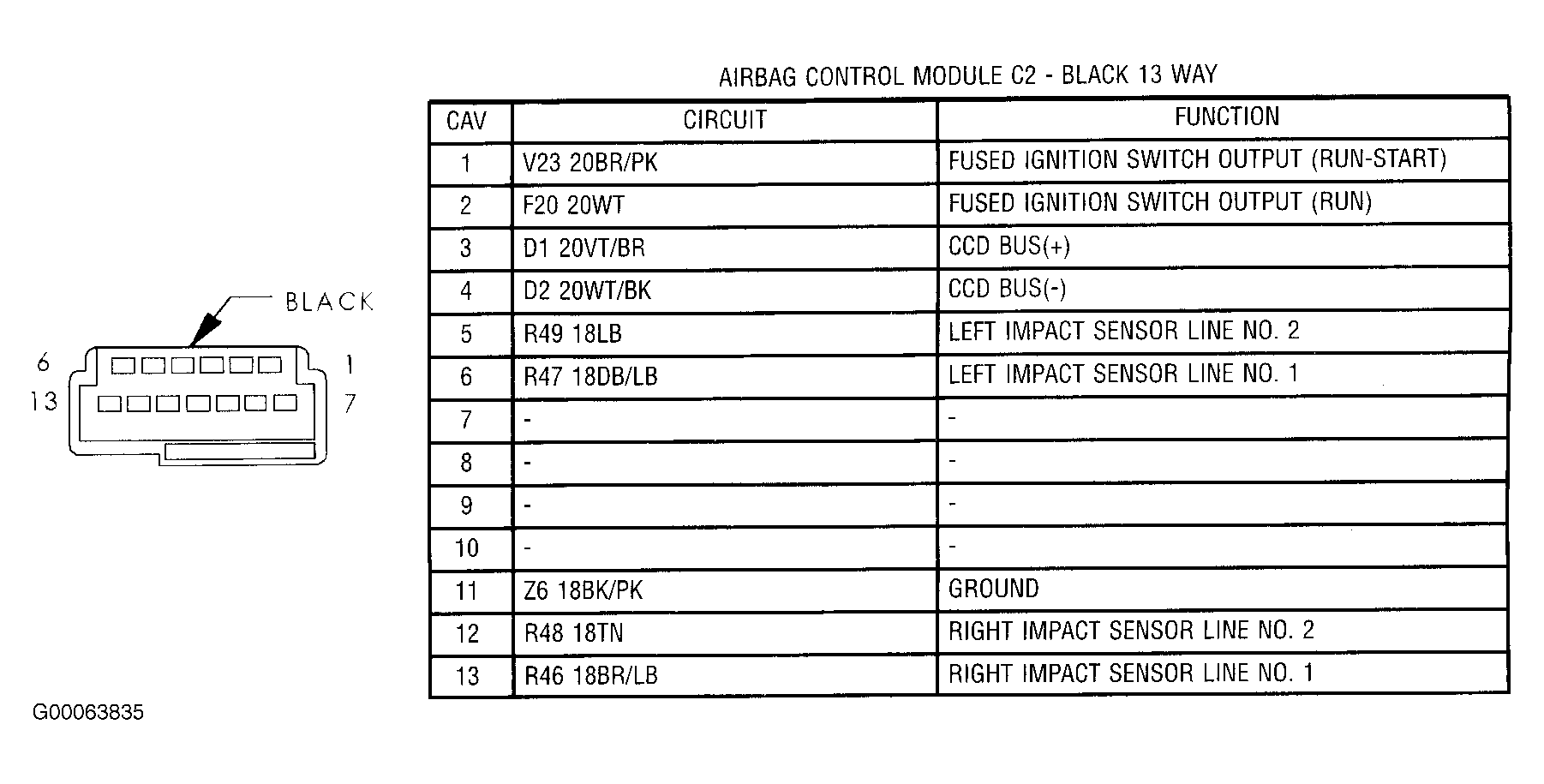

Fig 6: Airbag Control Module C2 - Black 13-Way
Courtesy of CHRYSLER CORP.

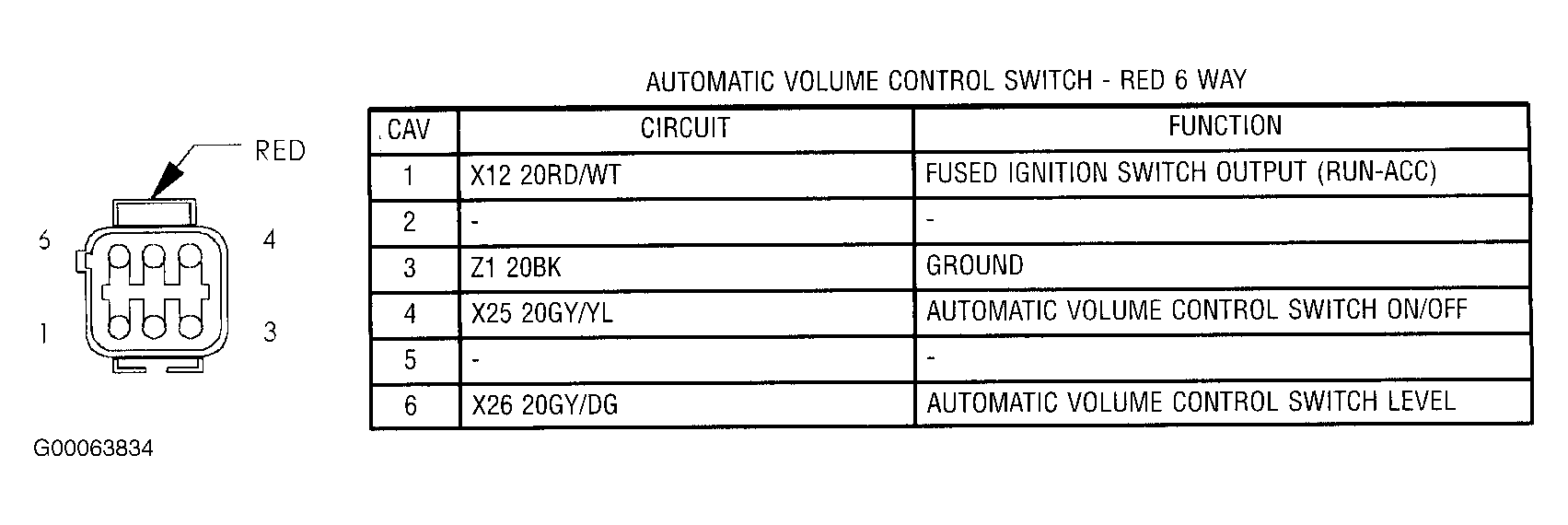

Fig 7: Automatic Volume Control Switch - Red 6-Way
Courtesy of CHRYSLER CORP.

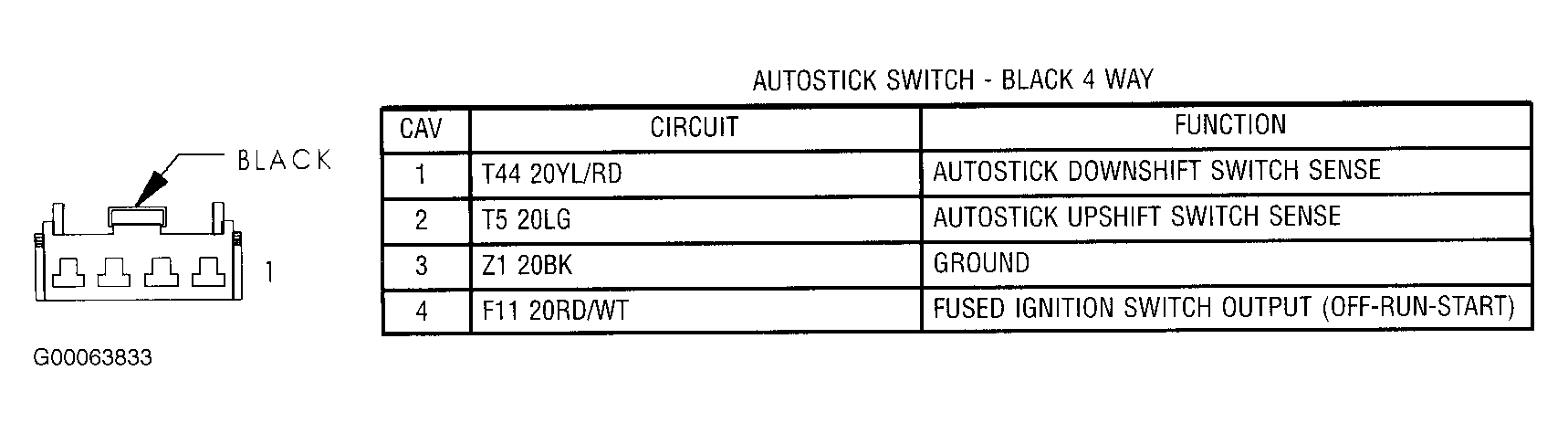

Fig 8: Autostick Switch - Black 4-Way
Courtesy of CHRYSLER CORP.

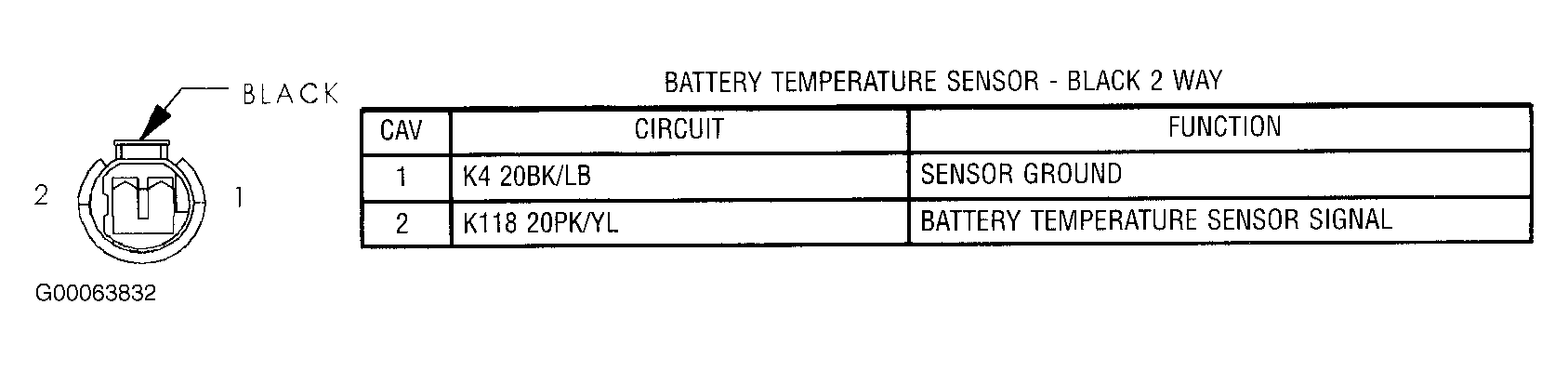

Fig 9: Battery Temperature Senor - Black 2-Way
Courtesy of CHRYSLER CORP.

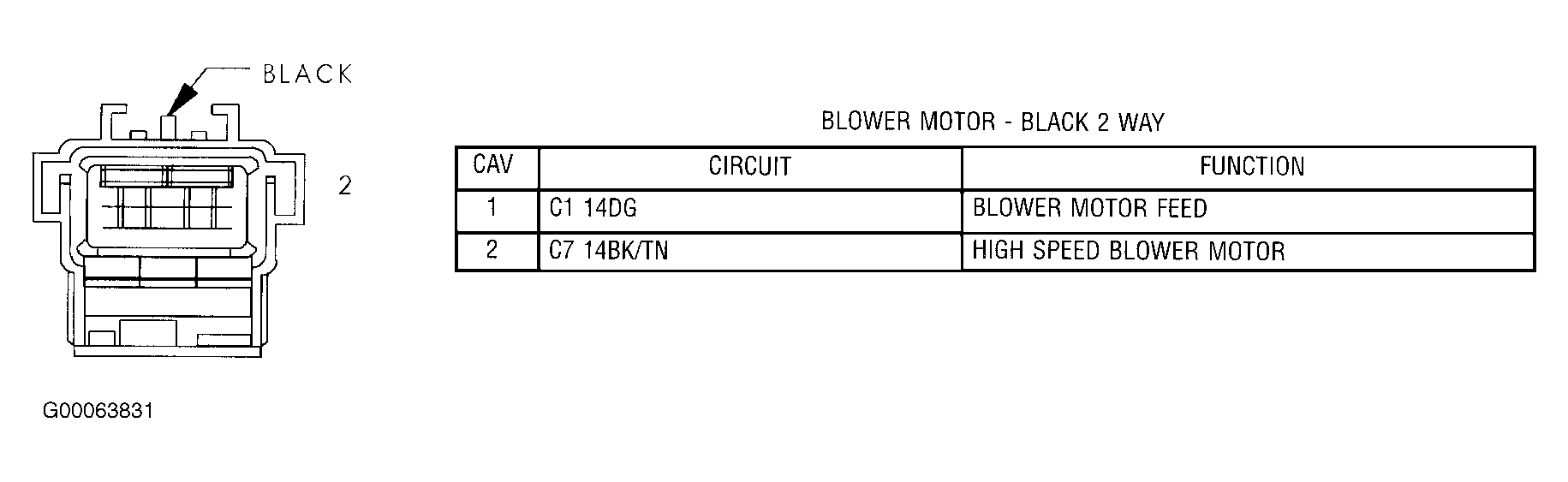

Fig 10: Blower Motor - Black 2-Way
Courtesy of CHRYSLER CORP.

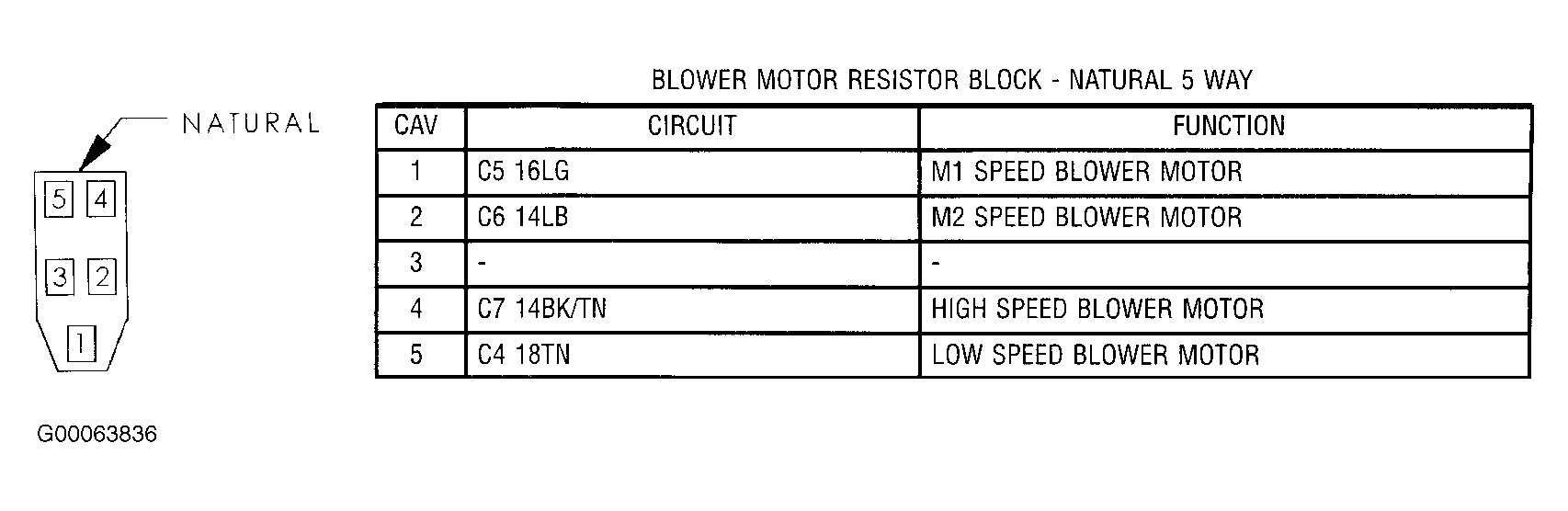

Fig 11: Blower Motor Restore Block - Natural 5-Way
Courtesy of CHRYSLER CORP.

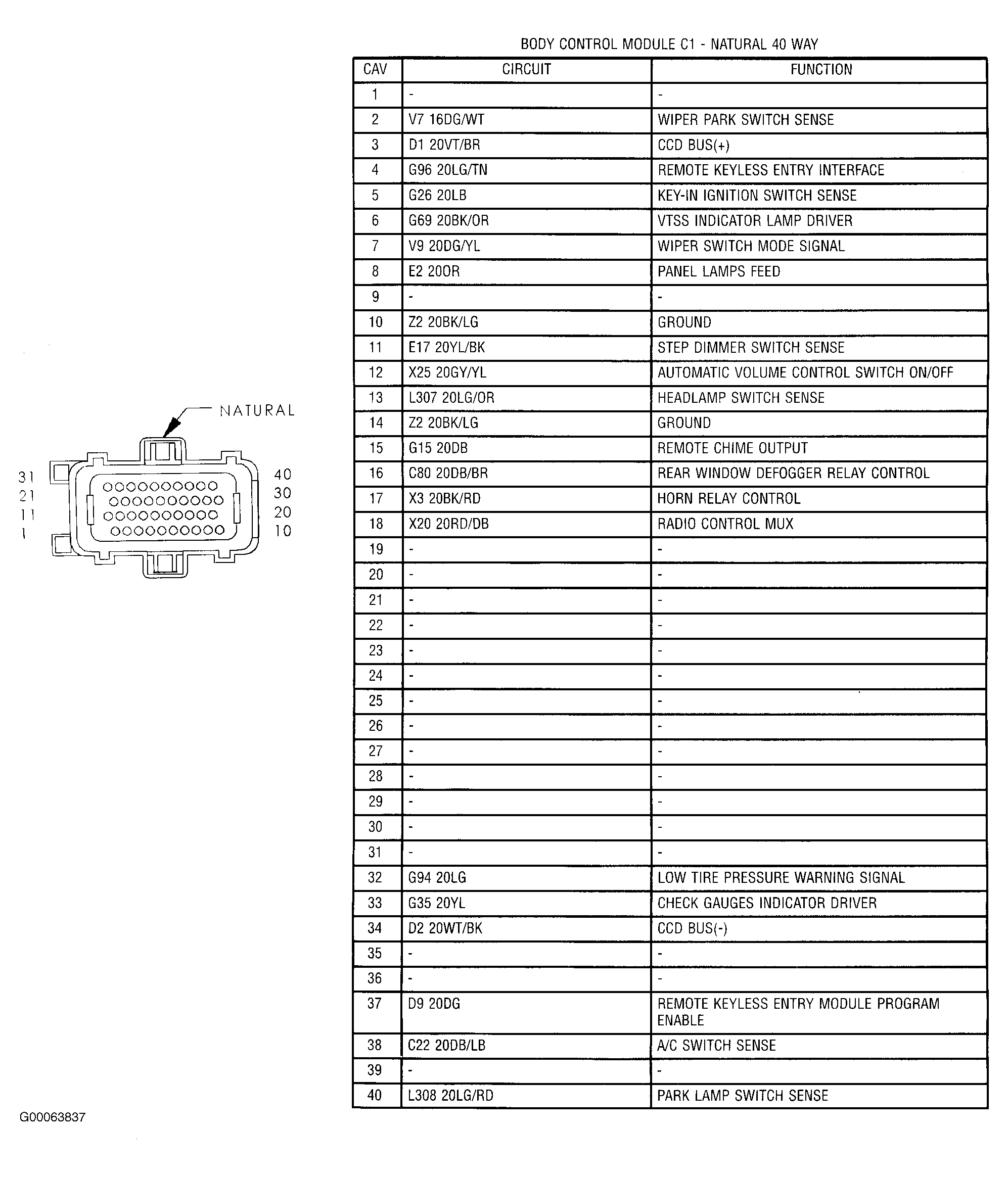

Fig 12: Body Control Module C1 - Natural 40-Way
Courtesy of CHRYSLER CORP.

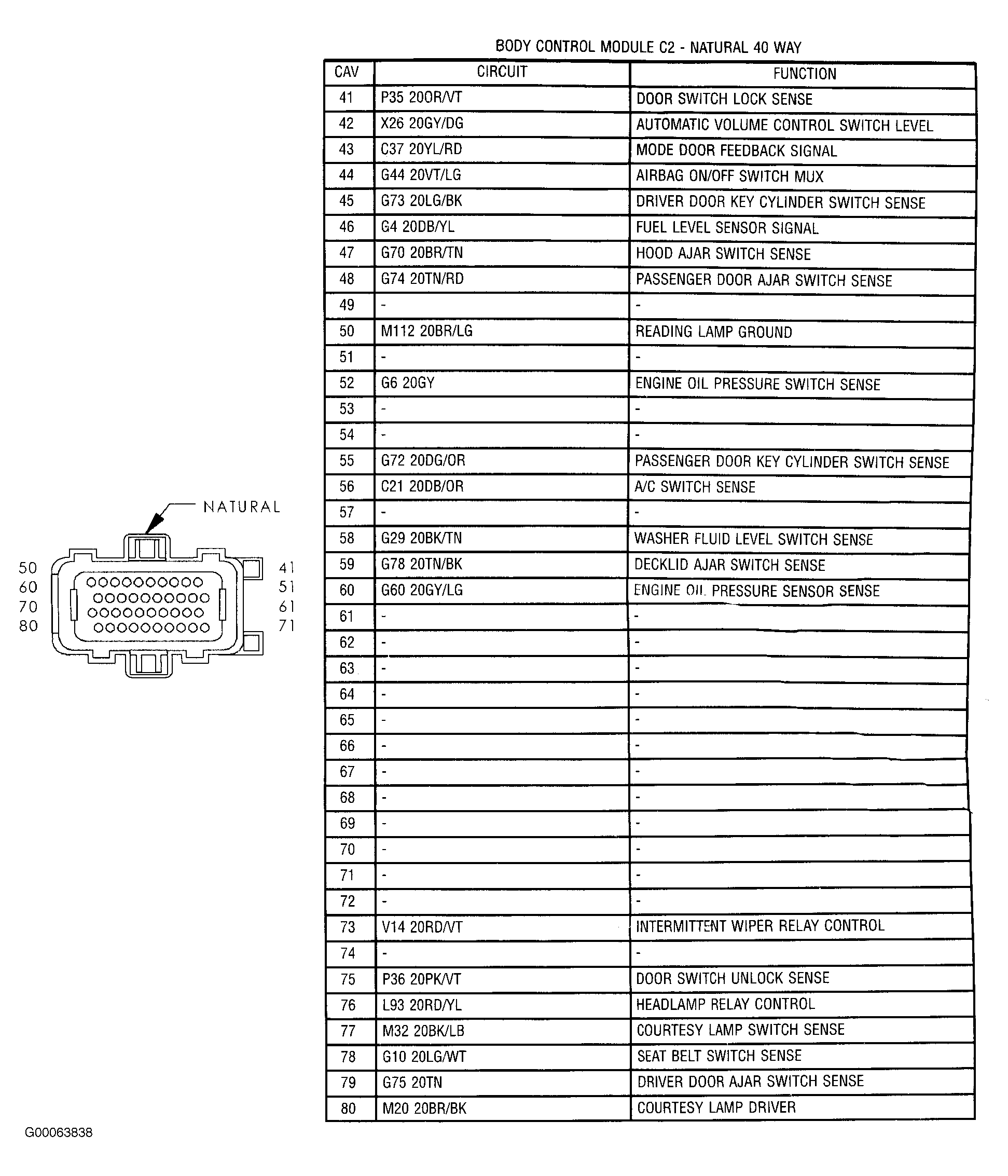

Fig 13: Body Control Module C2 - Natural 40-Way
Courtesy of CHRYSLER CORP.

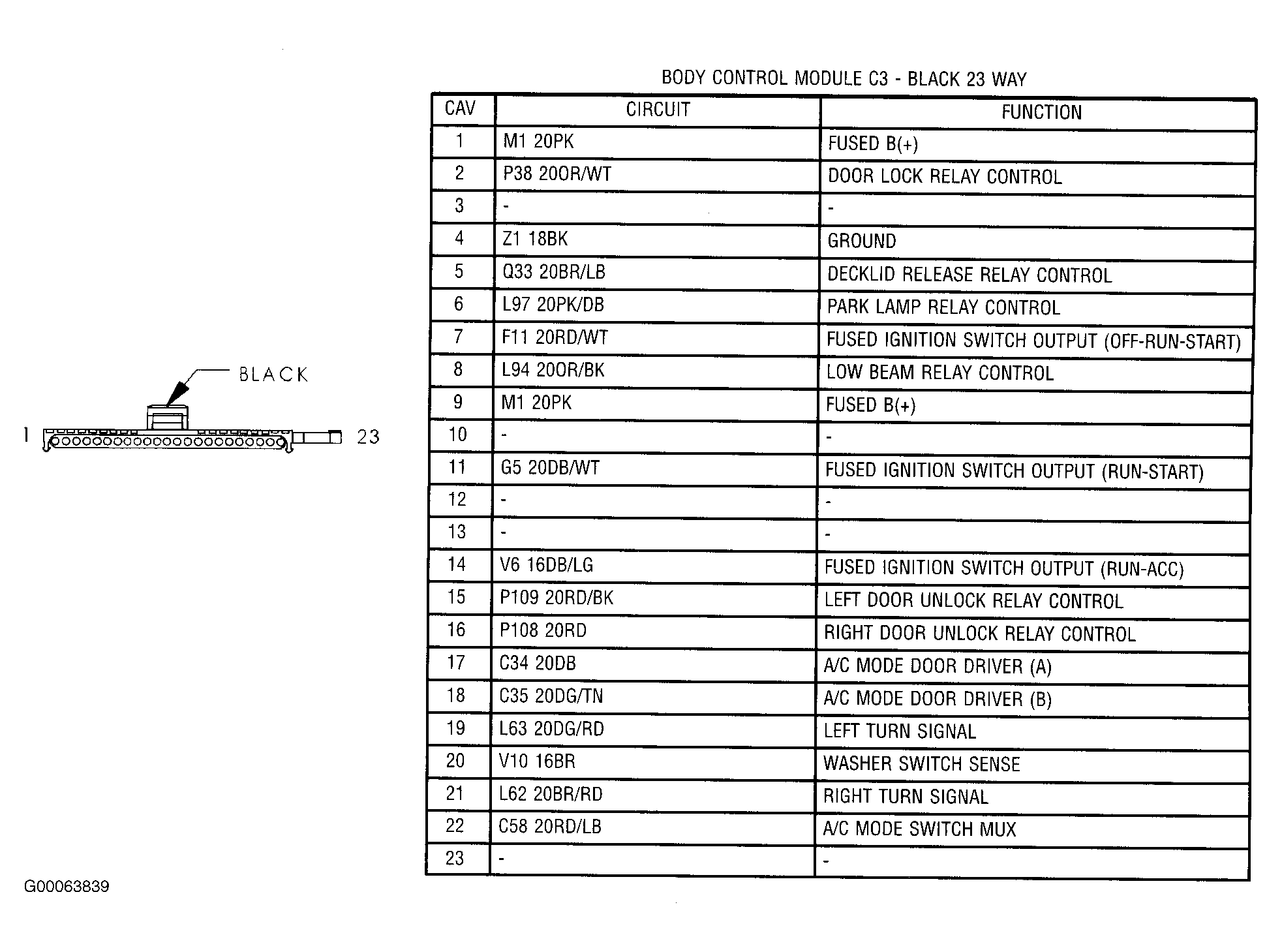

Fig 14: Body Control Module C3 - Black 23-Way
Courtesy of CHRYSLER CORP.

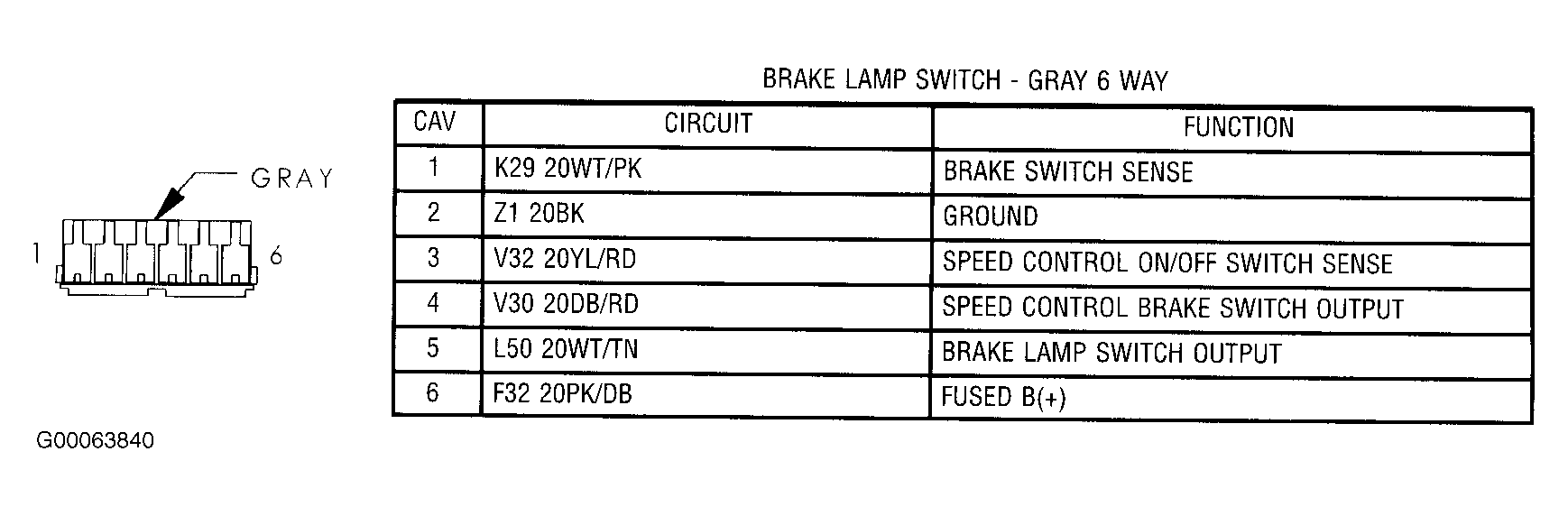

Fig 15: Brake Lamp Switch - Gray 6-Way
Courtesy of CHRYSLER CORP.

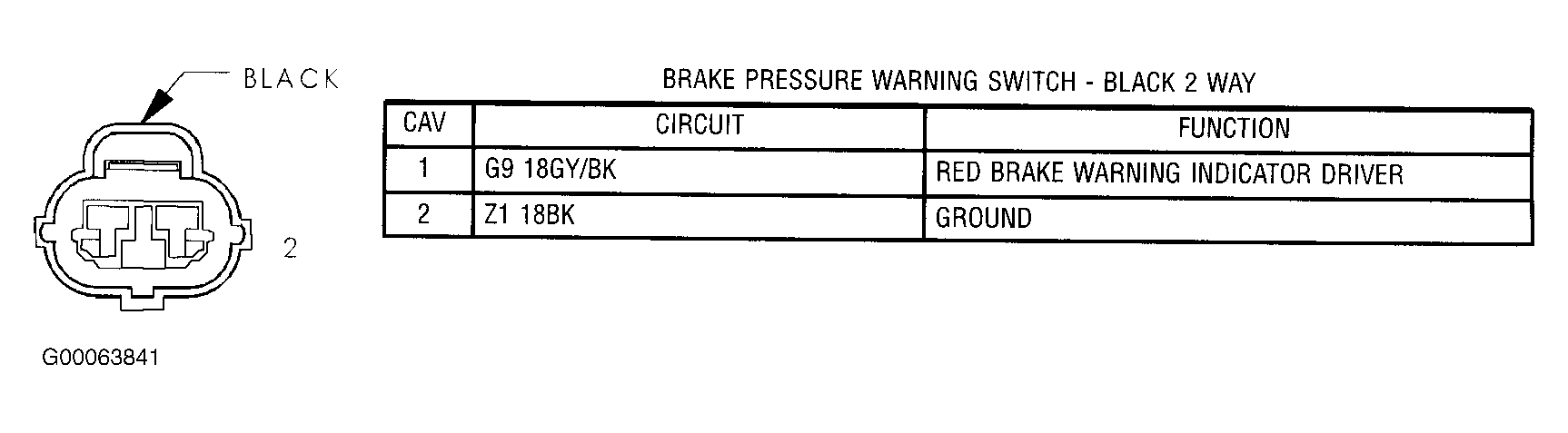

Fig 16: Brake Pressure Warning Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

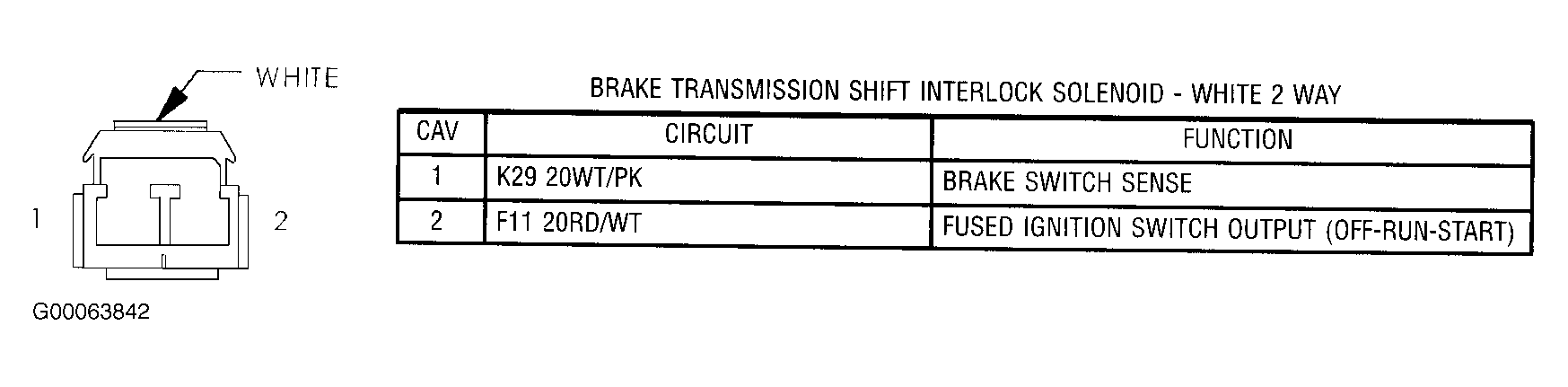

Fig 17: Brake Transmission Shift Interlock Solenoid - White 2-Way
Courtesy of CHRYSLER CORP.

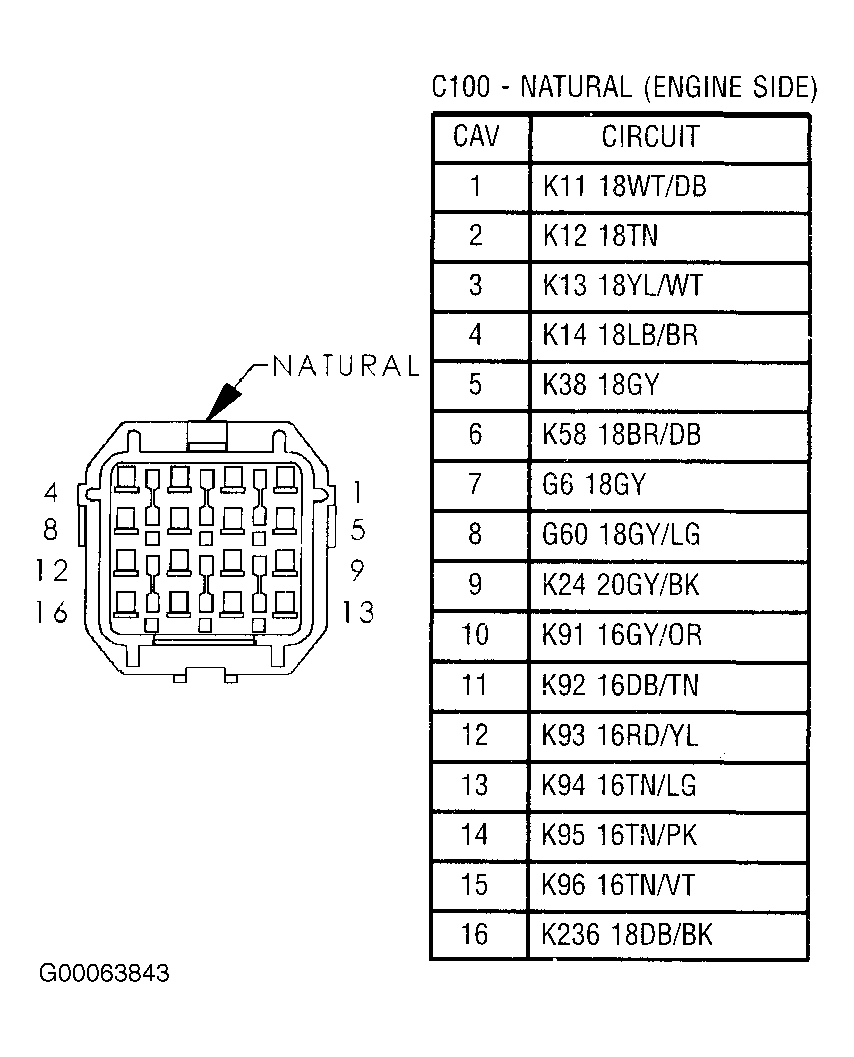

Fig 18: C100 - Natural (Engine Side)
Courtesy of CHRYSLER CORP.

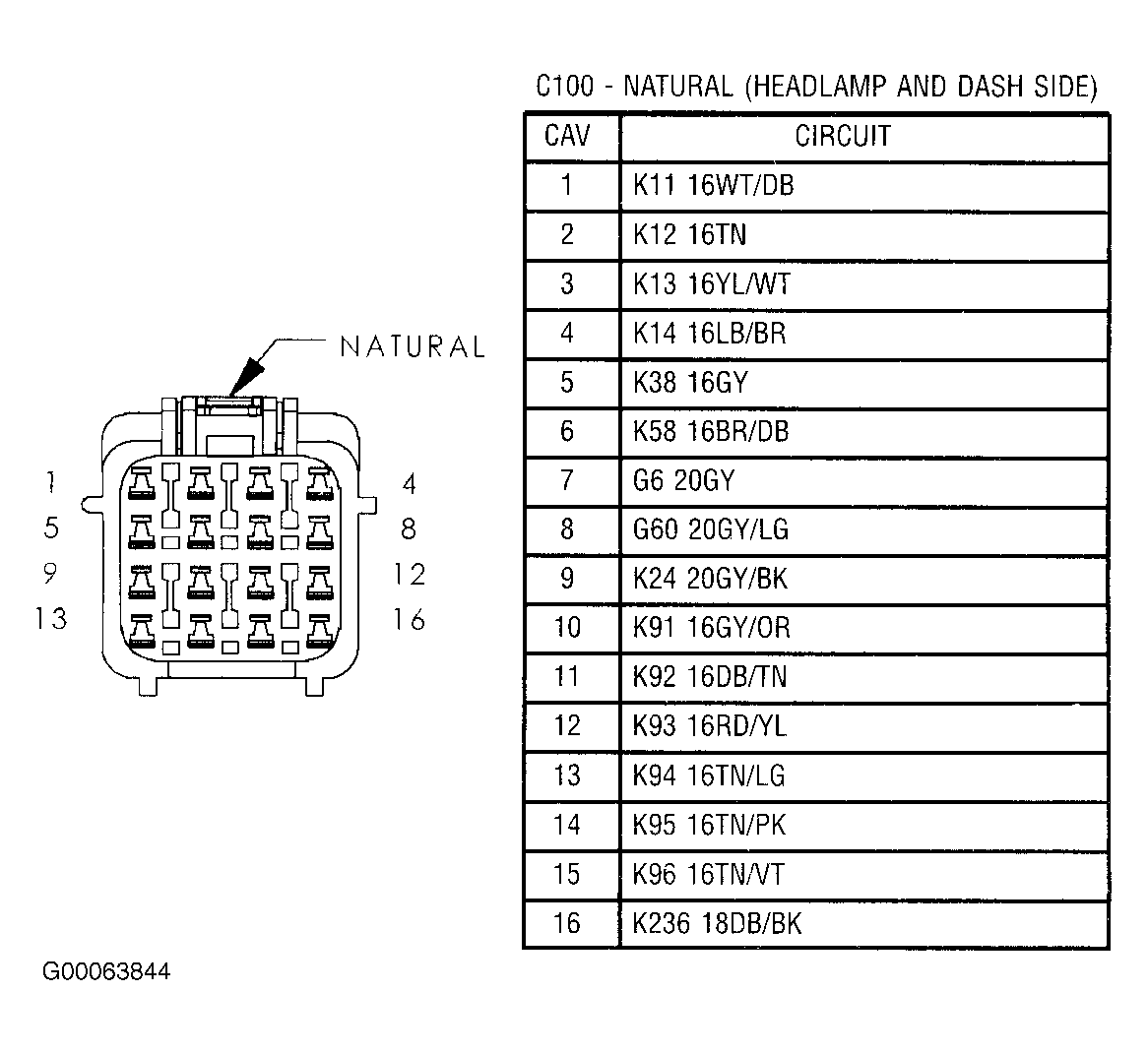

Fig 19: C100 - Natural (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

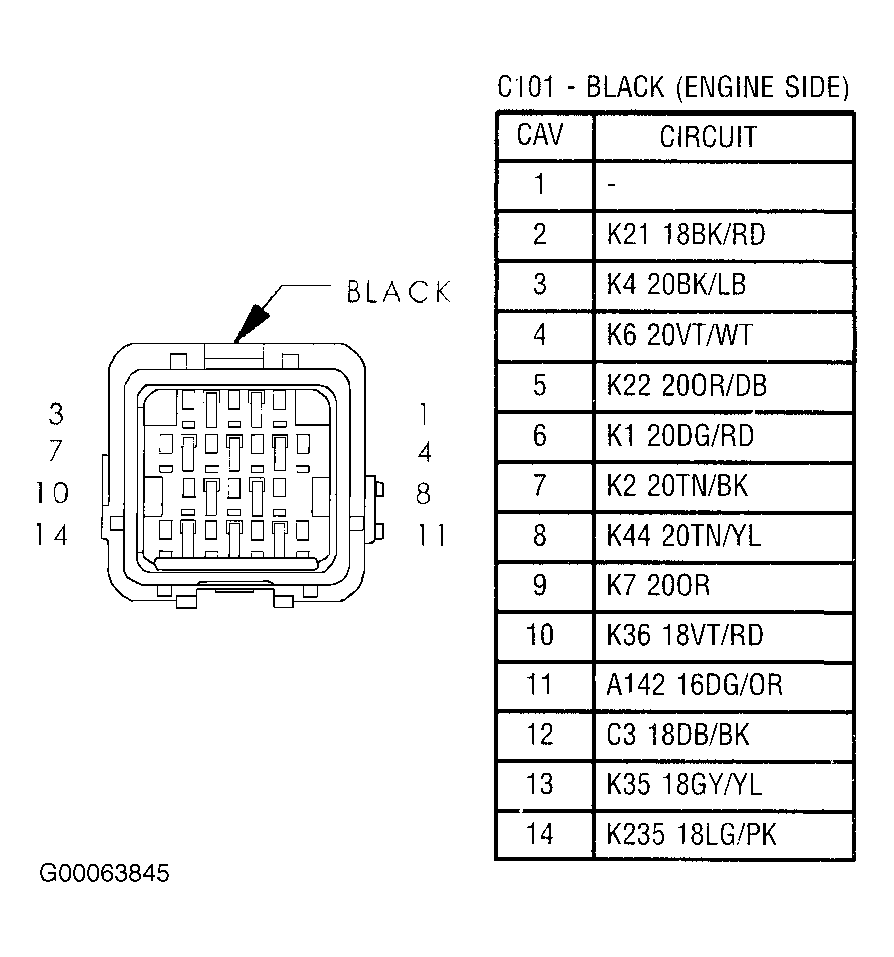

Fig 20: C101 - Black (Engine Side)
Courtesy of CHRYSLER CORP.

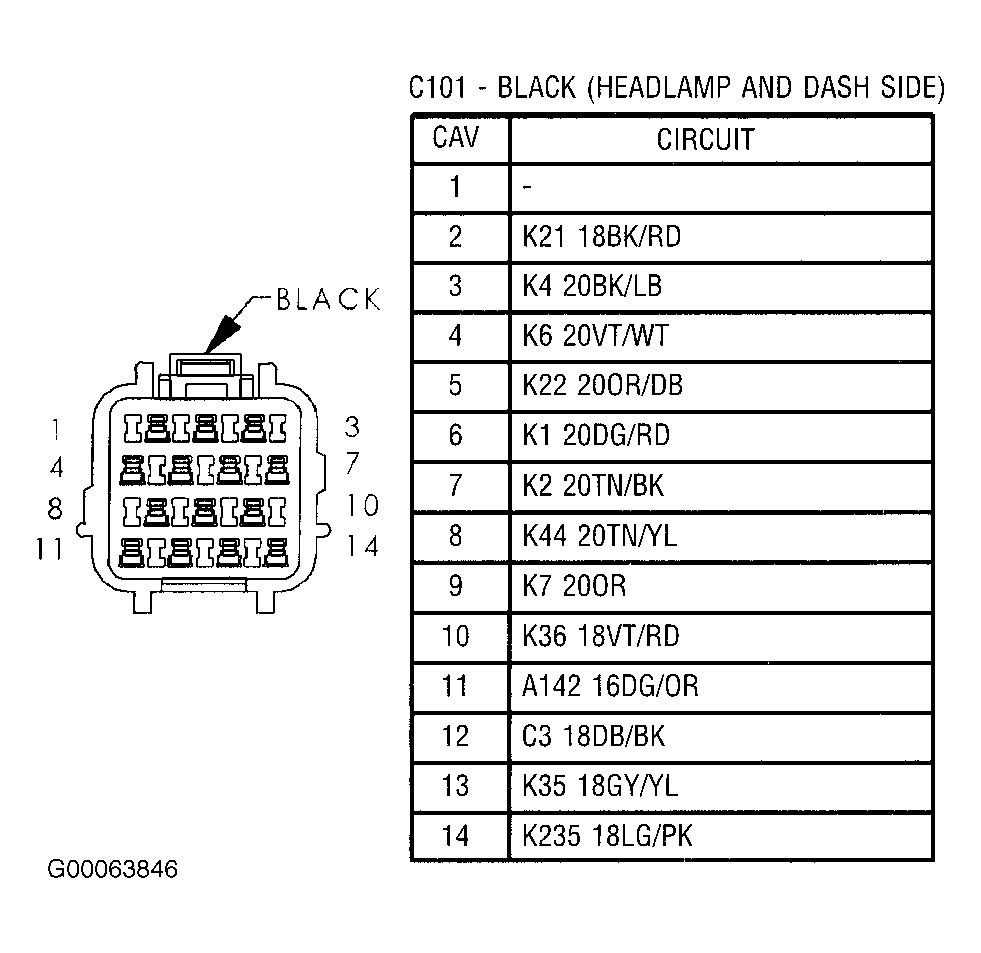

Fig 21: C101 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

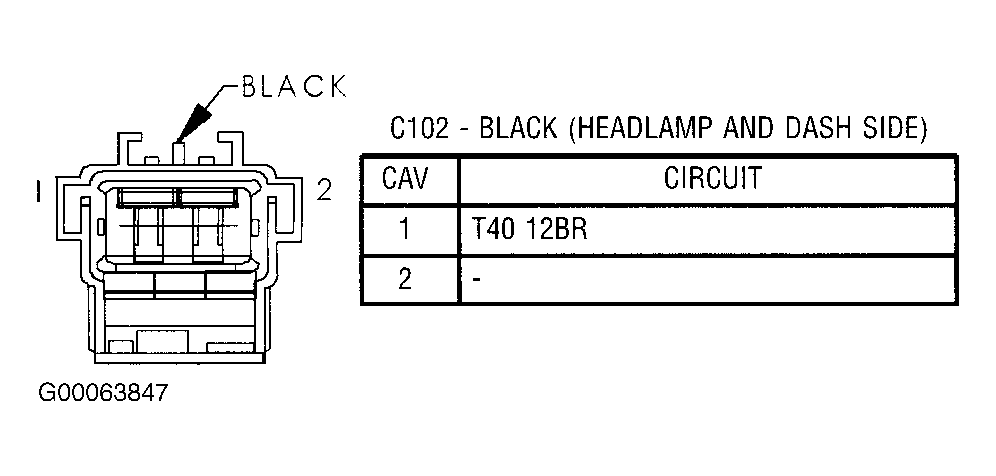

Fig 22: C102 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

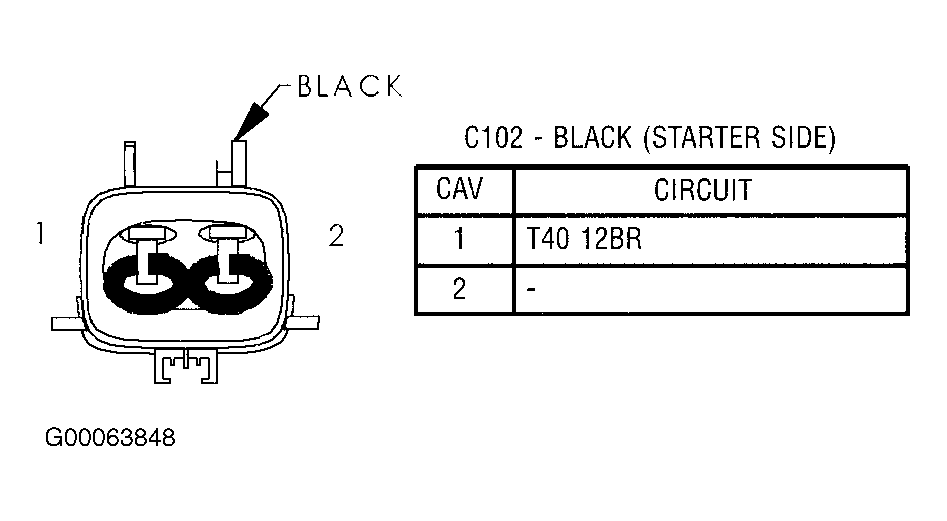

Fig 23: C102 - Black (Starter Side)
Courtesy of CHRYSLER CORP.

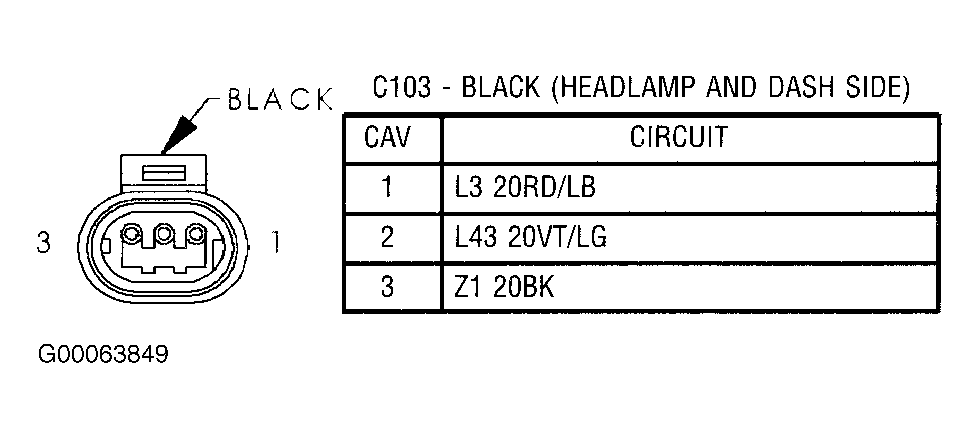

Fig 24: C103 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

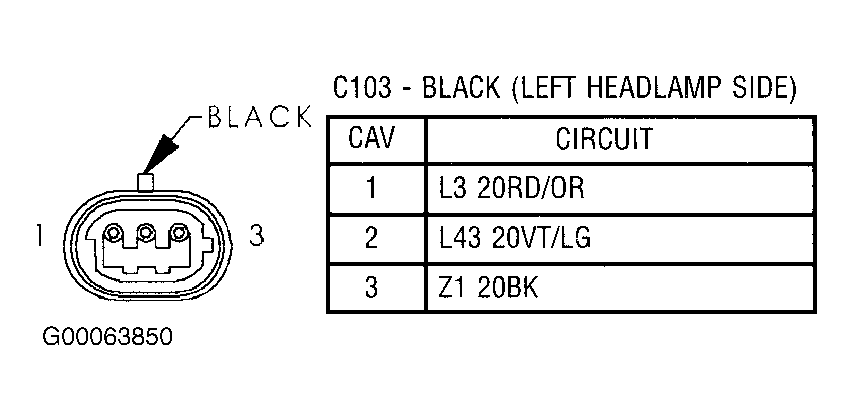

Fig 25: C103 - Black (Left Headlamp Side)
Courtesy of CHRYSLER CORP.

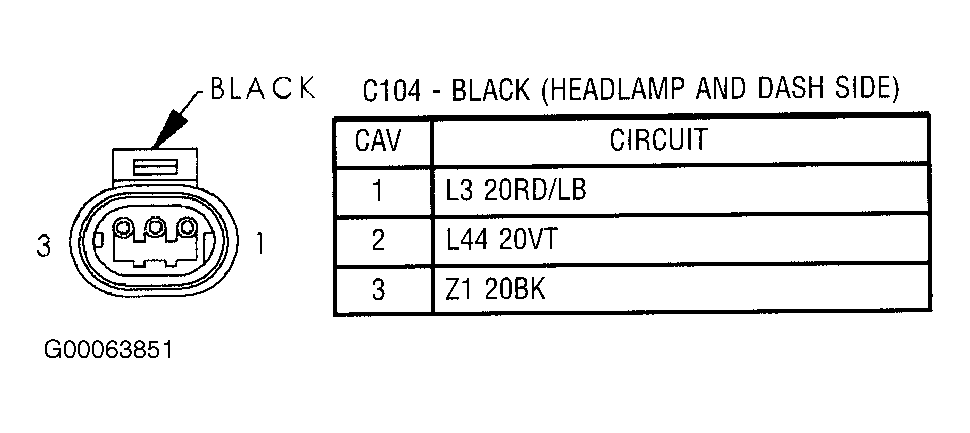

Fig 26: C104 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

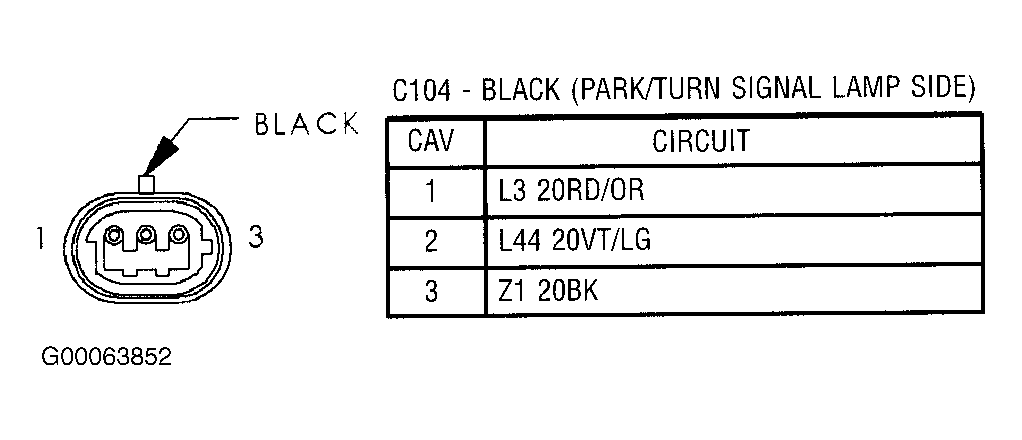

Fig 27: C104 - Black (Park/Turn Signal Lamp Side)
Courtesy of CHRYSLER CORP.

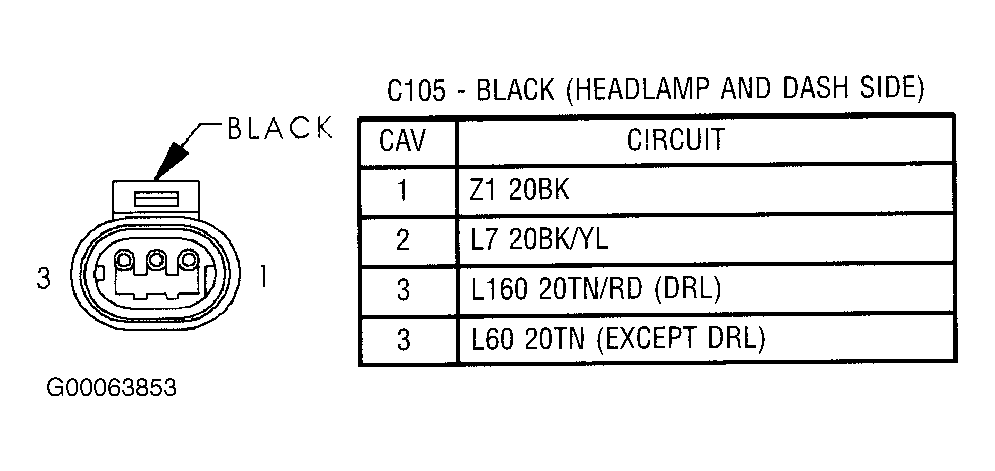

Fig 28: C105 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

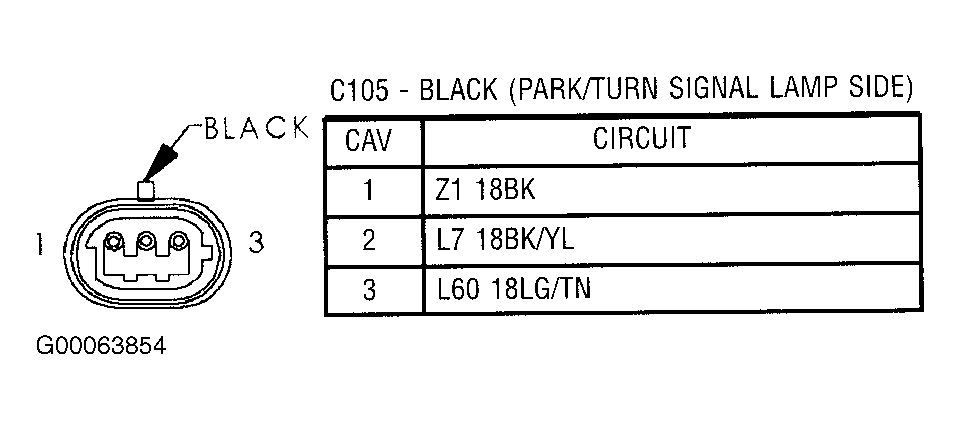

Fig 29: C105 - Black (Park/Turn Signal Lamp Side)
Courtesy of CHRYSLER CORP.

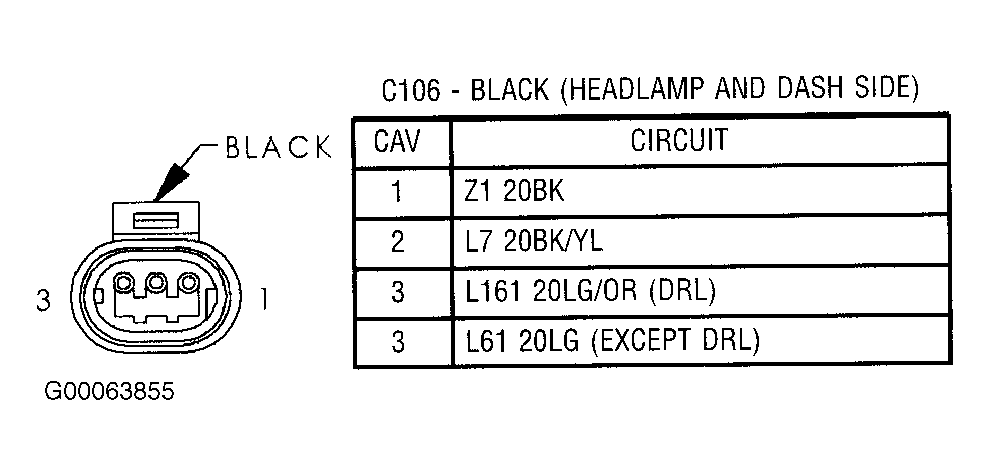

Fig 30: C106 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

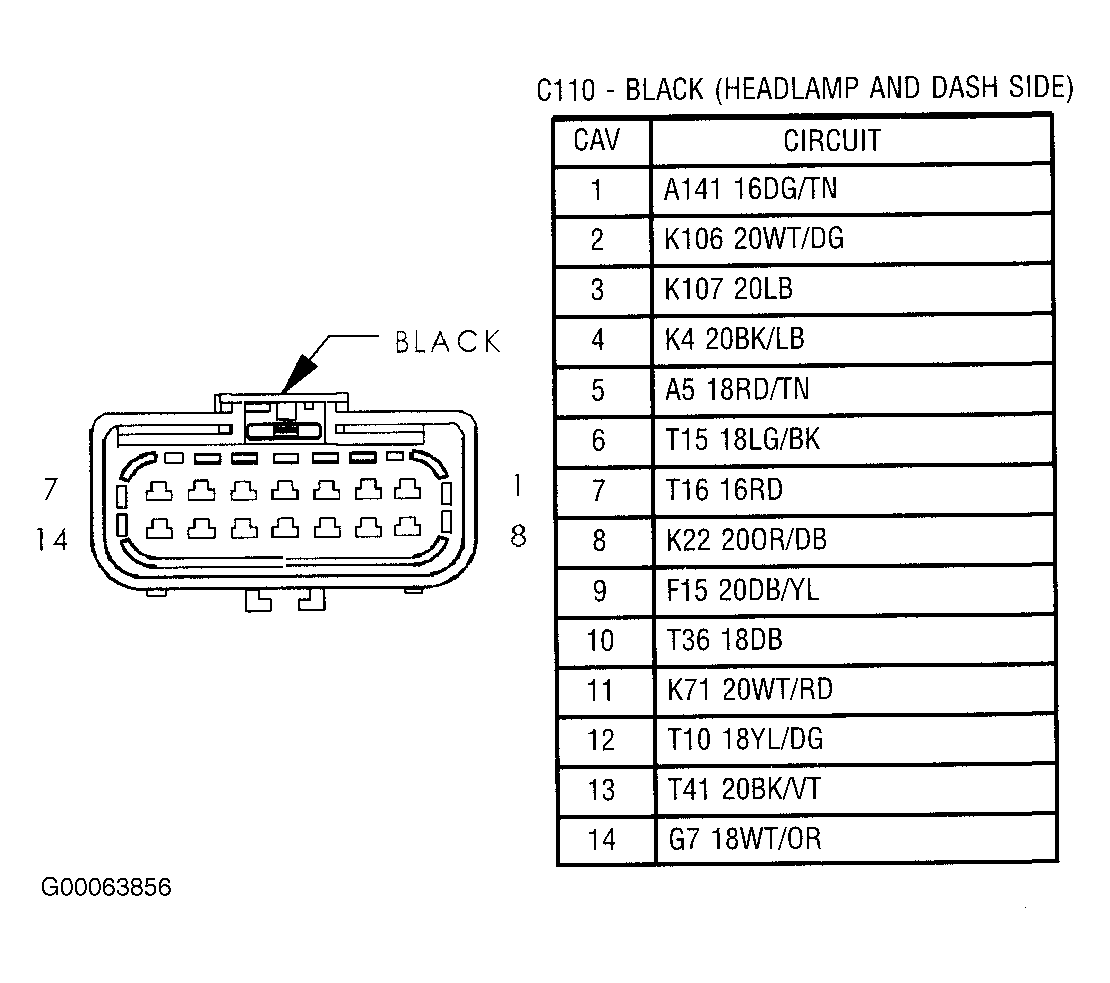

Fig 31: C110 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

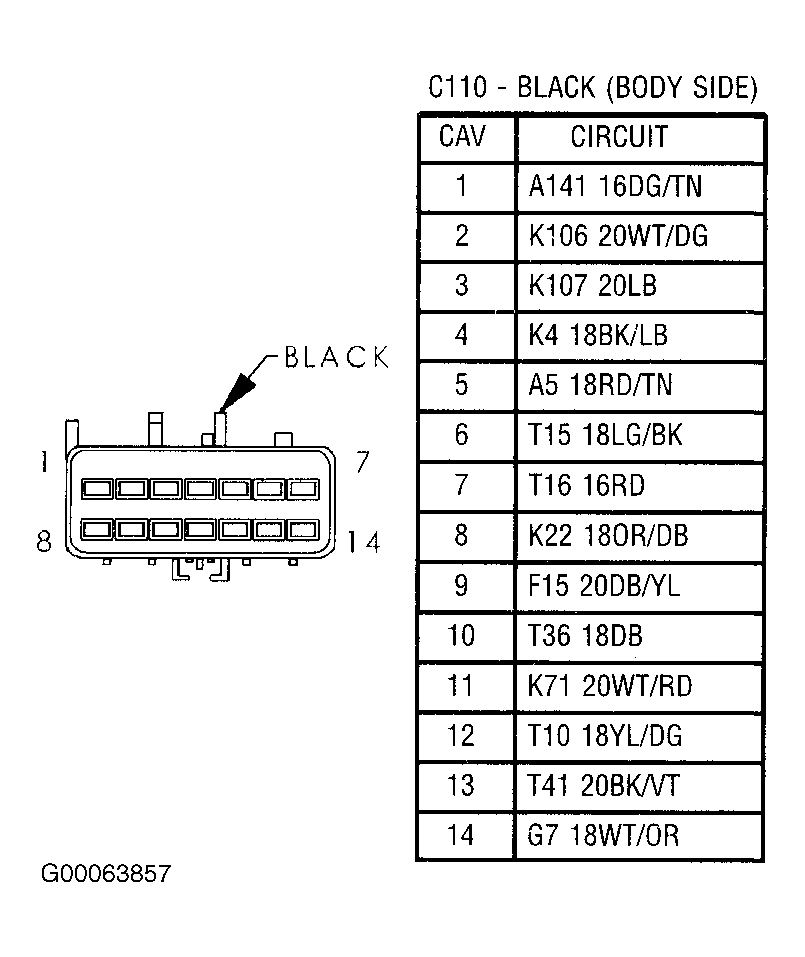

Fig 32: C110 - Black (Body Side)
Courtesy of CHRYSLER CORP.

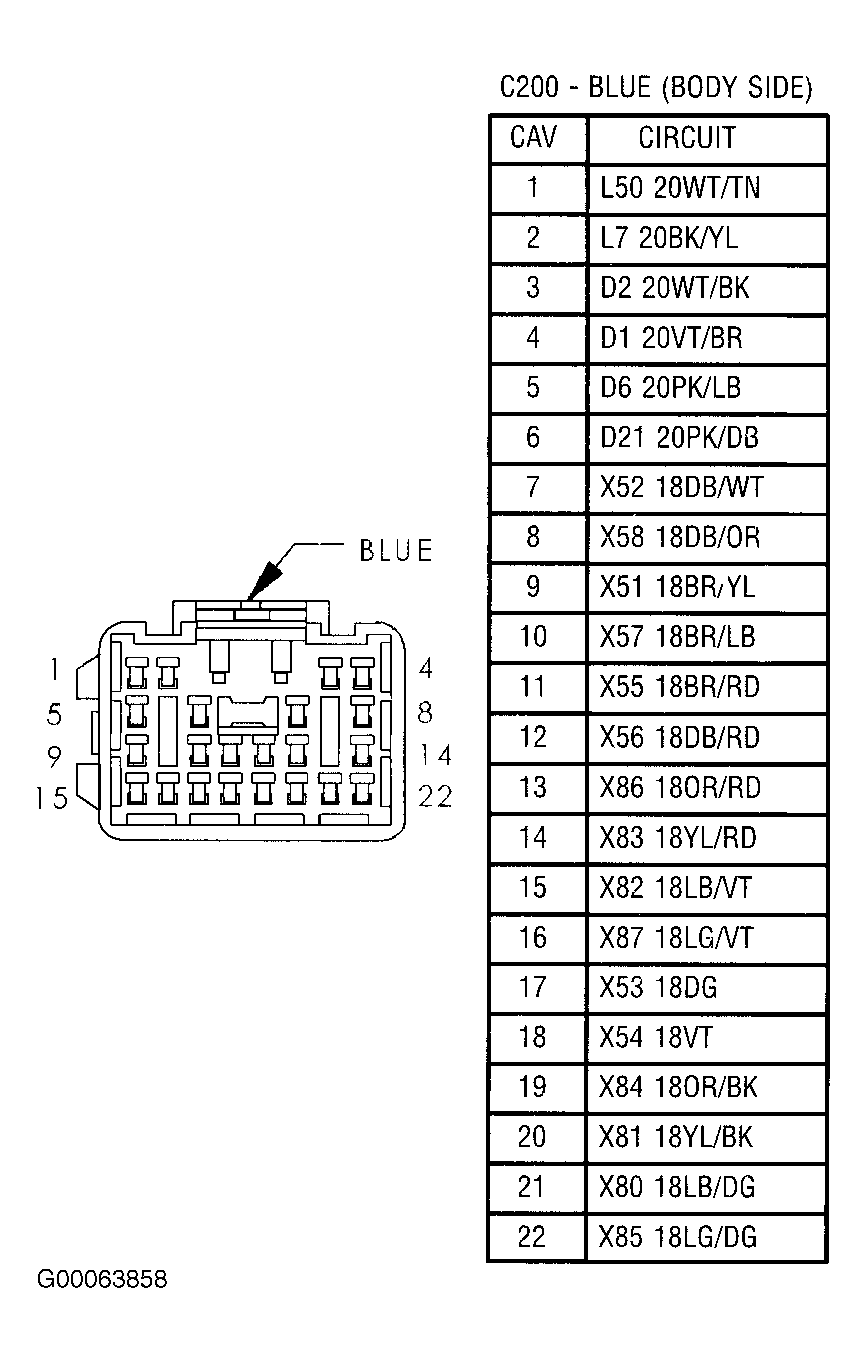

Fig 33: C200 - Blue (Body Side)
Courtesy of CHRYSLER CORP.

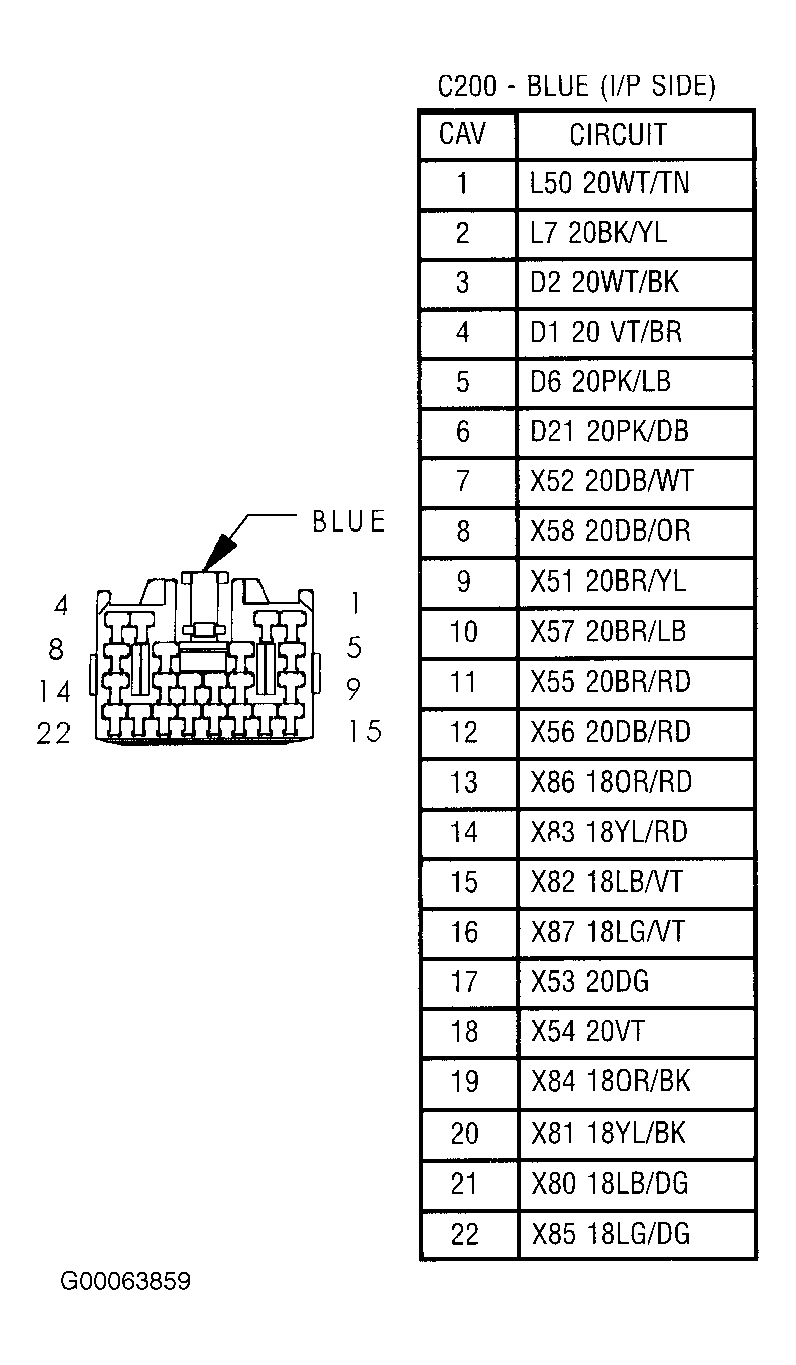

Fig 34: C200 - Blue (I/P Side)
Courtesy of CHRYSLER CORP.

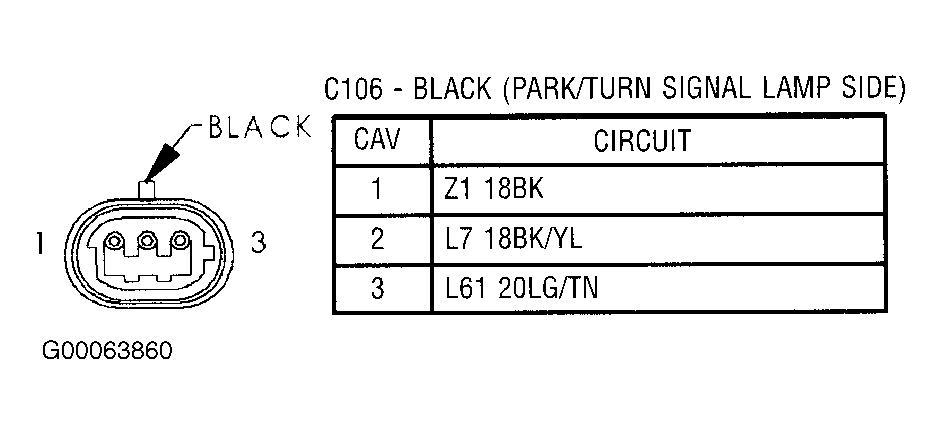

Fig 35: C106 - Black (Park/Turn Signal Lamp Side)
Courtesy of CHRYSLER CORP.

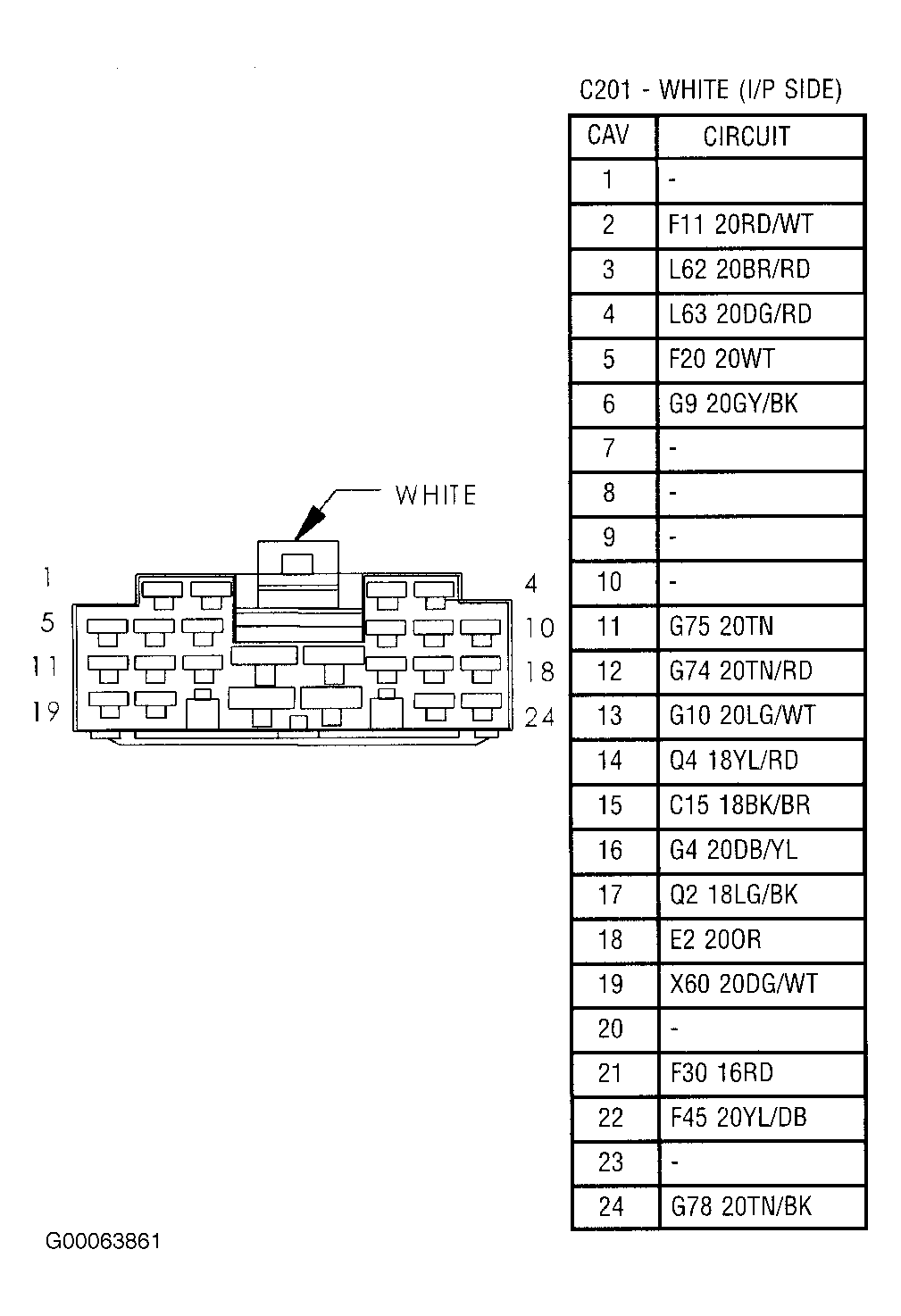

Fig 36: C201 - White (I/P Side)
Courtesy of CHRYSLER CORP.

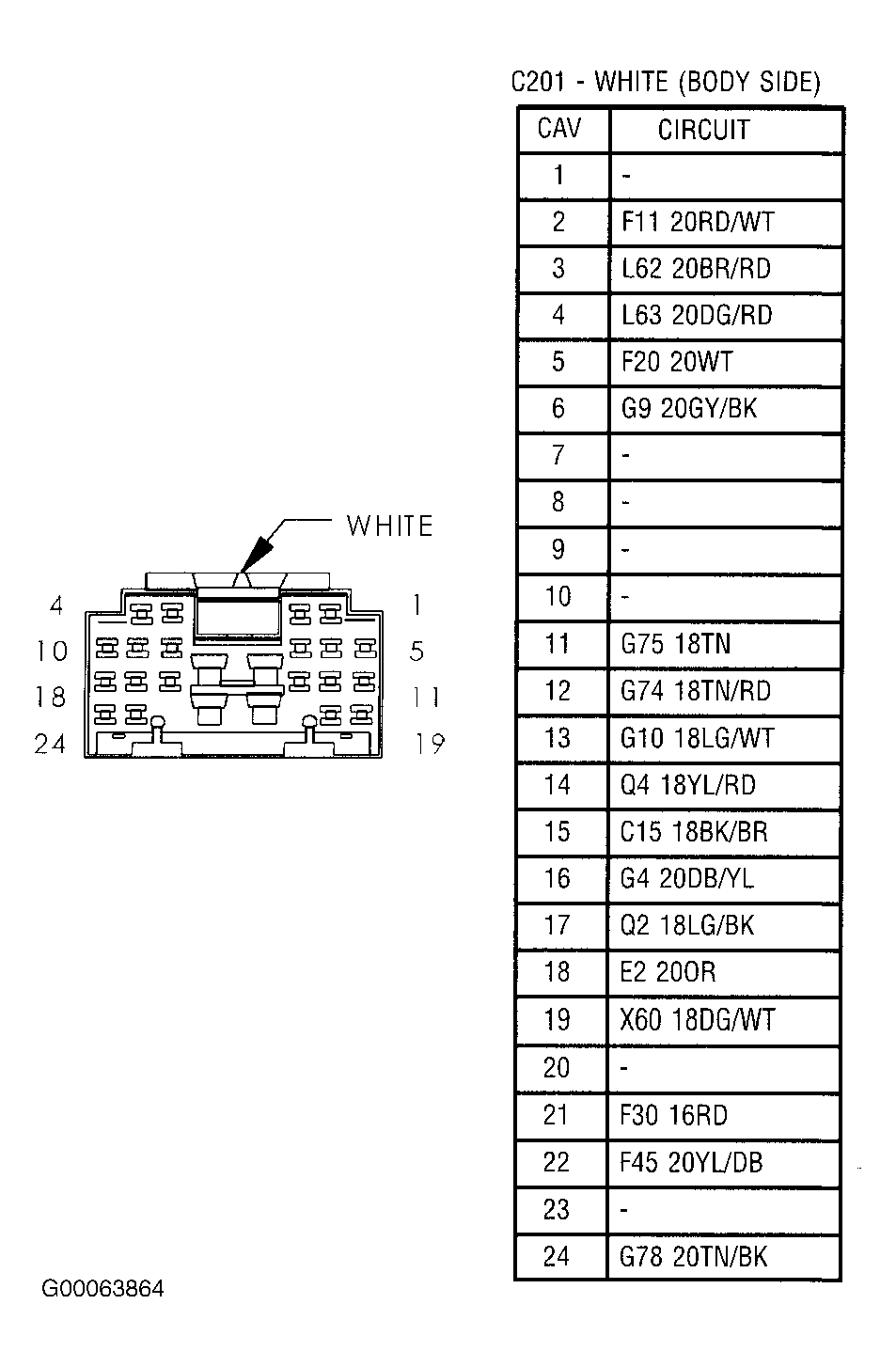

Fig 37: C201 - White (Body Side)
Courtesy of CHRYSLER CORP.

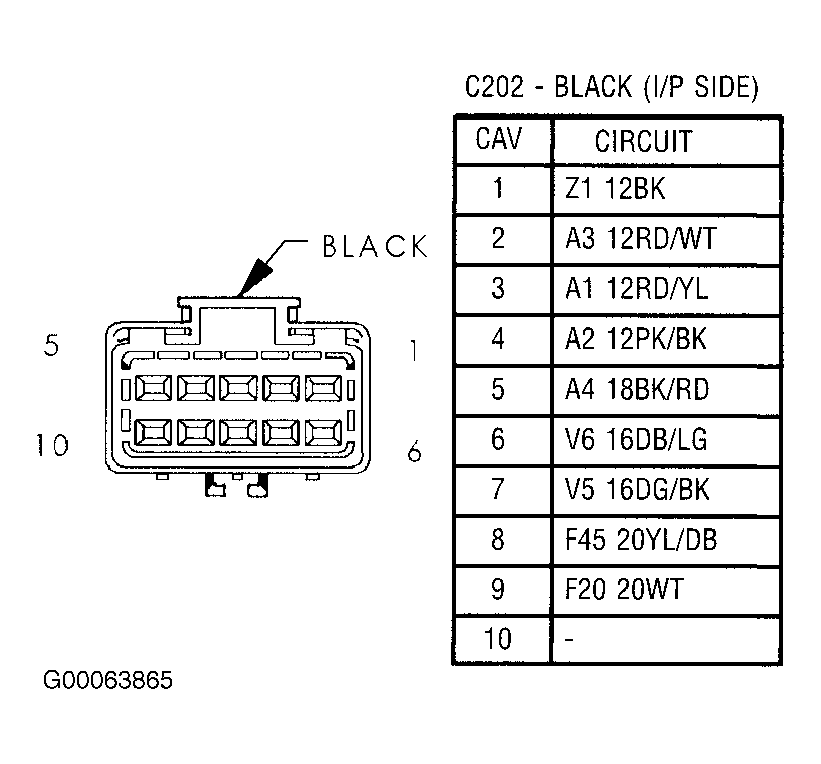

Fig 38: C202 - Black (I/P Side)
Courtesy of CHRYSLER CORP.

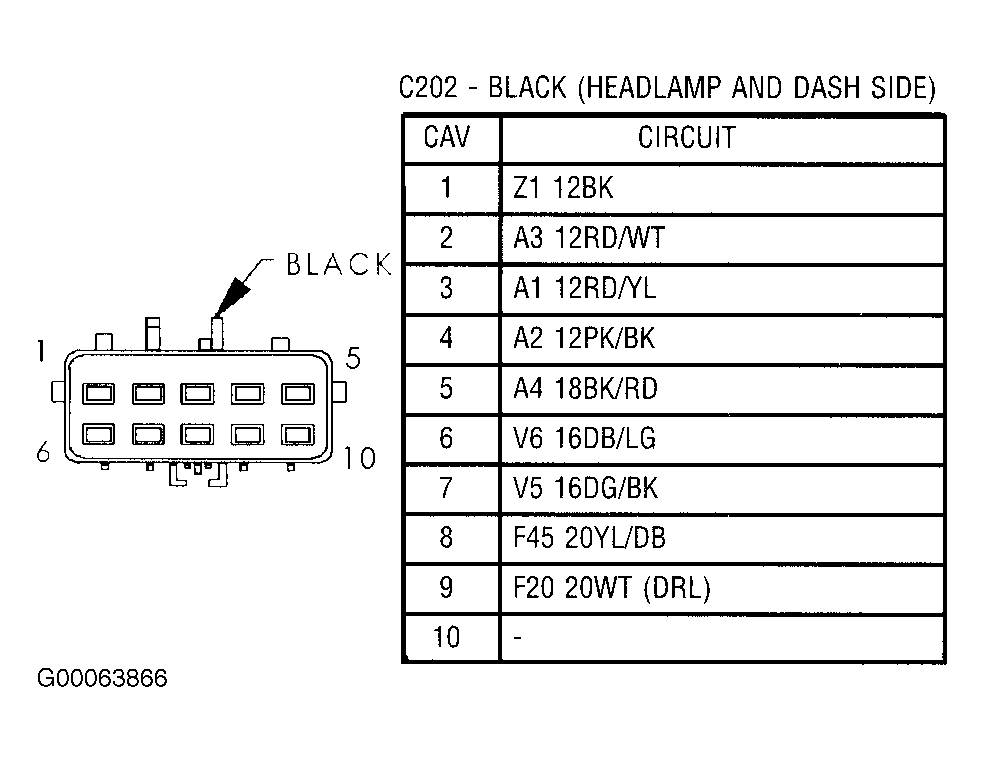

Fig 39: C202 - Black (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

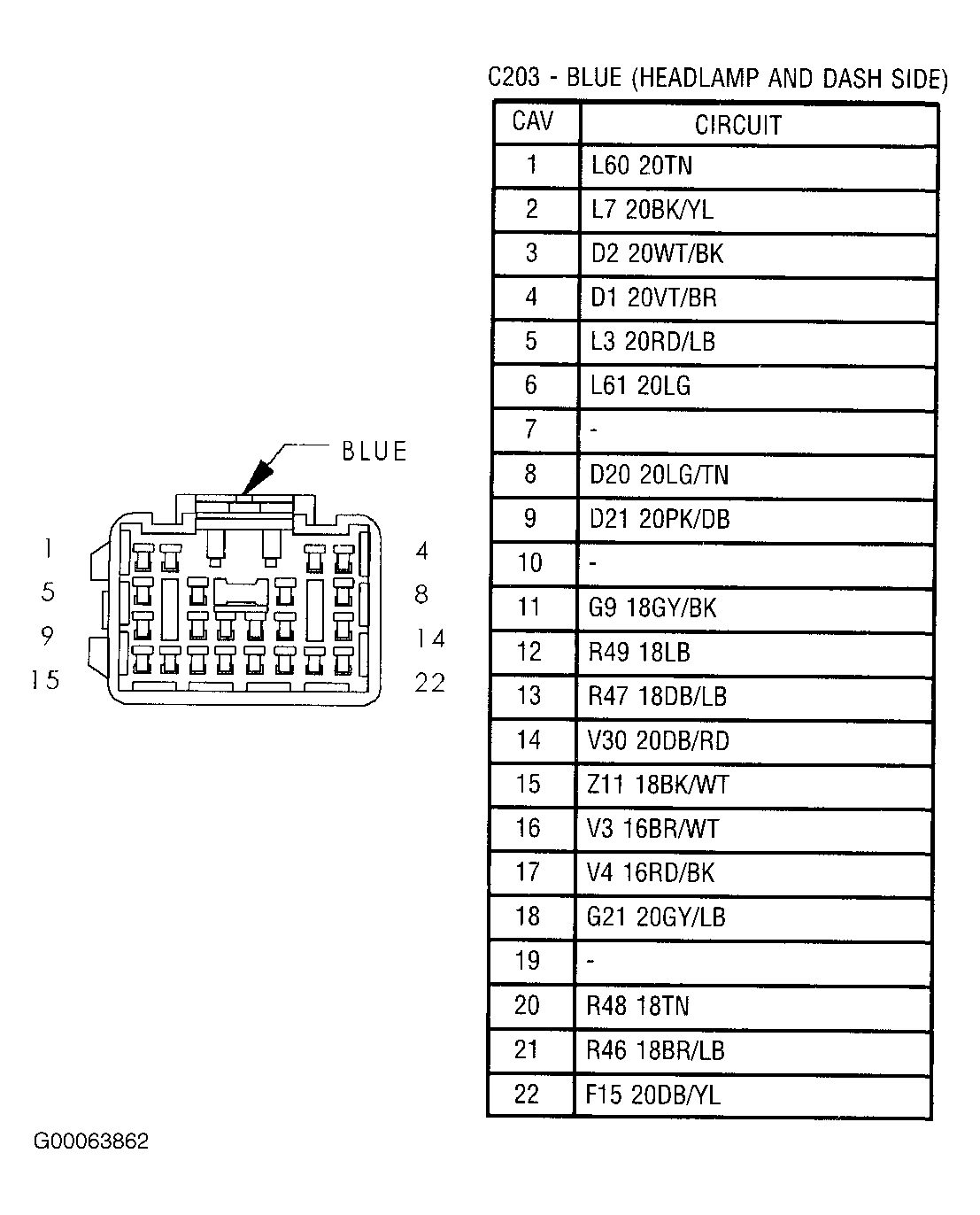

Fig 40: C203 - Blue (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

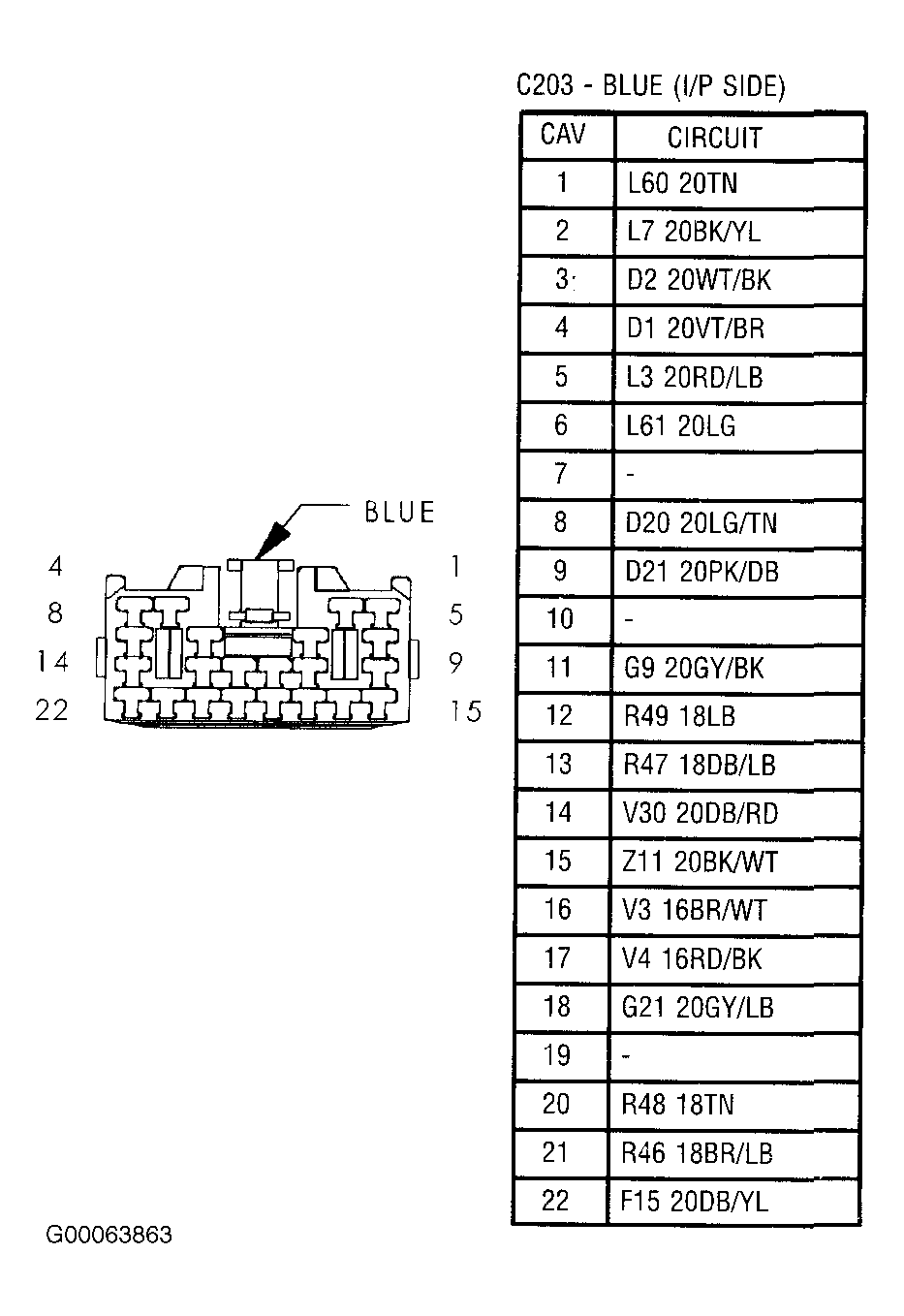

Fig 41: C203 - Blue (I/P Side)
Courtesy of CHRYSLER CORP.

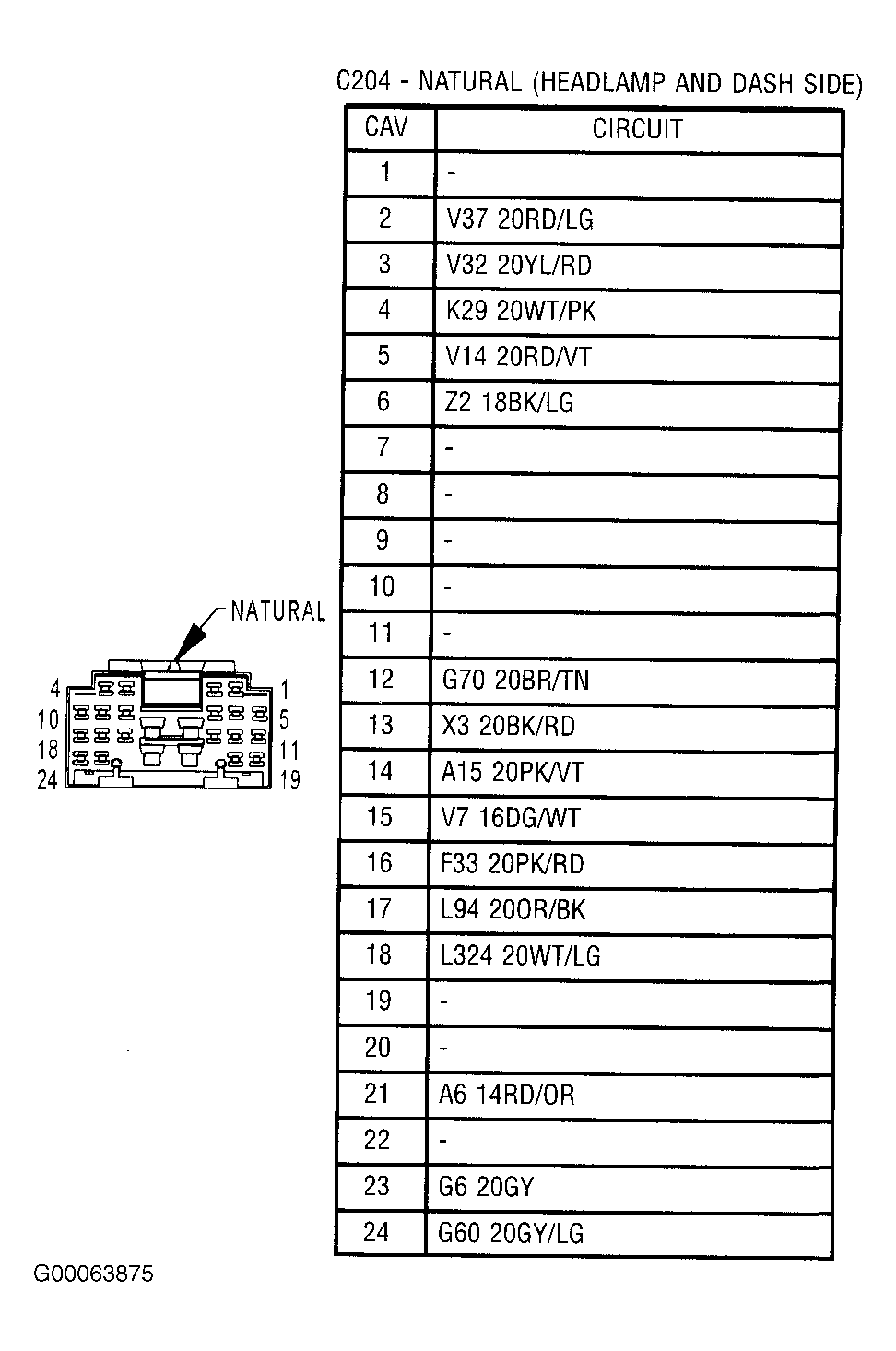

Fig 42: C204 - Natural (Headlamp & Dash Side)
Courtesy of CHRYSLER CORP.

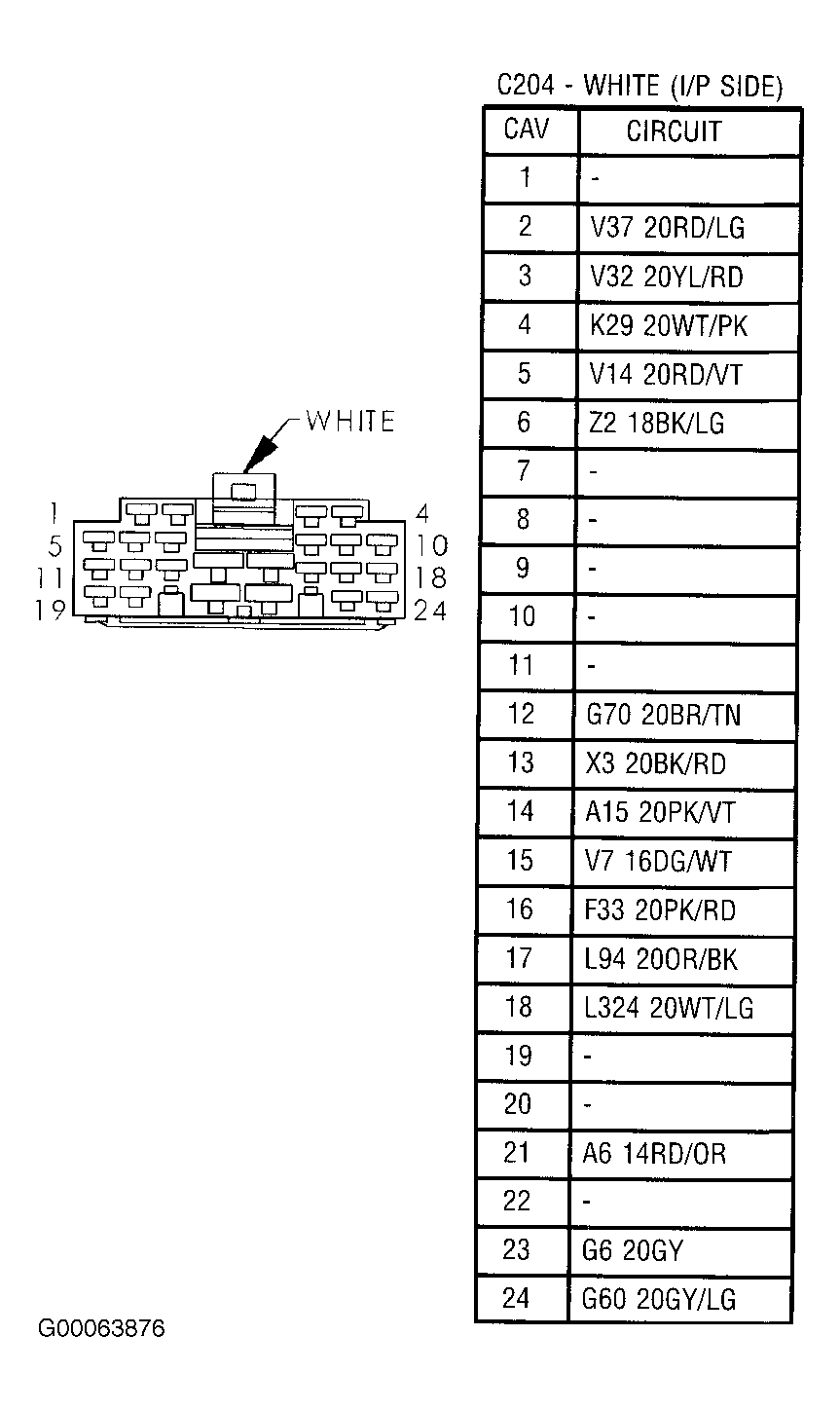

Fig 43: C204 - White (I/P Side)
Courtesy of CHRYSLER CORP.

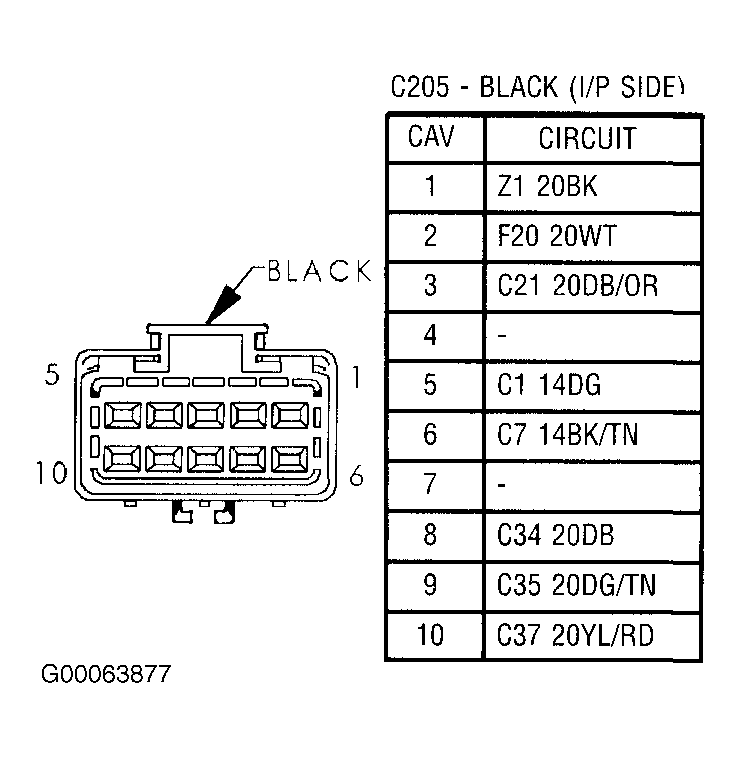

Fig 44: C205 - Black (I/P Side)
Courtesy of CHRYSLER CORP.

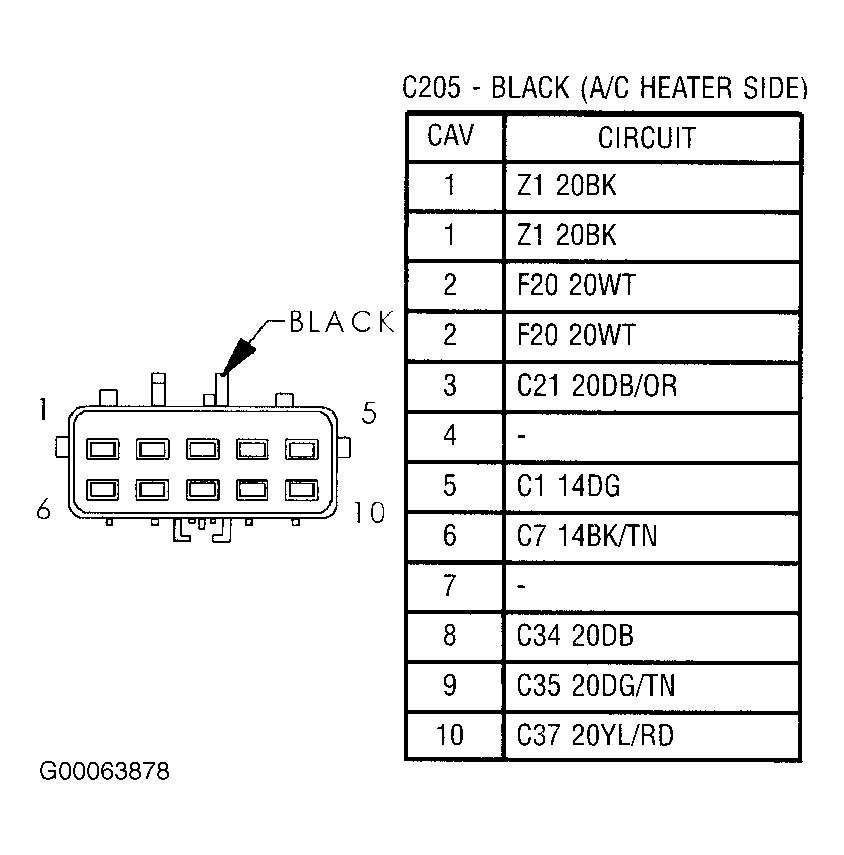

Fig 45: C205 - Black (A/C Heater Side)
Courtesy of CHRYSLER CORP.

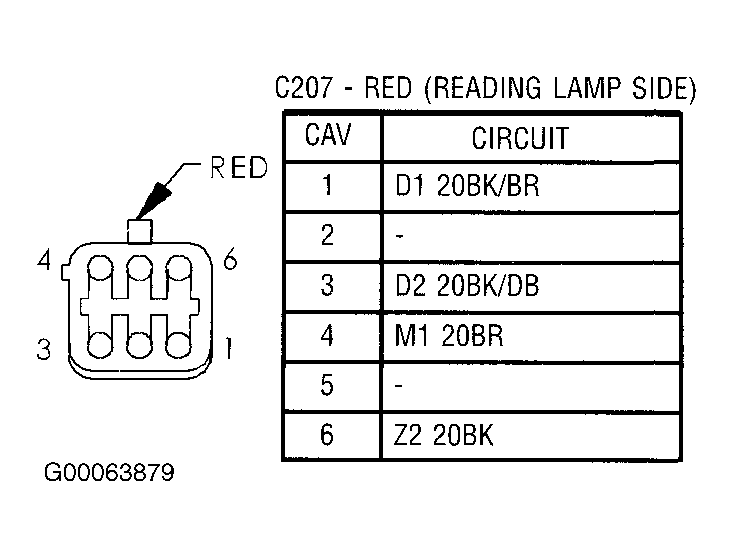

Fig 46: C207 - Red (Reading Lamp Side)
Courtesy of CHRYSLER CORP.

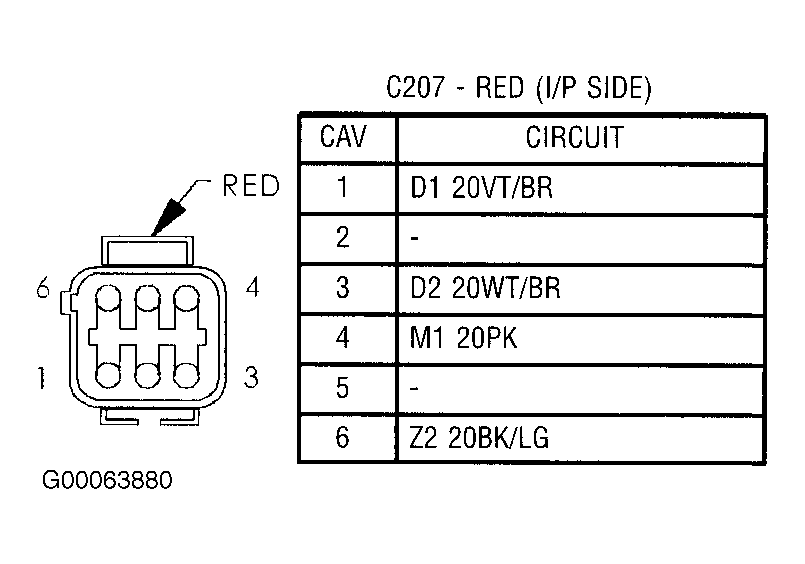

Fig 47: C207 - Red (I/P Side)
Courtesy of CHRYSLER CORP.

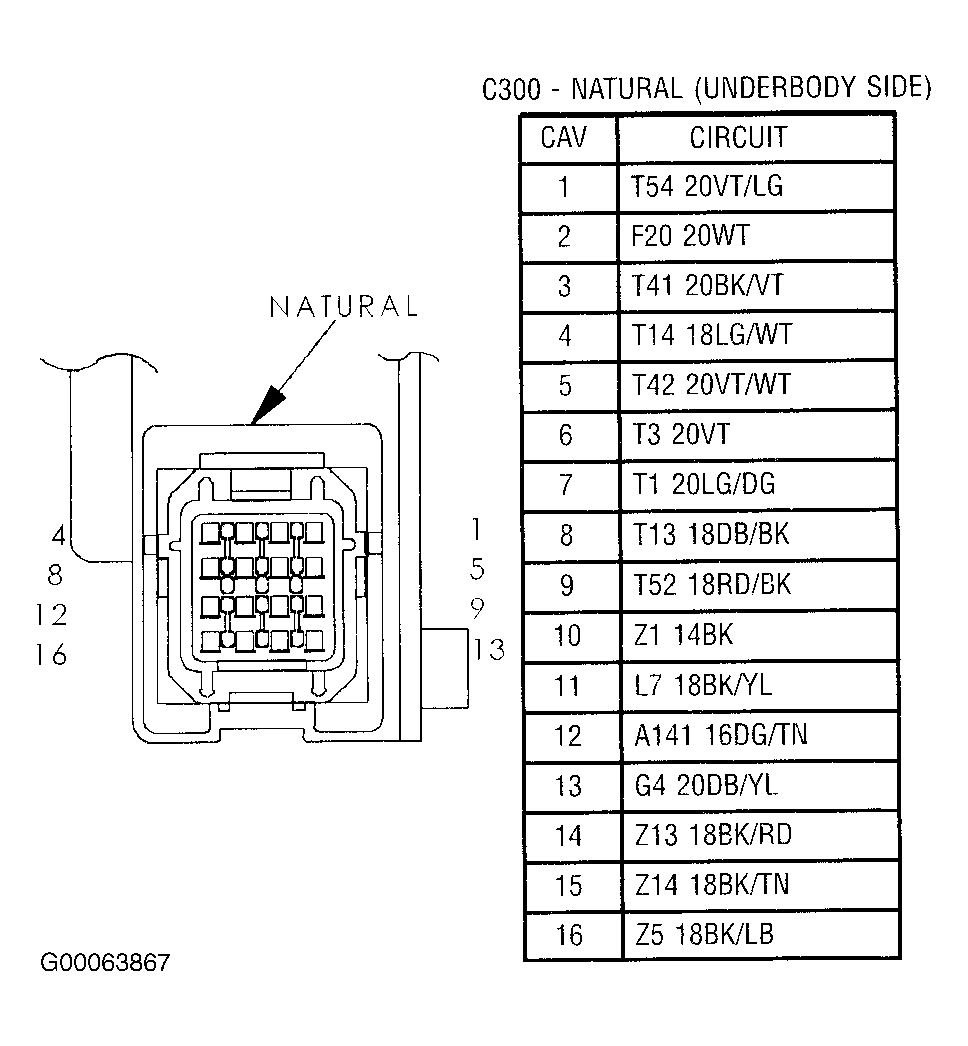

Fig 48: C300 - Natural (Underbody Side)
Courtesy of CHRYSLER CORP.

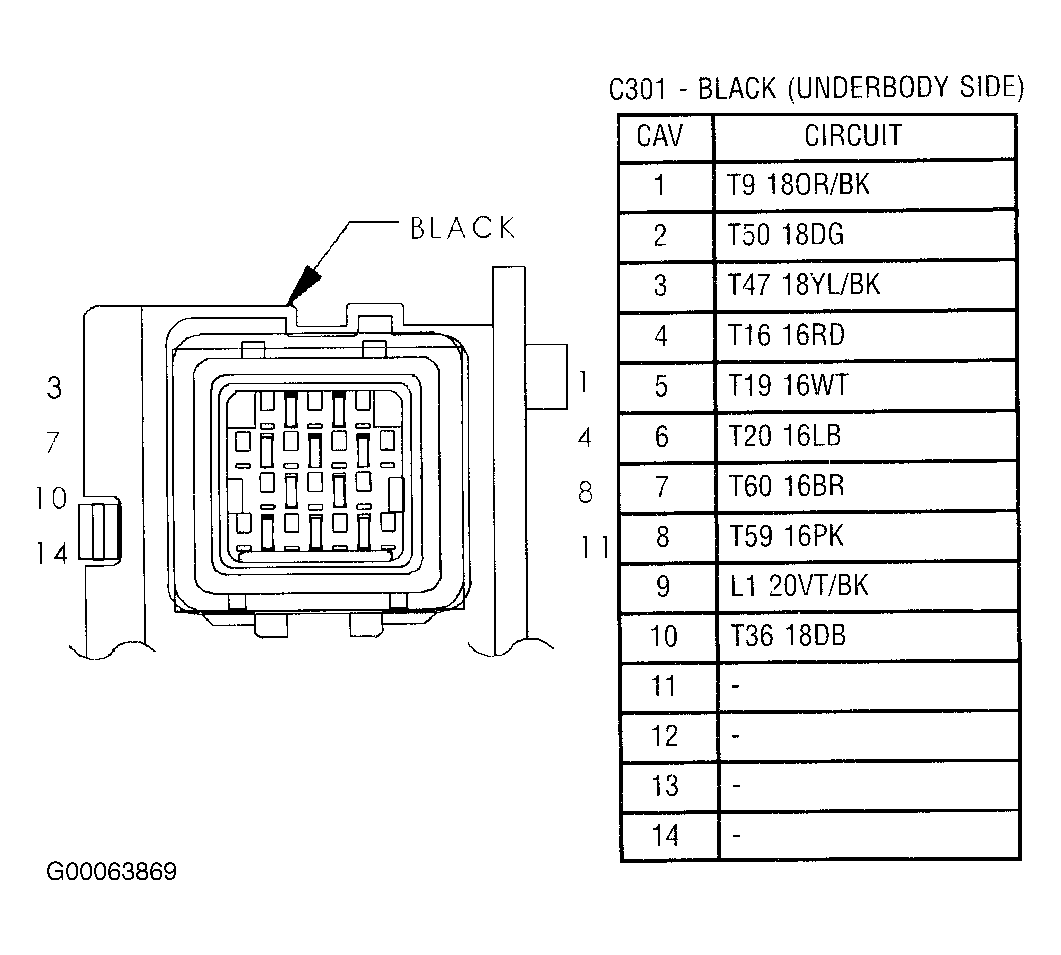

Fig 49: C301 - Natural (Underbody Side)
Courtesy of CHRYSLER CORP.

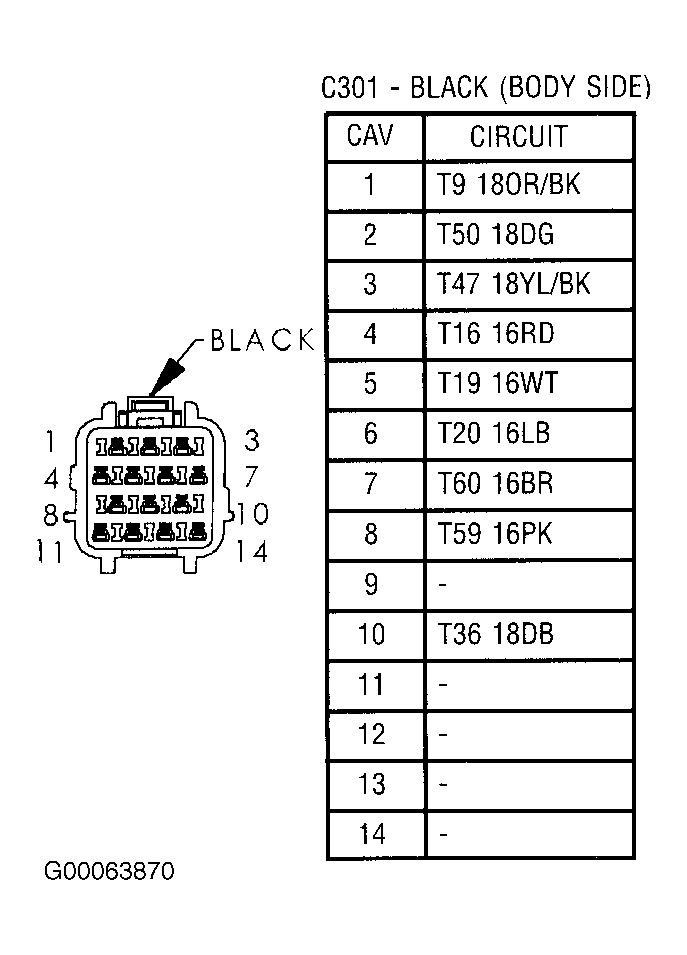

Fig 50: C301 - Black (Body Side)
Courtesy of CHRYSLER CORP.

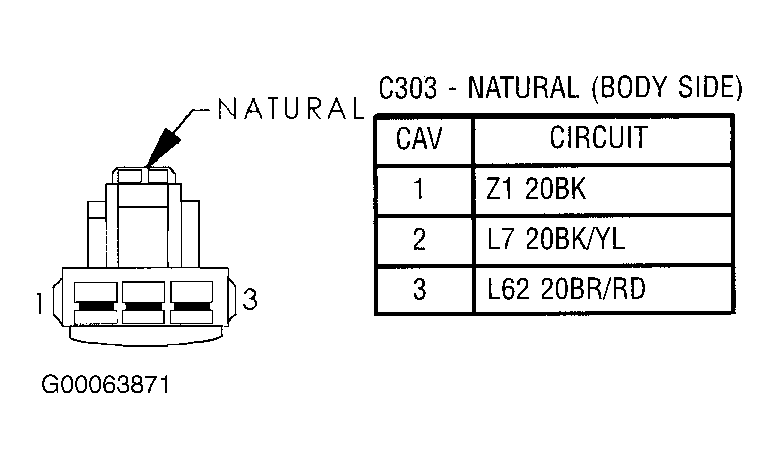

Fig 51: C303 - Natural (Body Side)
Courtesy of CHRYSLER CORP.

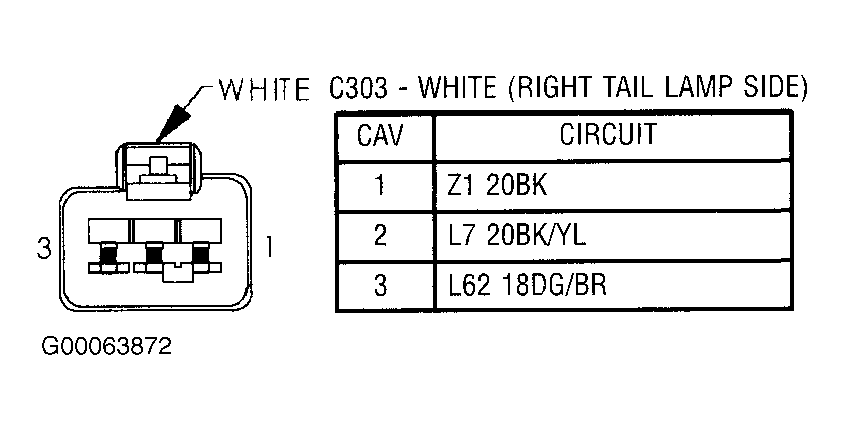

Fig 52: G303 - White (Right Tail Lamp Side)
Courtesy of CHRYSLER CORP.

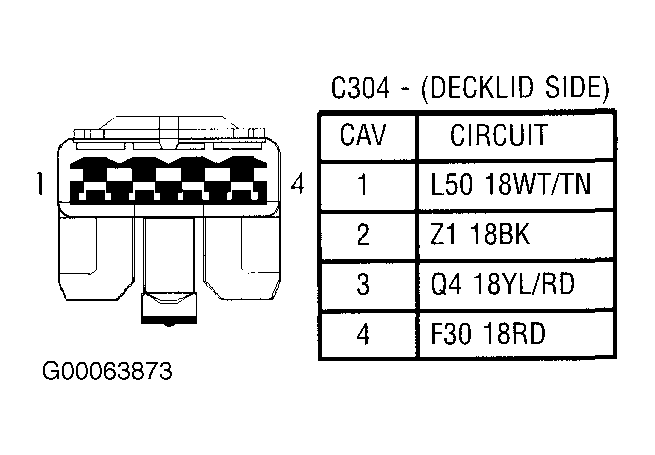

Fig 53: C304 - (Decklid Side)
Courtesy of CHRYSLER CORP.

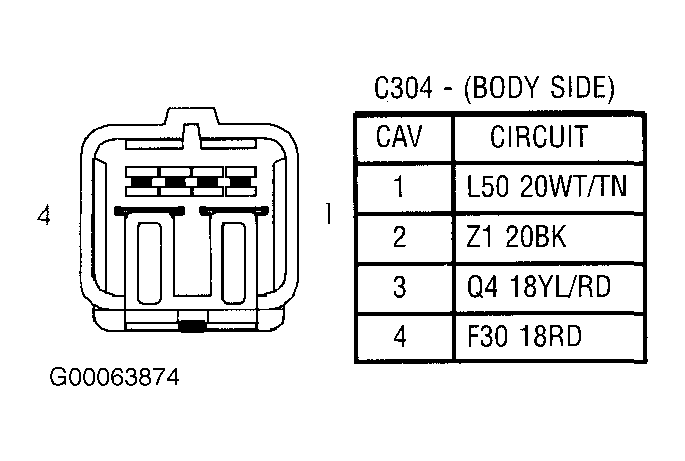

Fig 54: C304 - (Body Side)
Courtesy of CHRYSLER CORP.

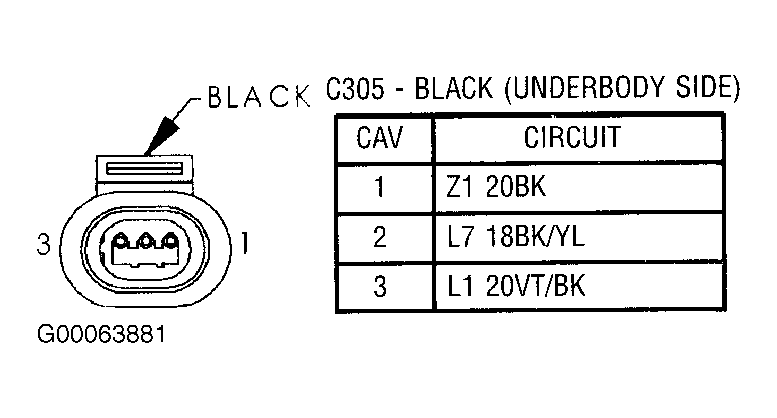

Fig 55: C305 - Black (Underbody Side)
Courtesy of CHRYSLER CORP.

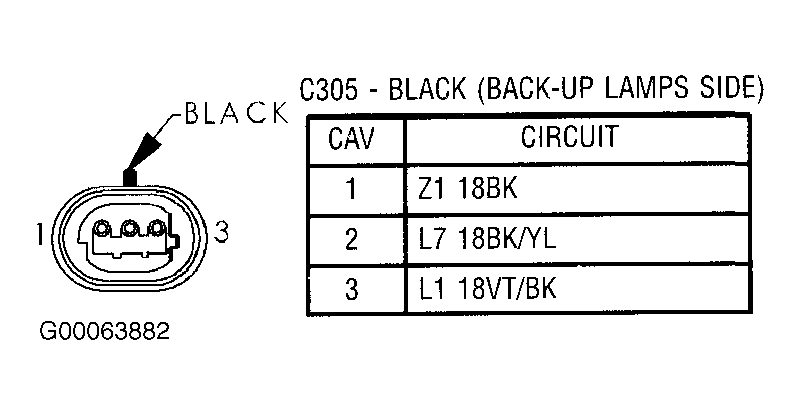

Fig 56: C305 - Black (Back-Up Lamp Side)
Courtesy of CHRYSLER CORP.

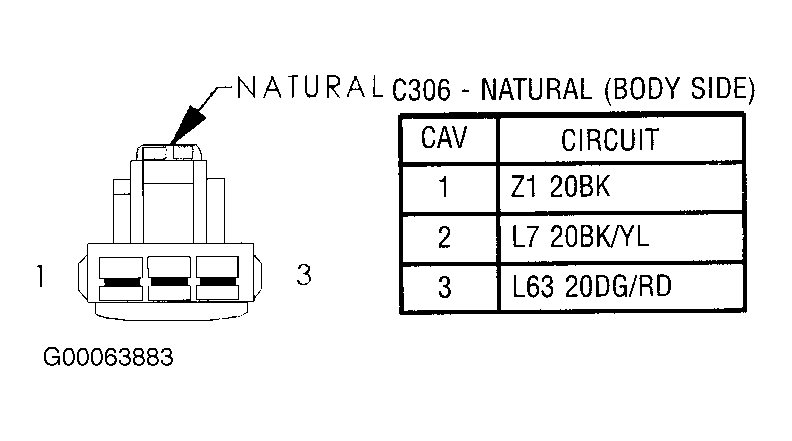

Fig 57: C306 - White (Body Side)
Courtesy of DAIMLERCHRYSLER CORP.

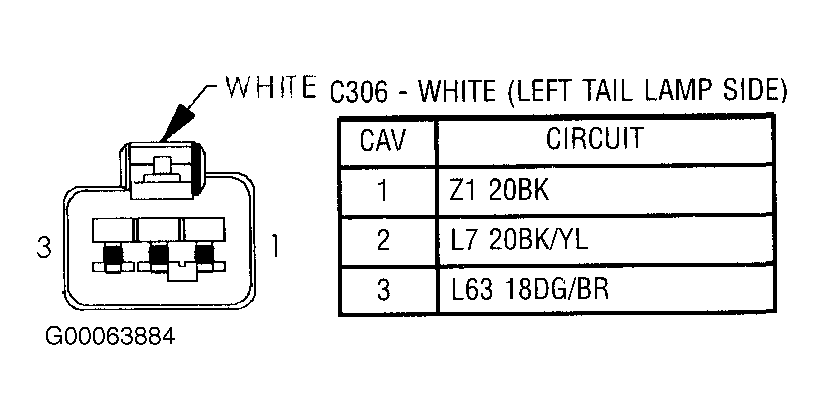

Fig 58: C306 - White (Left Tail Lamp Side)
Courtesy of CHRYSLER CORP.

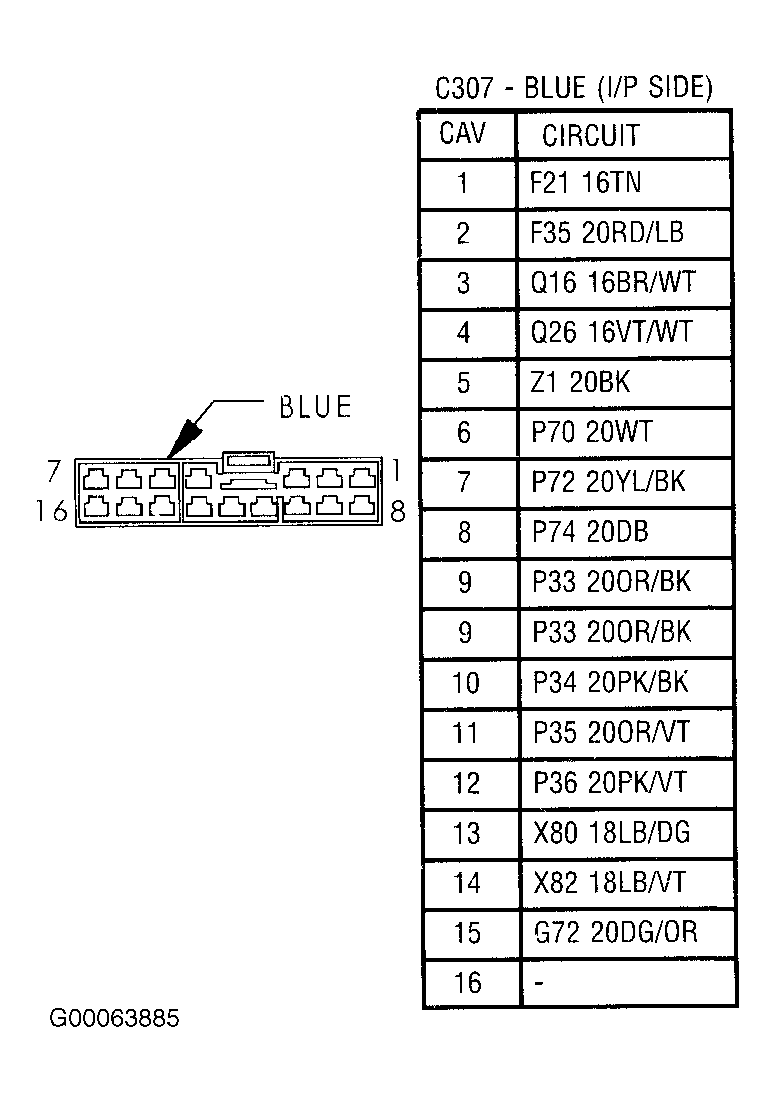

Fig 59: C307 - Blue (I/P Side)
Courtesy of CHRYSLER CORP.

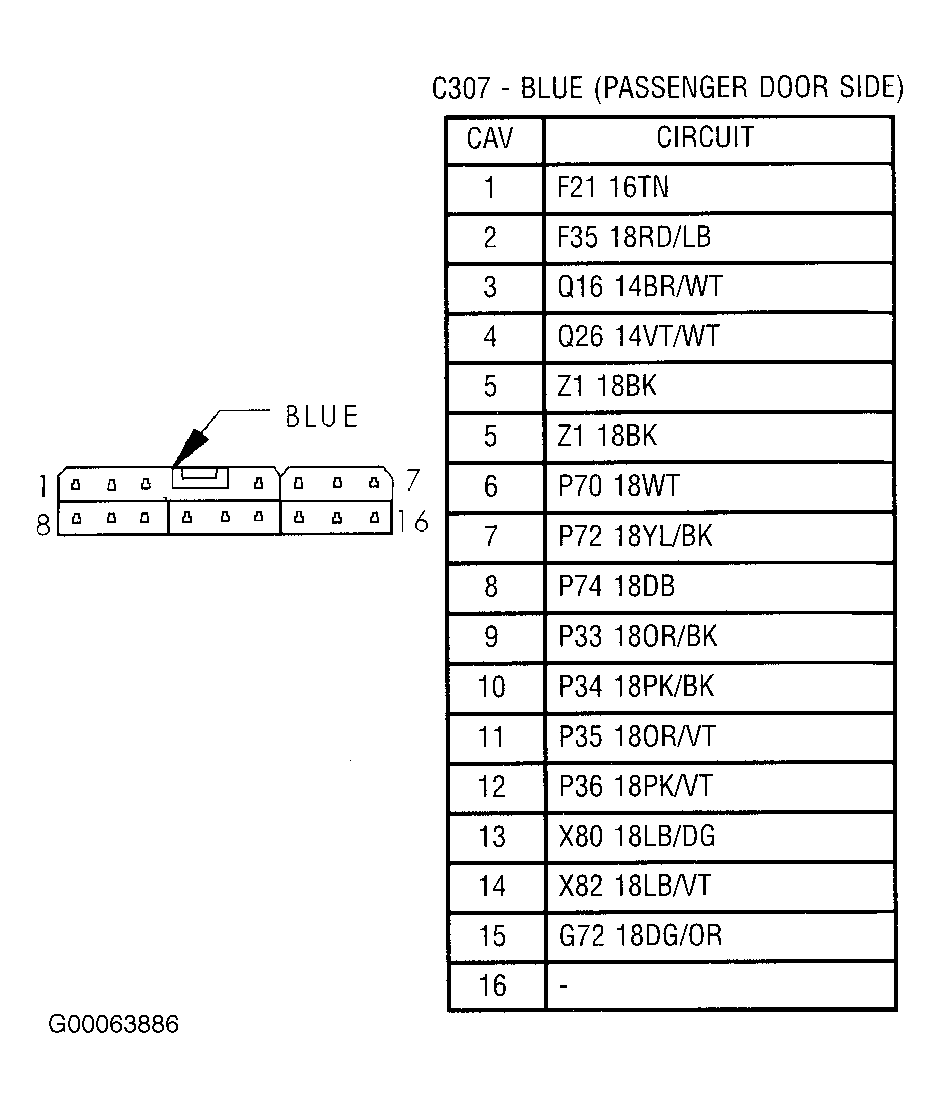

Fig 60: C307 - Blue (Passenger Door Side)
Courtesy of CHRYSLER CORP.

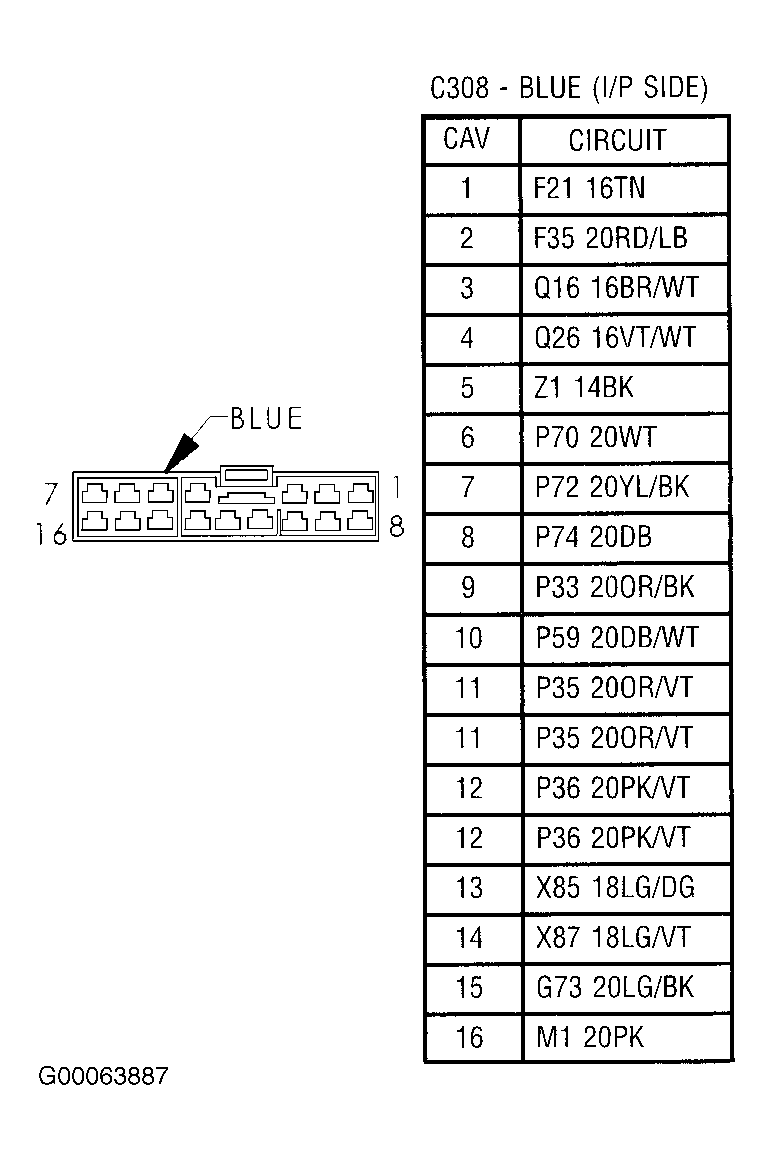

Fig 61: C308 - Blue (I/P Side)
Courtesy of CHRYSLER CORP.

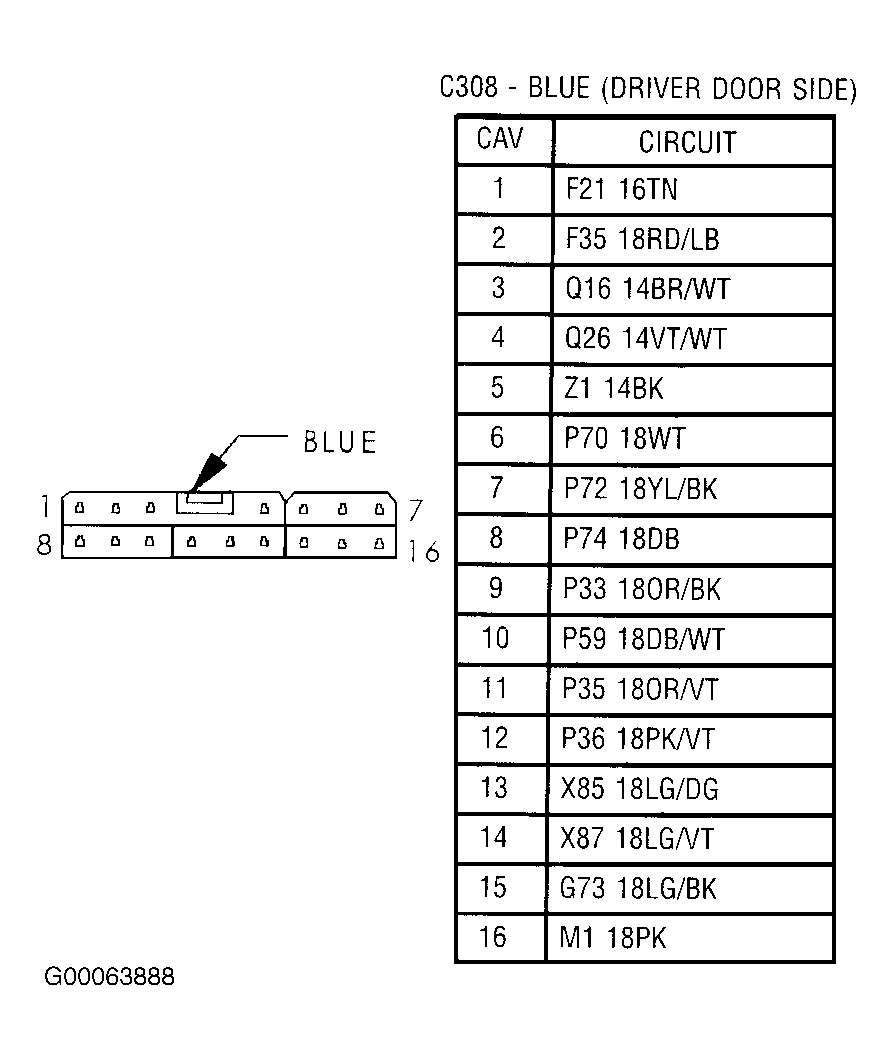

Fig 62: C308 - Blue (Driver Door Side)
Courtesy of CHRYSLER CORP.

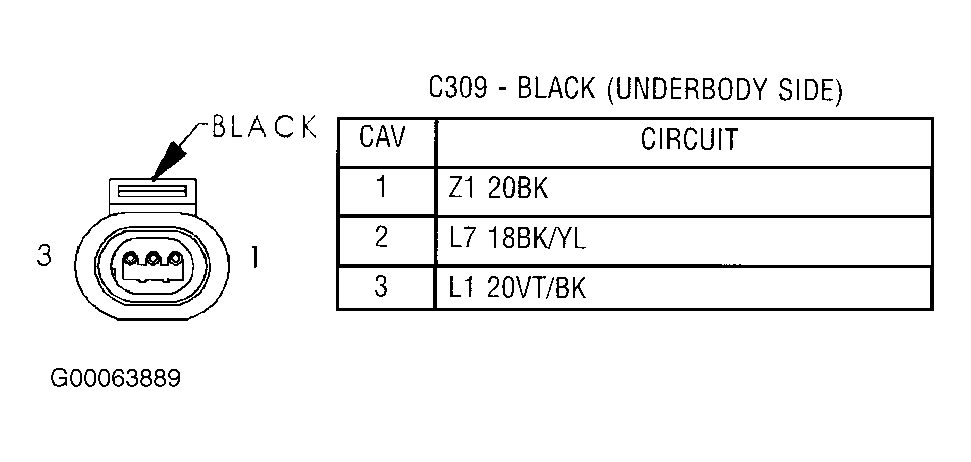

Fig 63: C309 - Black (Underbody Side)
Courtesy of CHRYSLER CORP.

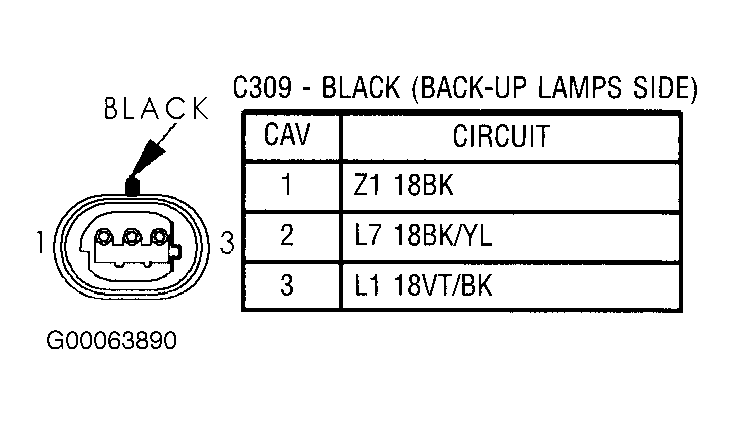

Fig 64: C309 - Black (Back-Up Lamps Side)
Courtesy of CHRYSLER CORP.

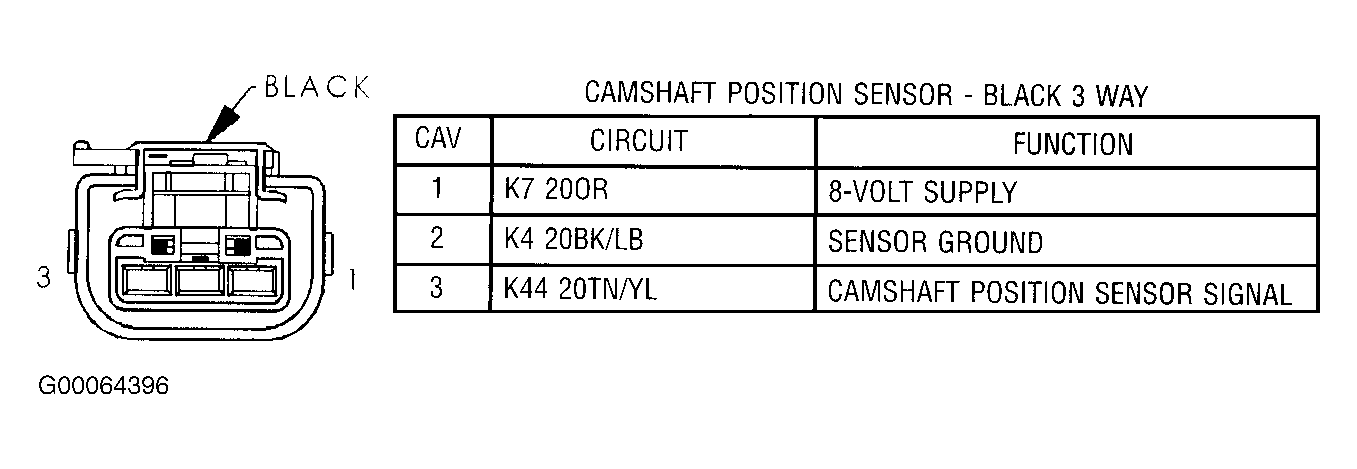

Fig 65: Camshaft Position Senor - Black 3-Way
Courtesy of CHRYSLER CORP.

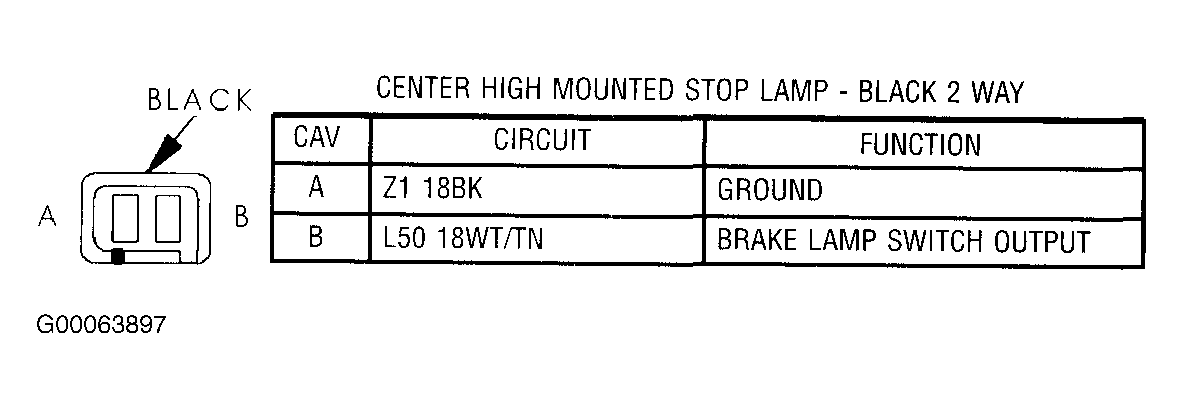

Fig 66: Center High Mounted Stop Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

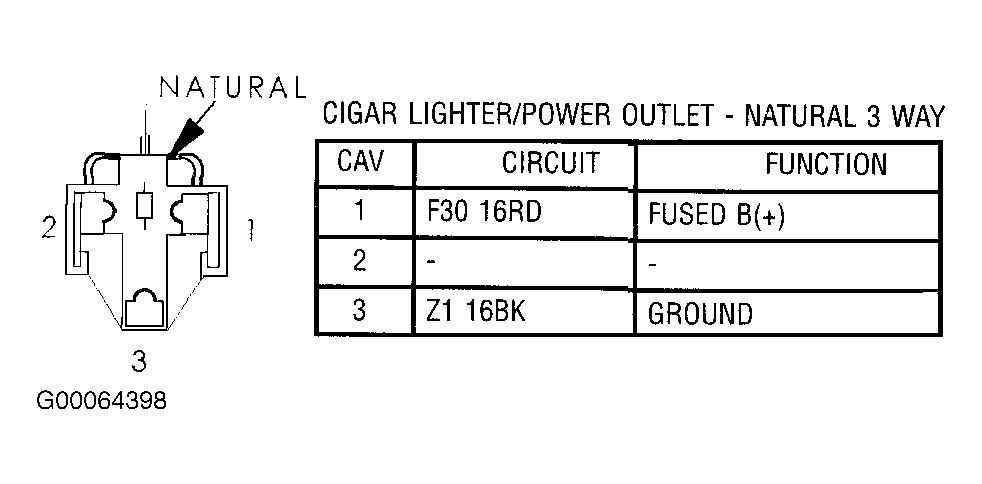

Fig 67: Cigar Lighter/Power Outlet - Natural 3-Way
Courtesy of CHRYSLER CORP.

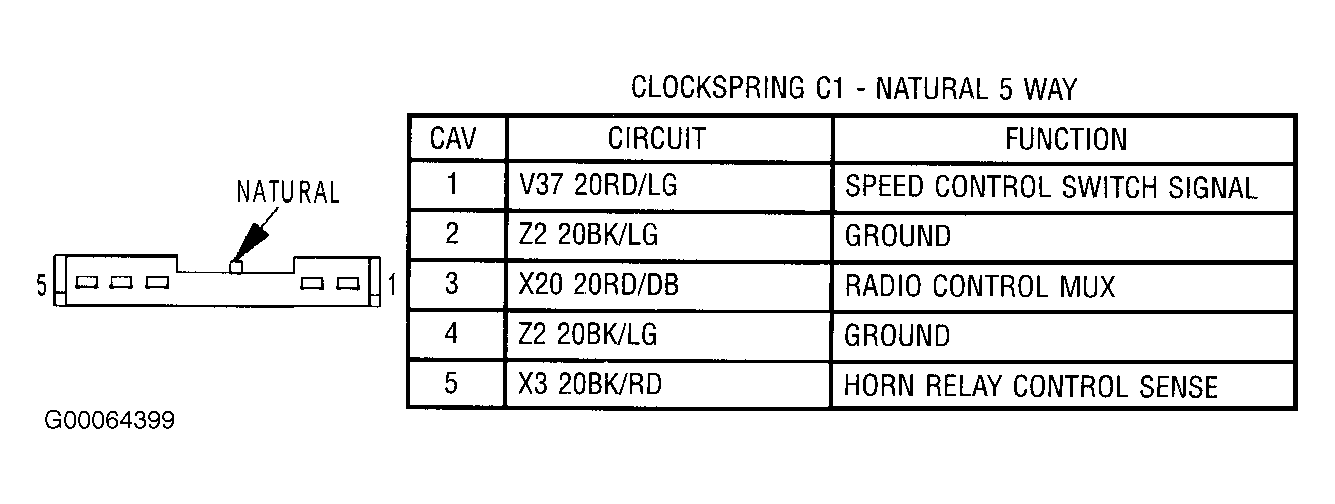

Fig 68: Clockspring C1 - Natural 3-Way
Courtesy of CHRYSLER CORP.

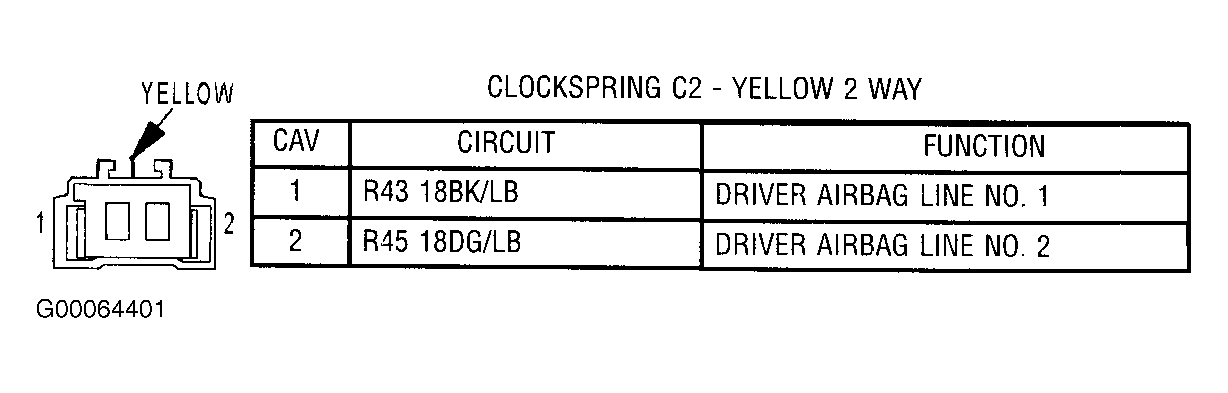

Fig 69: Clockspring C2 - Yellow 2-Way
Courtesy of CHRYSLER CORP.

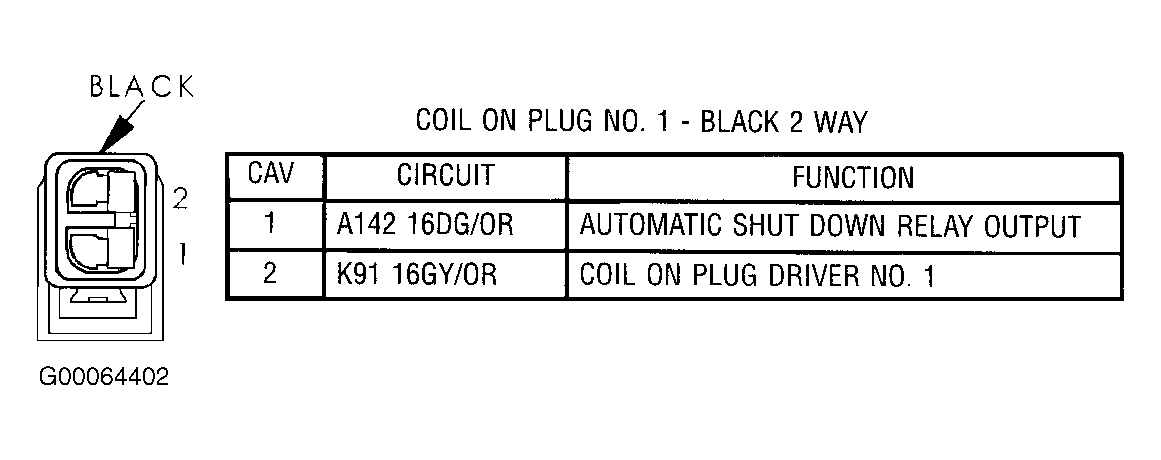

Fig 70: Coil On Plug No. 1 - Black 2-Way
Courtesy of CHRYSLER CORP.

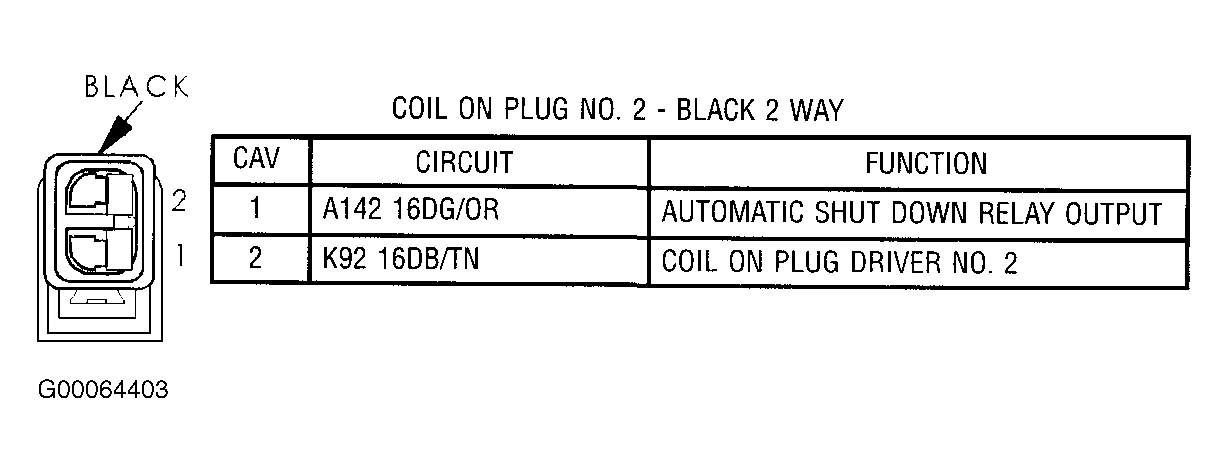

Fig 71: Coil On Plug No. 2 - Black 2-Way
Courtesy of CHRYSLER CORP.

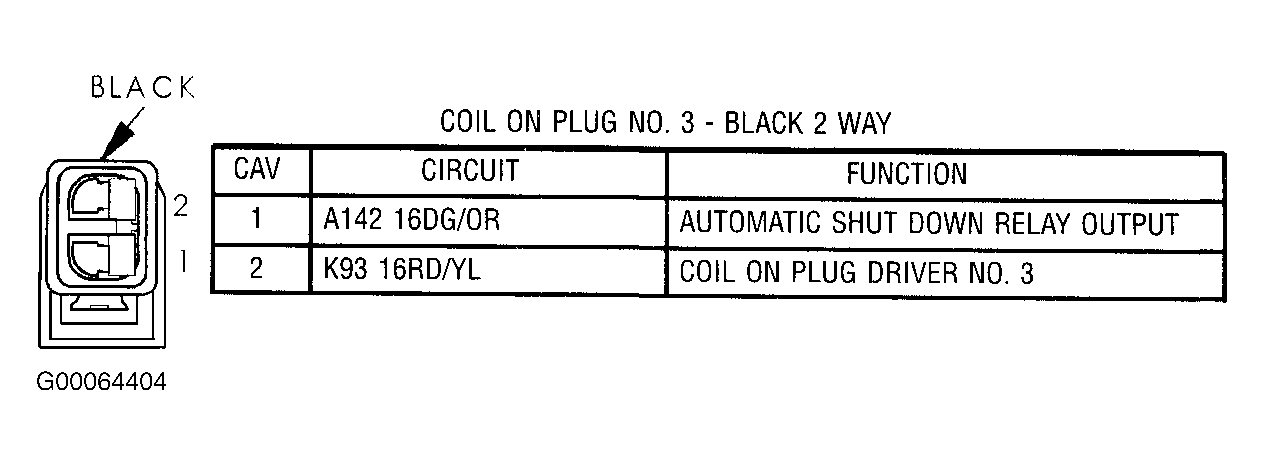

Fig 72: Coil On Plug No. 3 - Black 2-Way
Courtesy of CHRYSLER CORP.

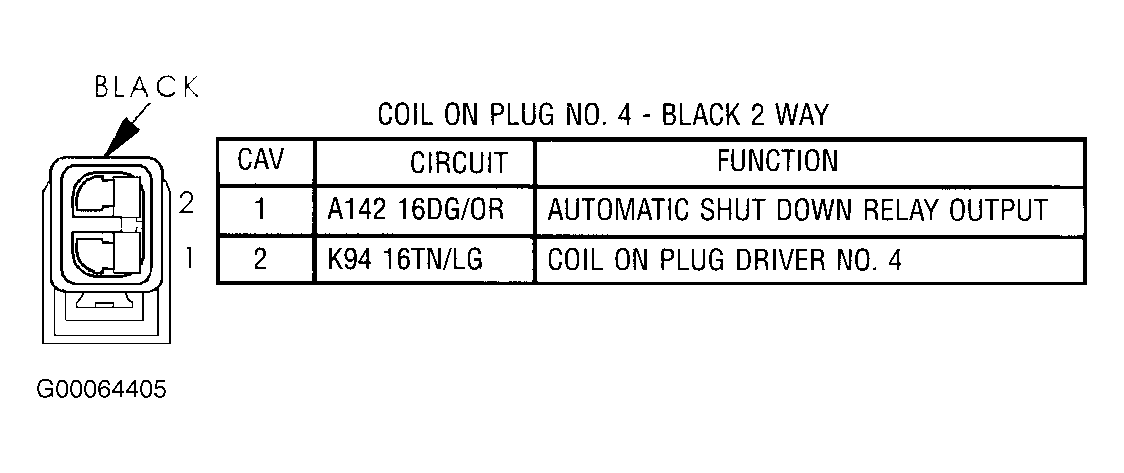

Fig 73: Coil On Plug No. 4 - Black 2-Way
Courtesy of CHRYSLER CORP.

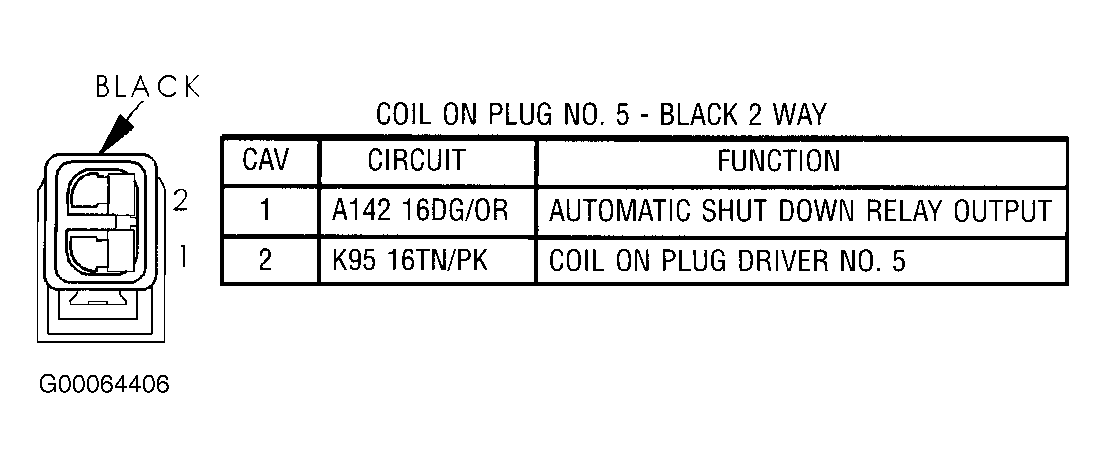

Fig 74: Coil On Plug No. 5 - Black 2-Way
Courtesy of CHRYSLER CORP.

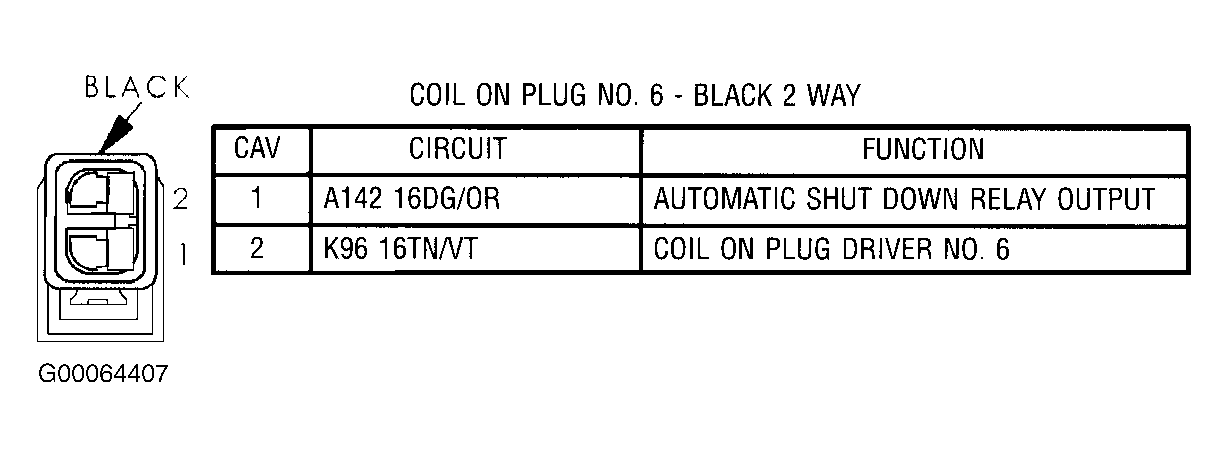

Fig 75: Coil On Plug No. 6 - Black 2-Way
Courtesy of CHRYSLER CORP.

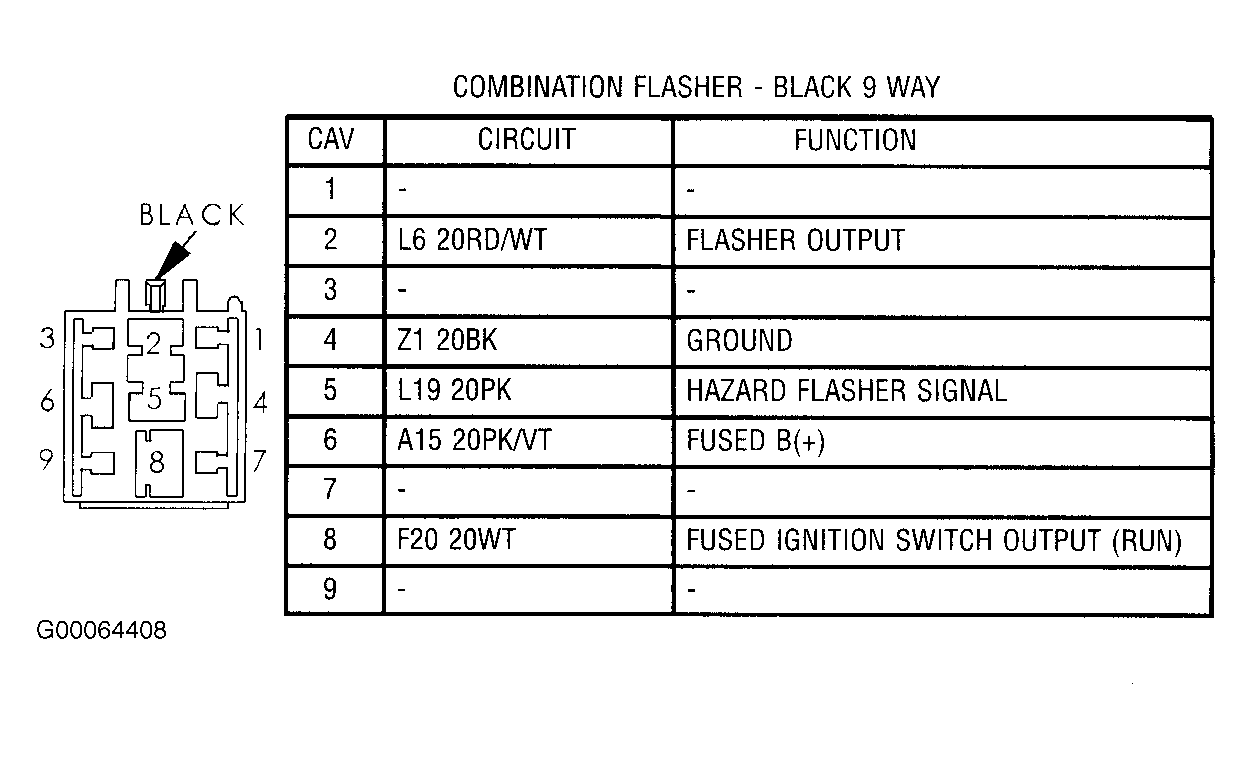

Fig 76: Combination Flasher - Black 9-Way
Courtesy of CHRYSLER CORP.

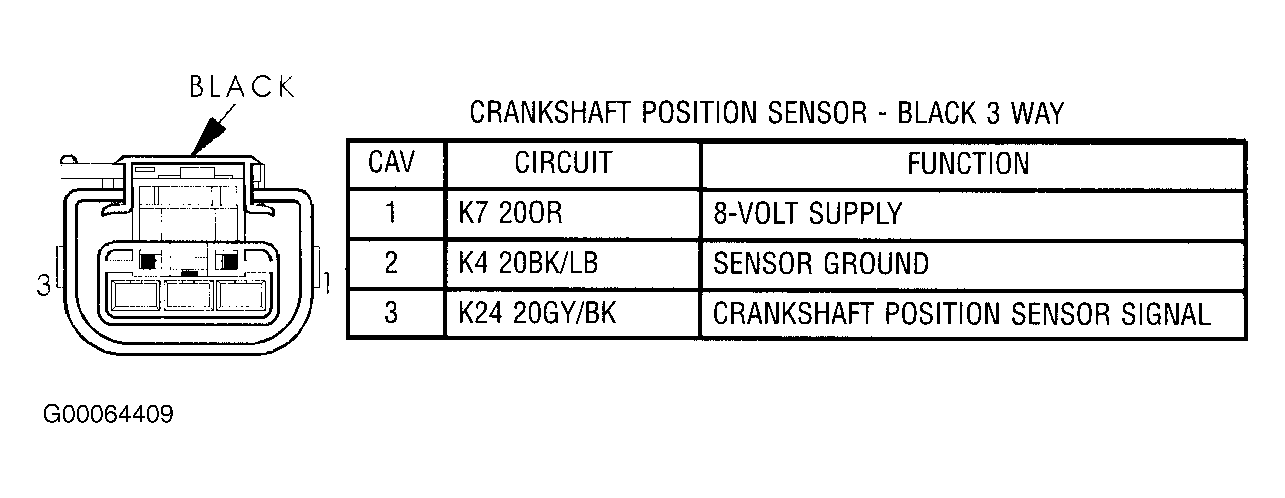

Fig 77: Crankshaft Position Sensor - Black 3-Way
Courtesy of CHRYSLER CORP.

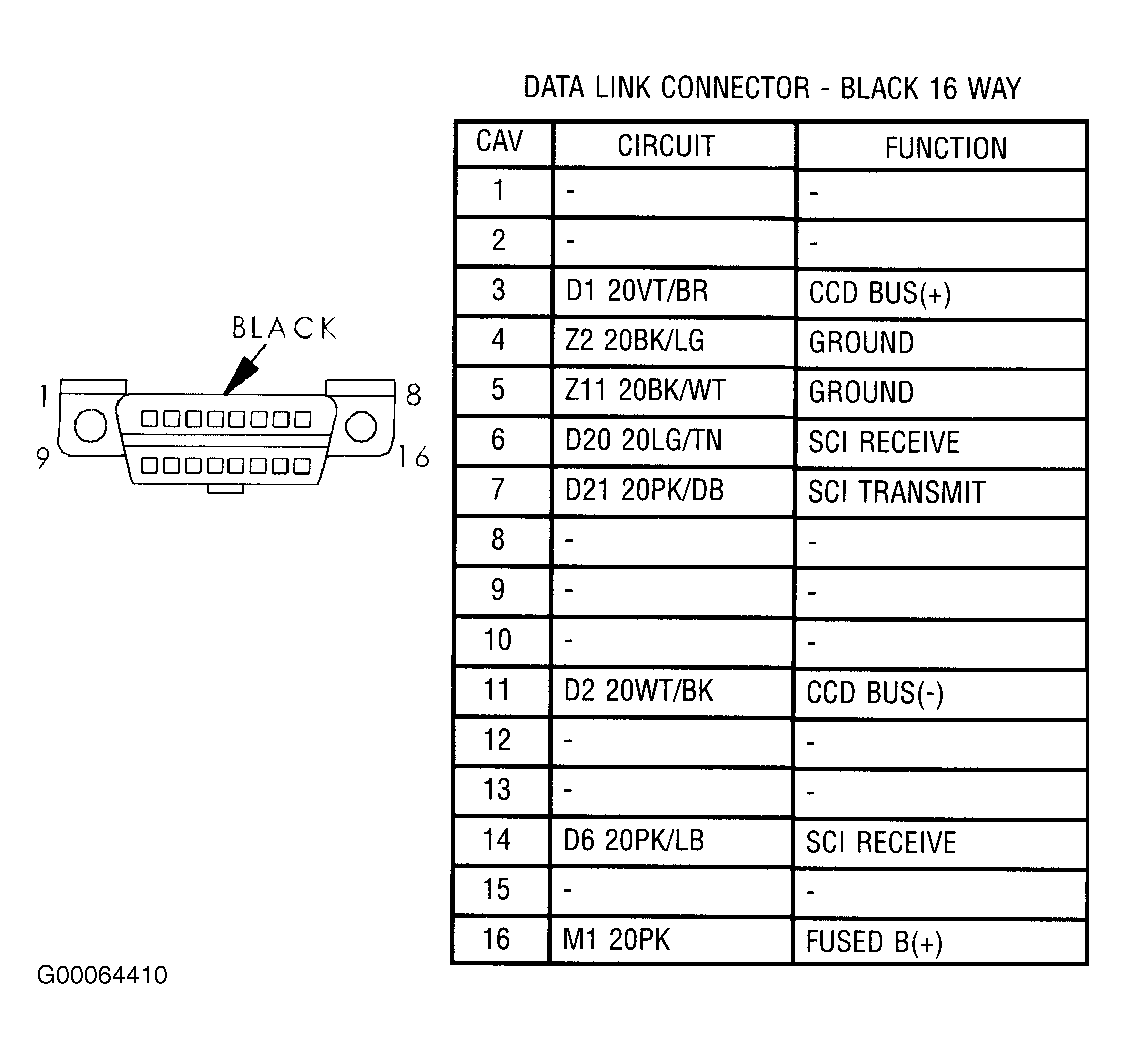

Fig 78: Data Link Connector - Black 16-Way
Courtesy of CHRYSLER CORP.

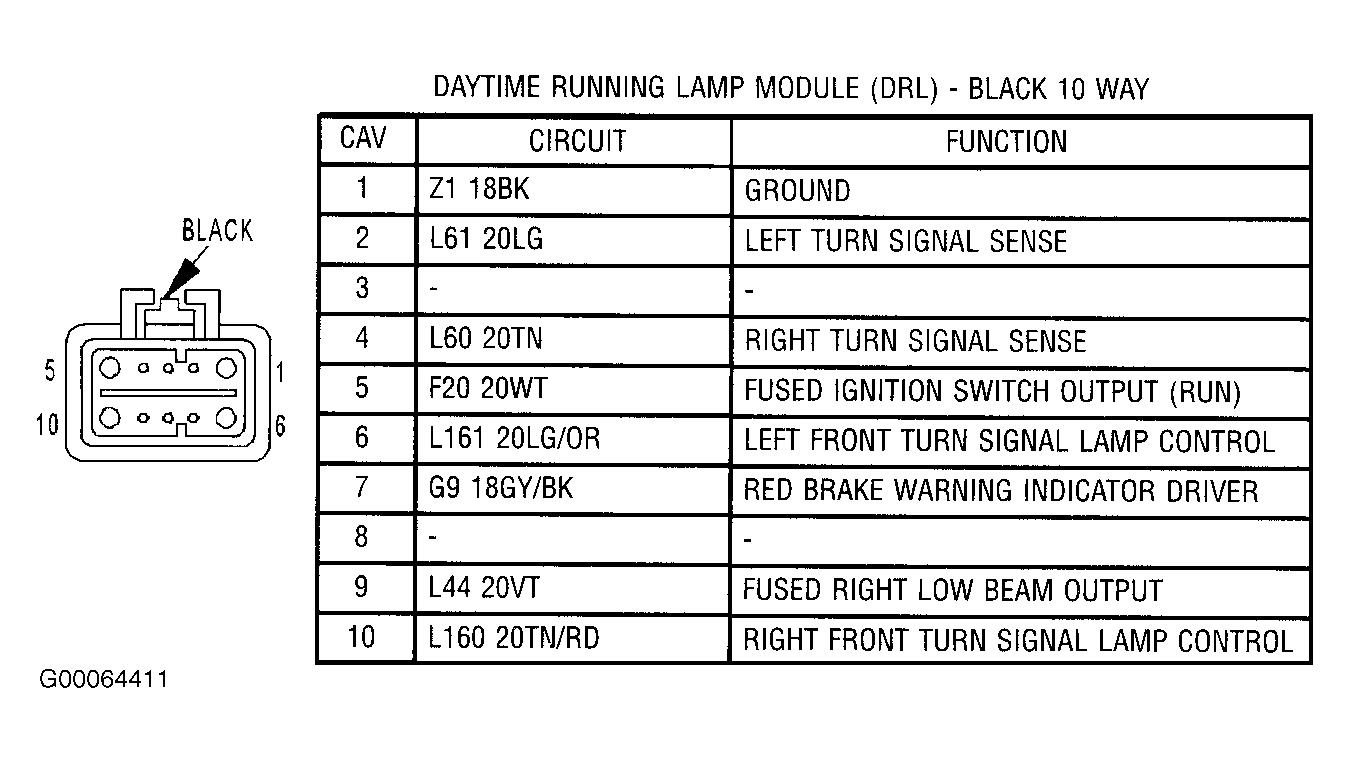

Fig 79: Daytime Running Lamp Module (DRL) - Black 10-Way
Courtesy of CHRYSLER CORP.

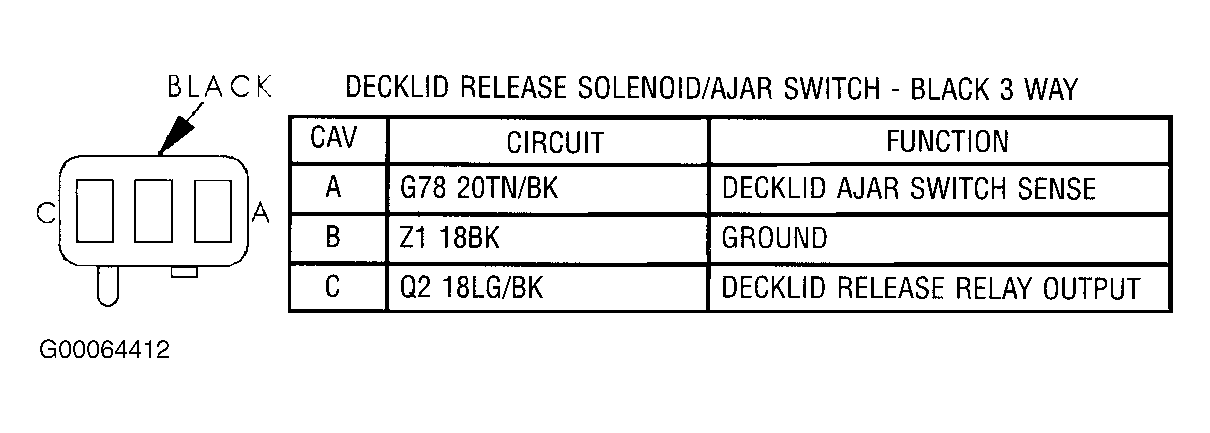

Fig 80: Decklid Release Solenoid/Ajar Switch - Black 3-Way
Courtesy of CHRYSLER CORP.

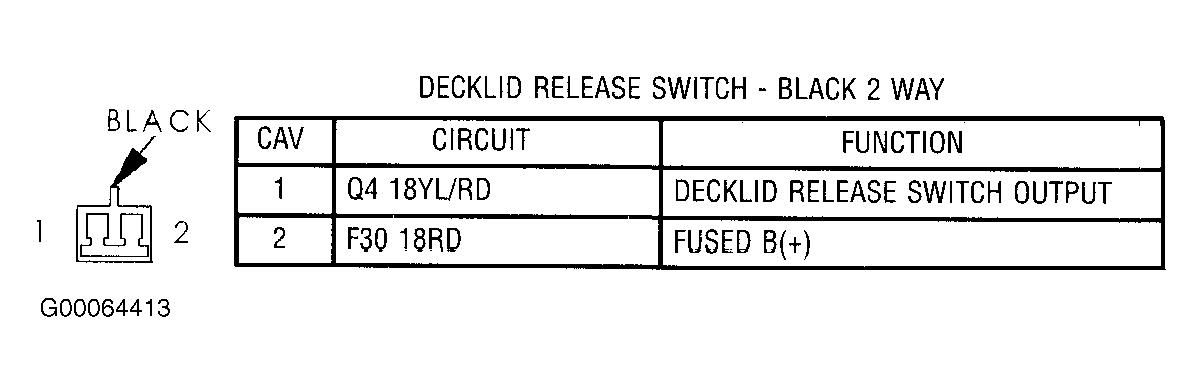

Fig 81: Decklid Release Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

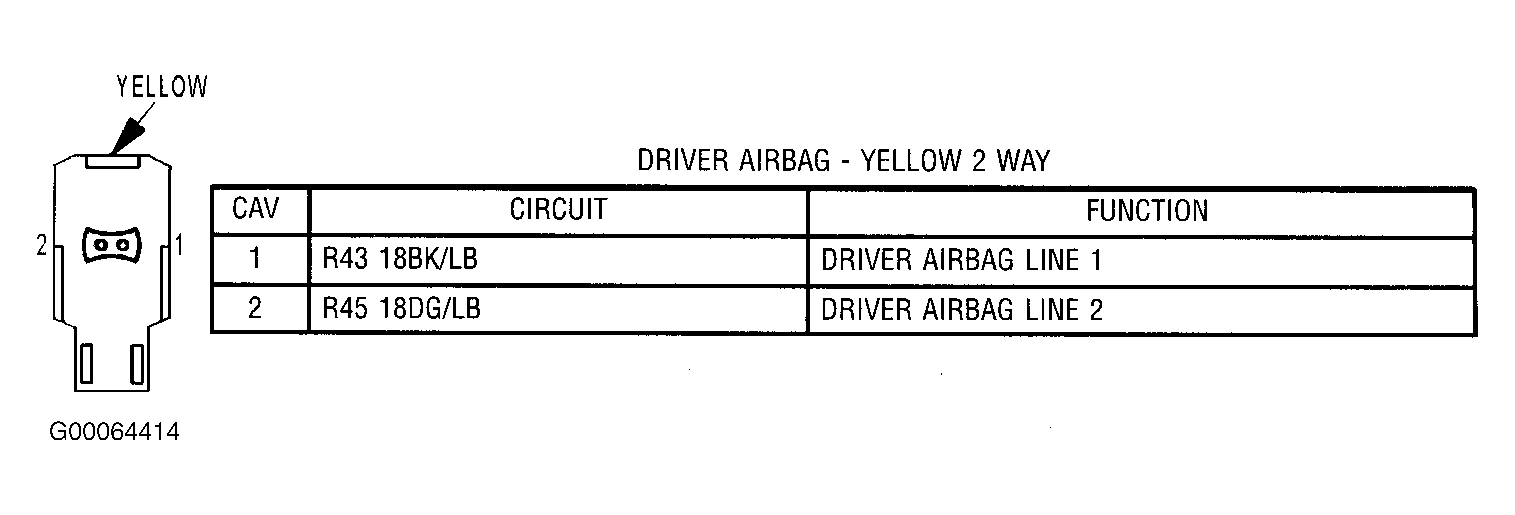

Fig 82: Driver Airbag - Yellow 2-Way
Courtesy of CHRYSLER CORP.

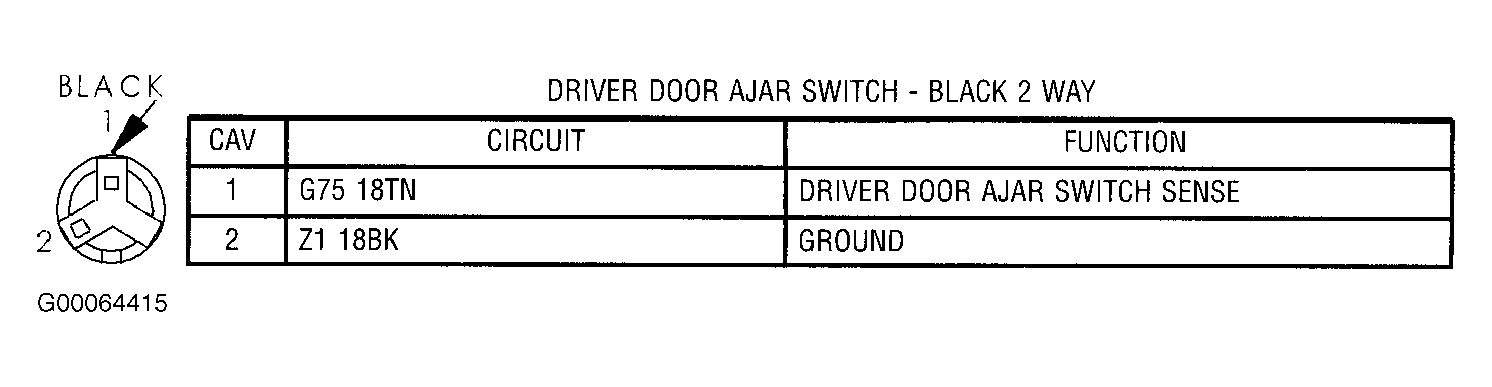

Fig 83: Driver Door Ajar Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

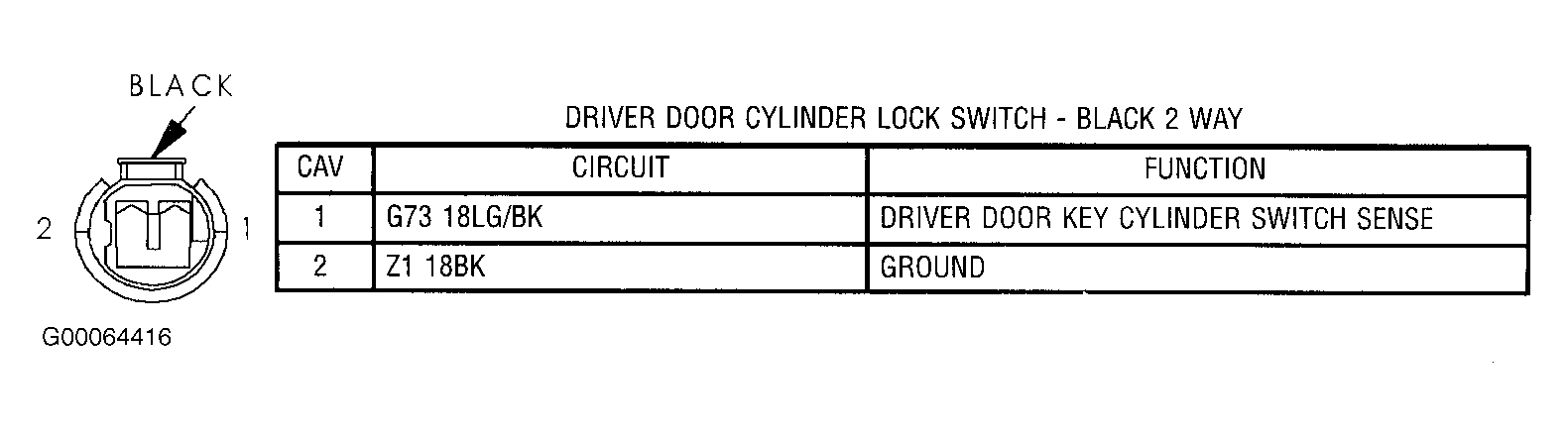

Fig 84: Driver Door Cylinder Lock Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

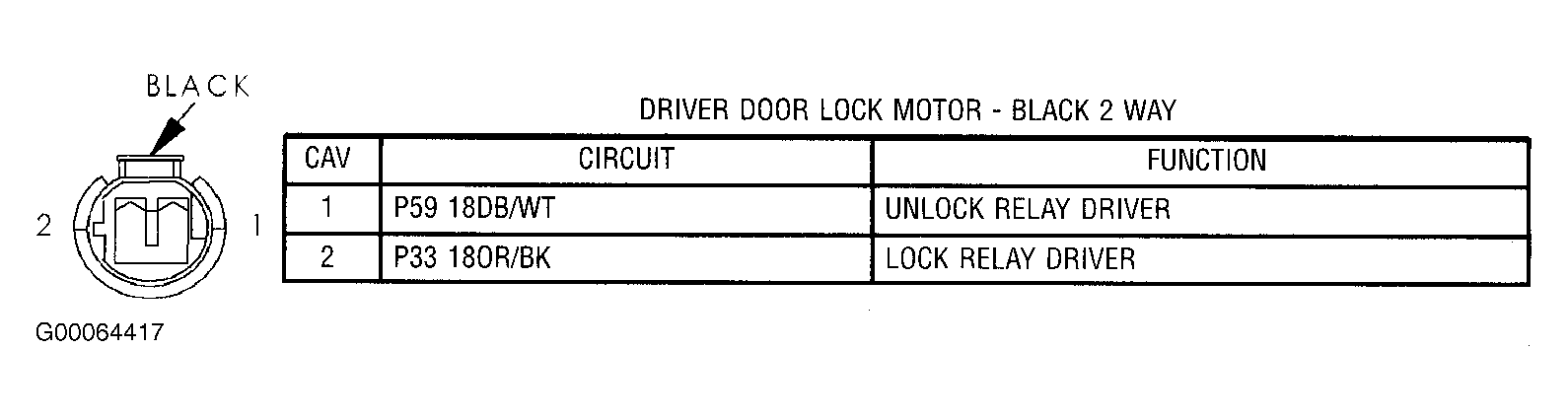

Fig 85: Driver Door Lock Motor - Black 2-Way
Courtesy of CHRYSLER CORP.

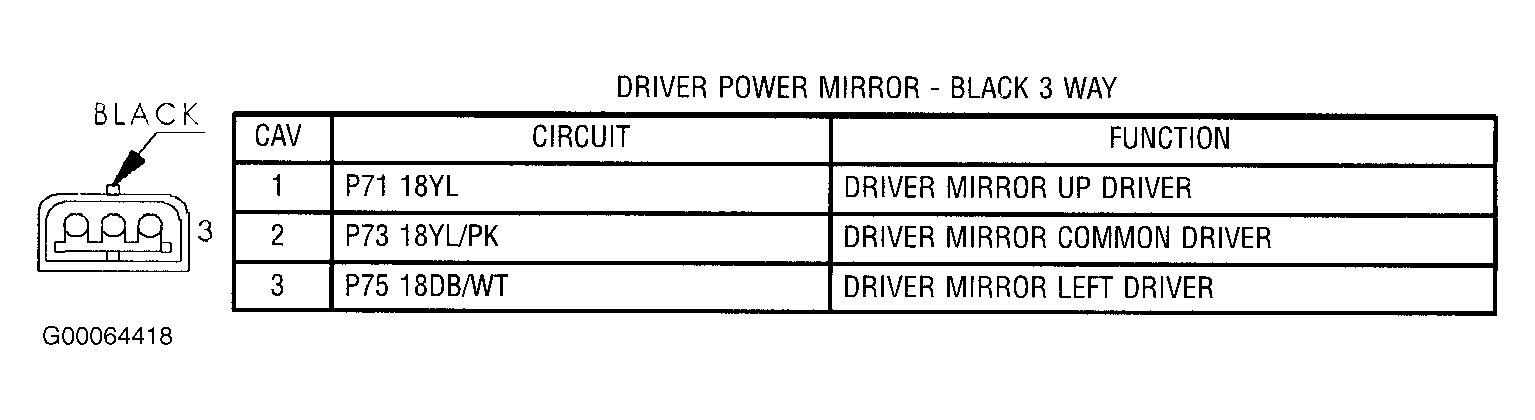

Fig 86: Driver Power Mirror - Black 3-Way
Courtesy of CHRYSLER CORP.

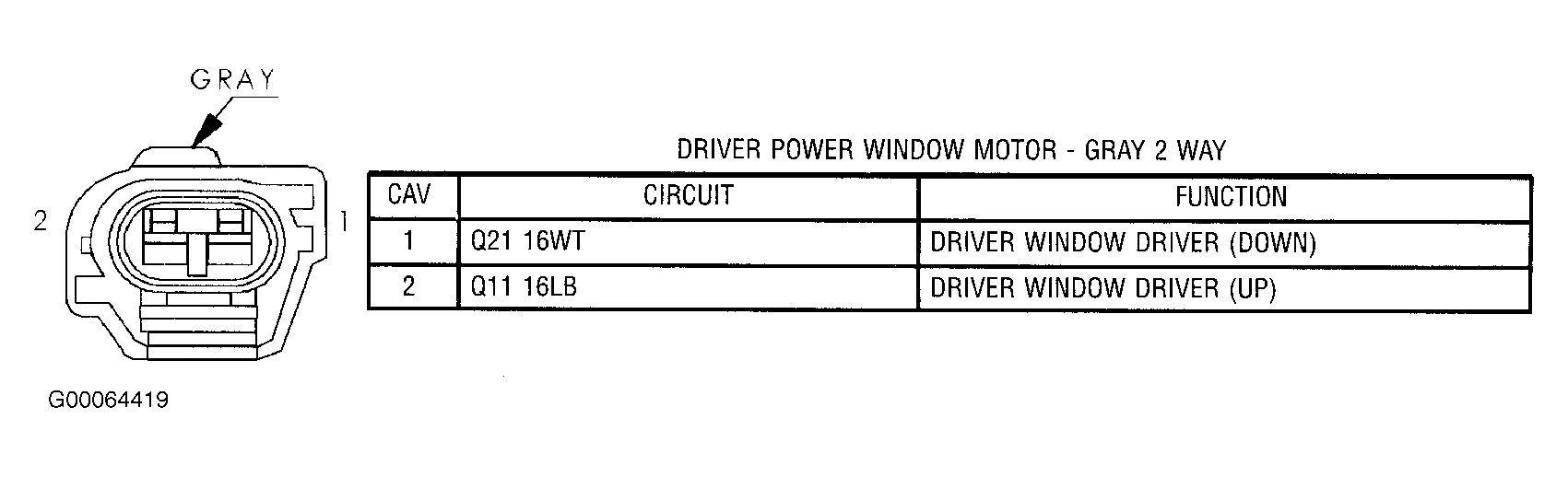

Fig 87: Driver Power Window Motor - Grey 2-Way
Courtesy of CHRYSLER CORP.

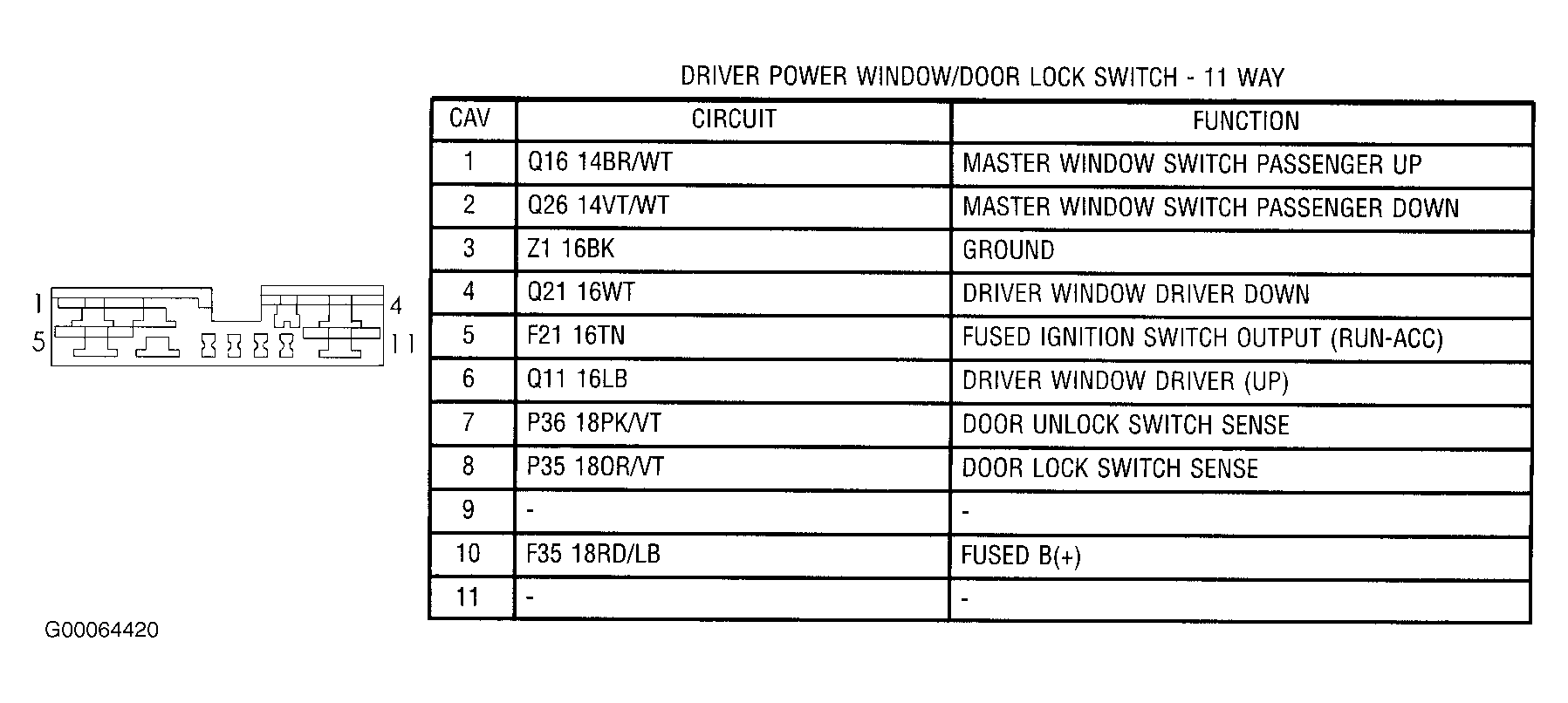

Fig 88: Driver Power Window/Door Lock Switch - 11-Way
Courtesy of CHRYSLER CORP.

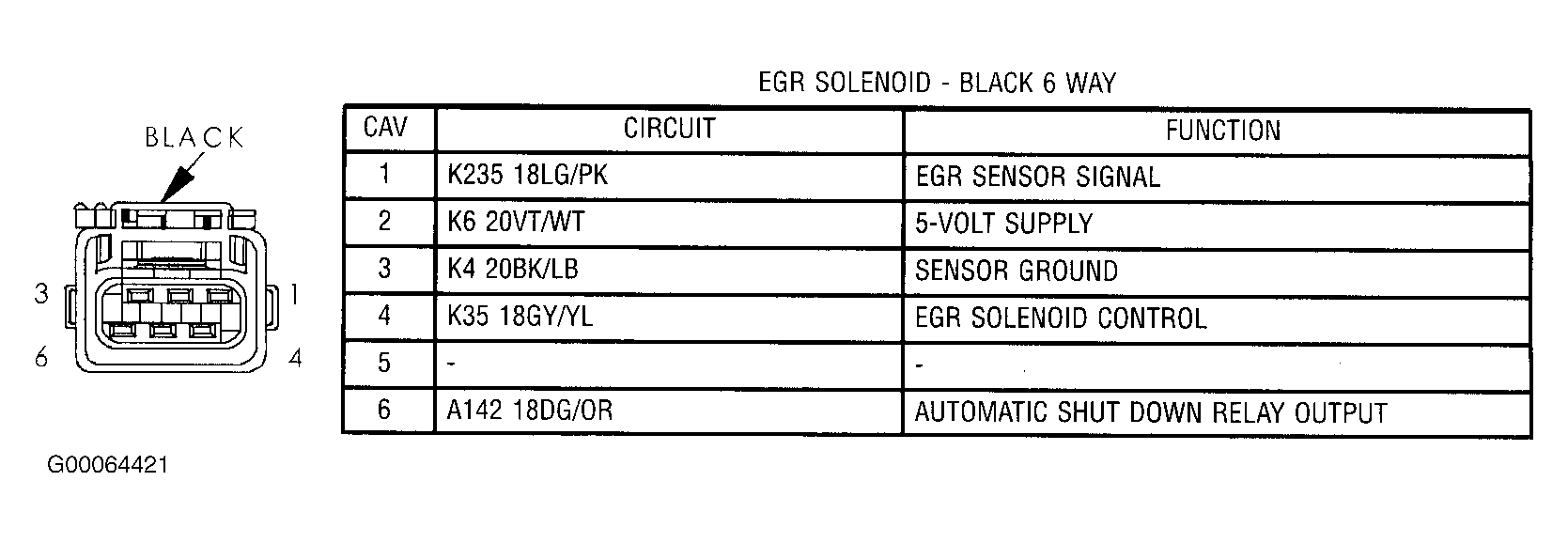

Fig 89: EGR Solenoid - Black 6-Way
Courtesy of CHRYSLER CORP.

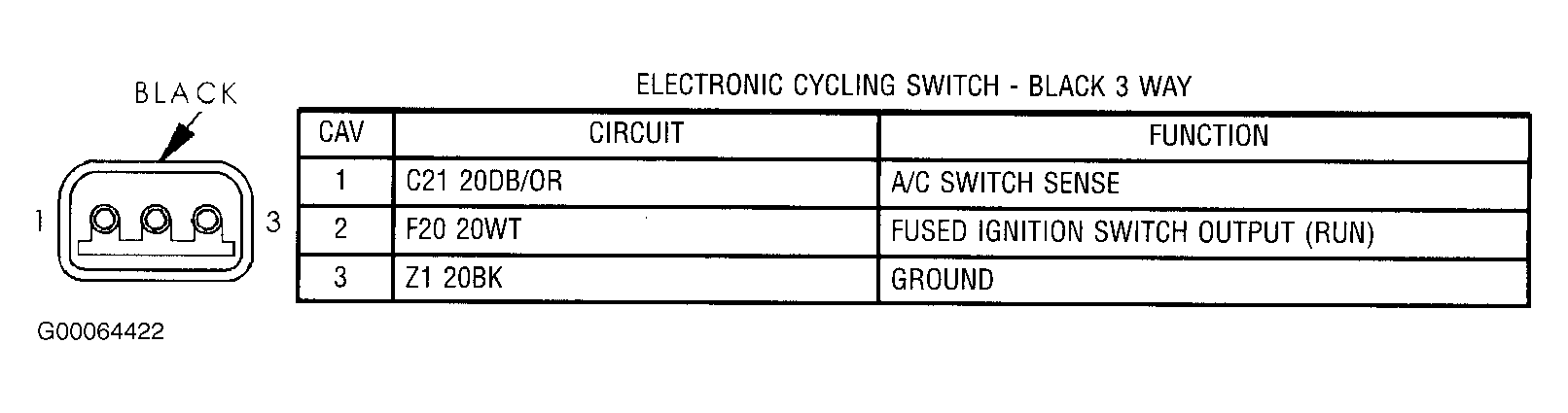

Fig 90: Electronic Cycling Switch - Black 3-Way
Courtesy of CHRYSLER CORP.

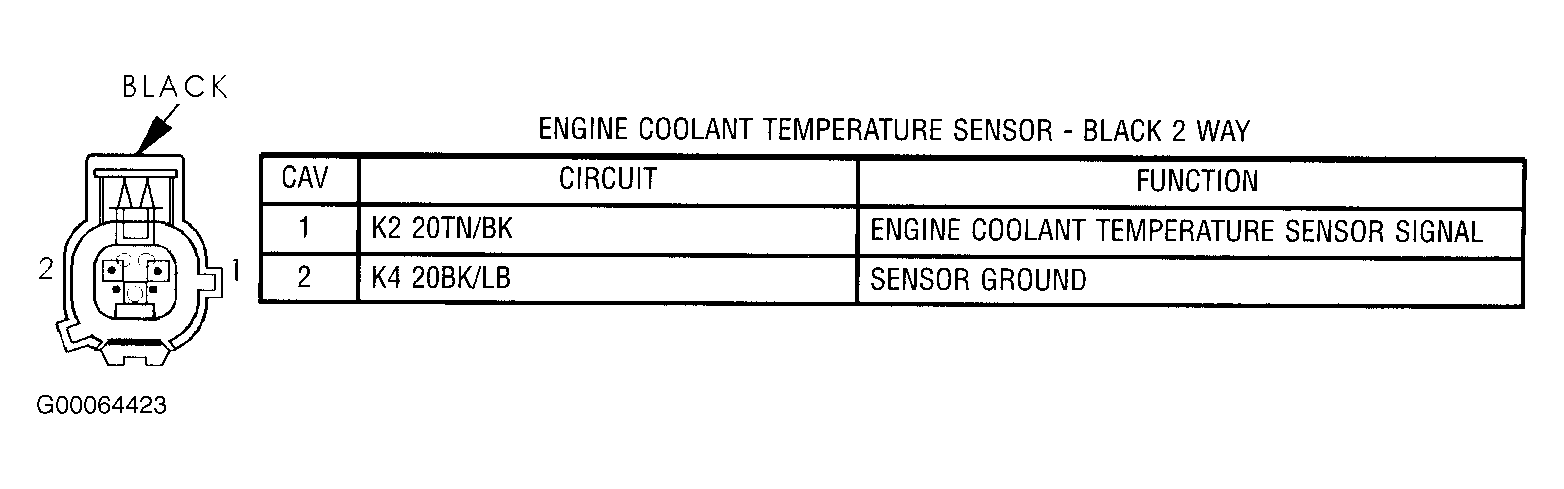

Fig 91: Engine Coolant Temperature Sensor - Black 2-Way
Courtesy of CHRYSLER CORP.

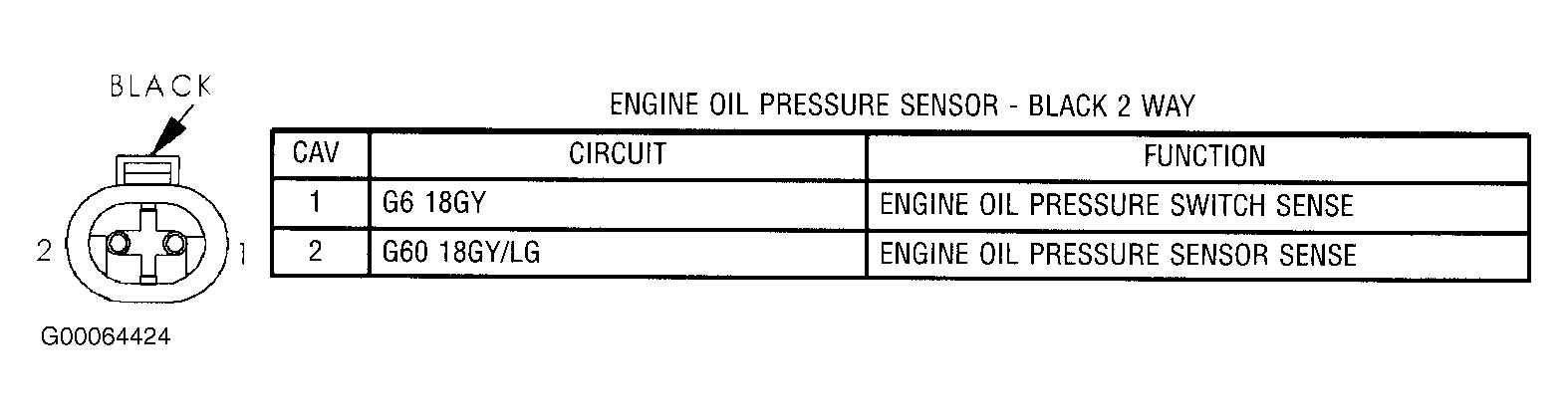

Fig 92: Engine Oil Pressure Sensor - Black 2-Way
Courtesy of CHRYSLER CORP.

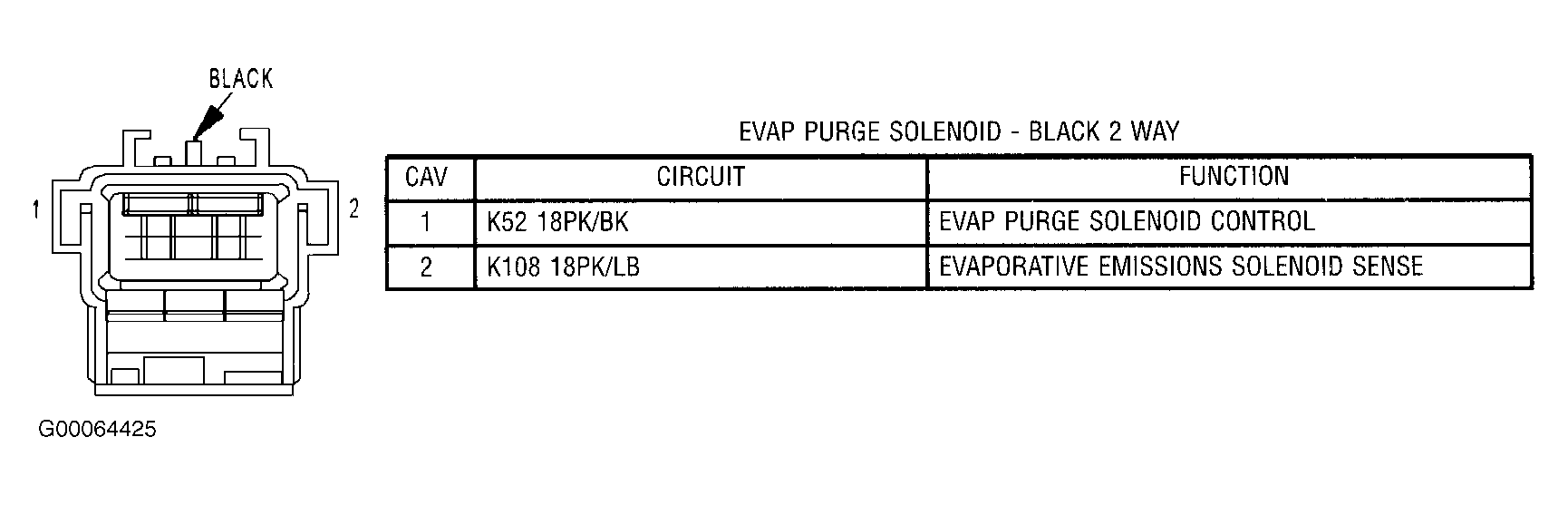

Fig 93: EVAP Purge Solenoid - Black 2-Way
Courtesy of CHRYSLER CORP.

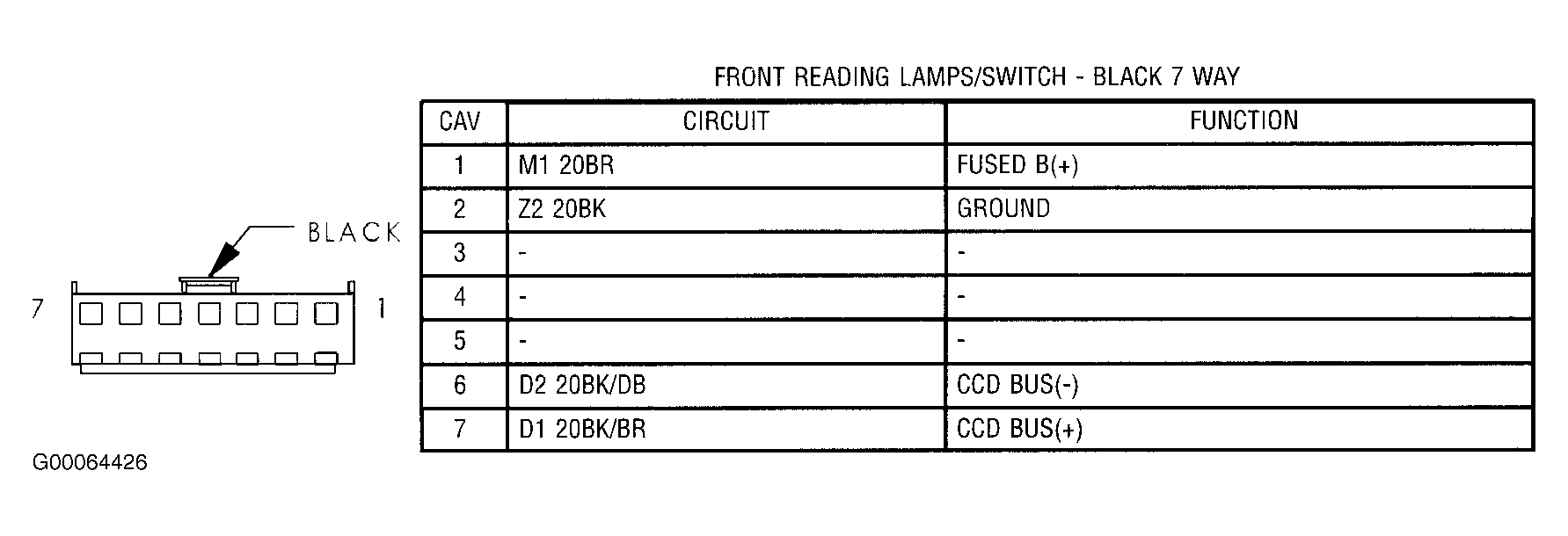

Fig 94: Front Reading Lamps/Switch - Black 7-Way
Courtesy of CHRYSLER CORP.

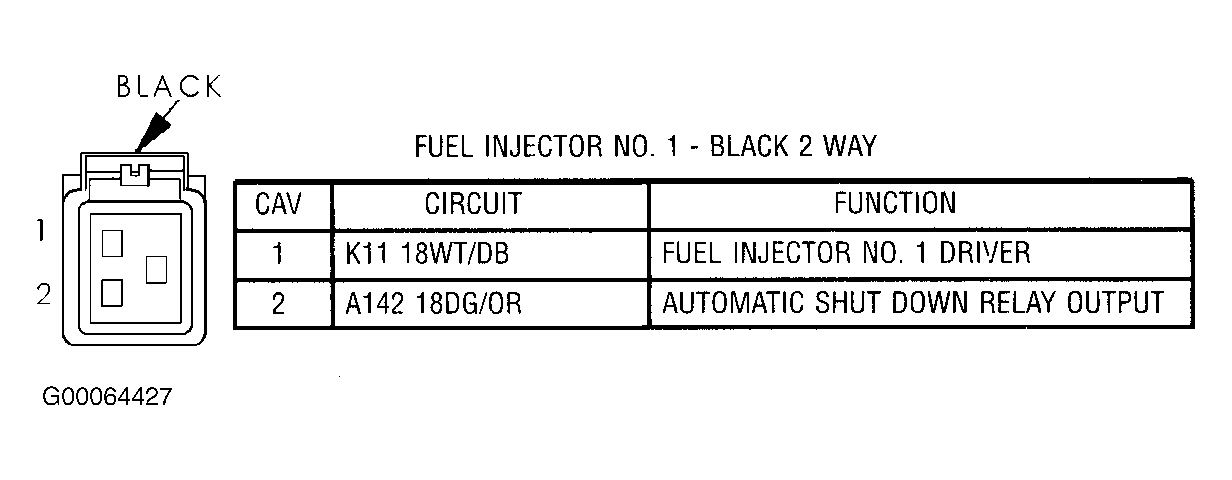

Fig 95: Fuel Injector No. 1 - Black 2-Way
Courtesy of CHRYSLER CORP.

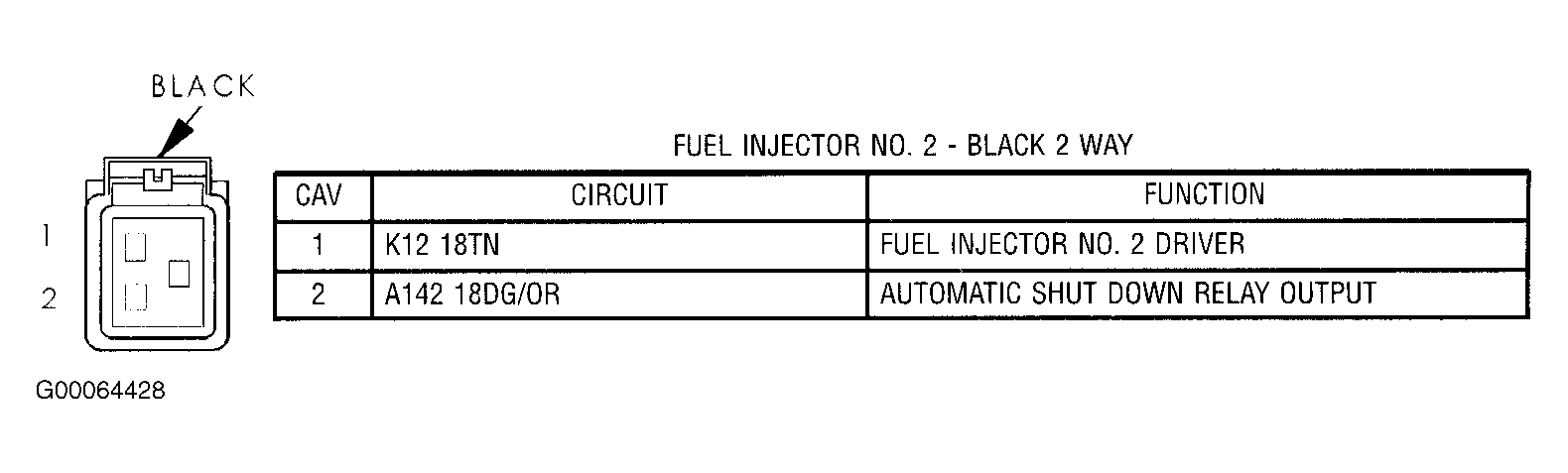

Fig 96: Fuel Injector No. 2 - Black 2-Way
Courtesy of CHRYSLER CORP.

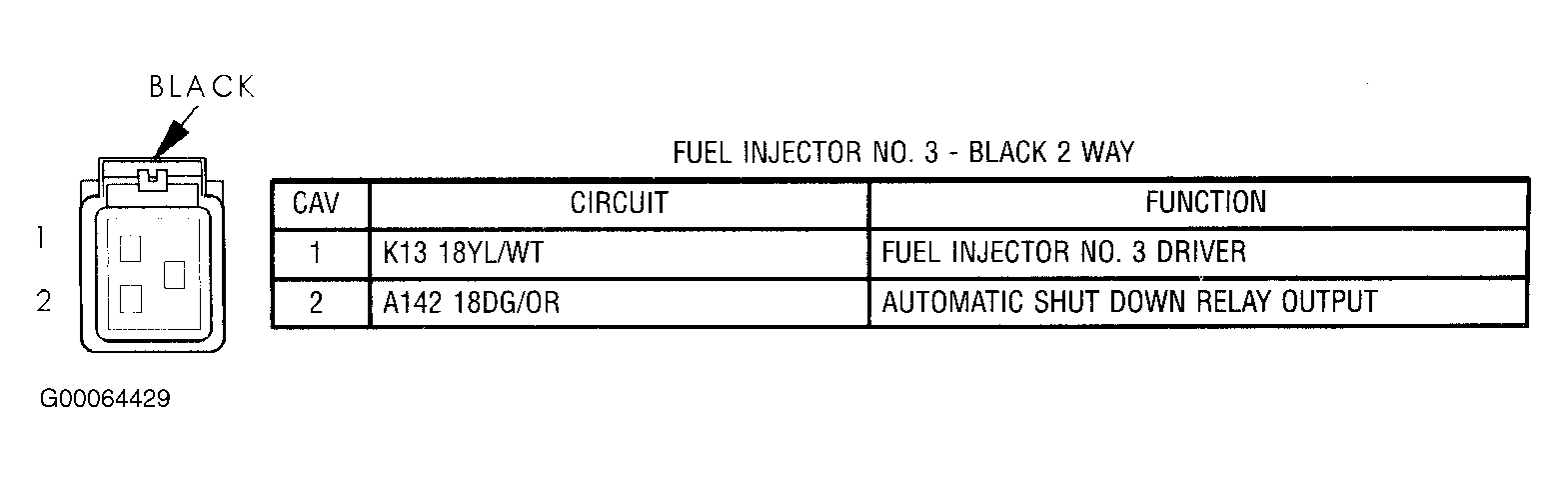

Fig 97: Fuel Injector No. 3 - Black 2-Way
Courtesy of CHRYSLER CORP.

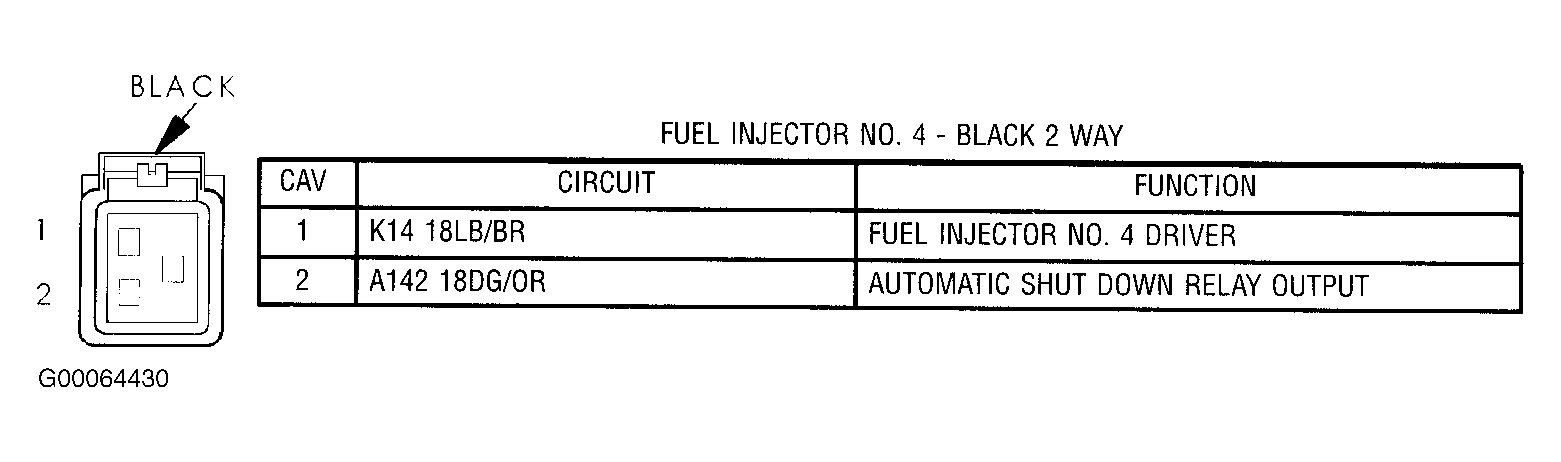

Fig 98: Fuel Injector No. 4 - Black 2-Way
Courtesy of CHRYSLER CORP.

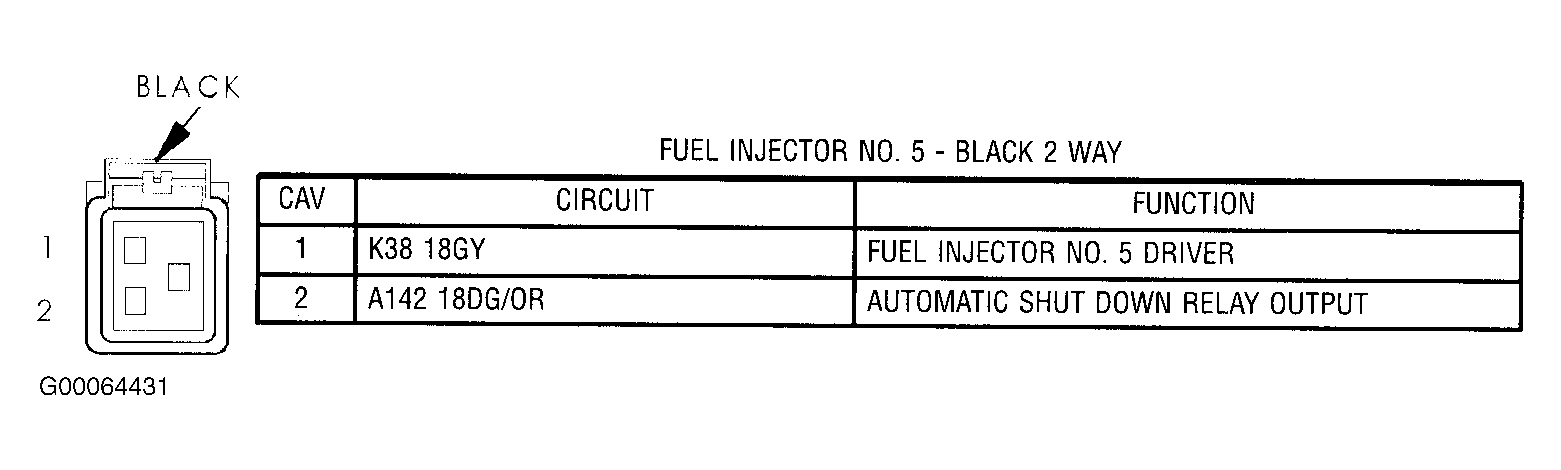

Fig 99: Fuel Injector No. 5 - Black 2-Way
Courtesy of CHRYSLER CORP.

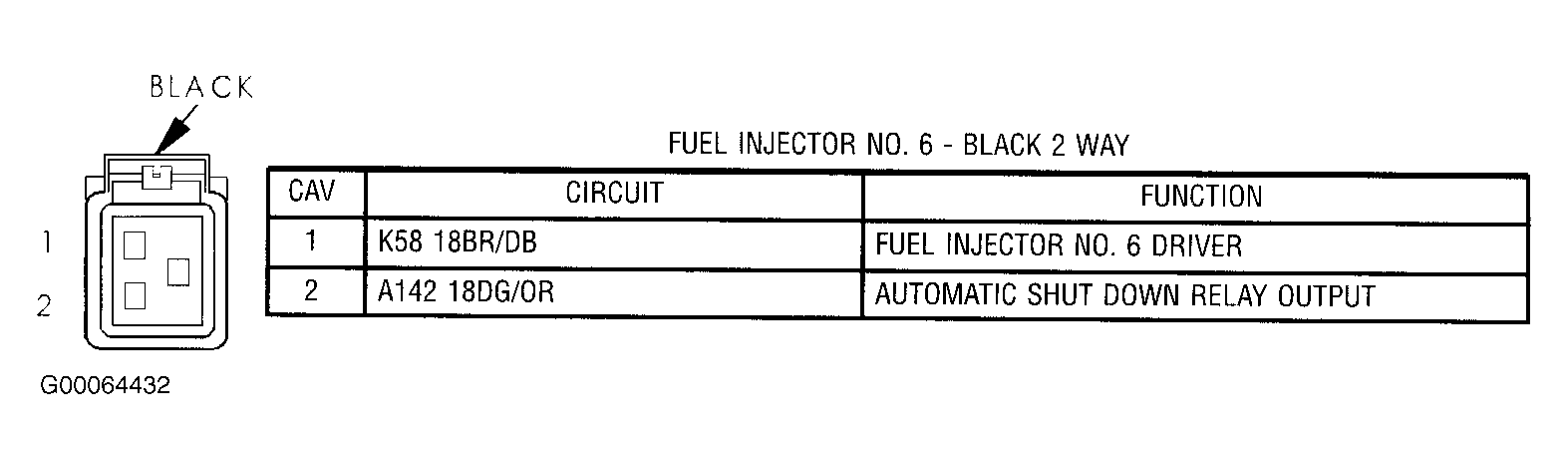

Fig 100: Fuel Injector No. 6 - Black 2-Way
Courtesy of CHRYSLER CORP.

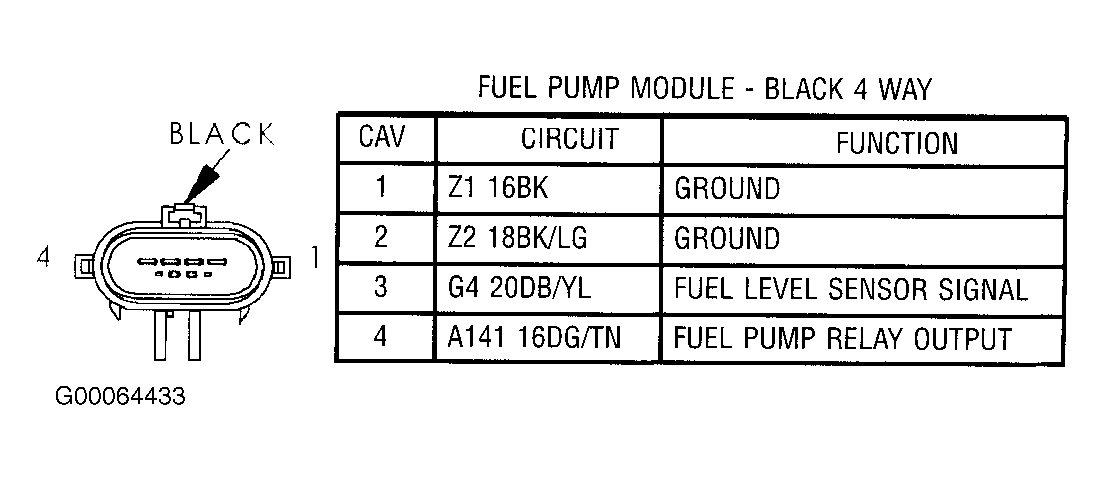

Fig 101: Fuel Pump Module - Black 4-Way
Courtesy of CHRYSLER CORP.

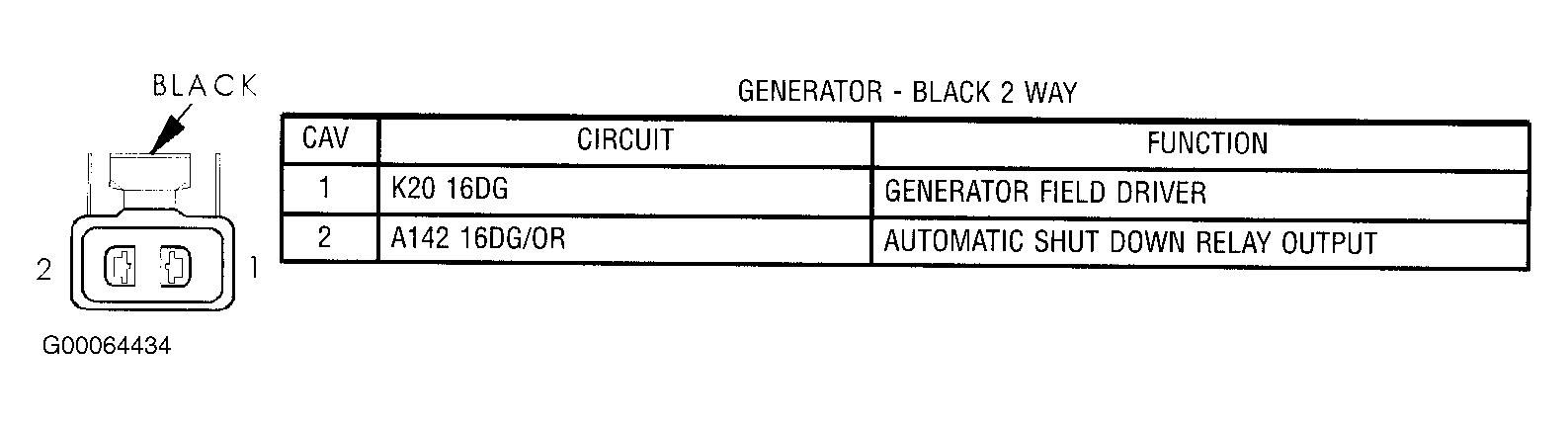

Fig 102: Generator - Black 2-Way
Courtesy of CHRYSLER CORP.

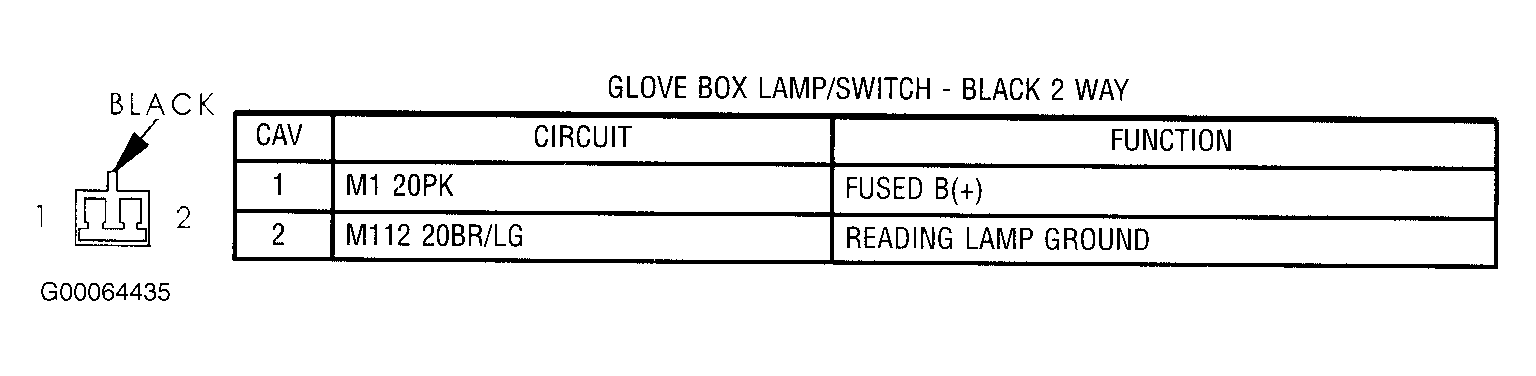

Fig 103: Glove Box Lamp/Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

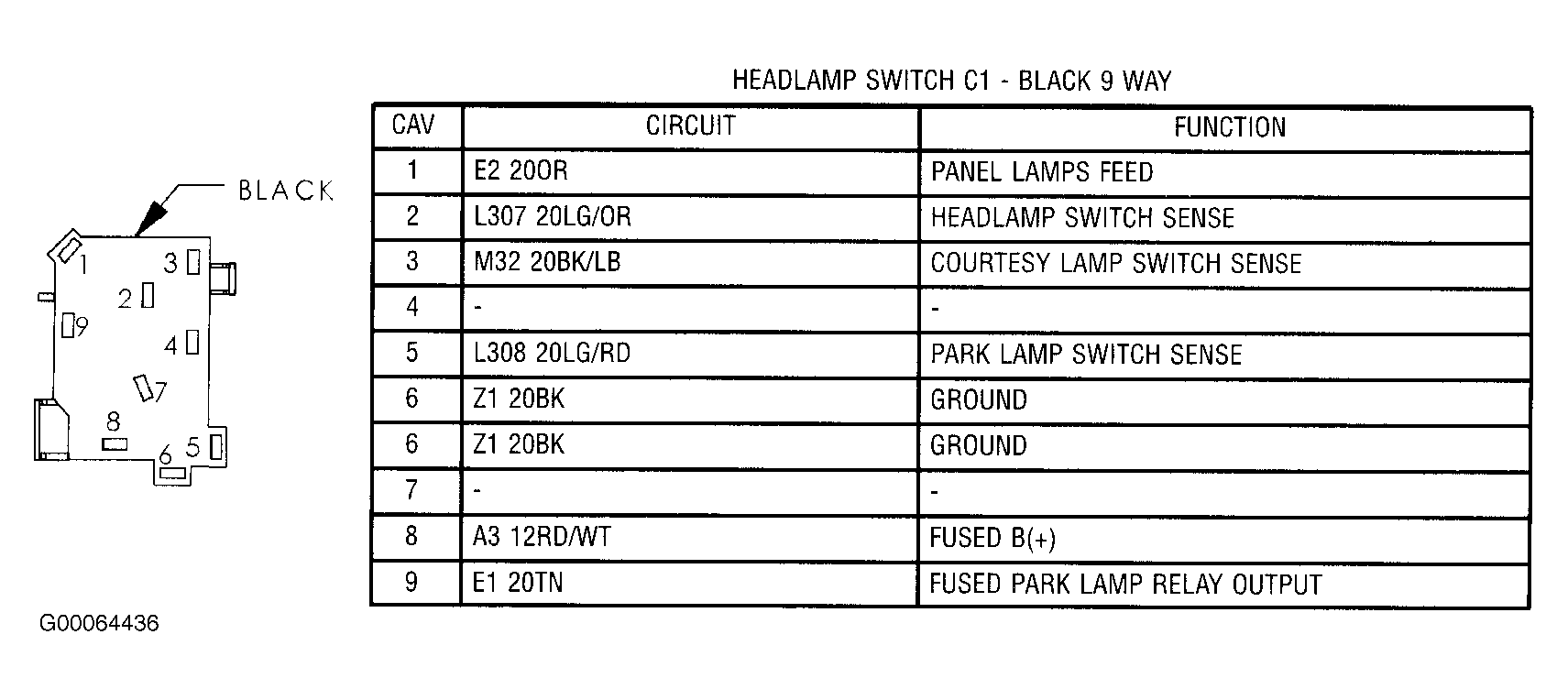

Fig 104: Headlamp Switch C1 - Black 9-Way
Courtesy of CHRYSLER CORP.

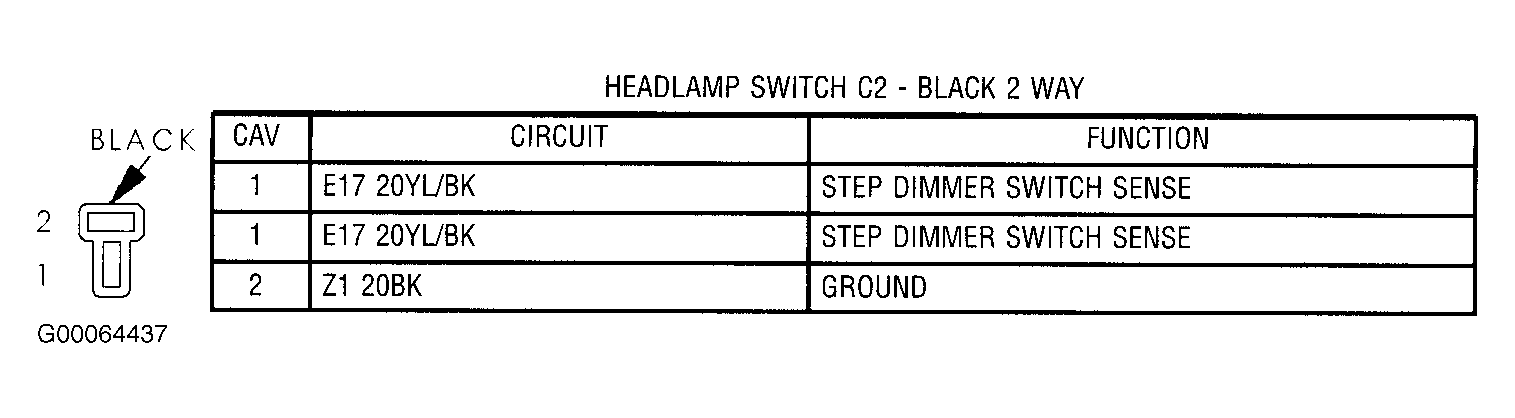

Fig 105: Headlamp Switch C2 - Black 2-Way
Courtesy of CHRYSLER CORP.

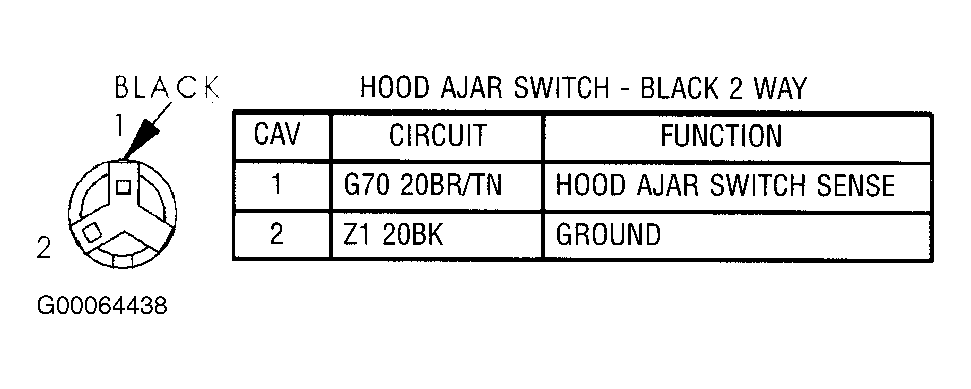

Fig 106: Hood Ajar Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

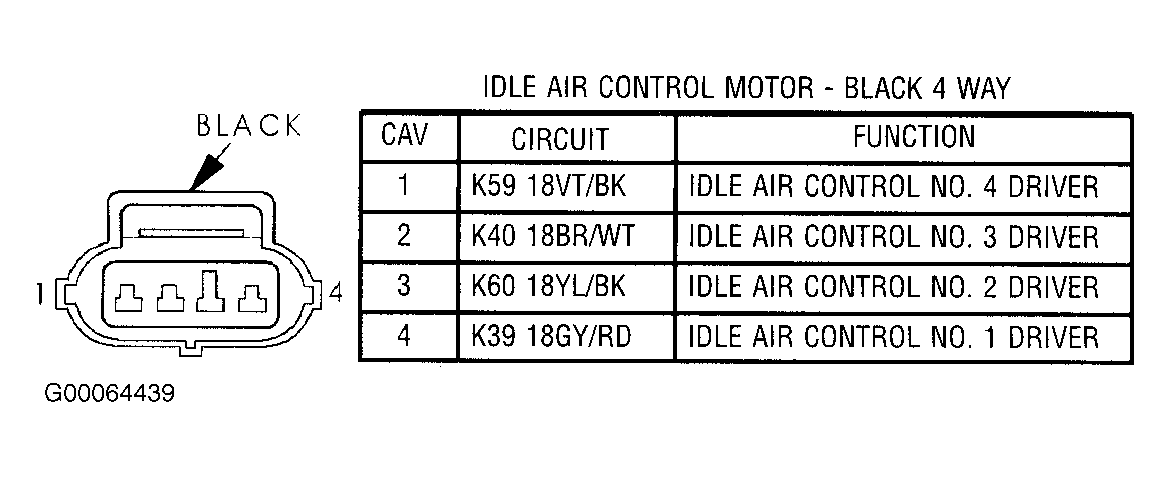

Fig 107: Idle Air Control Module - Black 4-Way
Courtesy of CHRYSLER CORP.

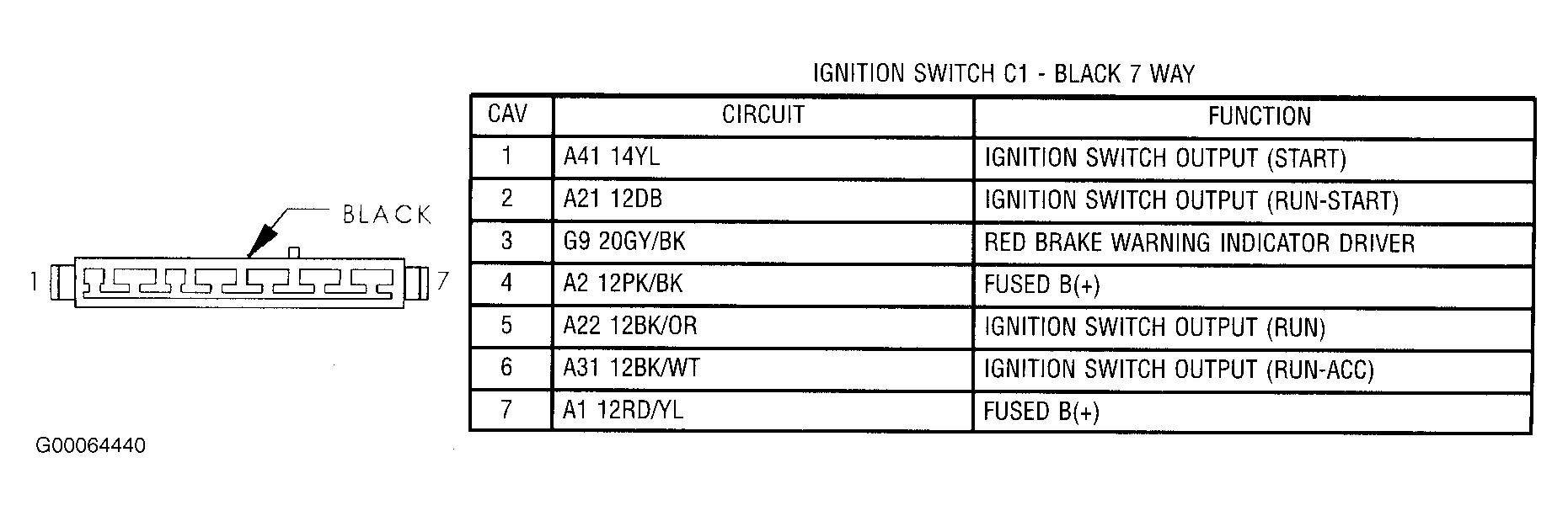

Fig 108: Ignition Switch C1 - Black 7-Way
Courtesy of CHRYSLER CORP.

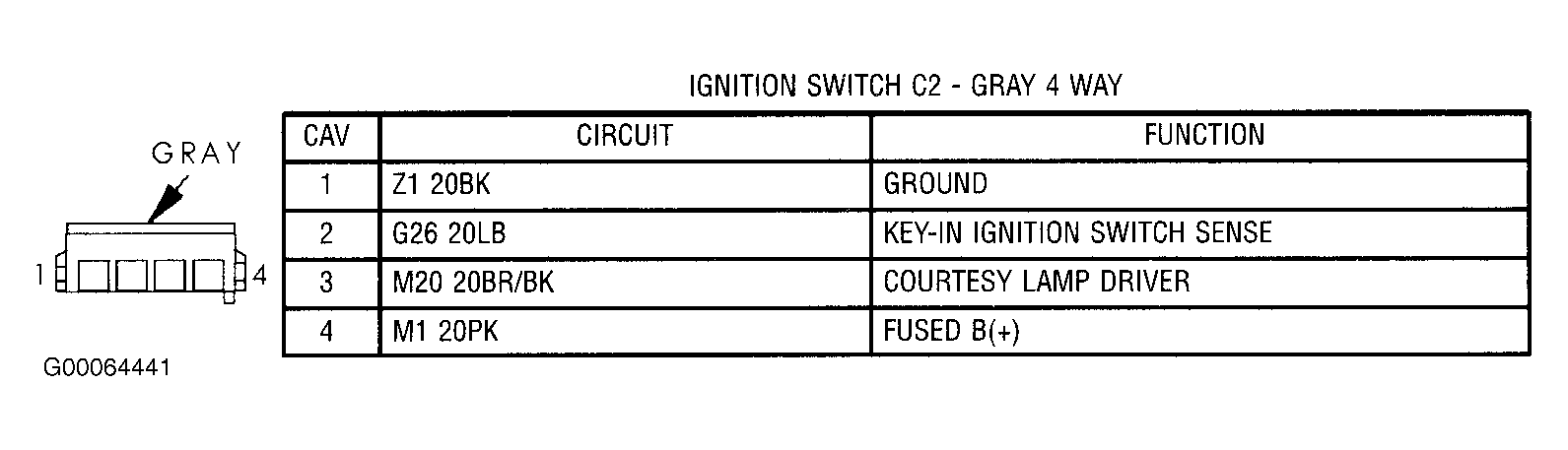

Fig 109: Ignition Switch C2 - Grey 4-Way
Courtesy of CHRYSLER CORP.

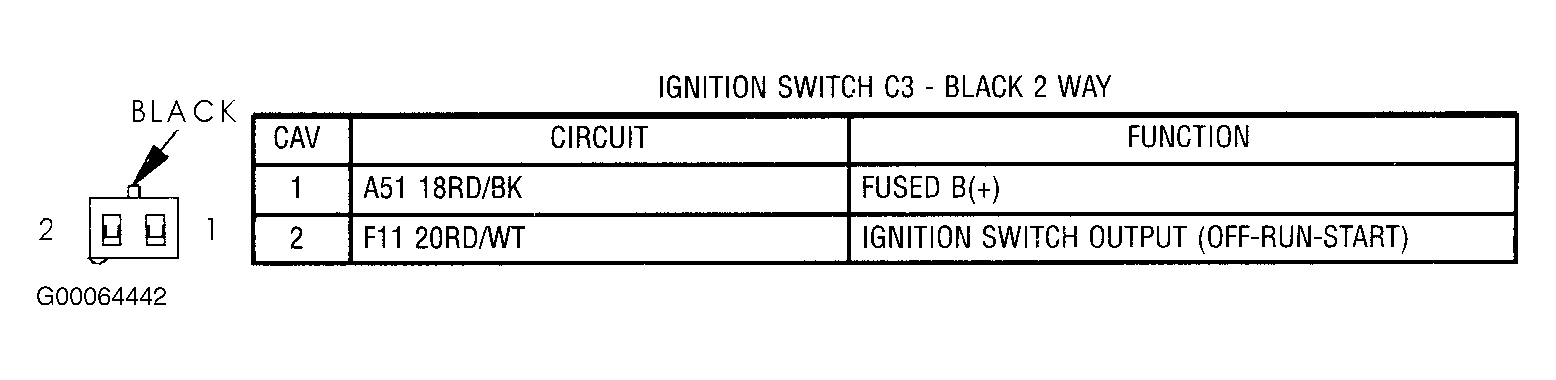

Fig 110: Ignition Switch C3 - Black 2-Way
Courtesy of CHRYSLER CORP.

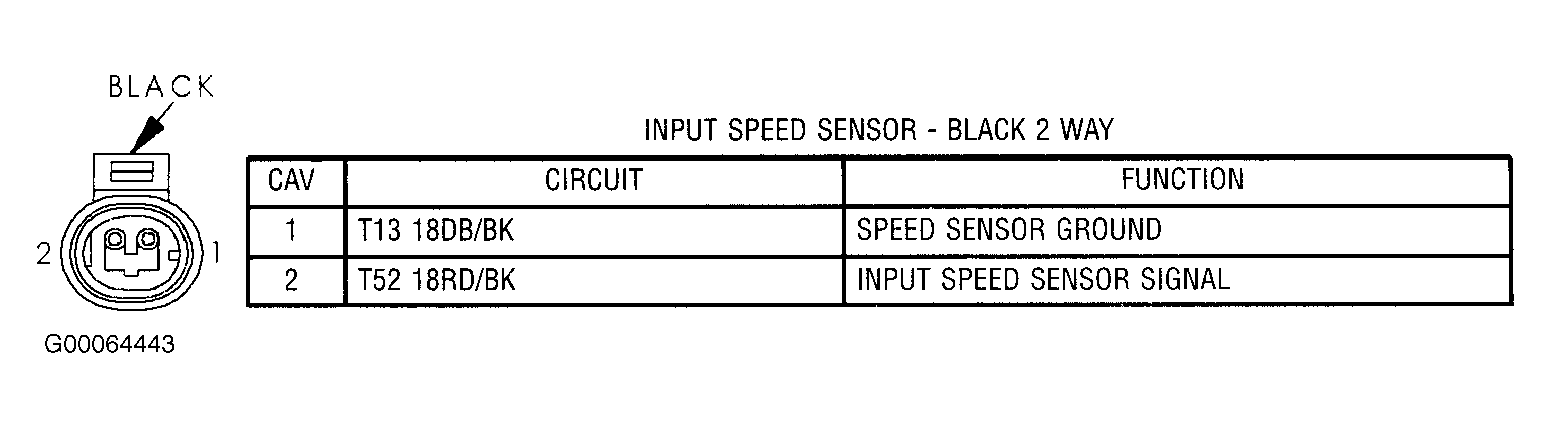

Fig 111: Input Speed Sensor - Black 2-Way
Courtesy of CHRYSLER CORP.

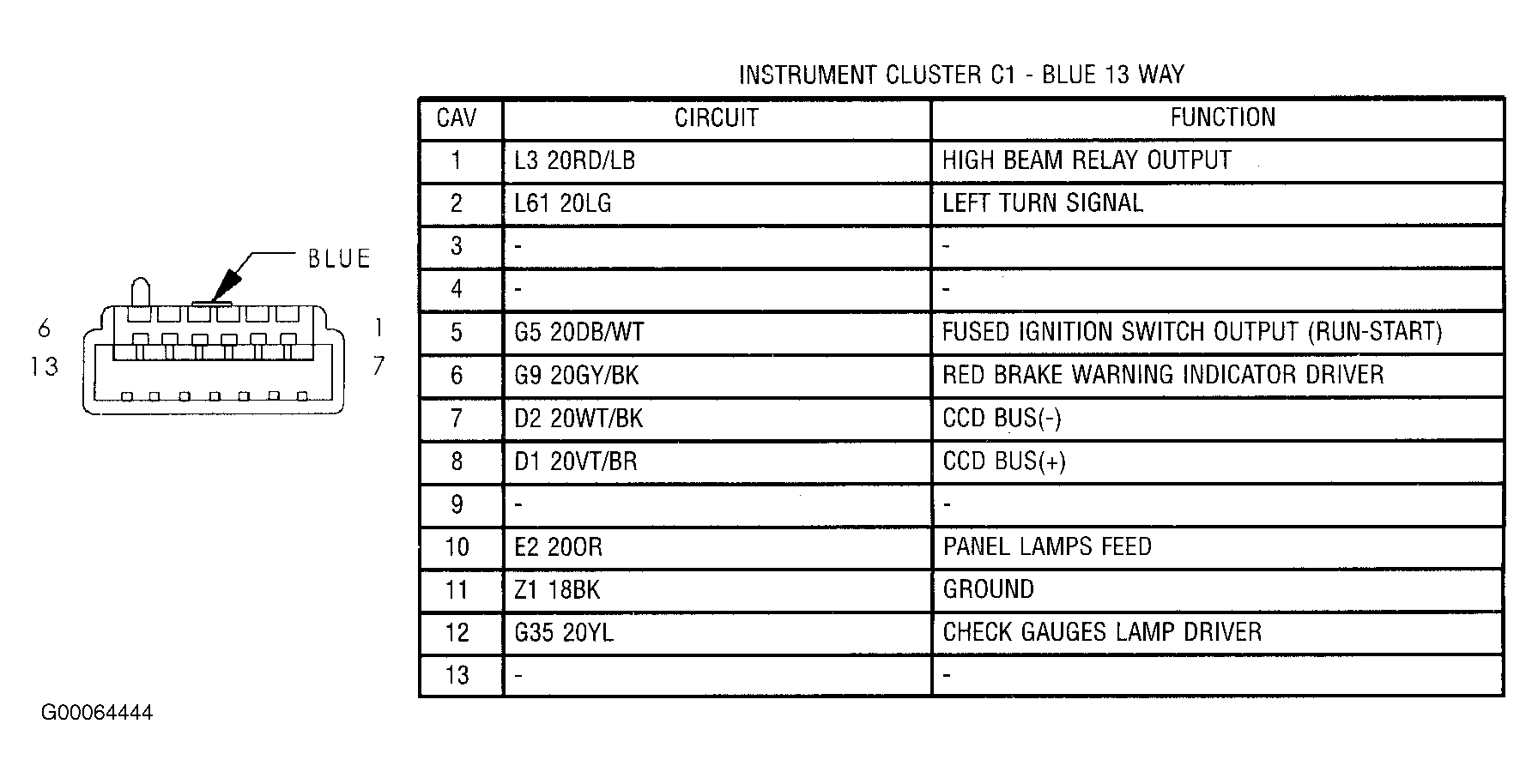

Fig 112: Instrument Cluster C1 - Blue 13-Way
Courtesy of CHRYSLER CORP.

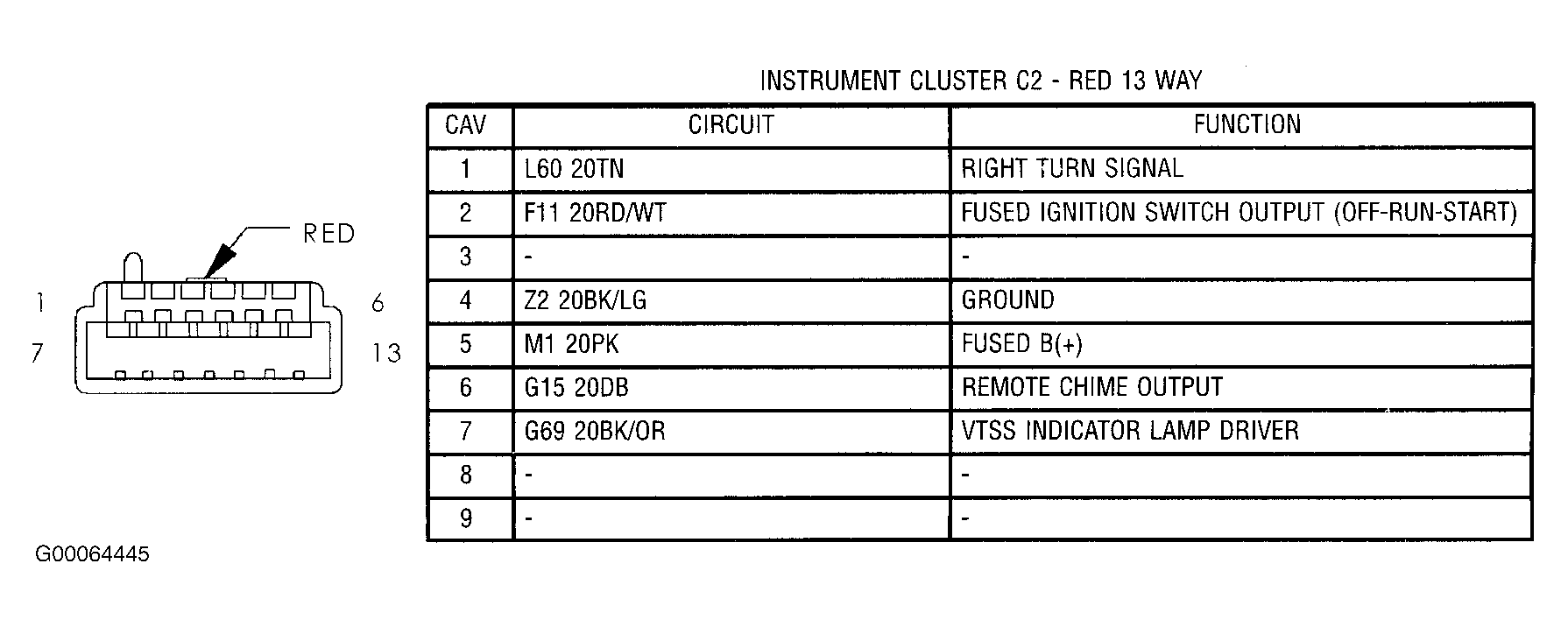

Fig 113: Instrument Cluster C2 - Red 13-Way (1 Of 2)
Courtesy of CHRYSLER CORP.

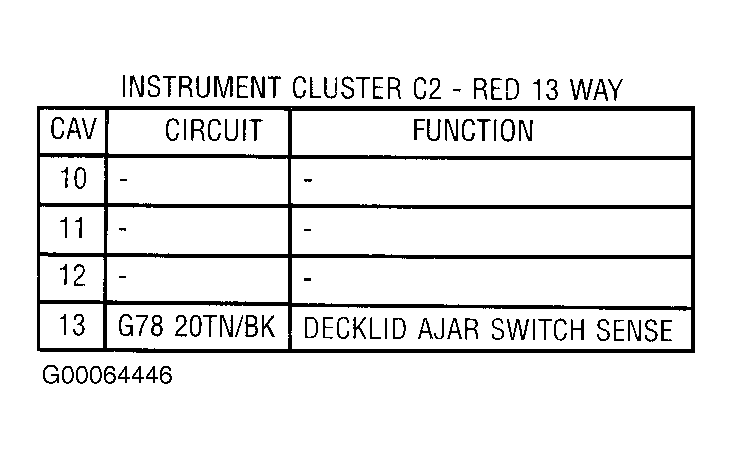

Fig 114: Instrument Cluster C2 - Red 13-Way (2 Of 2)
Courtesy of CHRYSLER CORP.

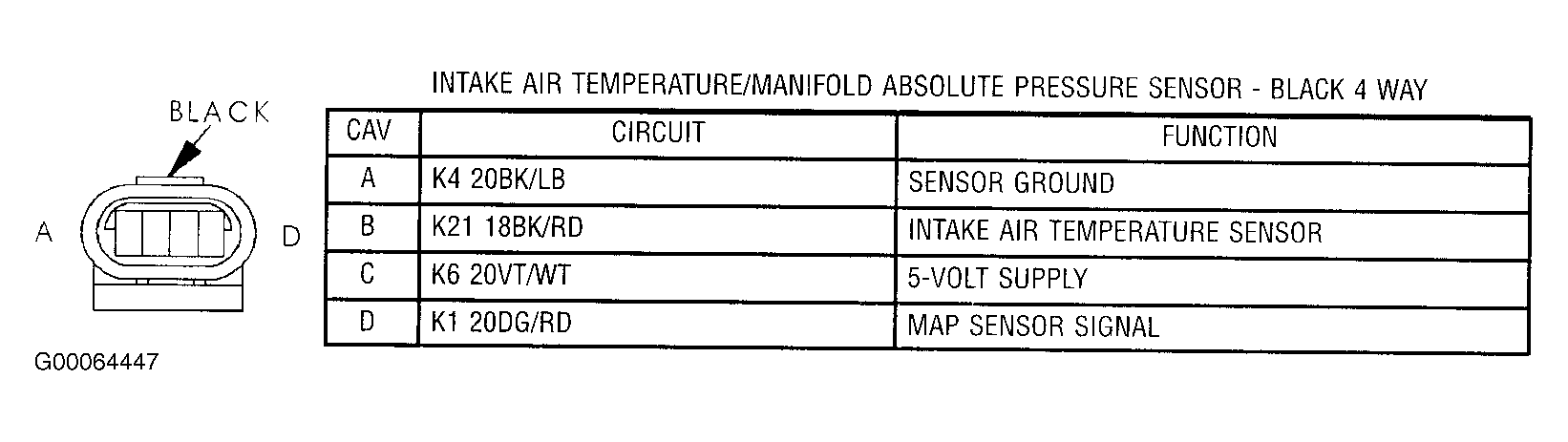

Fig 115: Intake Air Temperature/Manifold Absolute Pressure Sensor - Black 4-Way
Courtesy of CHRYSLER CORP.

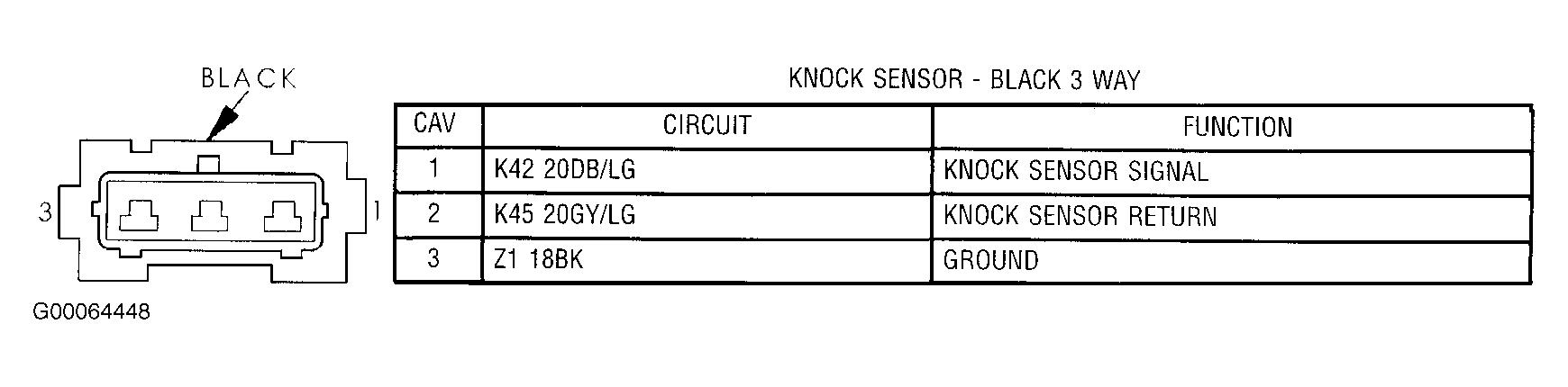

Fig 116: Knock Sensor - Black 13-Way
Courtesy of CHRYSLER CORP.

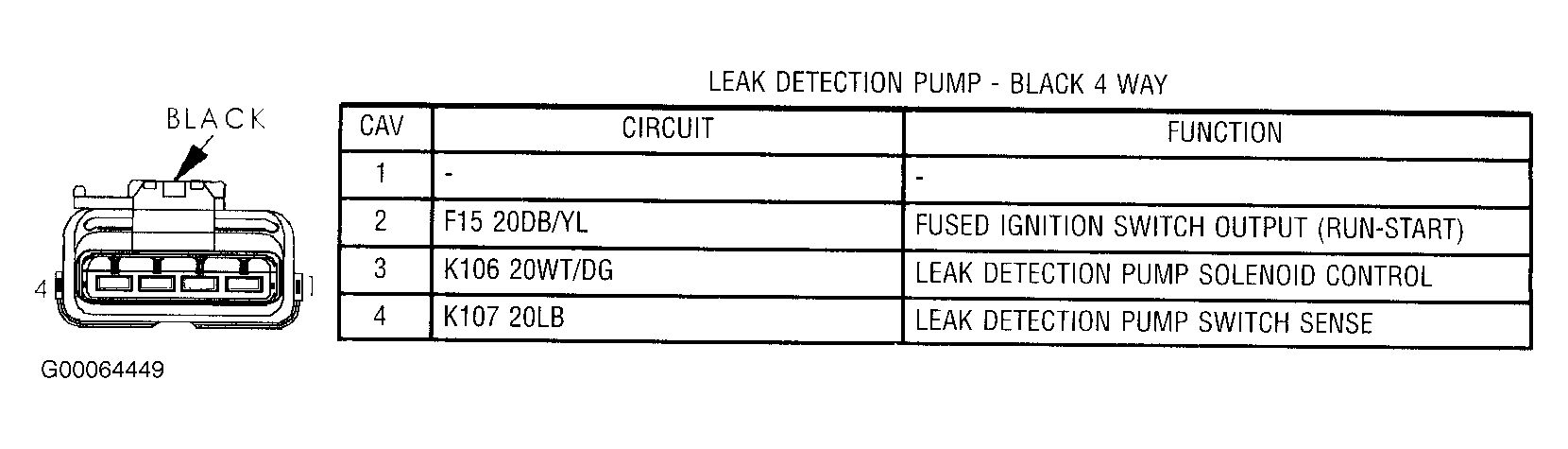

Fig 117: Leak Detection Pump - Black 4-Way
Courtesy of CHRYSLER CORP.

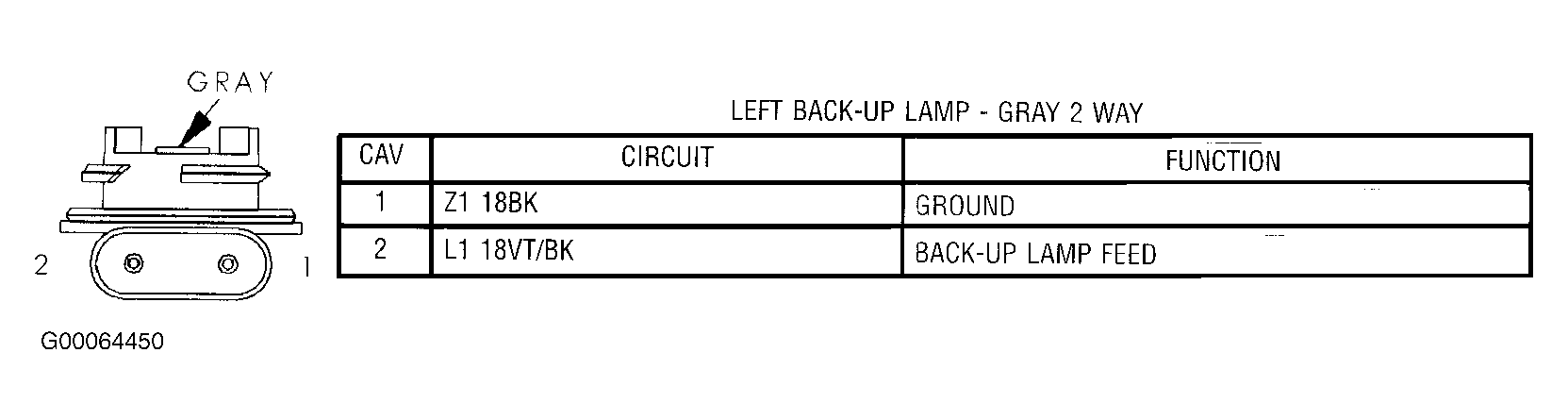

Fig 118: Left Back-Up Lamp - Gray 2-Way
Courtesy of CHRYSLER CORP.

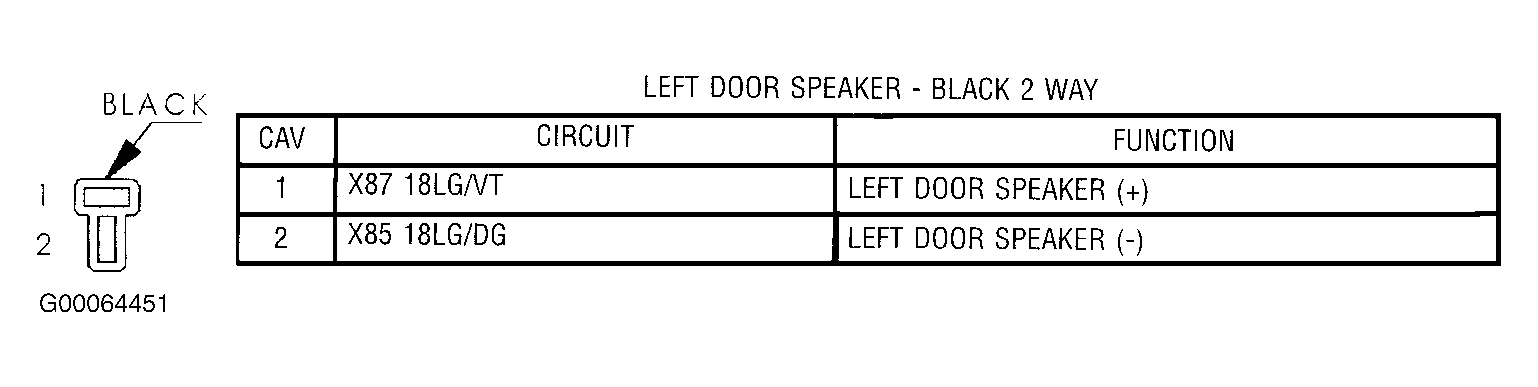

Fig 119: Left Door Speaker - Black 2-Way
Courtesy of CHRYSLER CORP.

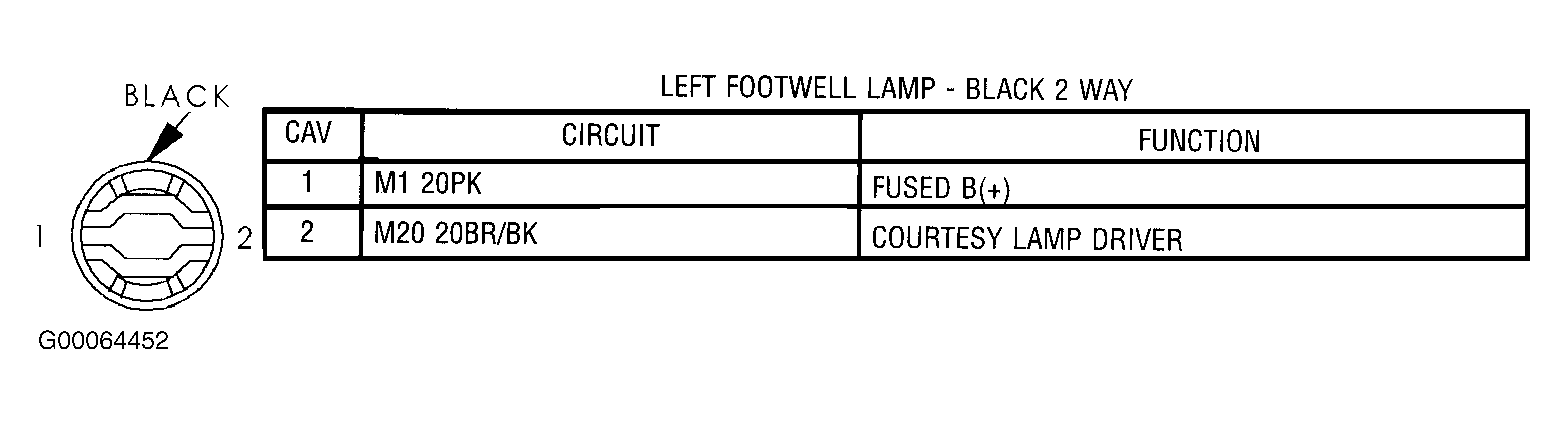

Fig 120: Left Footwell Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

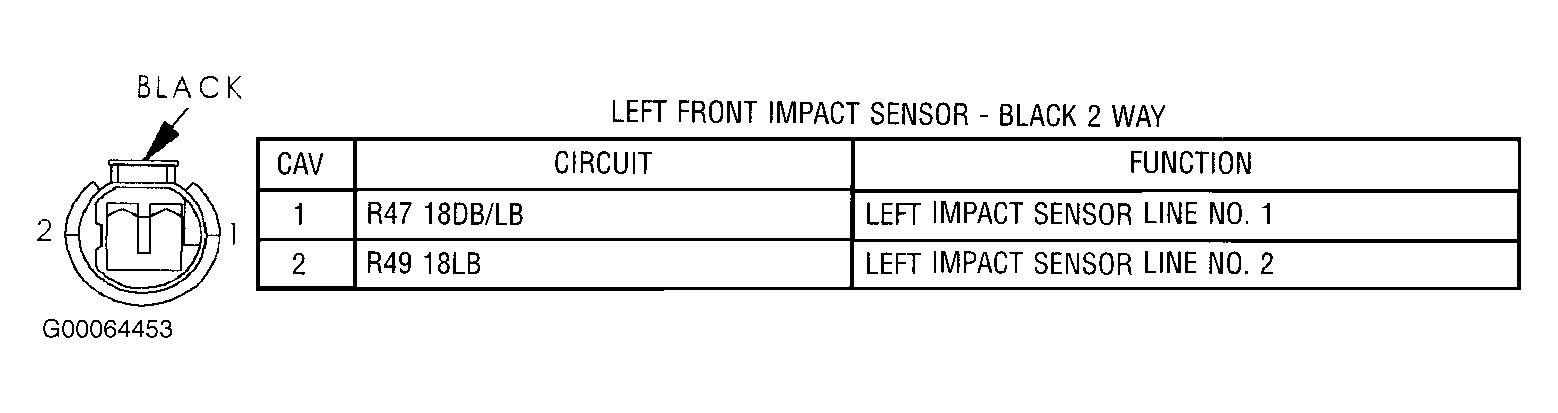

Fig 121: Left Front Impact Sensor - Black 2-Way
Courtesy of CHRYSLER CORP.

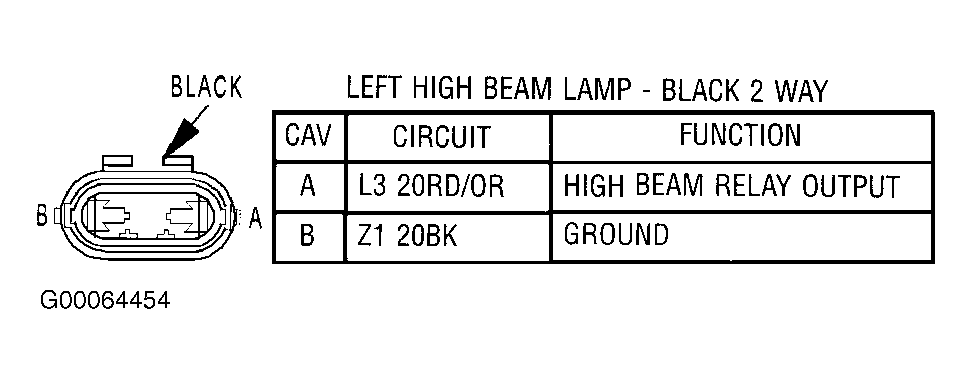

Fig 122: Left High Beam Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

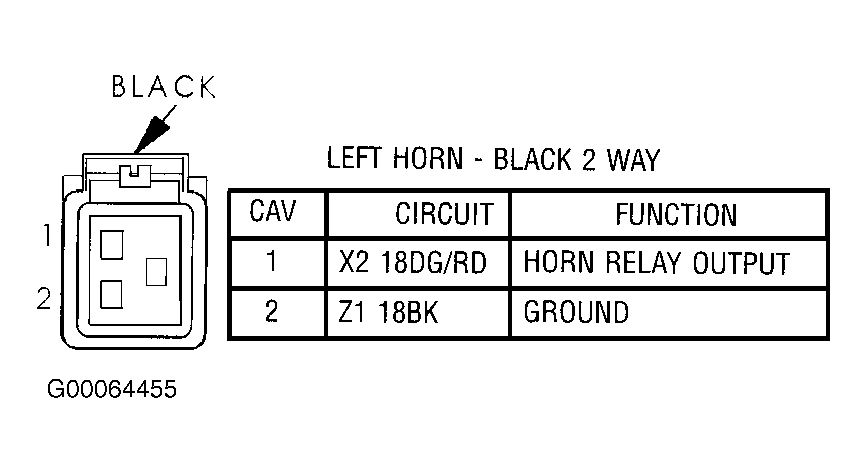

Fig 123: Left Horn - Black 2-Way
Courtesy of CHRYSLER CORP.

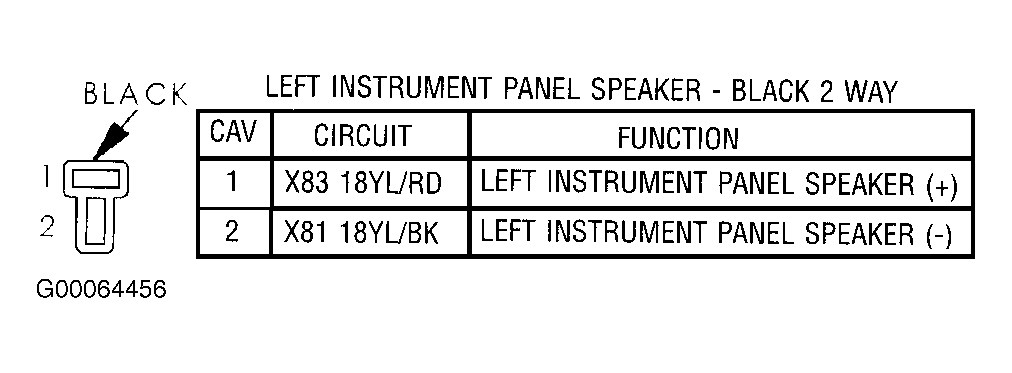

Fig 124: Left Instrument Panel Speaker - Black 2-Way
Courtesy of CHRYSLER CORP.

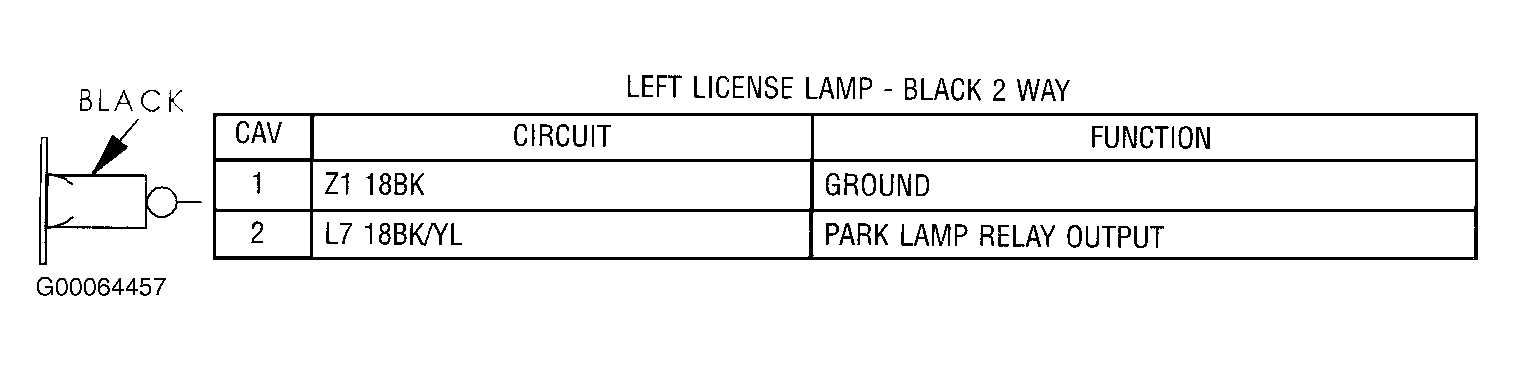

Fig 125: Left License Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

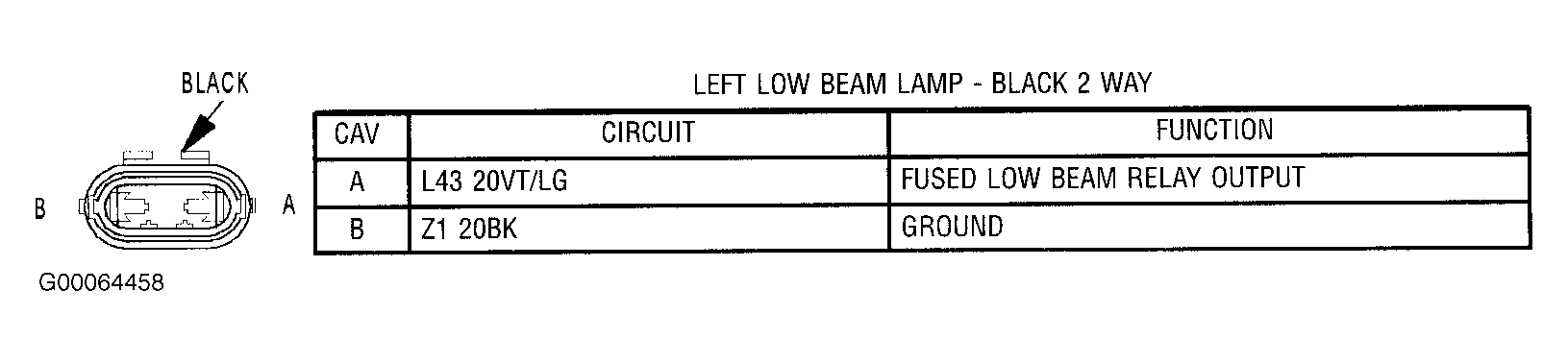

Fig 126: Left Low Beam Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

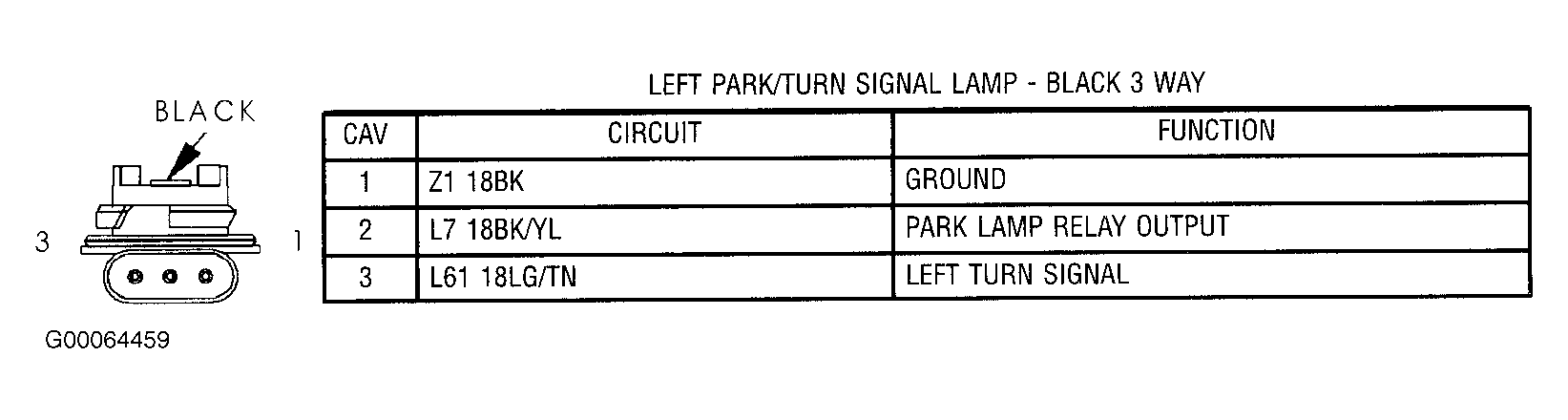

Fig 127: Left Park/Turn Signal Lamp - Black 3-Way
Courtesy of CHRYSLER CORP.

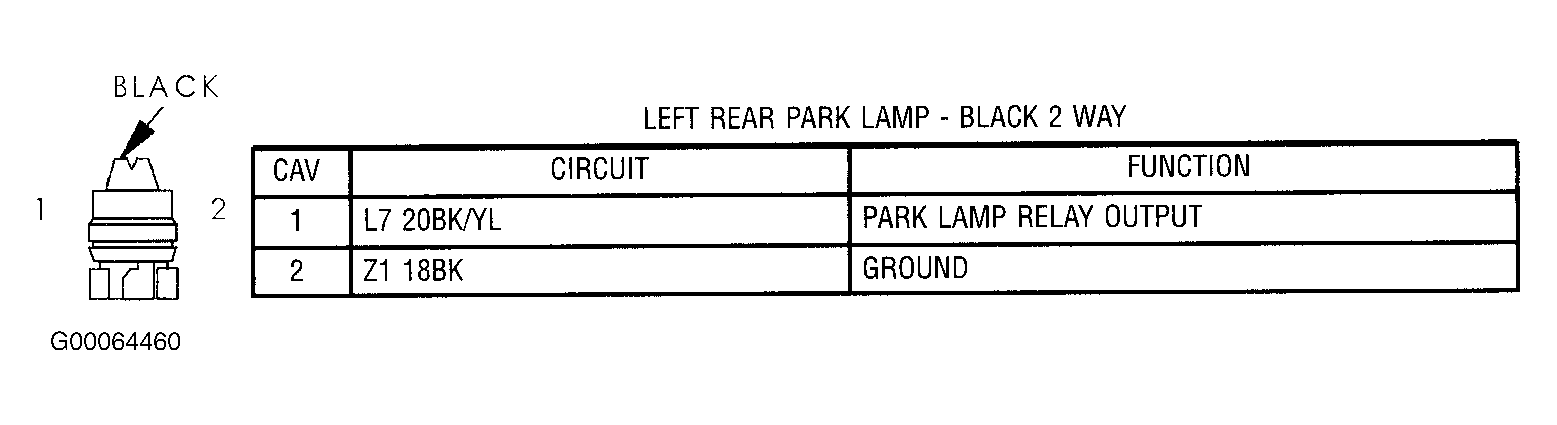

Fig 128: Left Rear Park Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

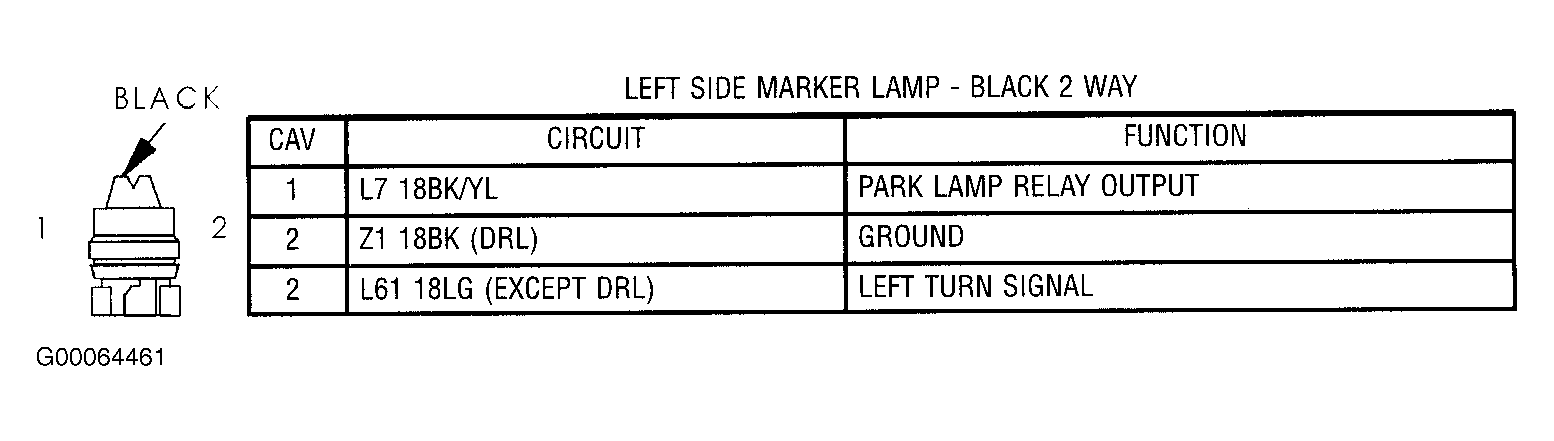

Fig 129: Left Side Marker Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

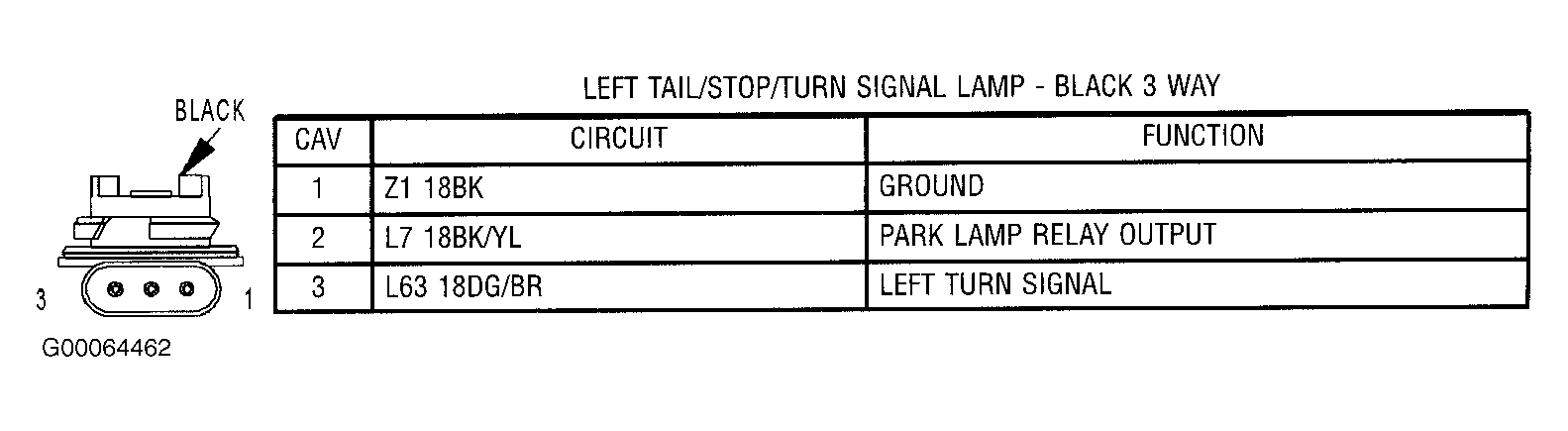

Fig 130: Left Tail/Stop/Turn Signal Lamp - Black 3-Way
Courtesy of CHRYSLER CORP.

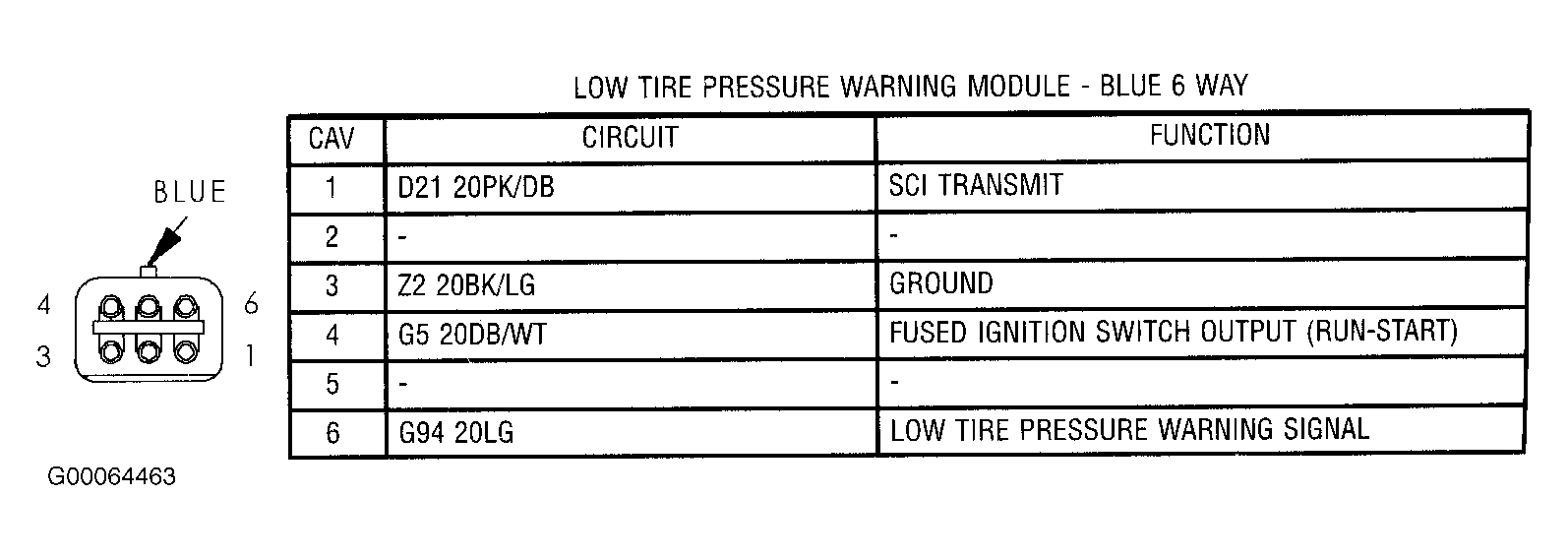

Fig 131: Low Tire Pressure Warning Module - Blue 6-Way
Courtesy of CHRYSLER CORP.

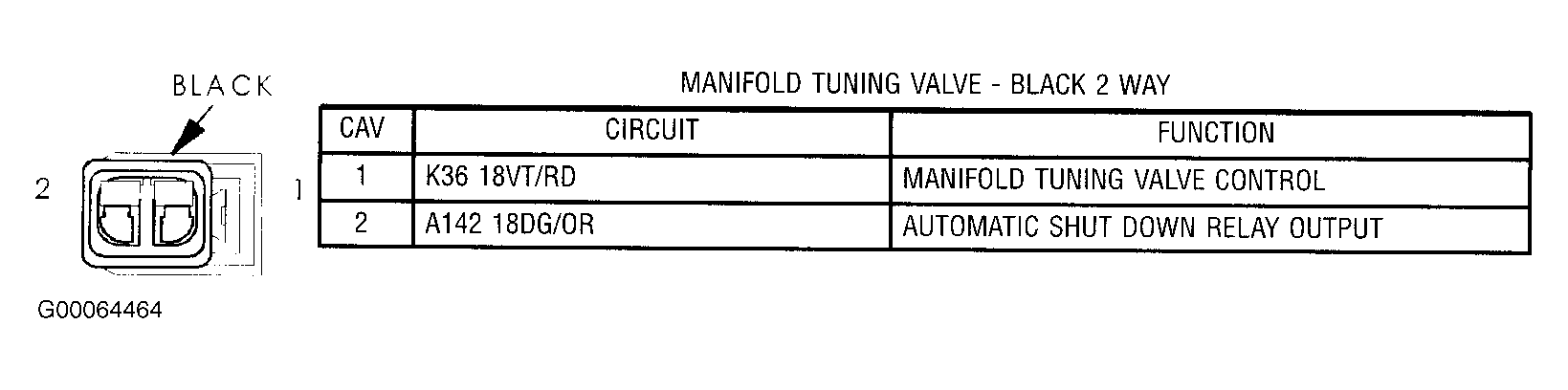

Fig 132: Manifold Tuning Valve - Black 2-Way
Courtesy of CHRYSLER CORP.

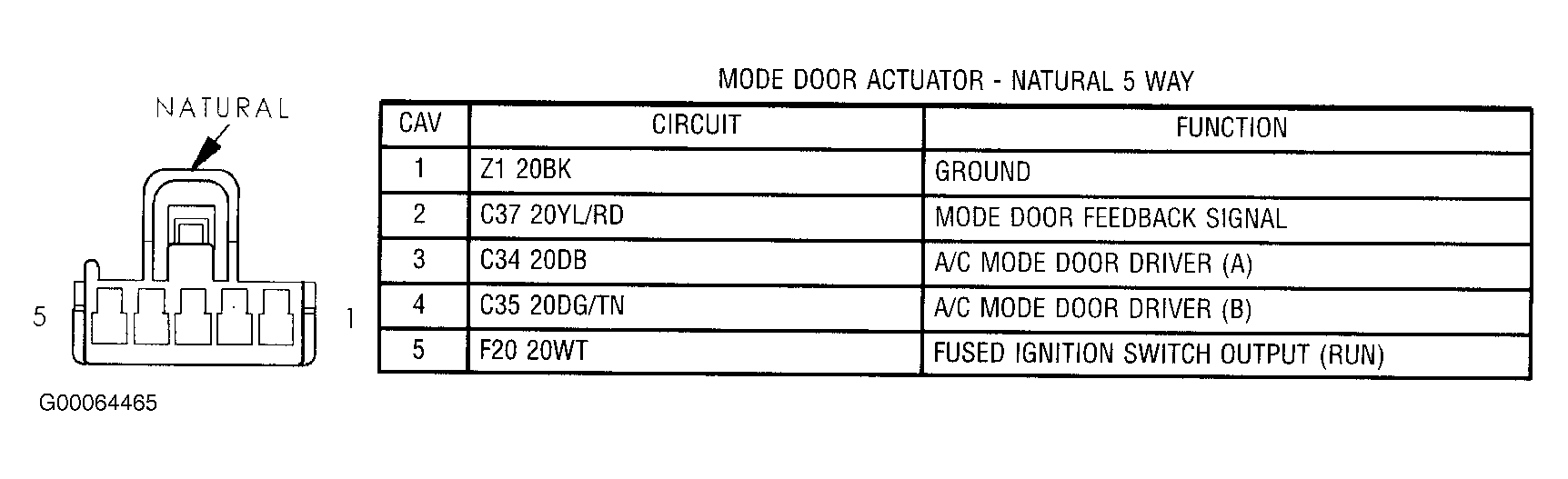

Fig 133: Mode Door Actuator - Natural 5-Way
Courtesy of CHRYSLER CORP.

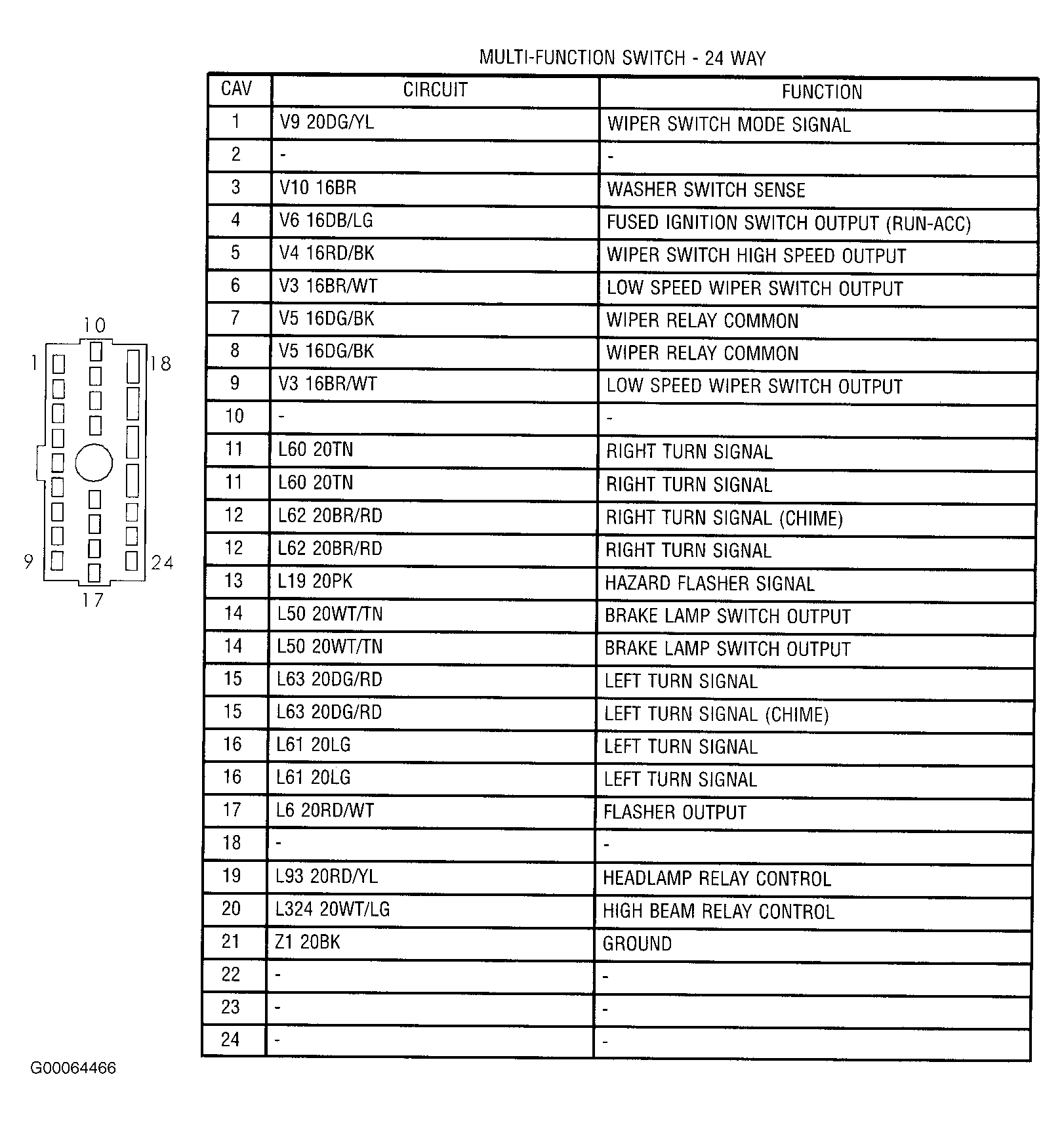

Fig 134: Mutli-Function Switch - 24-Way
Courtesy of CHRYSLER CORP.

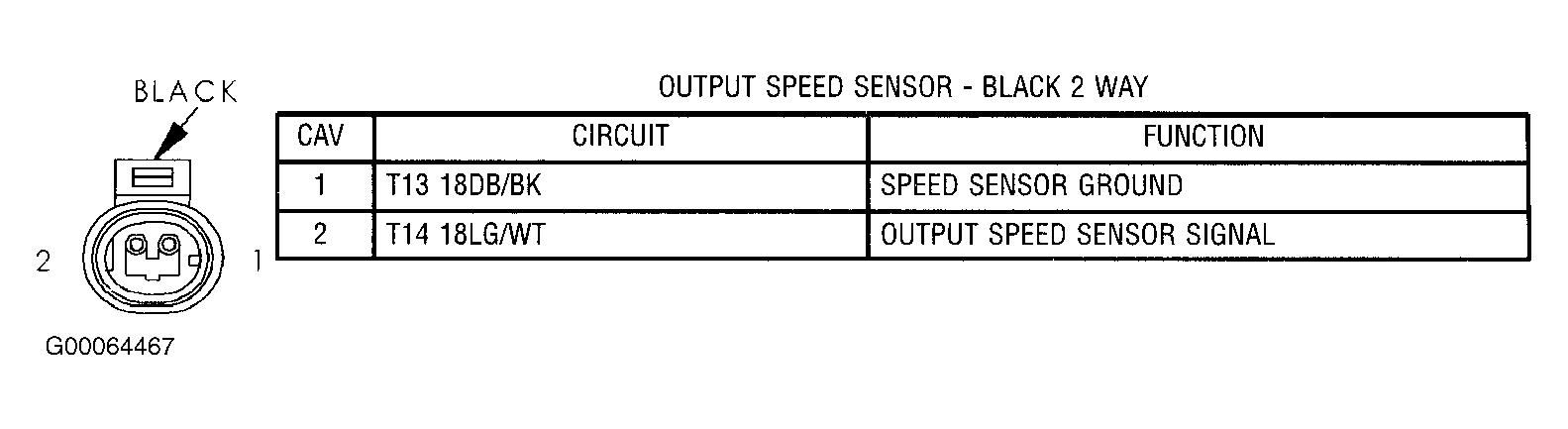

Fig 135: Output Speed Sensor - Black 2-Way
Courtesy of CHRYSLER CORP.

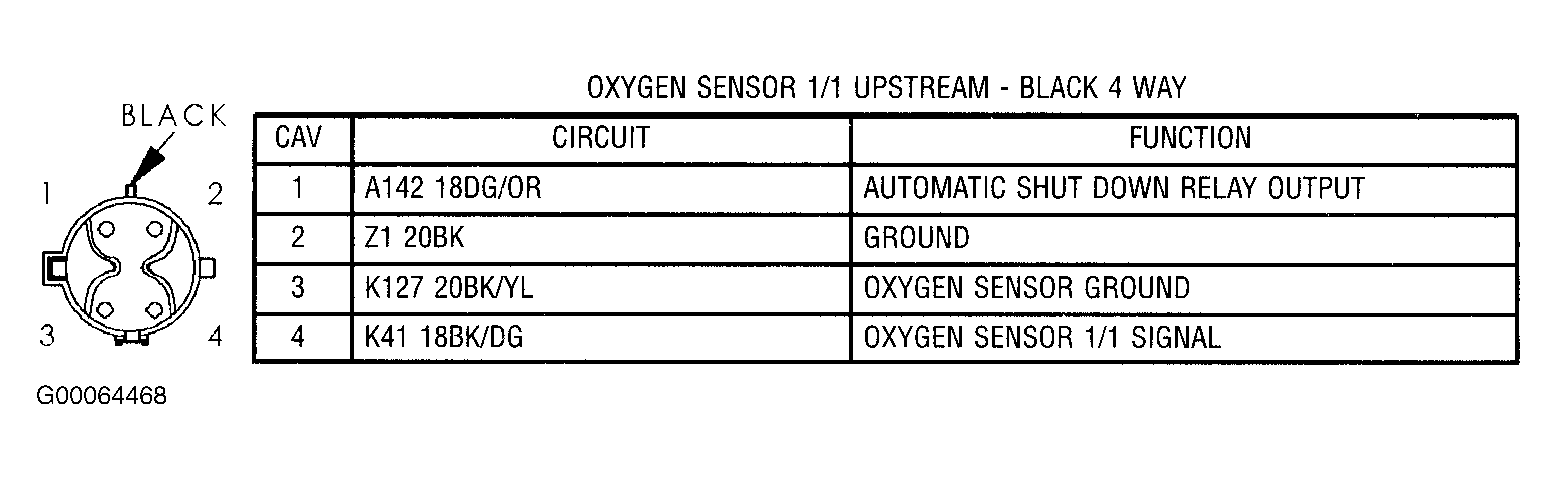

Fig 136: Oxygen Sensor 1/1 Upstream - Black 4-Way
Courtesy of CHRYSLER CORP.

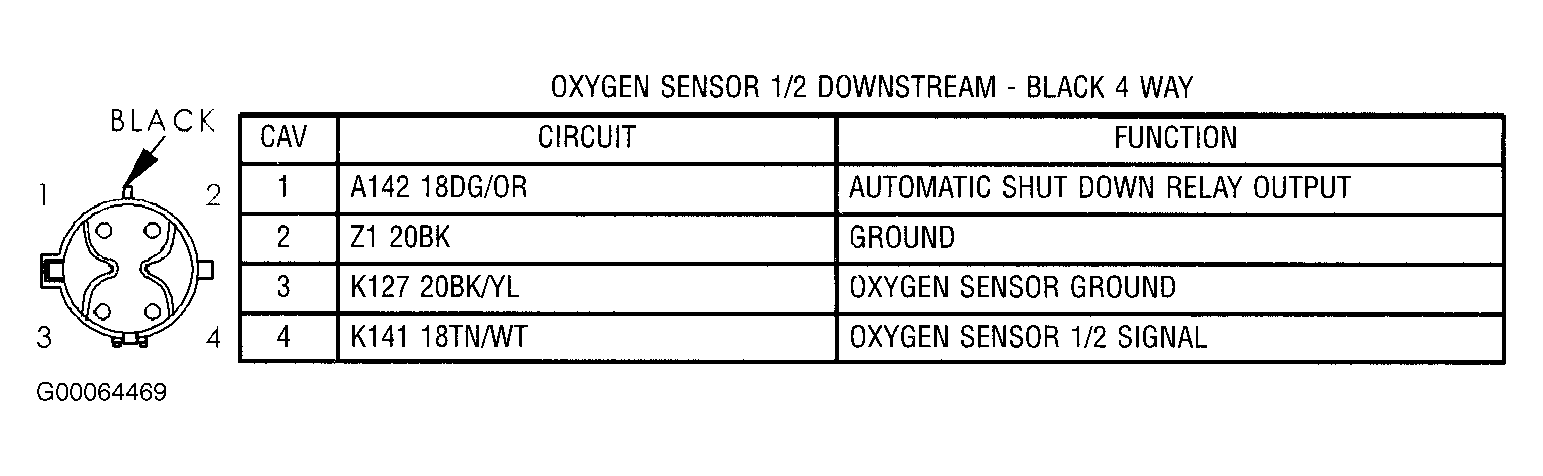

Fig 137: Oxygen Sensor 1/2 Downstream - Black 4-Way
Courtesy of CHRYSLER CORP.

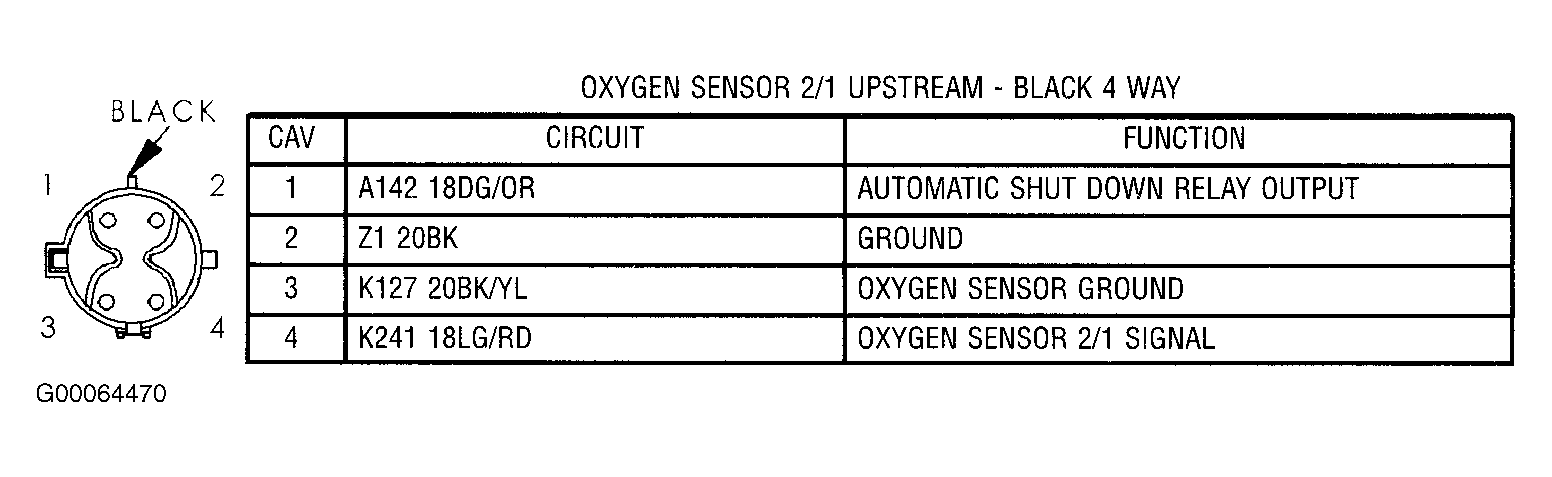

Fig 138: Oxygen Sensor 2/1 Upstream - Black 4-Way
Courtesy of CHRYSLER CORP.

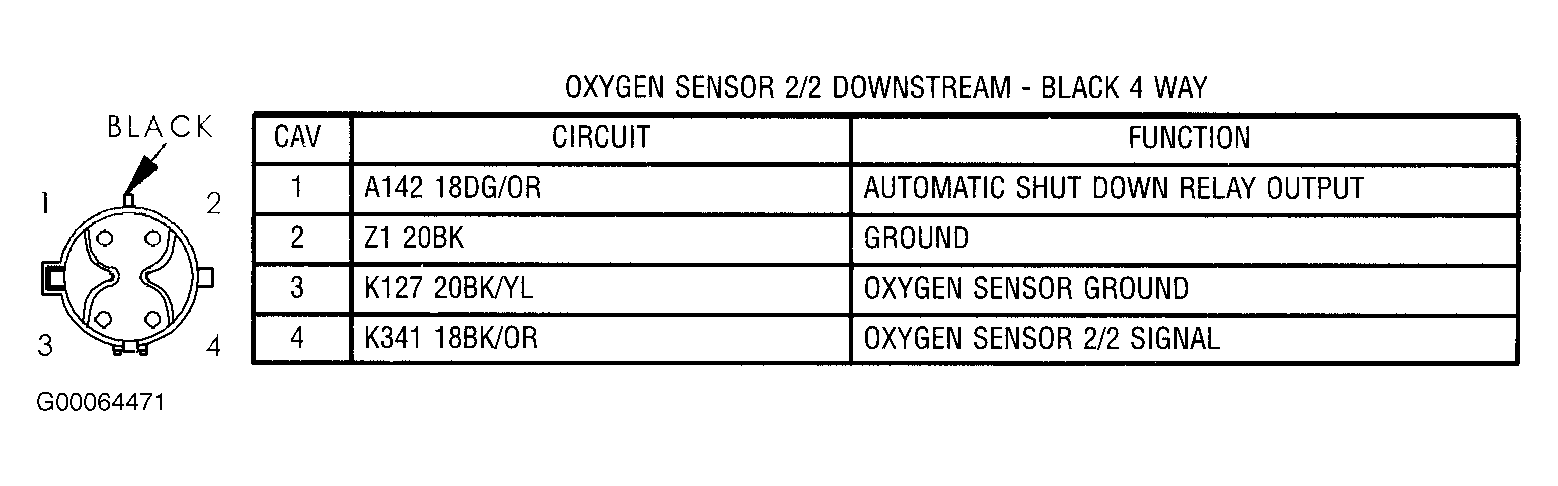

Fig 139: Oxygen Sensor 2/2 Downstream - Black 4-Way
Courtesy of CHRYSLER CORP.

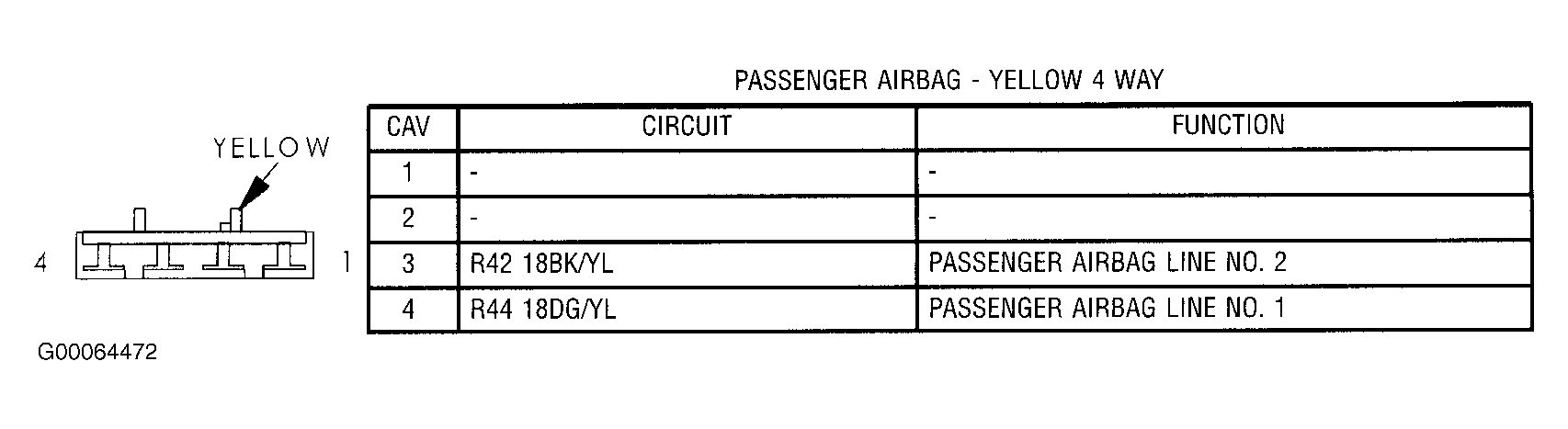

Fig 140: Passenger Airbag - Yellow 4-Way
Courtesy of CHRYSLER CORP.

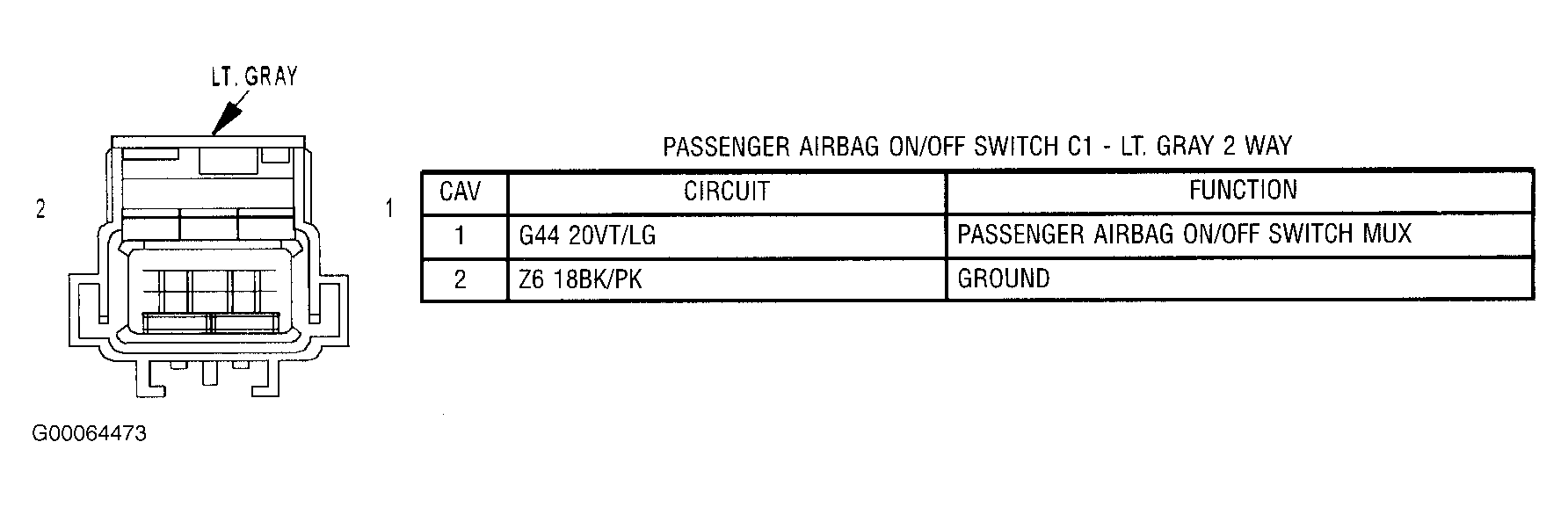

Fig 141: Passenger Airbag - Light Gray 2-Way
Courtesy of CHRYSLER CORP.

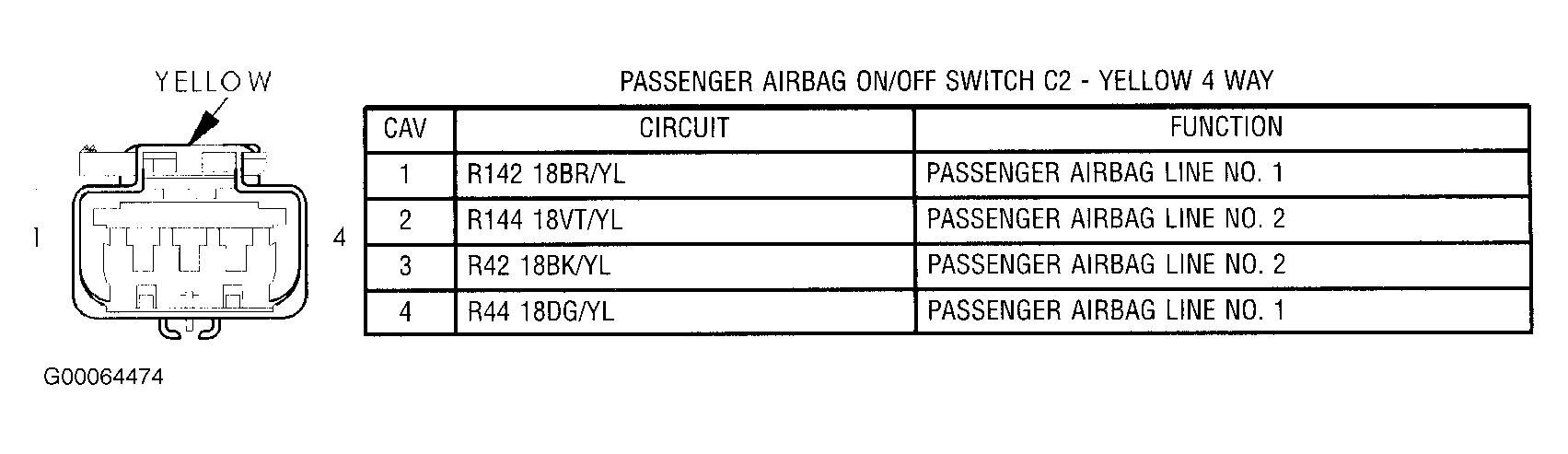

Fig 142: Passenger Airbag ON/OFF Switch - Yellow 4-Way
Courtesy of CHRYSLER CORP.

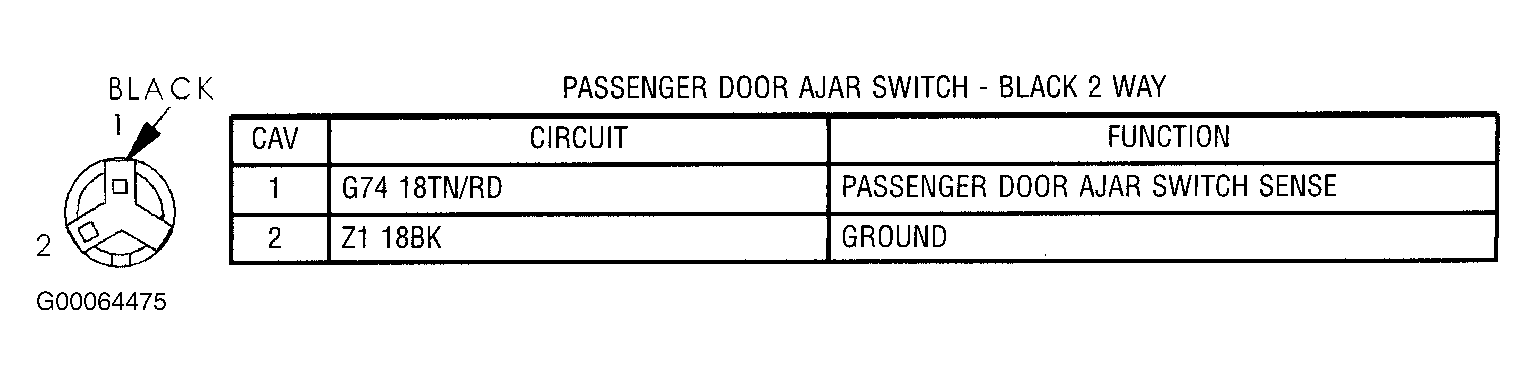

Fig 143: Passenger Door Ajar Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

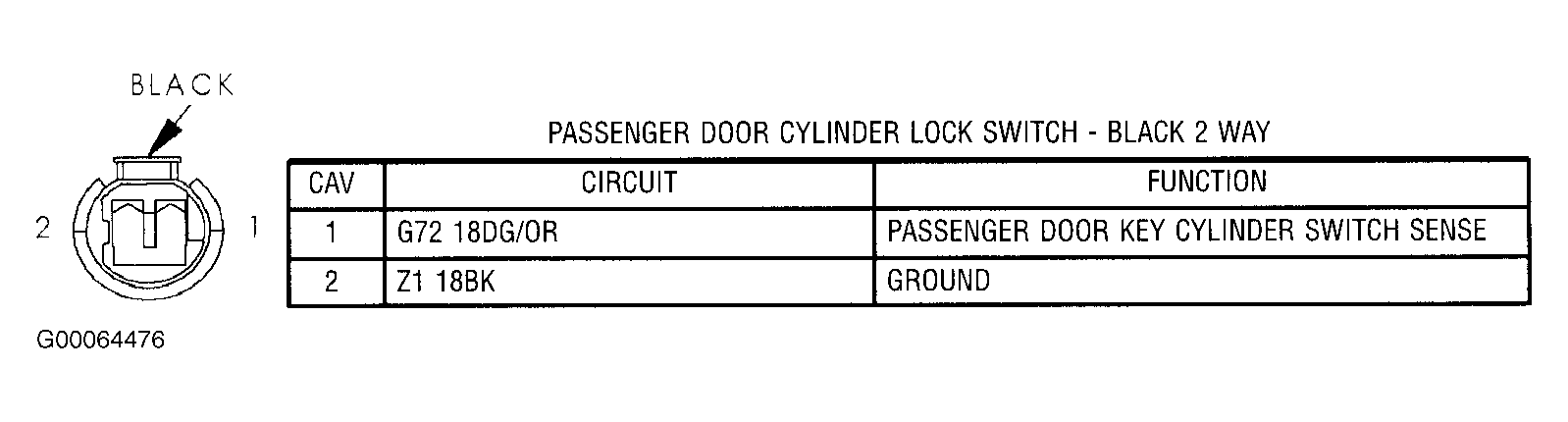

Fig 144: Passenger Door Cylinder Lock Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

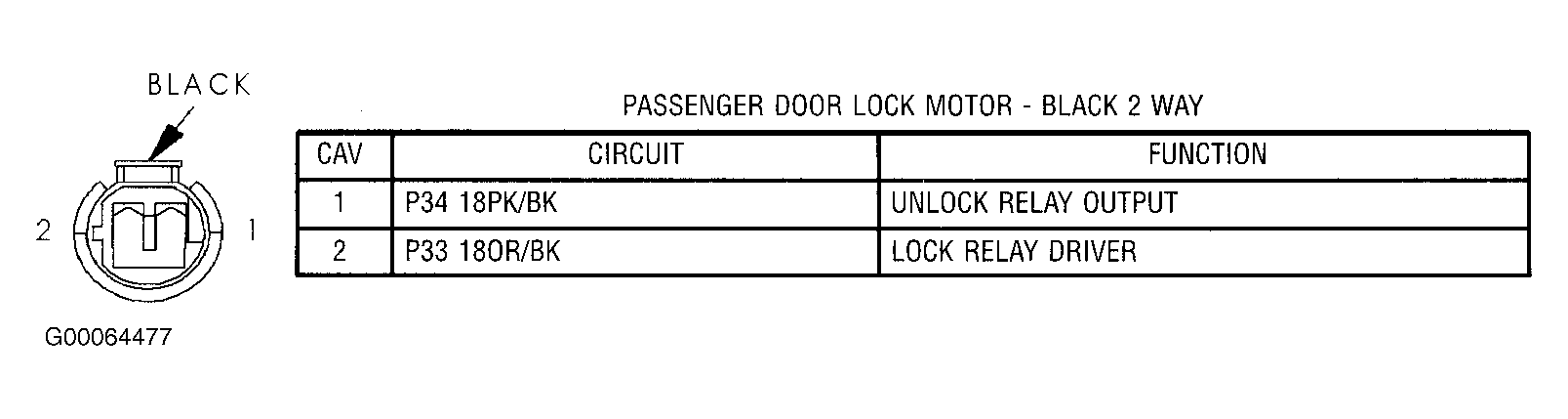

Fig 145: Passenger Door Lock Motor - Black 2-Way
Courtesy of CHRYSLER CORP.

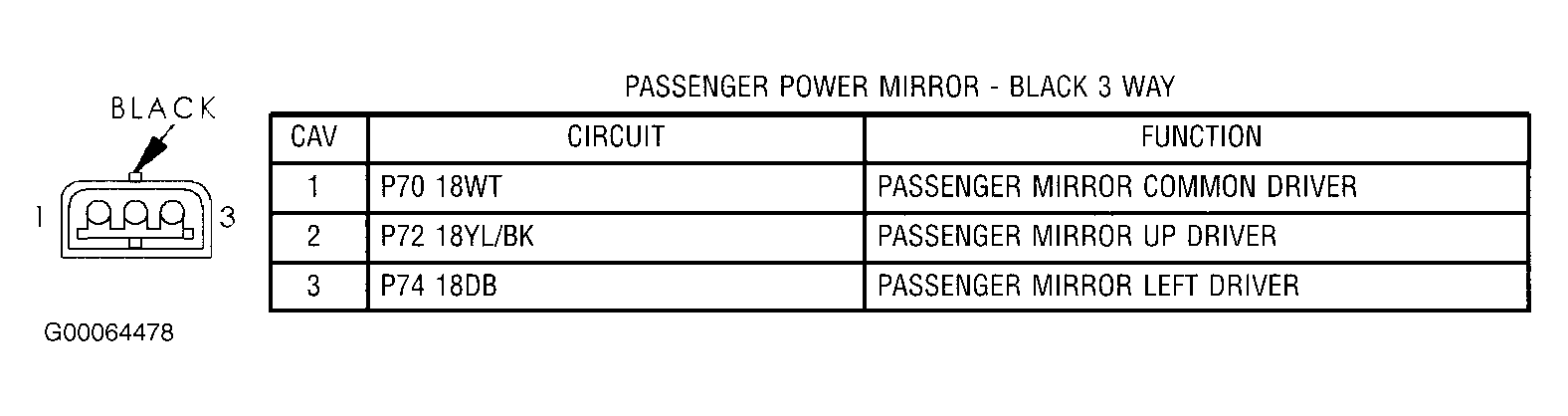

Fig 146: Passenger Power Mirror - Black 3-Way
Courtesy of CHRYSLER CORP.

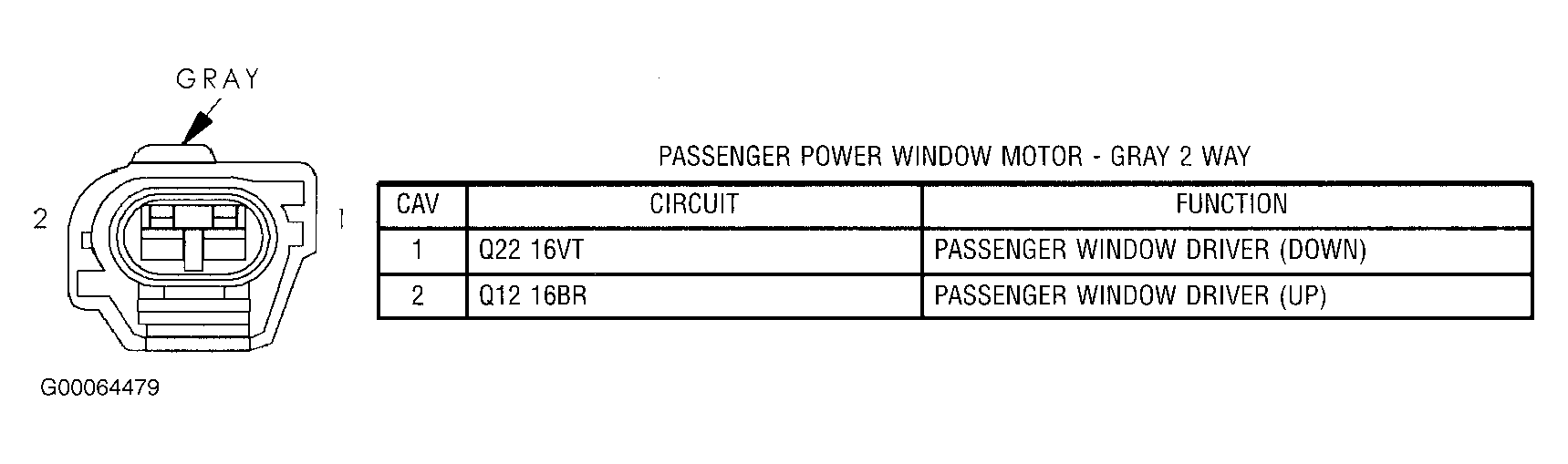

Fig 147: Passenger Power Window Motor - Gray 2-Way
Courtesy of CHRYSLER CORP.

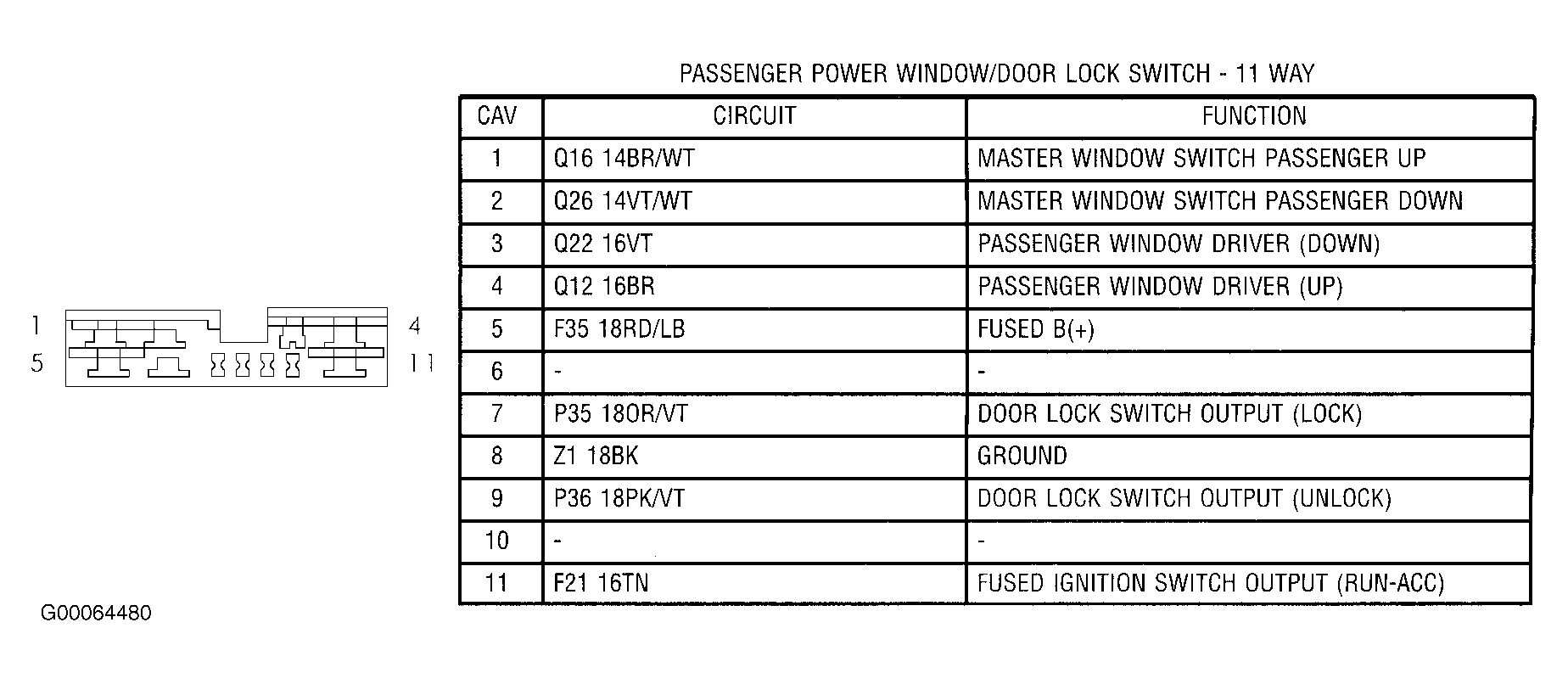

Fig 148: Passenger Power Window/Door Lock Switch - 11-Way
Courtesy of CHRYSLER CORP.

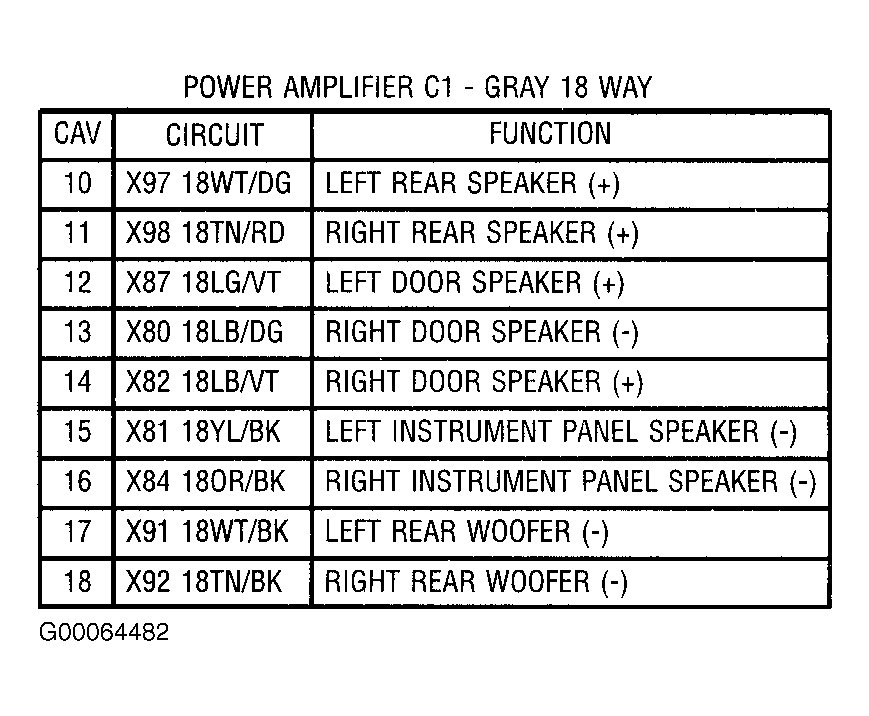

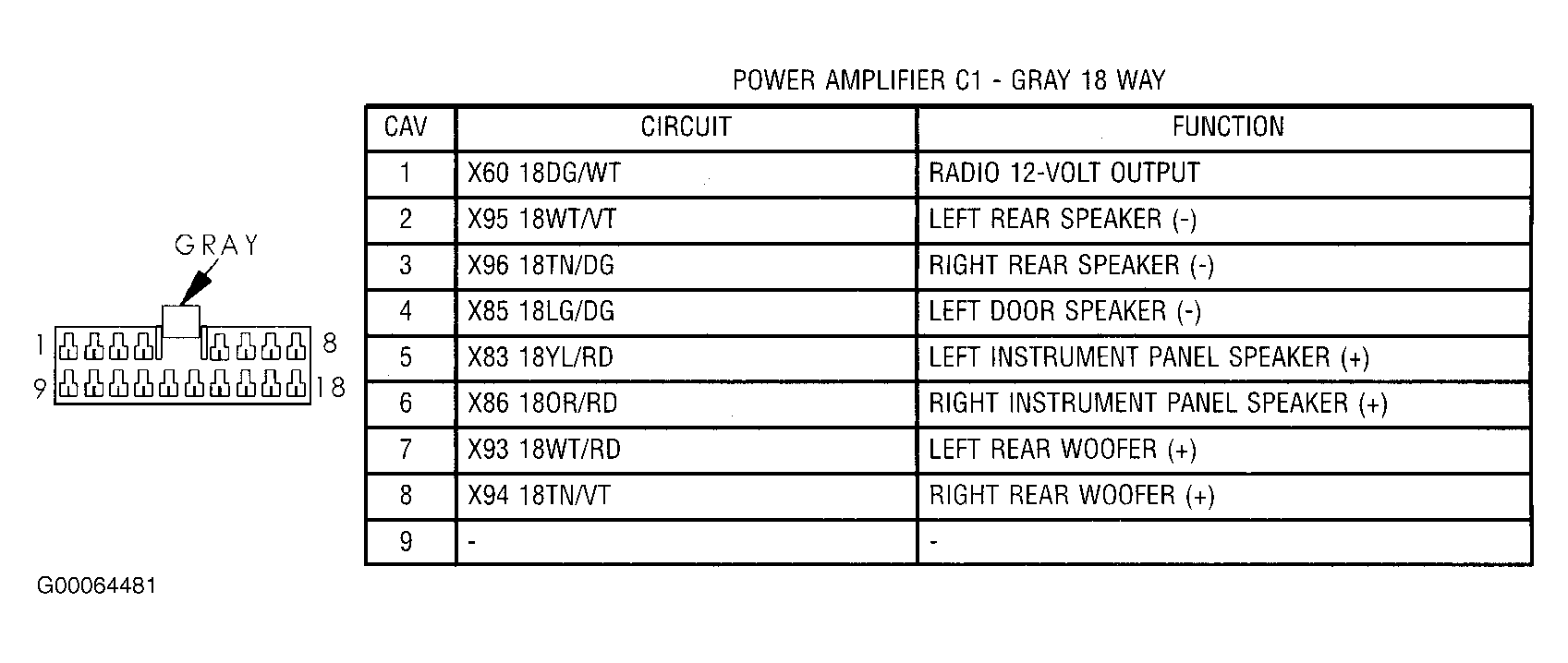

Fig 149: Power Amplifier C1 - Gray 18-Way (1 Of 2)
Courtesy of CHRYSLER CORP.
Fig 150: Power Amplifier C1 - Gray 18-Way (2 Of 2)
Courtesy of CHRYSLER CORP.

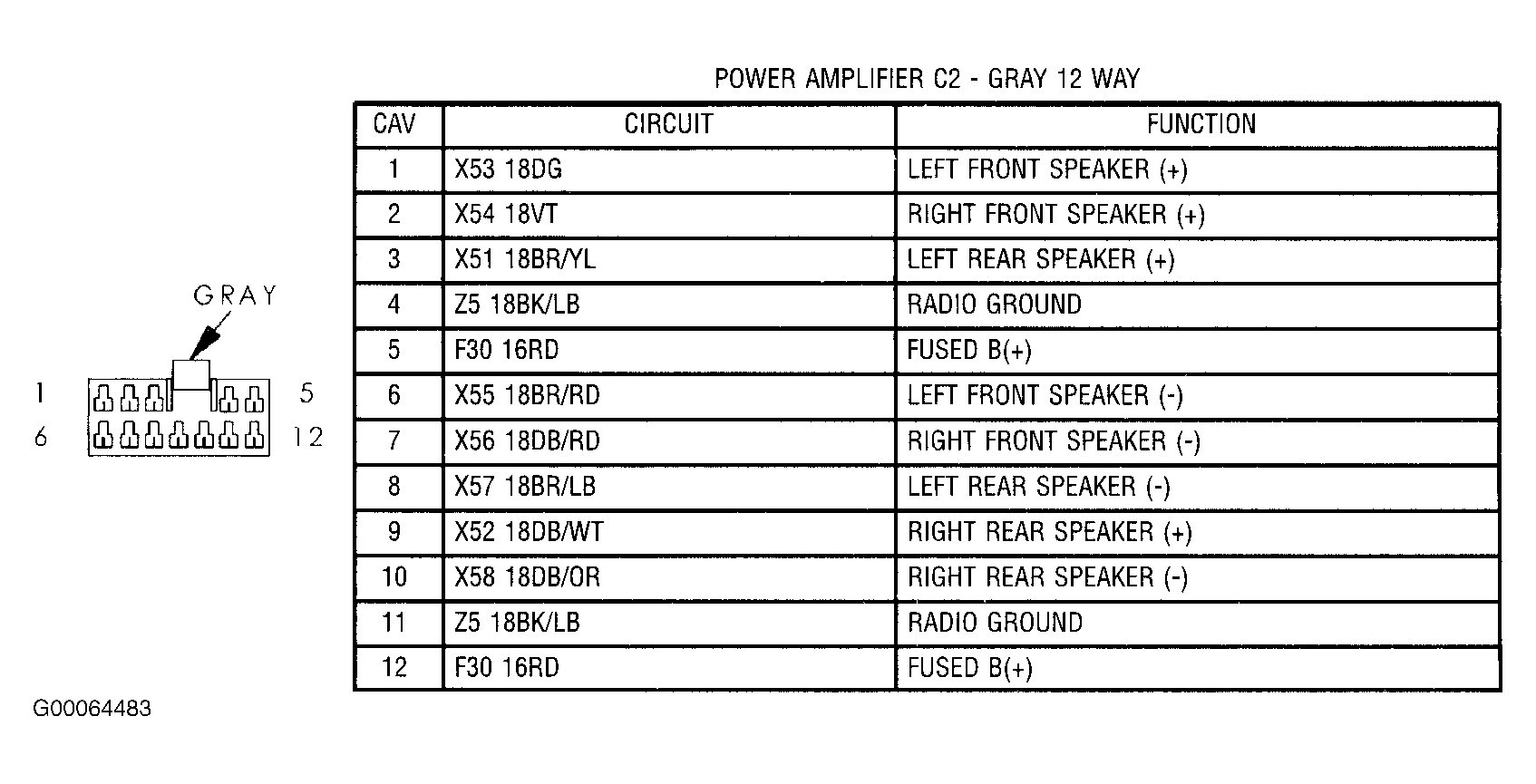

Fig 151: Power Amplifier C2 - Gray 12-Way
Courtesy of CHRYSLER CORP.

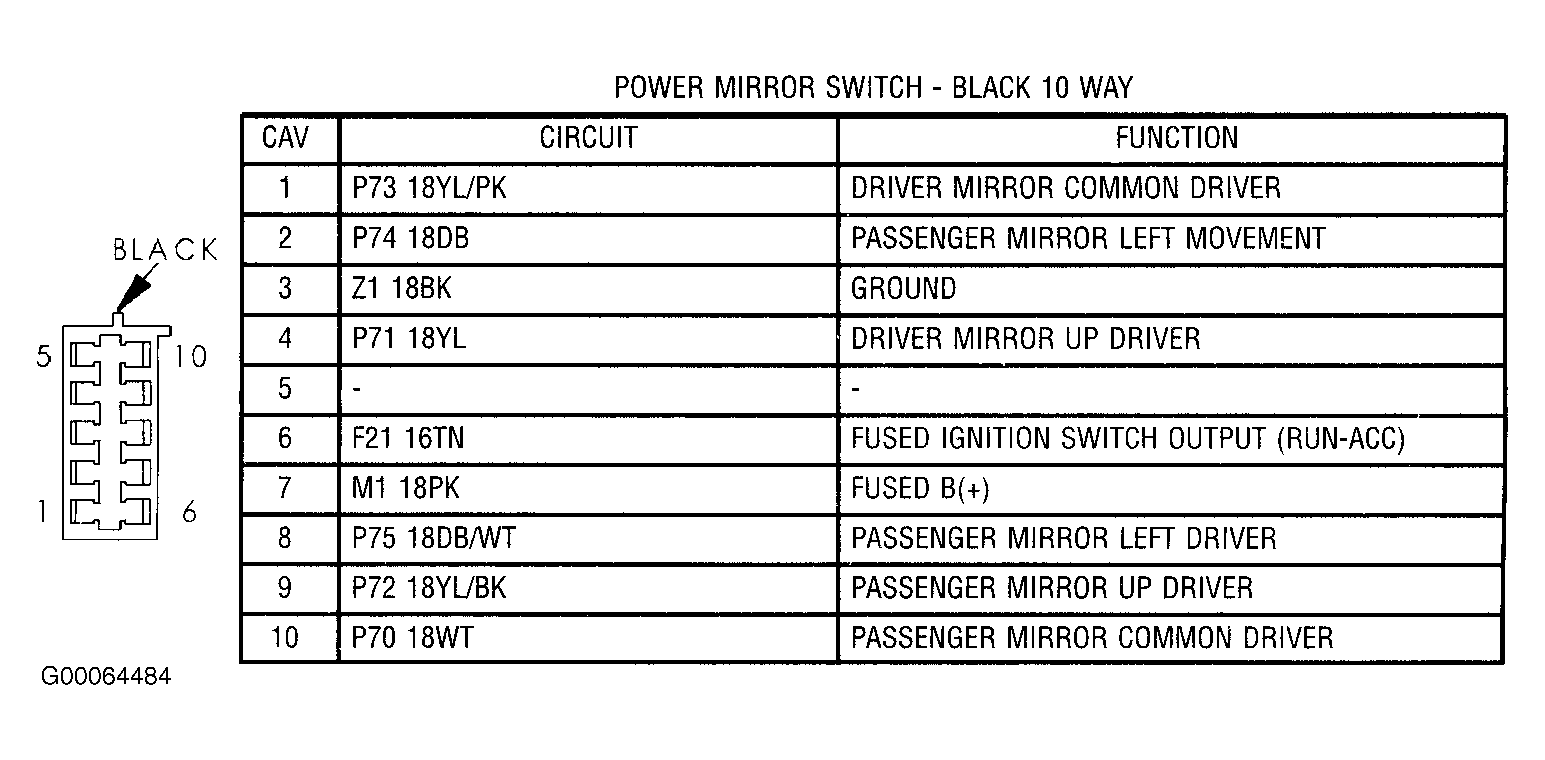

Fig 152: Power Mirror Switch - Black 10-Way
Courtesy of CHRYSLER CORP.

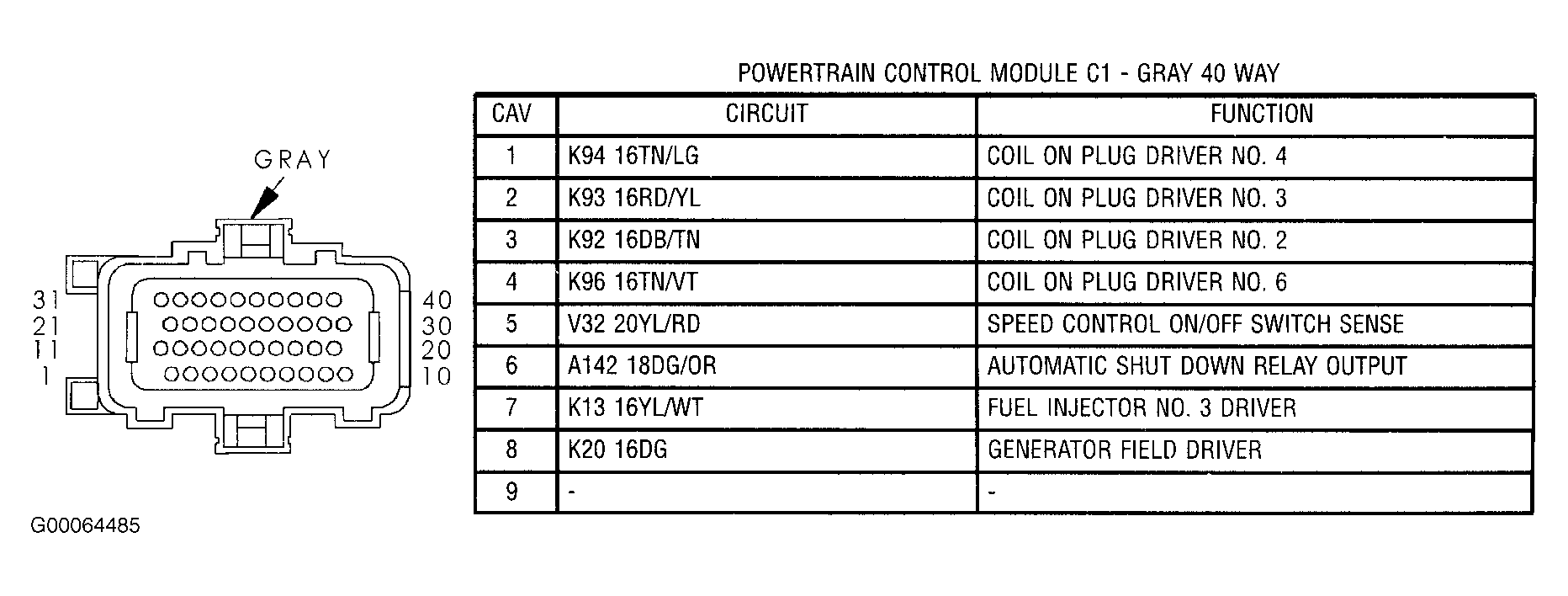

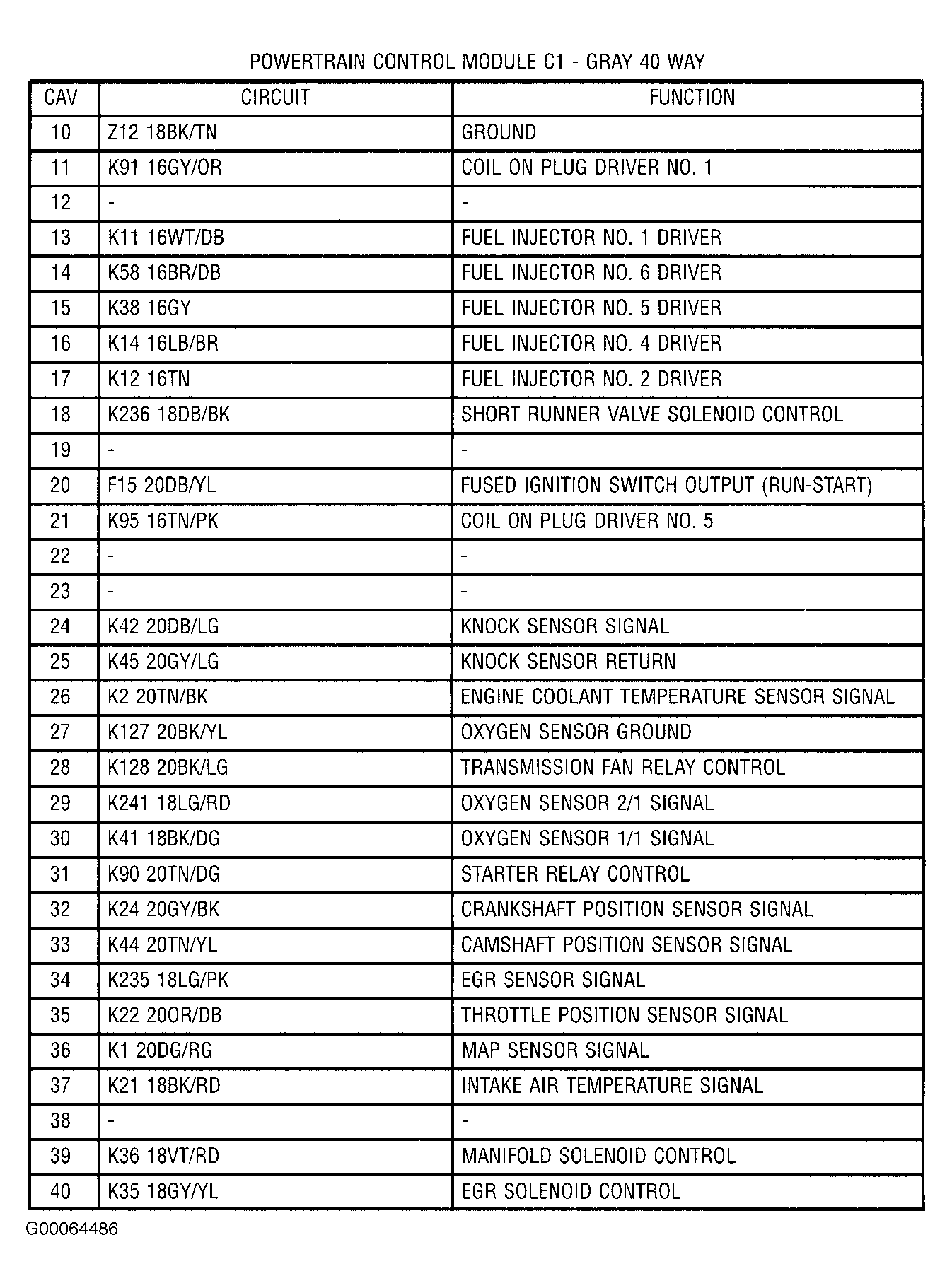

Fig 153: Power Control Module C1 - Gray 40-Way (1 Of 2)
Courtesy of CHRYSLER CORP.
Fig 154: Powertrain Control Module C1 - Gray 40-Way (2 Of 2)
Courtesy of CHRYSLER CORP.

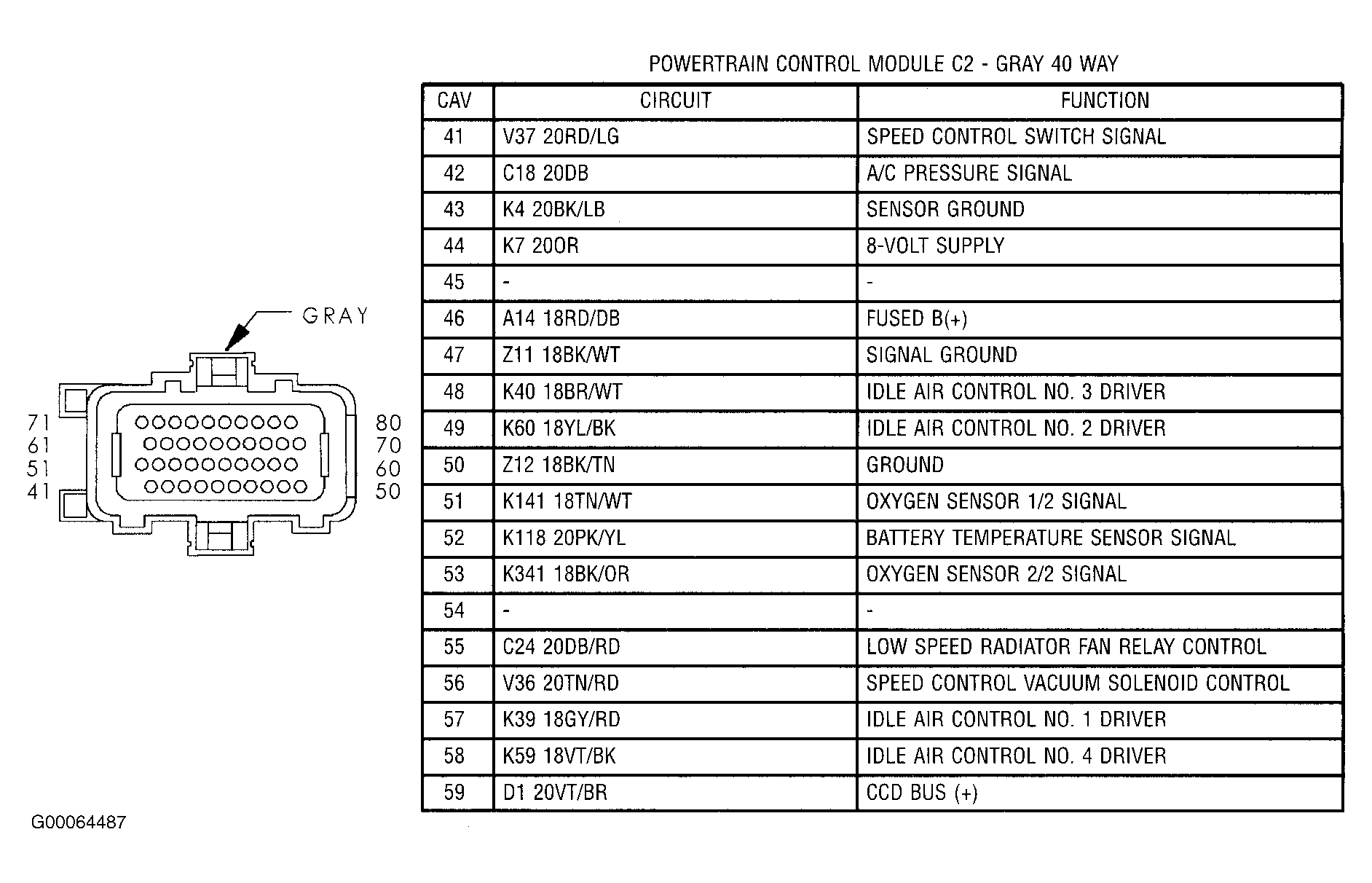

Fig 155: Powertrain Control Module C2 - Gray 40-Way (1 Of 2)
Courtesy of CHRYSLER CORP.

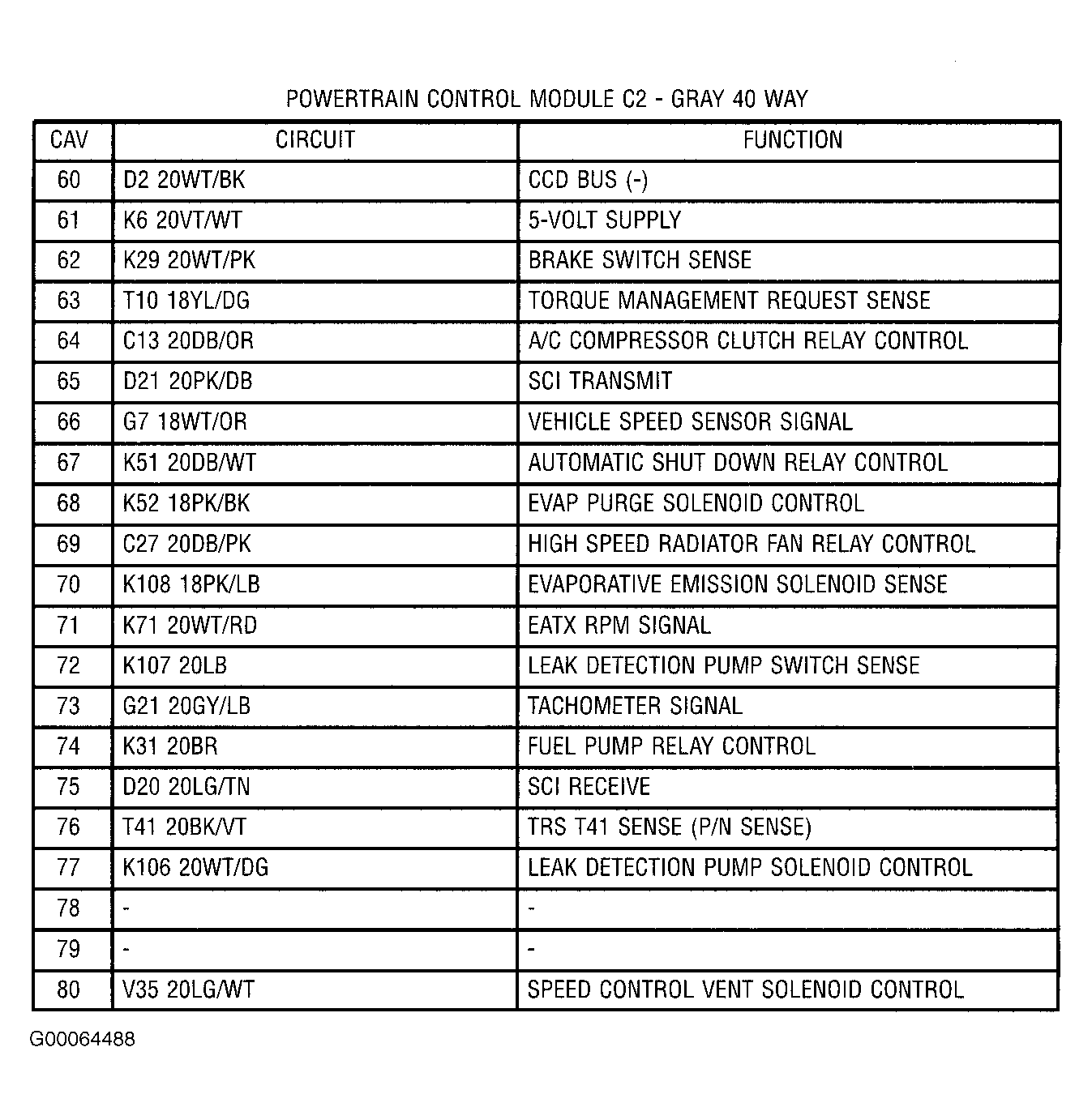

Fig 156: Powertrain Control Module C2 - Gray 40-Way (2 Of 2)
Courtesy of CHRYSLER CORP.

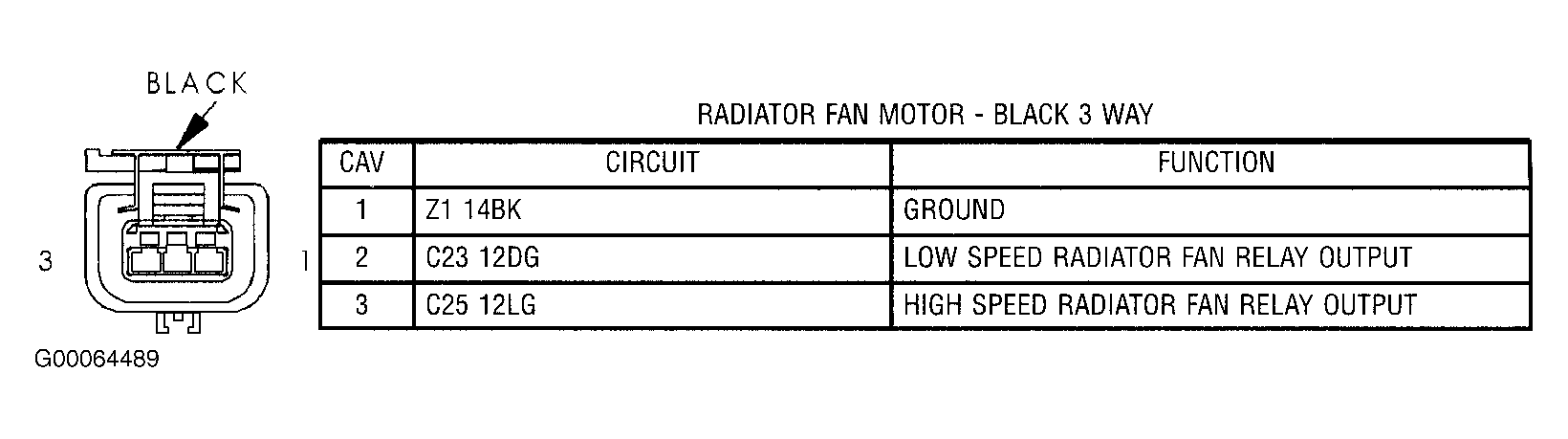

Fig 157: Radiator Fan Motor - Black 3-Way
Courtesy of CHRYSLER CORP.

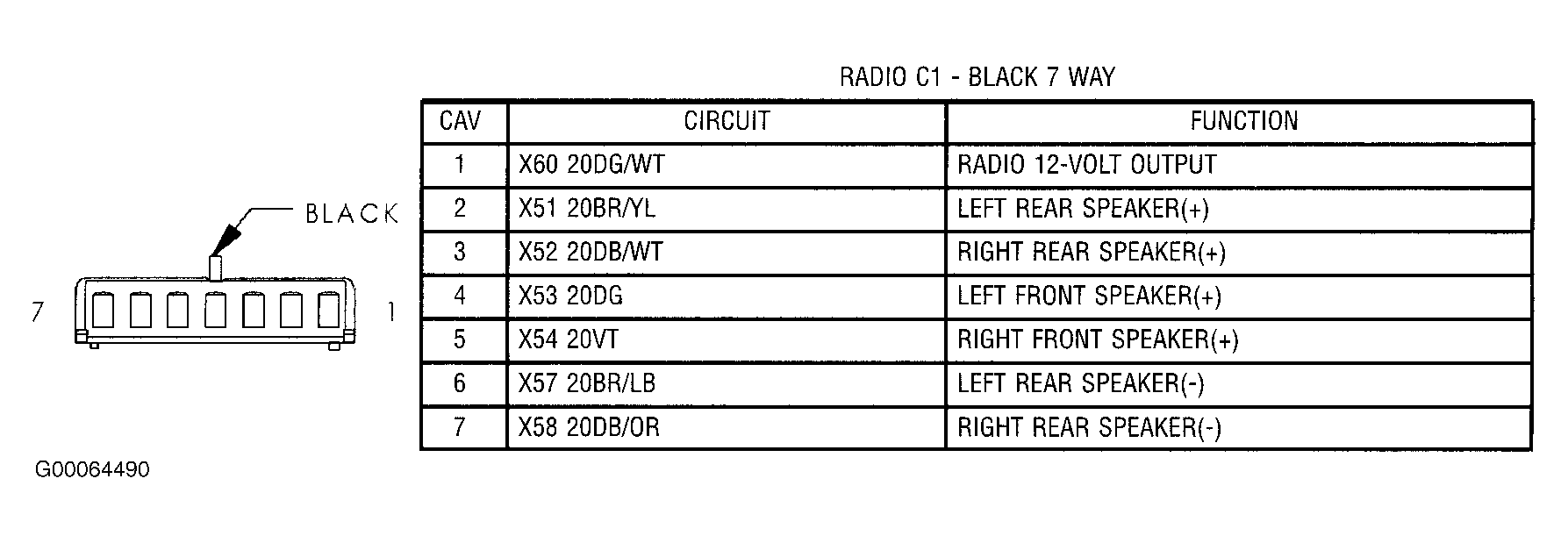

Fig 158: Radio C1 - Black 7-Way
Courtesy of CHRYSLER CORP.

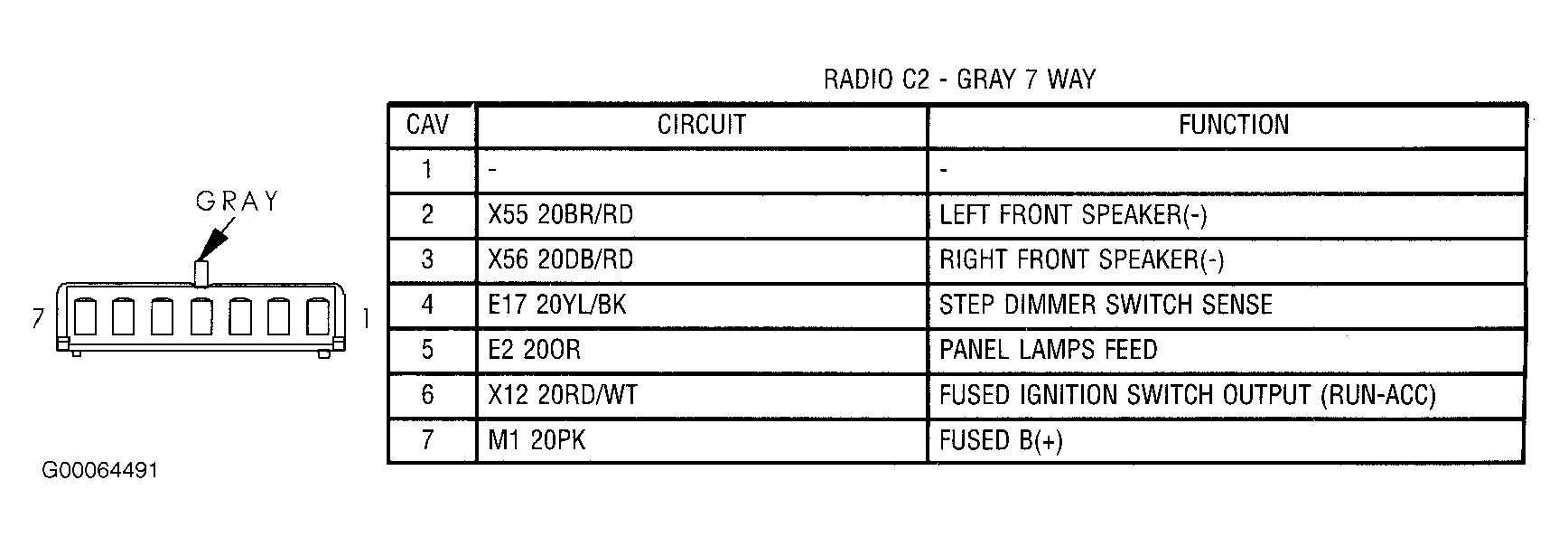

Fig 159: Radio C2 - Gray 7-Way
Courtesy of CHRYSLER CORP.

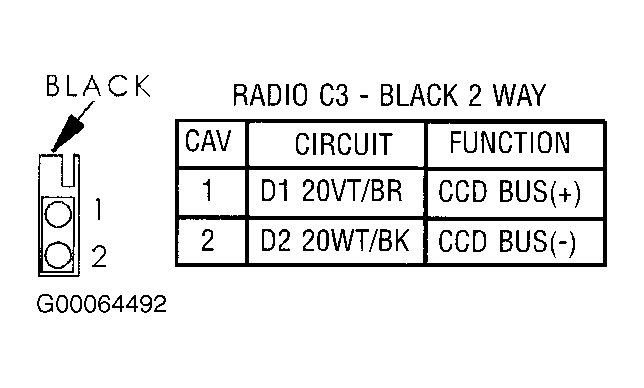

Fig 160: Radio C3 - Black 2-Way
Courtesy of CHRYSLER CORP.

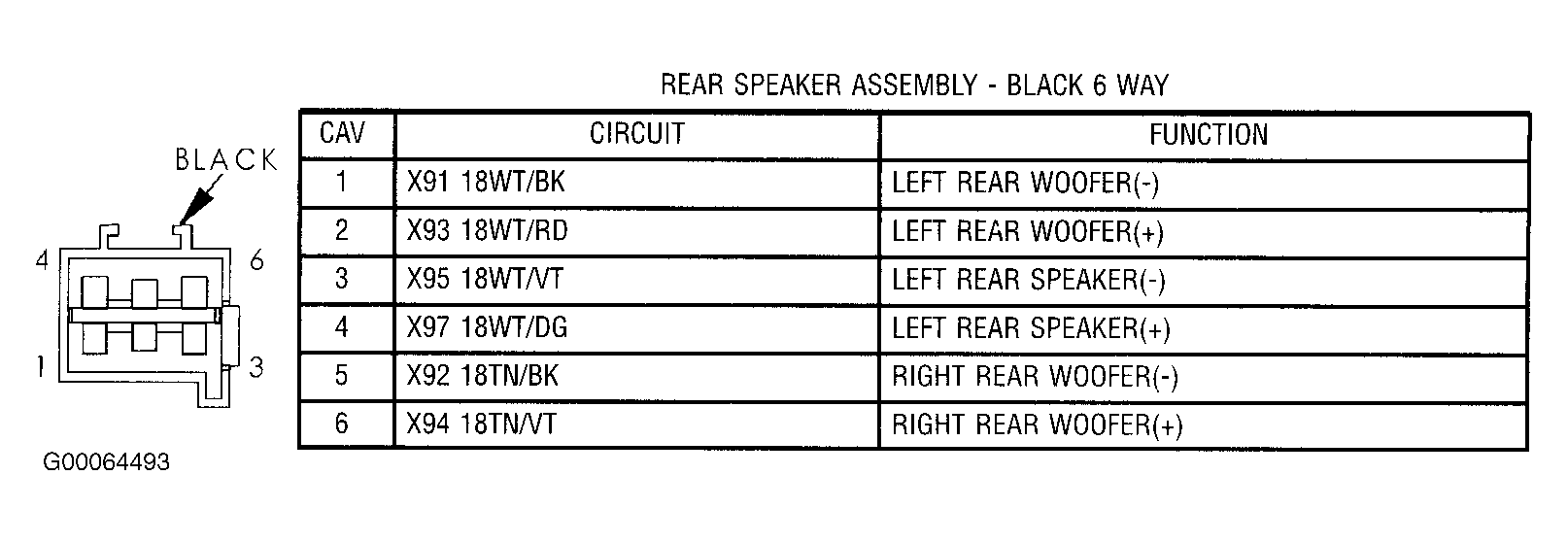

Fig 161: Rear Speaker Assembly - Black 6-Way
Courtesy of CHRYSLER CORP.

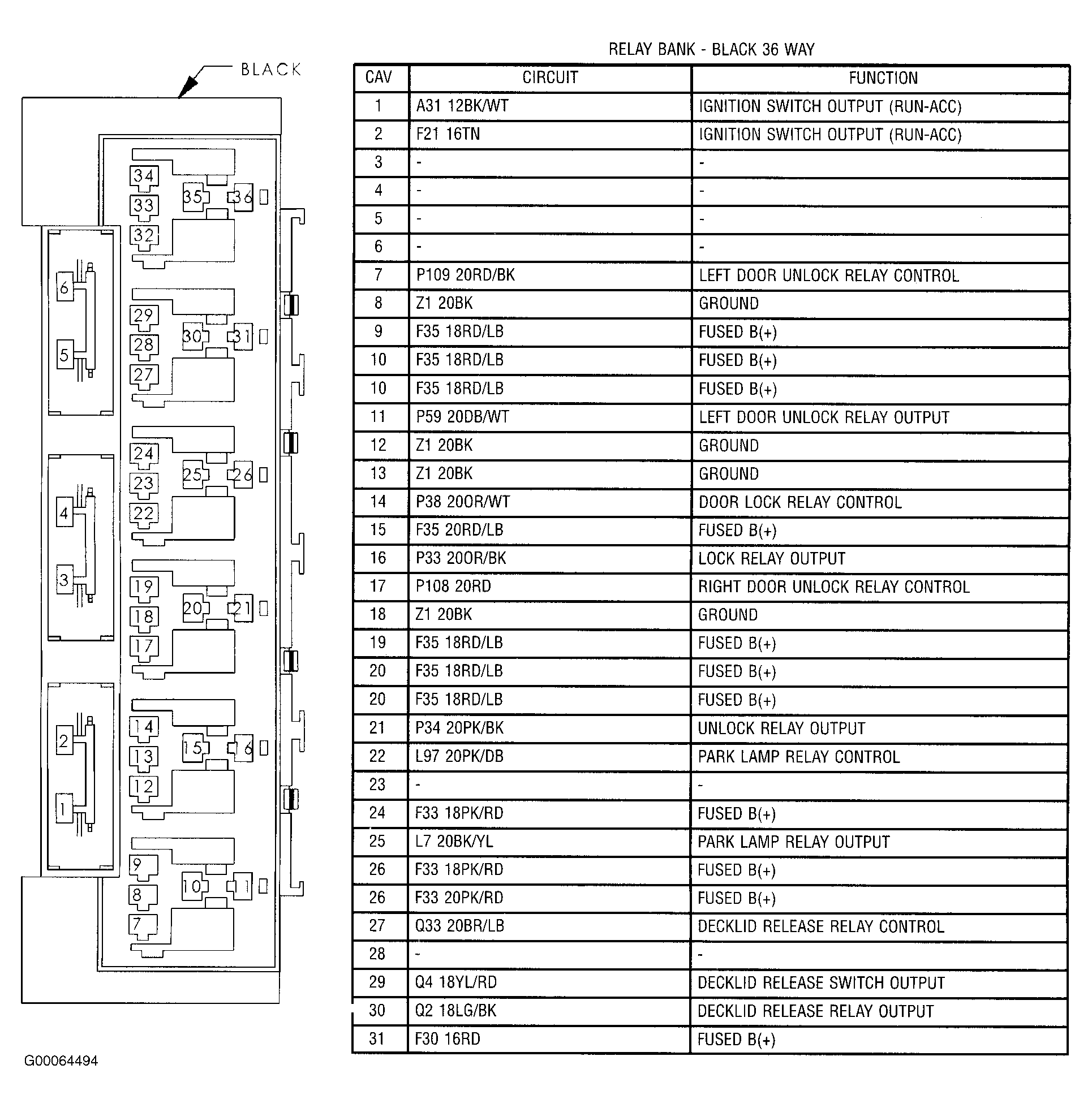

Fig 162: Relay Bank - Black 36-Way (1 Of 2)
Courtesy of CHRYSLER CORP.

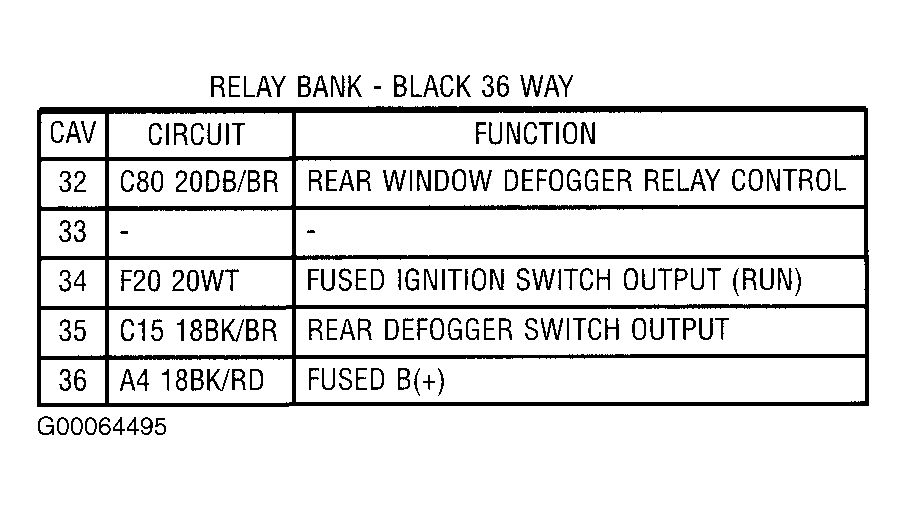

Fig 163: Relay Bank - Black 36-Way (2 Of 2)
Courtesy of CHRYSLER CORP.

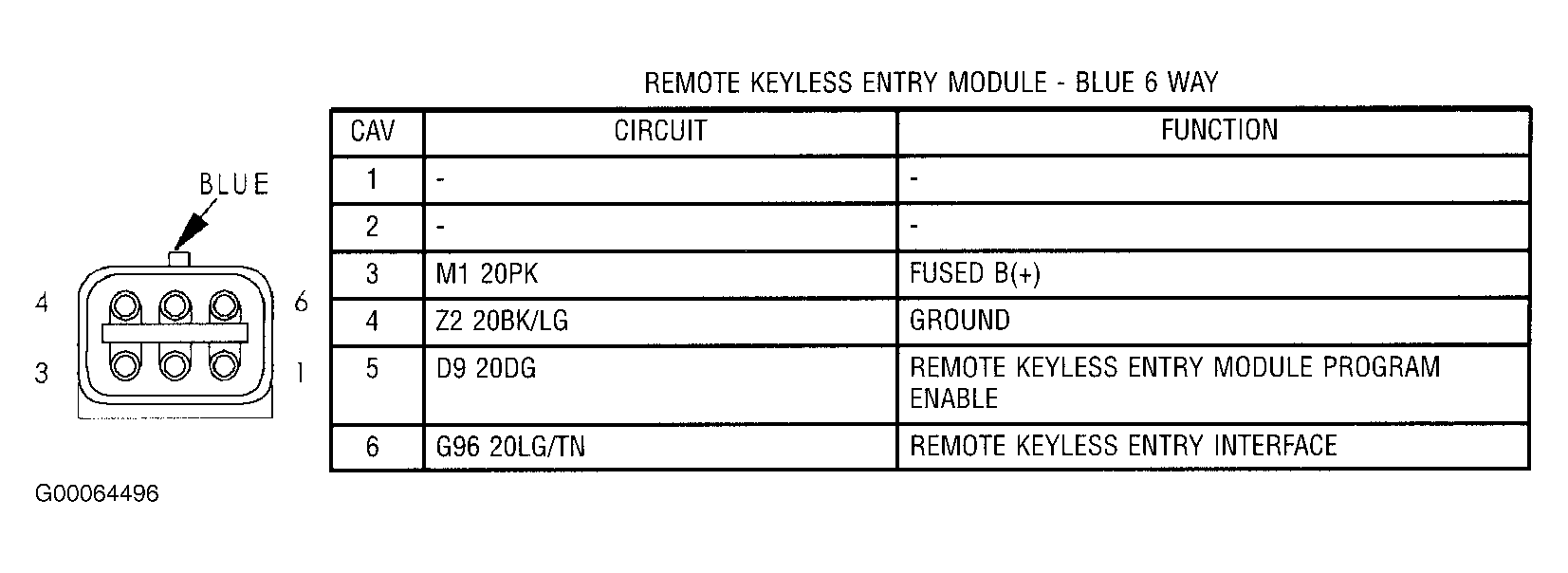

Fig 164: Remote Keyless Entry Module - Blue 6-Way
Courtesy of CHRYSLER CORP.

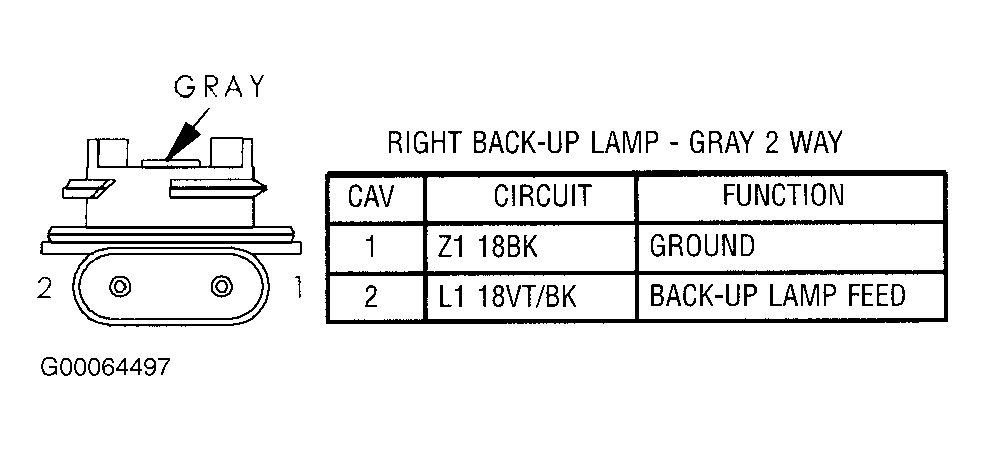

Fig 165: Right Back-Up Lamp - Gray 2-Way
Courtesy of CHRYSLER CORP.

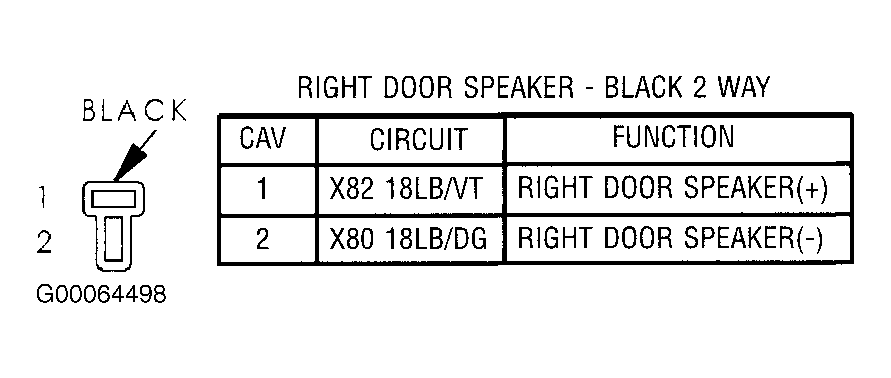

Fig 166: Right Door Speaker - Black 2-Way
Courtesy of CHRYSLER CORP.

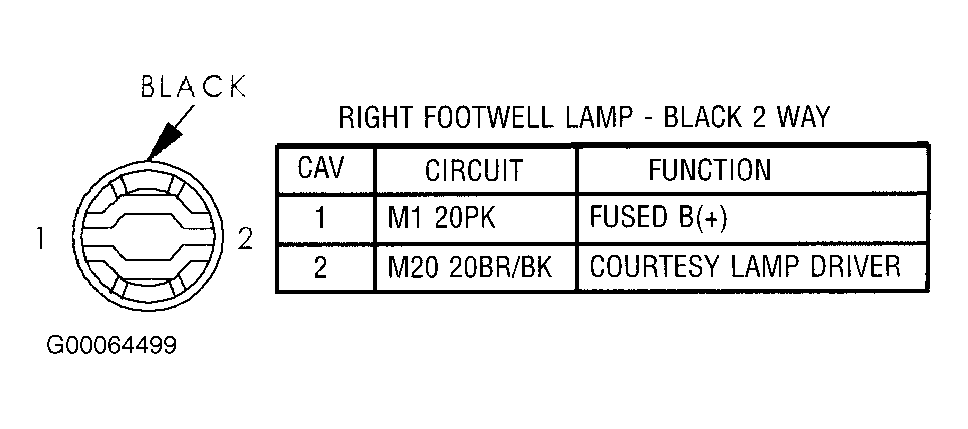

Fig 167: Right Footwell Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

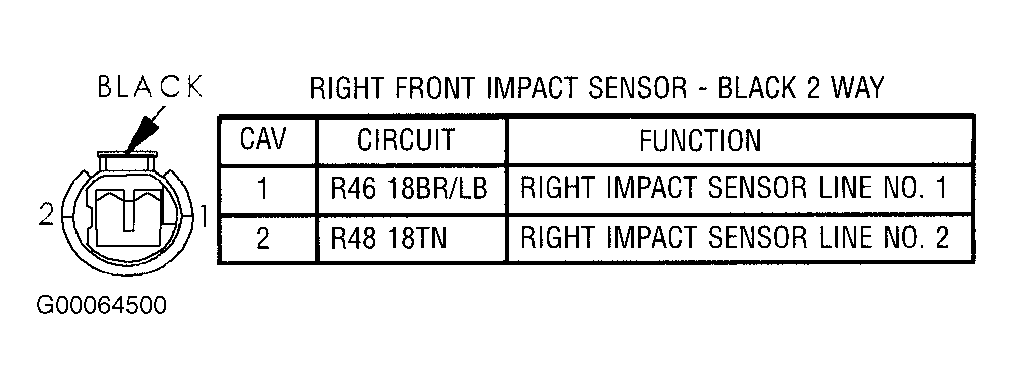

Fig 168: Right Front Impact Sensor - Black 2-Way
Courtesy of CHRYSLER CORP.

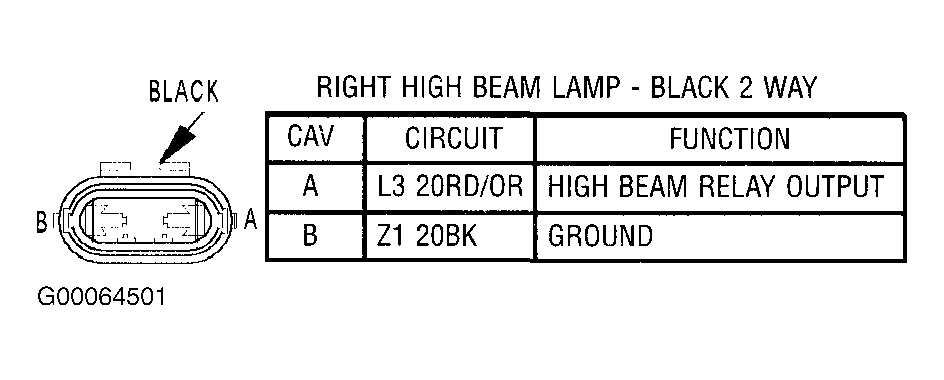

Fig 169: Right Light Beam Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

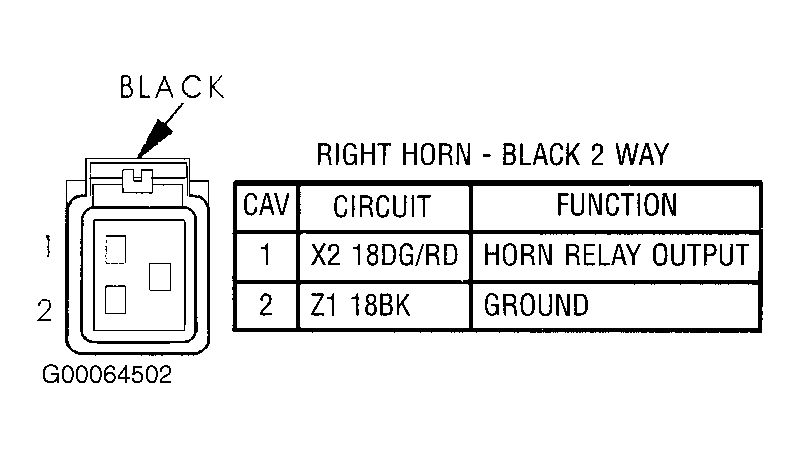

Fig 170: Right Horn - Black 2-Way
Courtesy of CHRYSLER CORP.

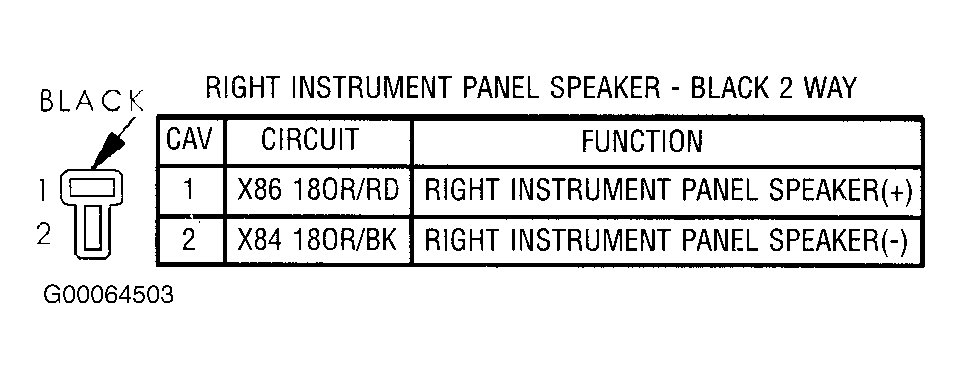

Fig 171: Right Instrument Panel Speaker - Black 2-Way
Courtesy of GENERAL MOTORS CORP.

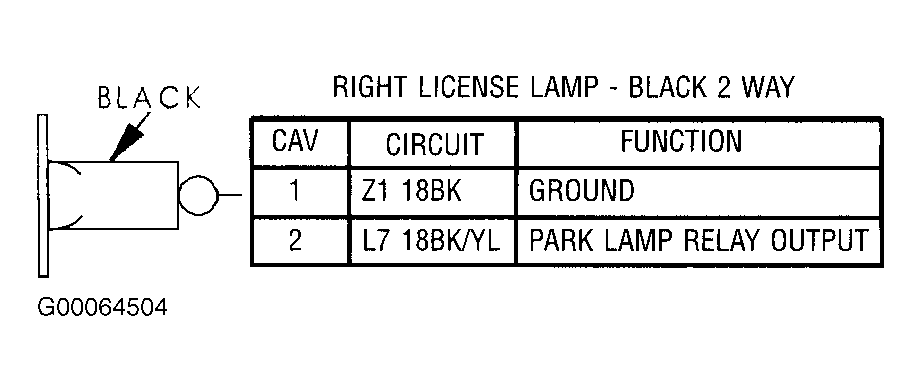

Fig 172: Right License Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

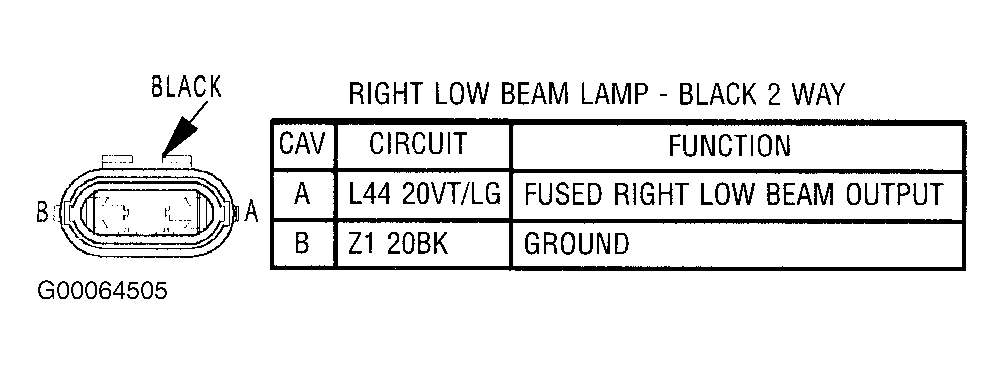

Fig 173: Right Low Beam Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

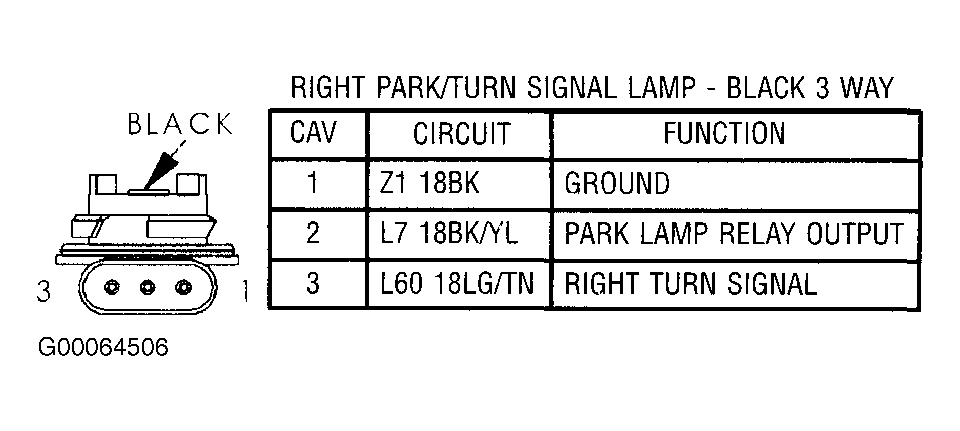

Fig 174: Right Park/Turn Signal Lamp - Black 3-Way
Courtesy of CHRYSLER CORP.

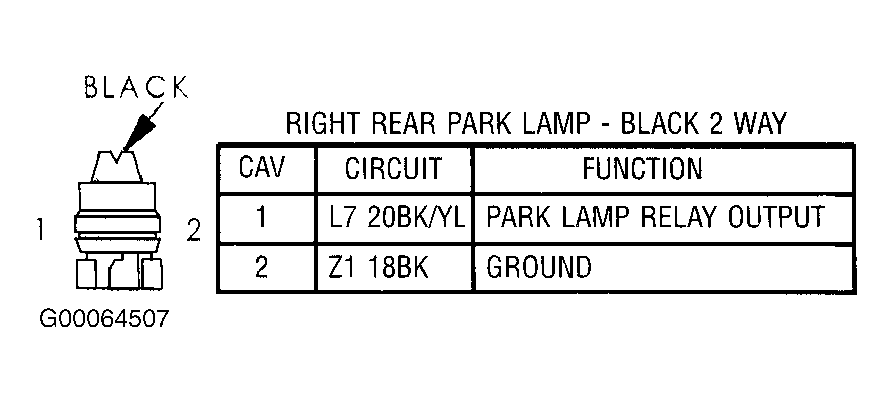

Fig 175: Right Rear Park Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

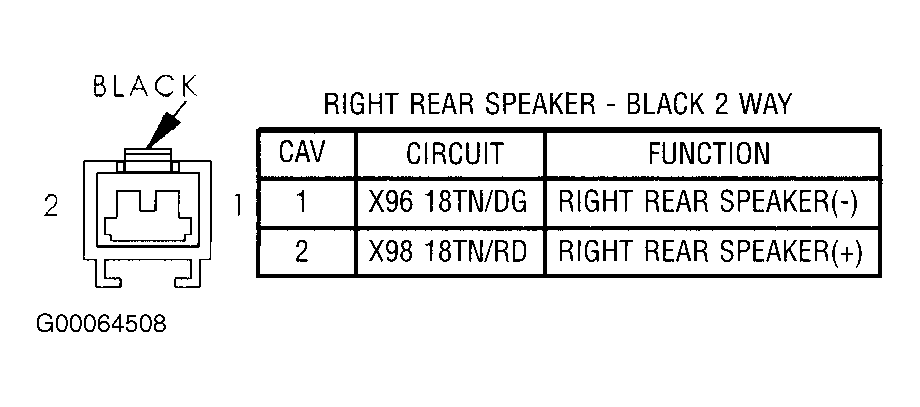

Fig 176: Right Rear Speaker - Black 2-Way
Courtesy of CHRYSLER CORP.

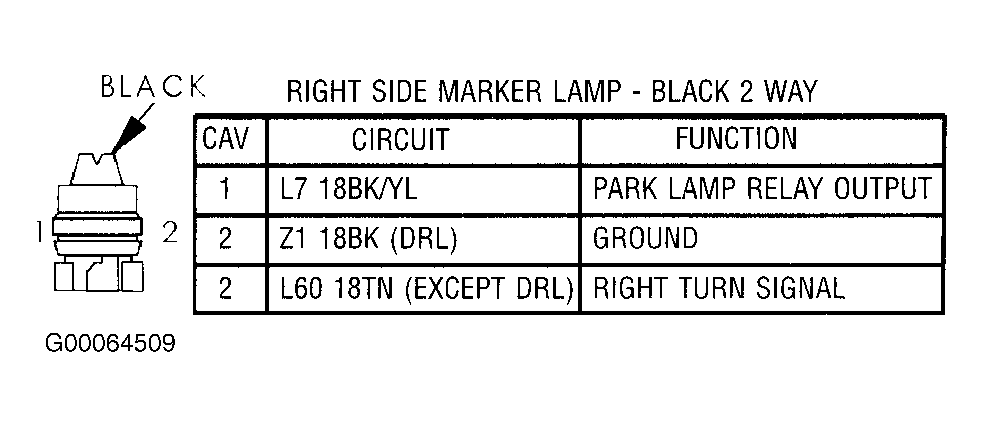

Fig 177: Right Side Marker Lamp - Black 2-Way
Courtesy of CHRYSLER CORP.

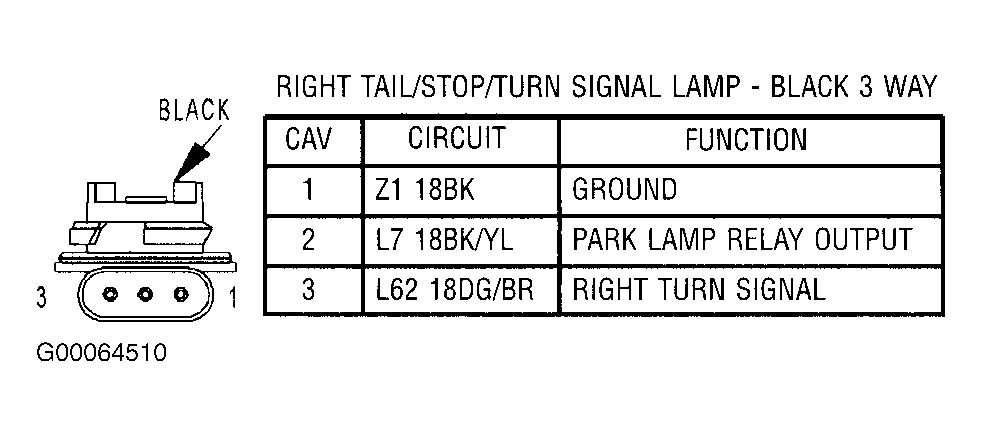

Fig 178: Right Tail/Stop/Turn Signal Lamp - Black 3-Way
Courtesy of CHRYSLER CORP.

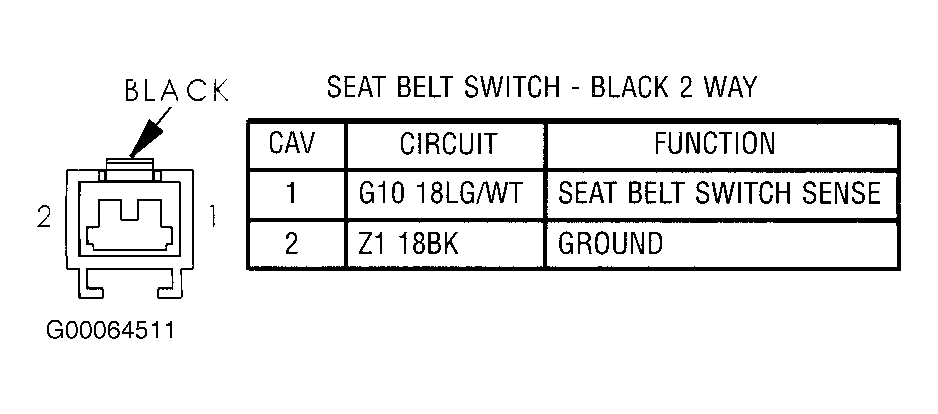

Fig 179: Seat Belt Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

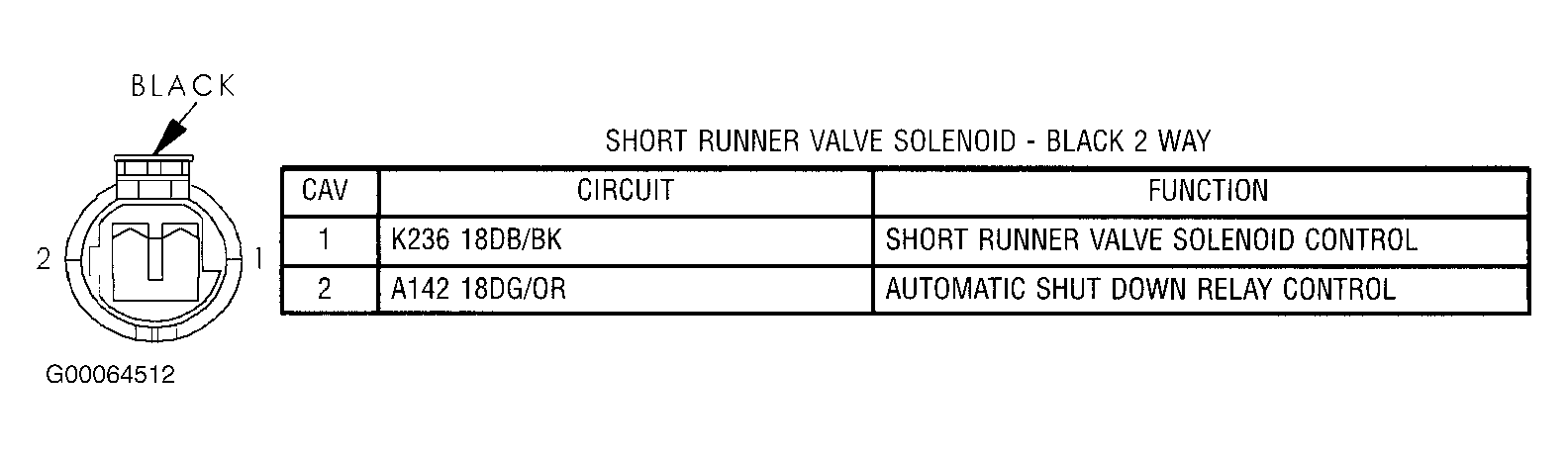

Fig 180: Short Runner Valve Solenoid - Black 2-Way
Courtesy of CHRYSLER CORP.

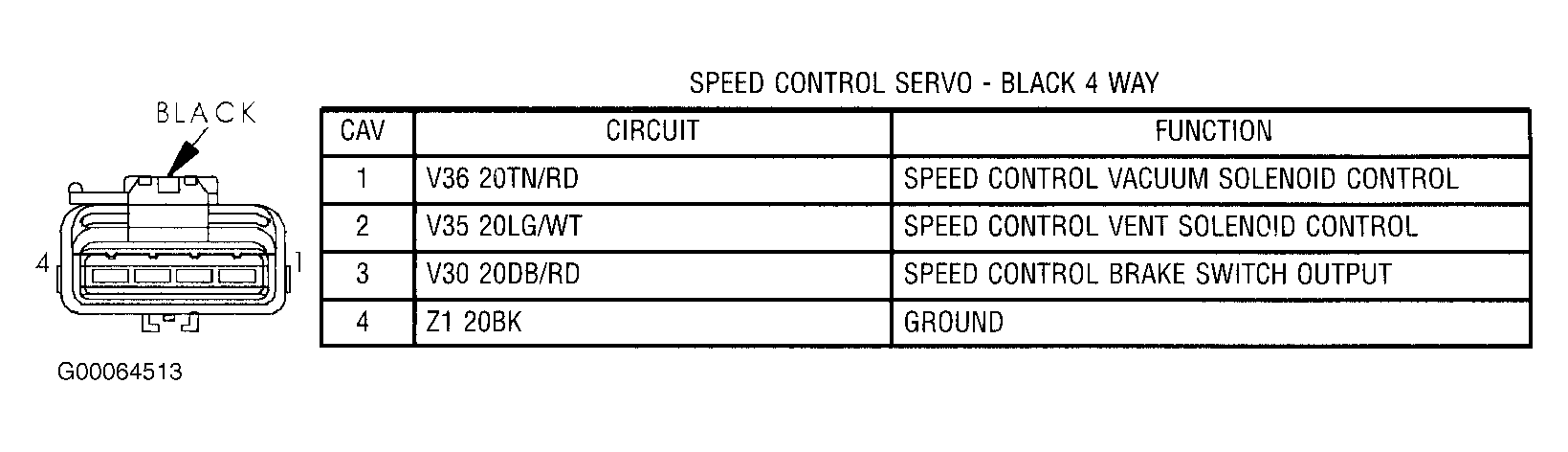

Fig 181: Speed Control Servo - Black 4-Way
Courtesy of CHRYSLER CORP.

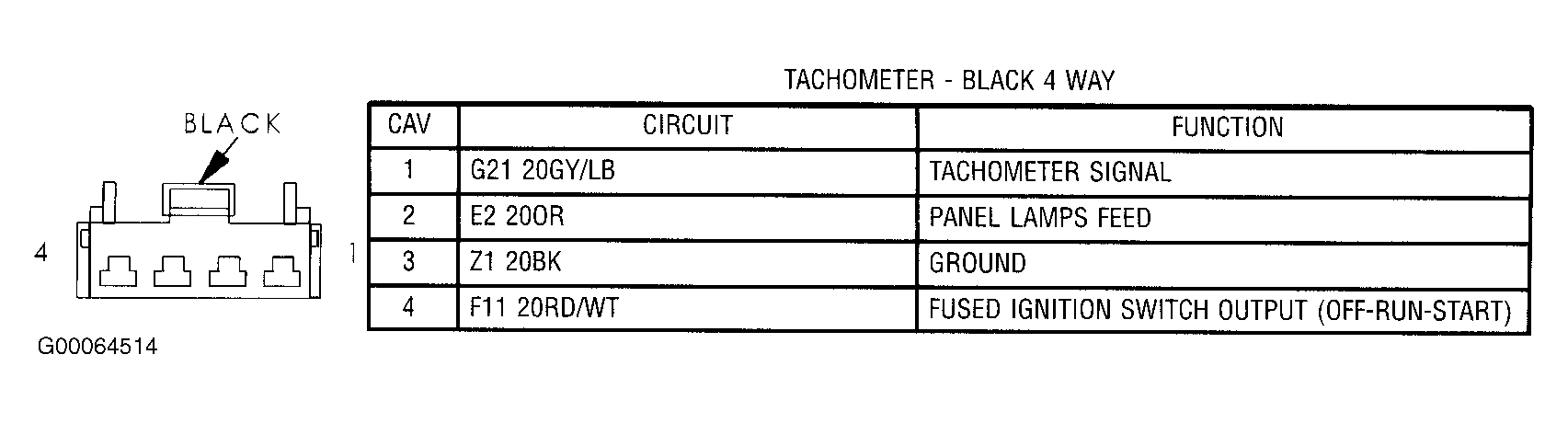

Fig 182: Tachometer - Black 4-Way
Courtesy of CHRYSLER CORP.

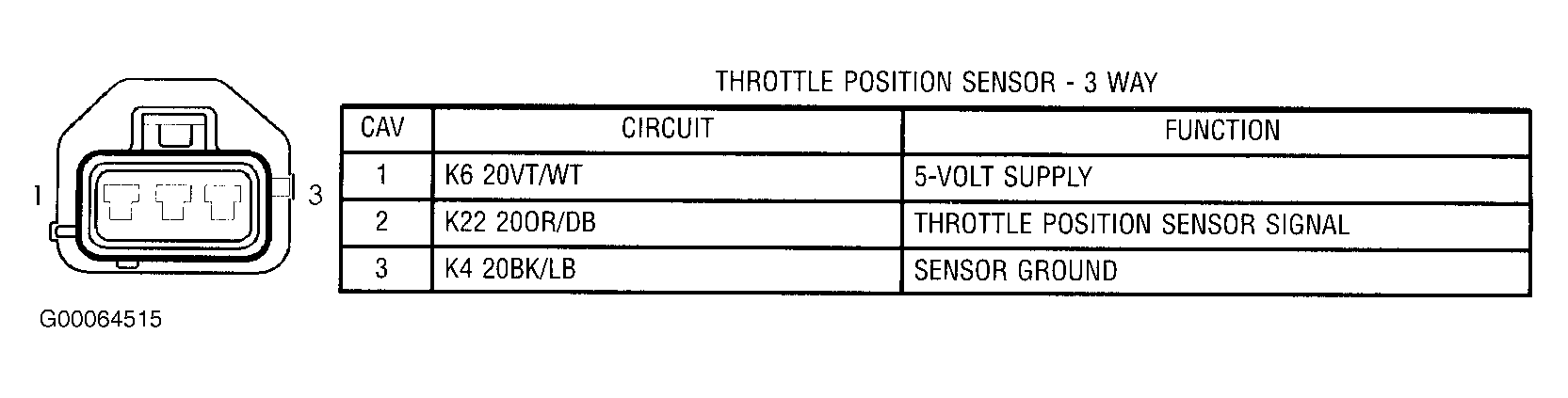

Fig 183: Throttle Position Sensor - 3-Way
Courtesy of CHRYSLER CORP.

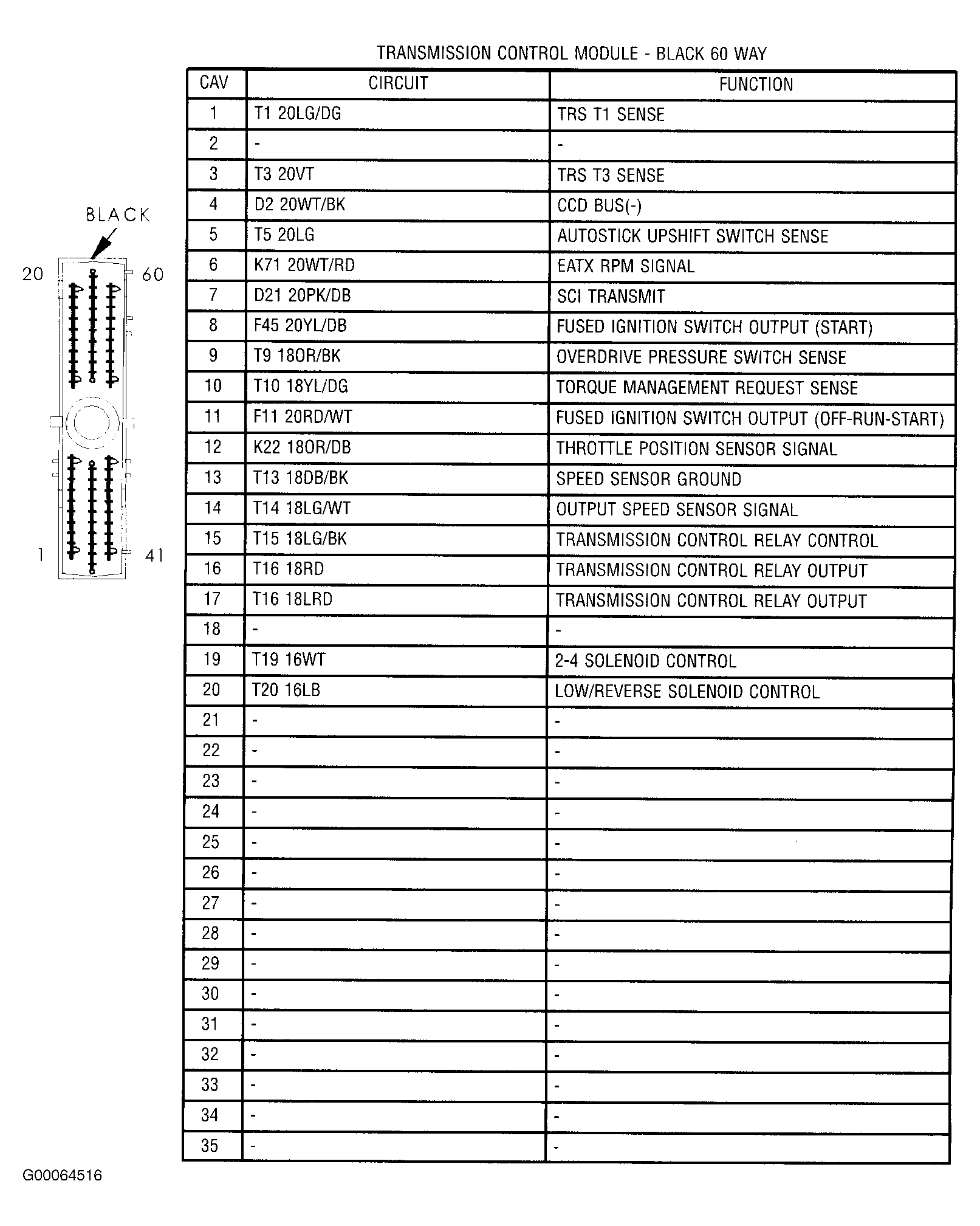

Fig 184: Transmission Control Module - Black 60-Way (1 Of 2)
Courtesy of CHRYSLER CORP.

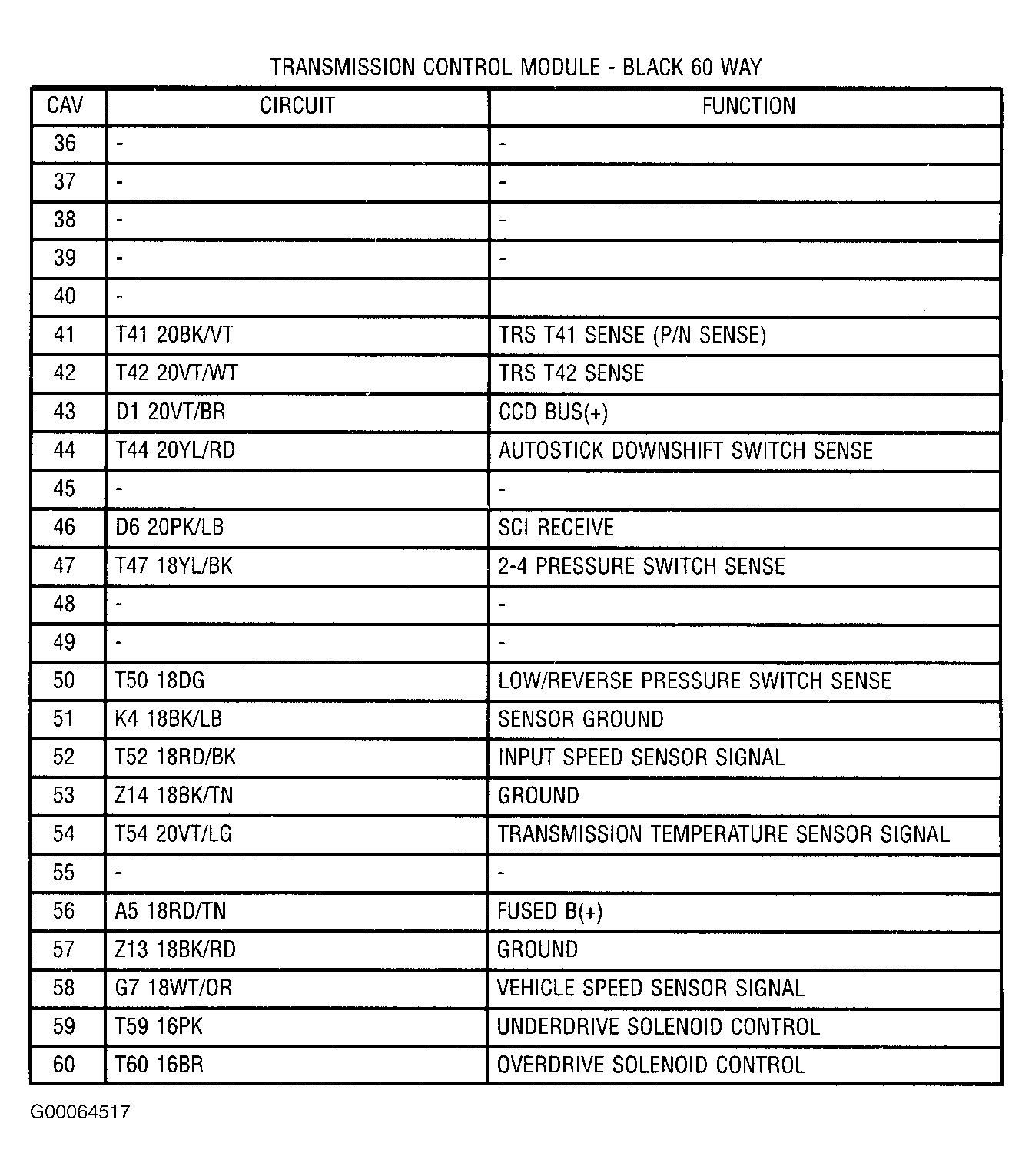

Fig 185: Transmission Control Module - Black 60-Way (2 Of 2)
Courtesy of CHRYSLER CORP.

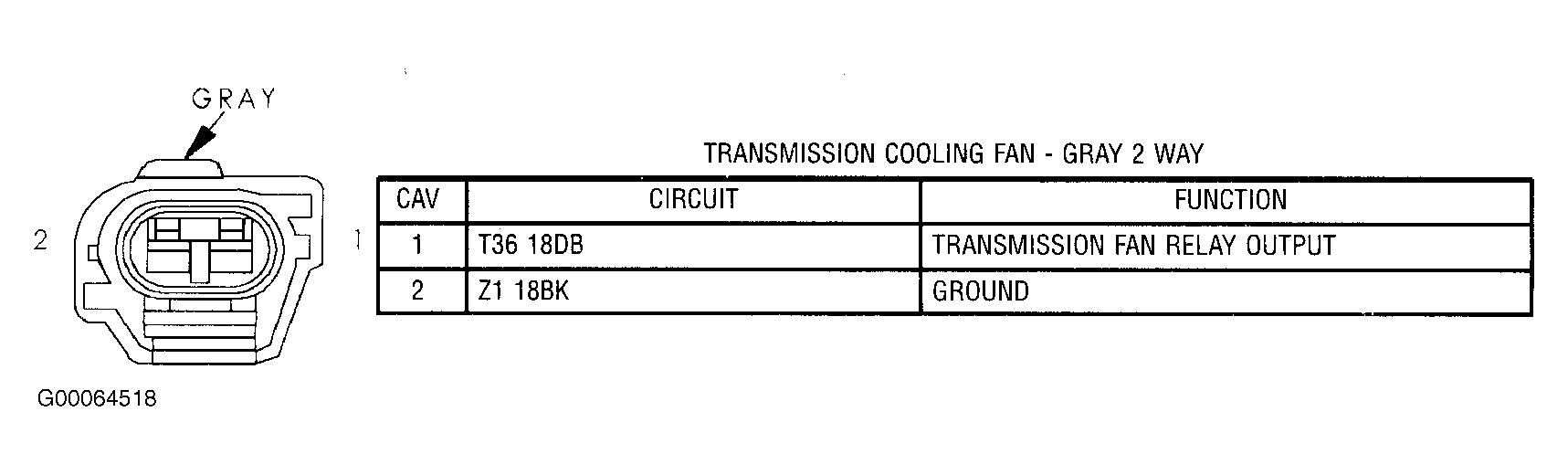

Fig 186: Transmission Cooling Fan - Gray 2-Way
Courtesy of CHRYSLER CORP.

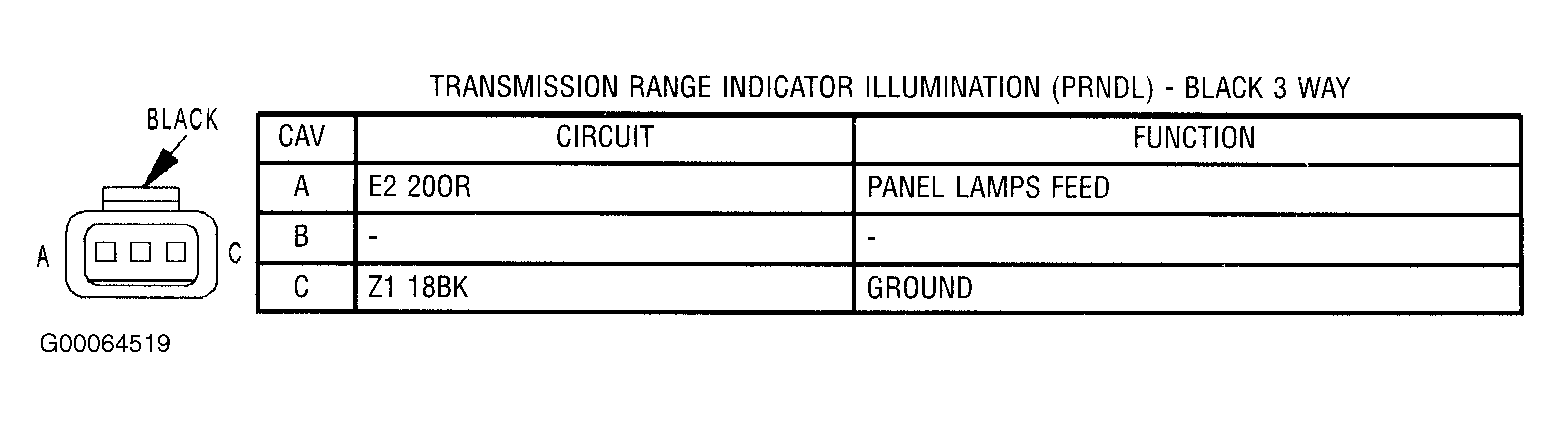

Fig 187: Transmission Range Indicator Illumination (PRNDL) - Black 3-Way
Courtesy of CHRYSLER CORP.

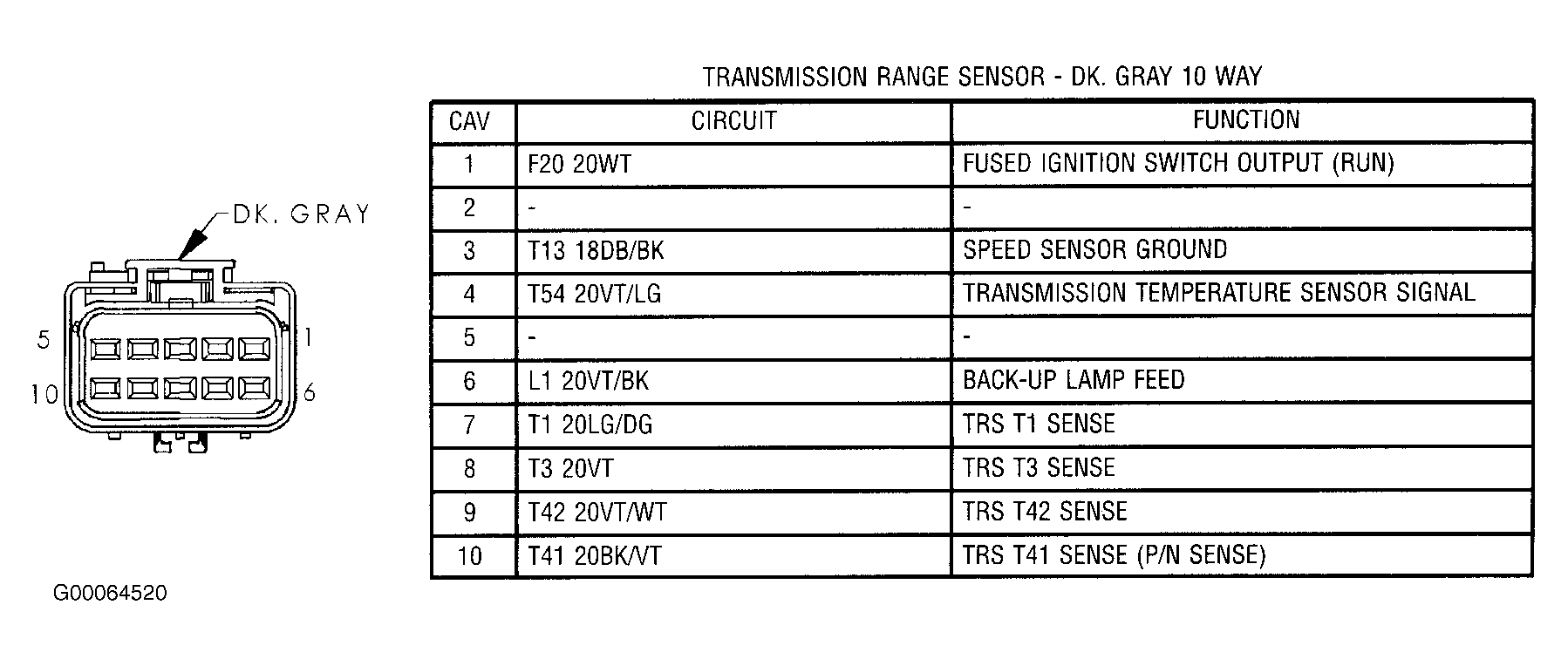

Fig 188: Transmission Range Sensor - Dark Gray 10-Way
Courtesy of CHRYSLER CORP.

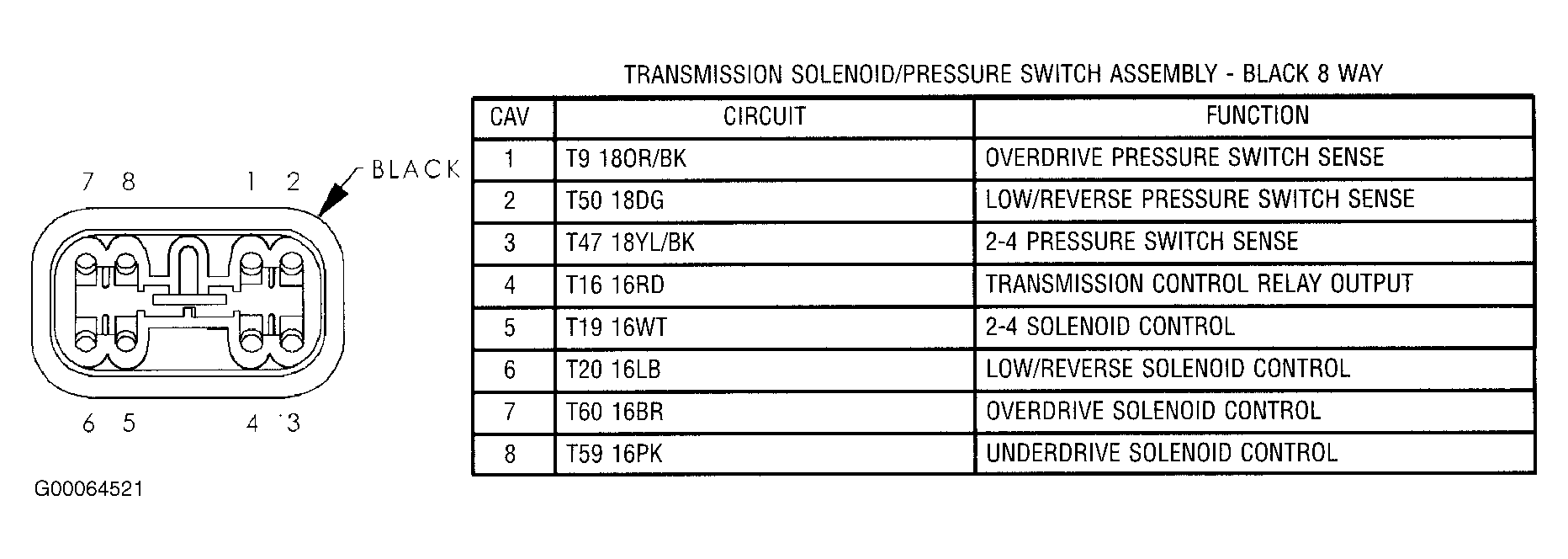

Fig 189: Transmission Solenoid/Pressure Switch Assembly - Black 8-Way
Courtesy of CHRYSLER CORP.

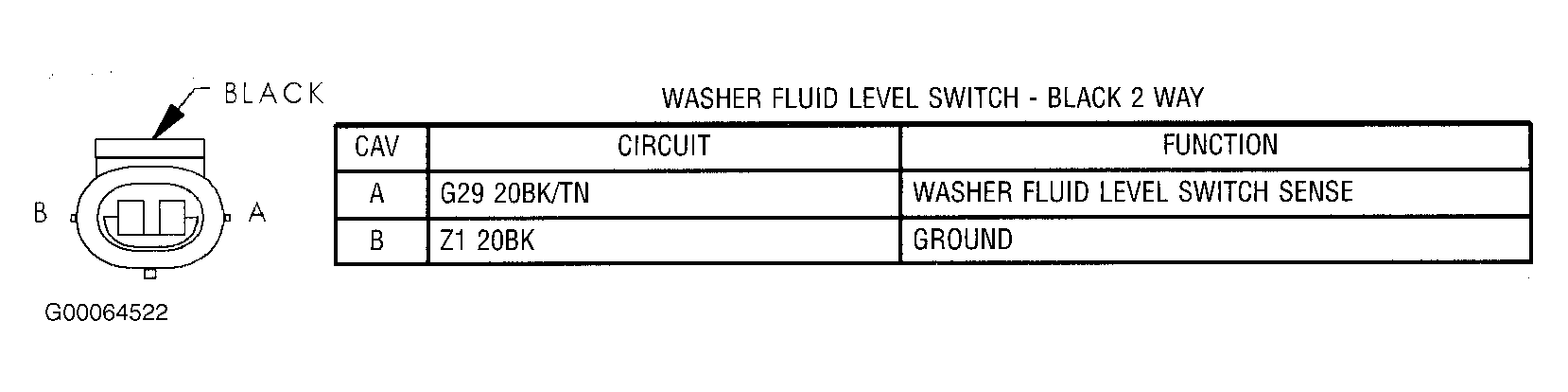

Fig 190: Washer Fluid Level Switch - Black 2-Way
Courtesy of CHRYSLER CORP.

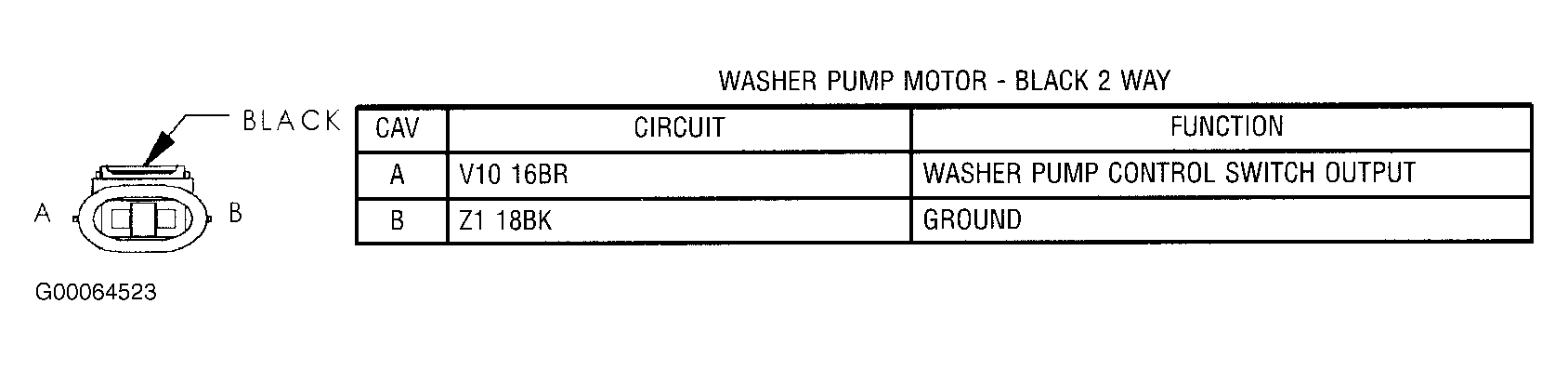

Fig 191: Washer Pump Motor - Black 2-Way
Courtesy of CHRYSLER CORP.

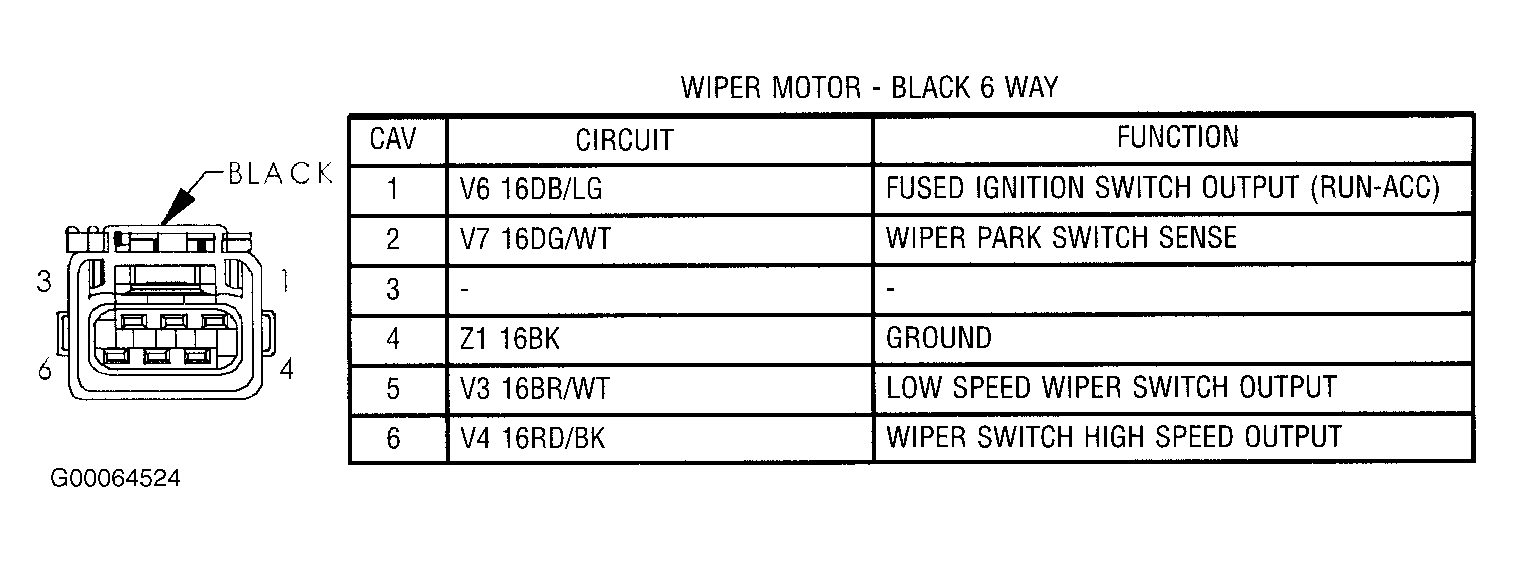

Fig 192: Wiper Motor - Black 6-Way
Courtesy of CHRYSLER CORP.
