Vacuum Reservoir: Removal

  1. Remove 2 screws from vacuum reservoir.
  2. Remove vacuum hoses from reservoir (Fig 1).

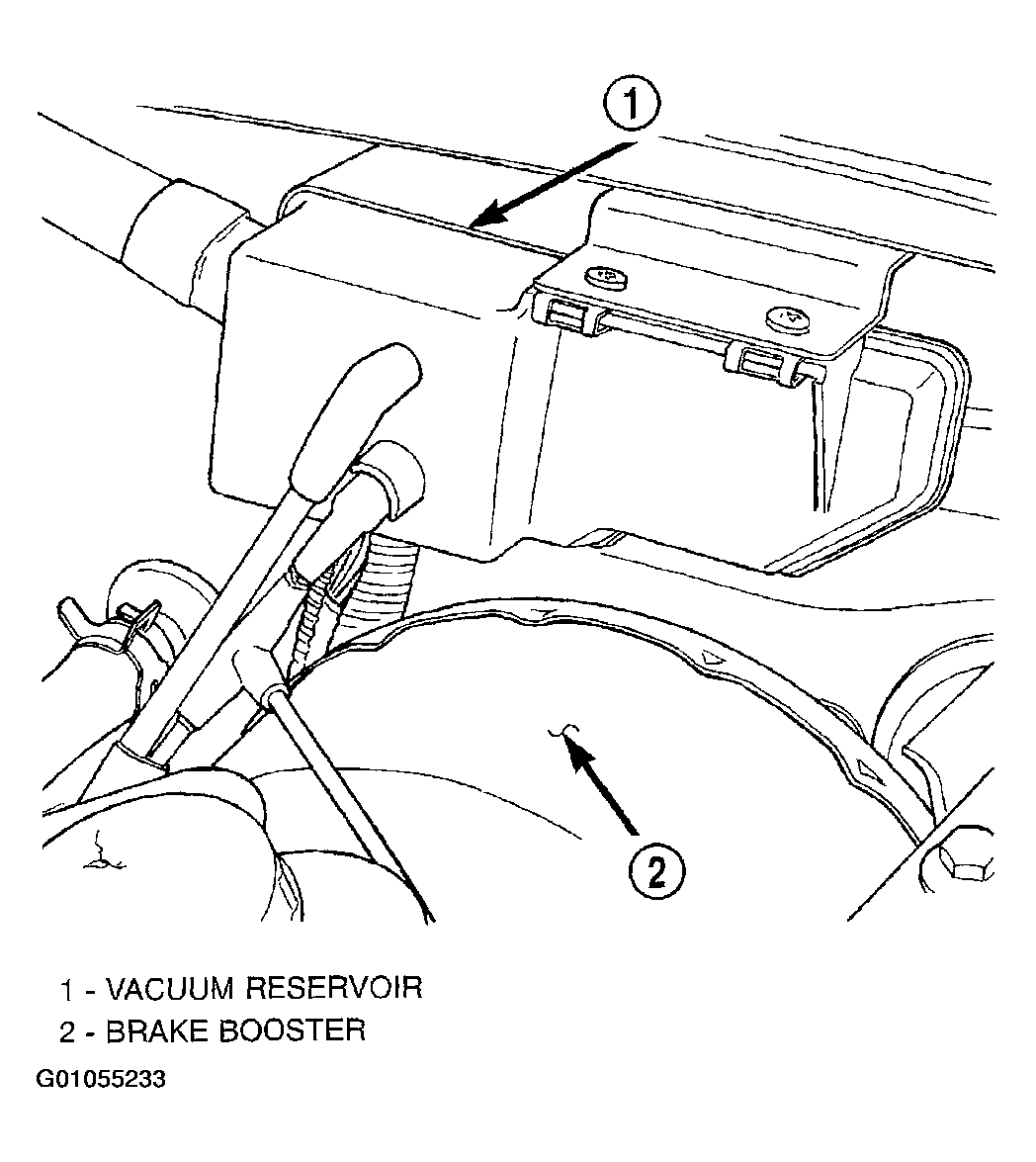

    Fig 1: Removing Vacuum Reservoir
    G01055233Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove vacuum reservoir.
