Throttle Position Sensor (TPS) - Pcm Input: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the TPS electrical connector (Fig 1).

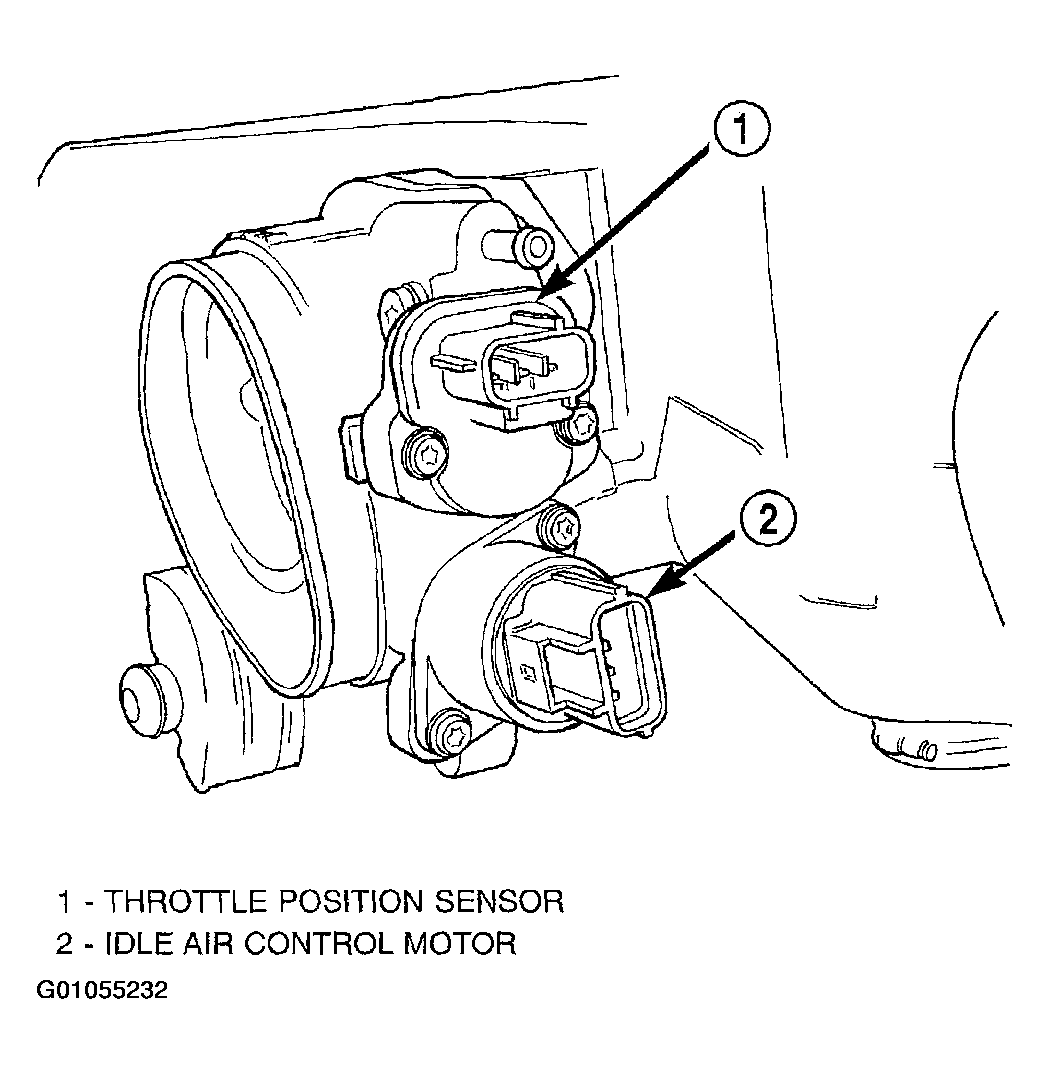

    Fig 1: Removing Throttle Position Sensor
    G01055232Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the TPS mounting screws.
  4. Remove the TPS.
