Manifold Tune Valve: Removal

  1. Disconnect negative battery cable.
  2. Remove upper radiator support, refer to the COOLING .
  3. Disconnect electrical connector (Fig 1).

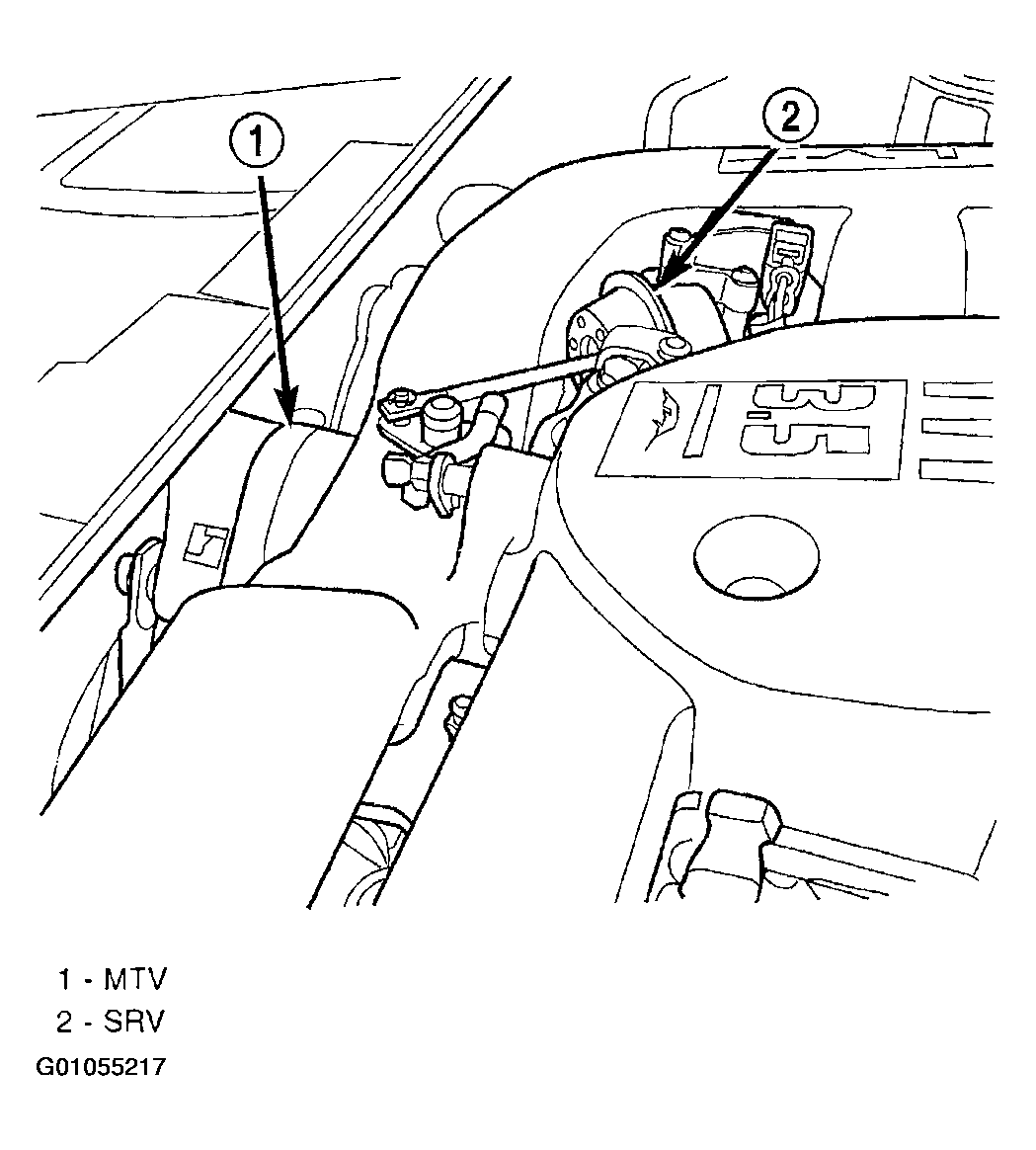

    Fig 1: Identifying Manifold Tuning Valve
    G01055217Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove pencil brace.
  5. Remove manifold tuning valve mounting screws. Remove tuning valve.
