Manifold Tune Valve: Description

The valve opens a crossover passage in that connects both sides of the intake manifold plenum (Fig 1). It is an rotary solenoid.

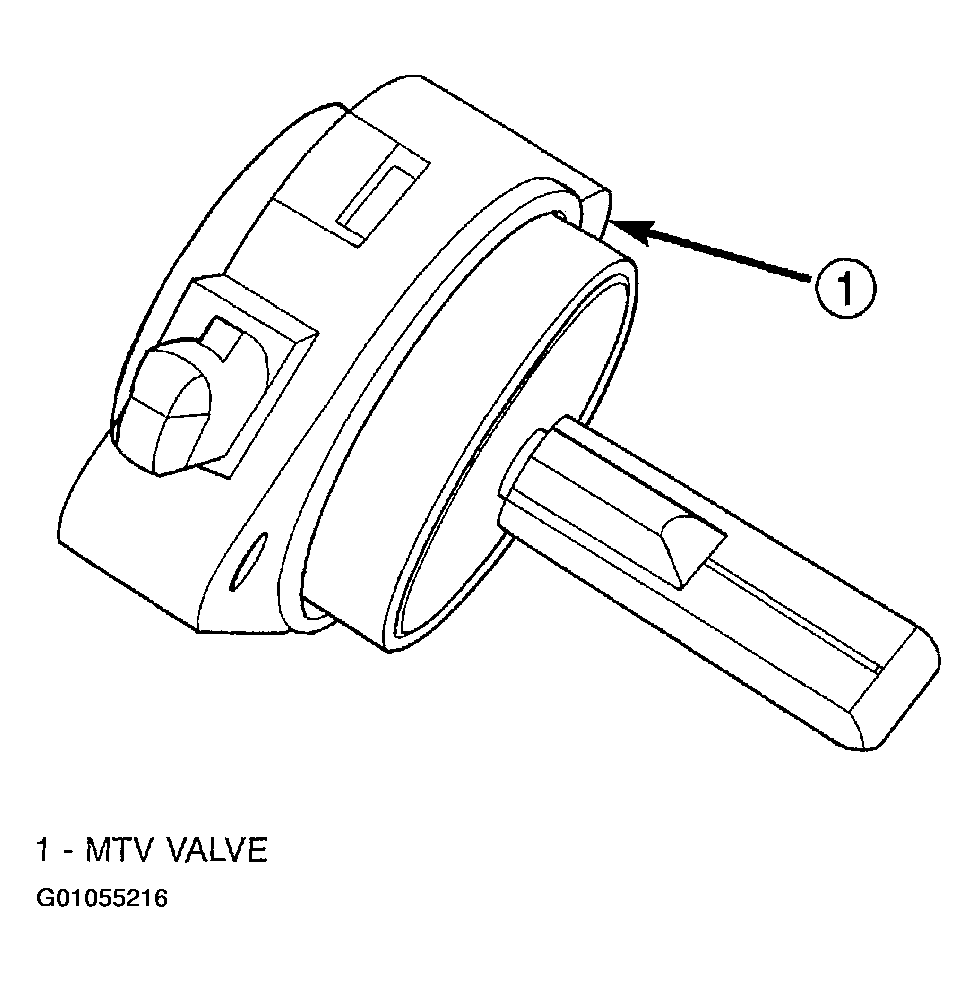

Fig 1: Identifying Manifold Tuning Valve

Courtesy of DAIMLERCHRYSLER CORP.
