Idle Air Control Motor: Description

The idle air control motor attaches to the throttle body (Fig 1). It is an electric stepper motor.

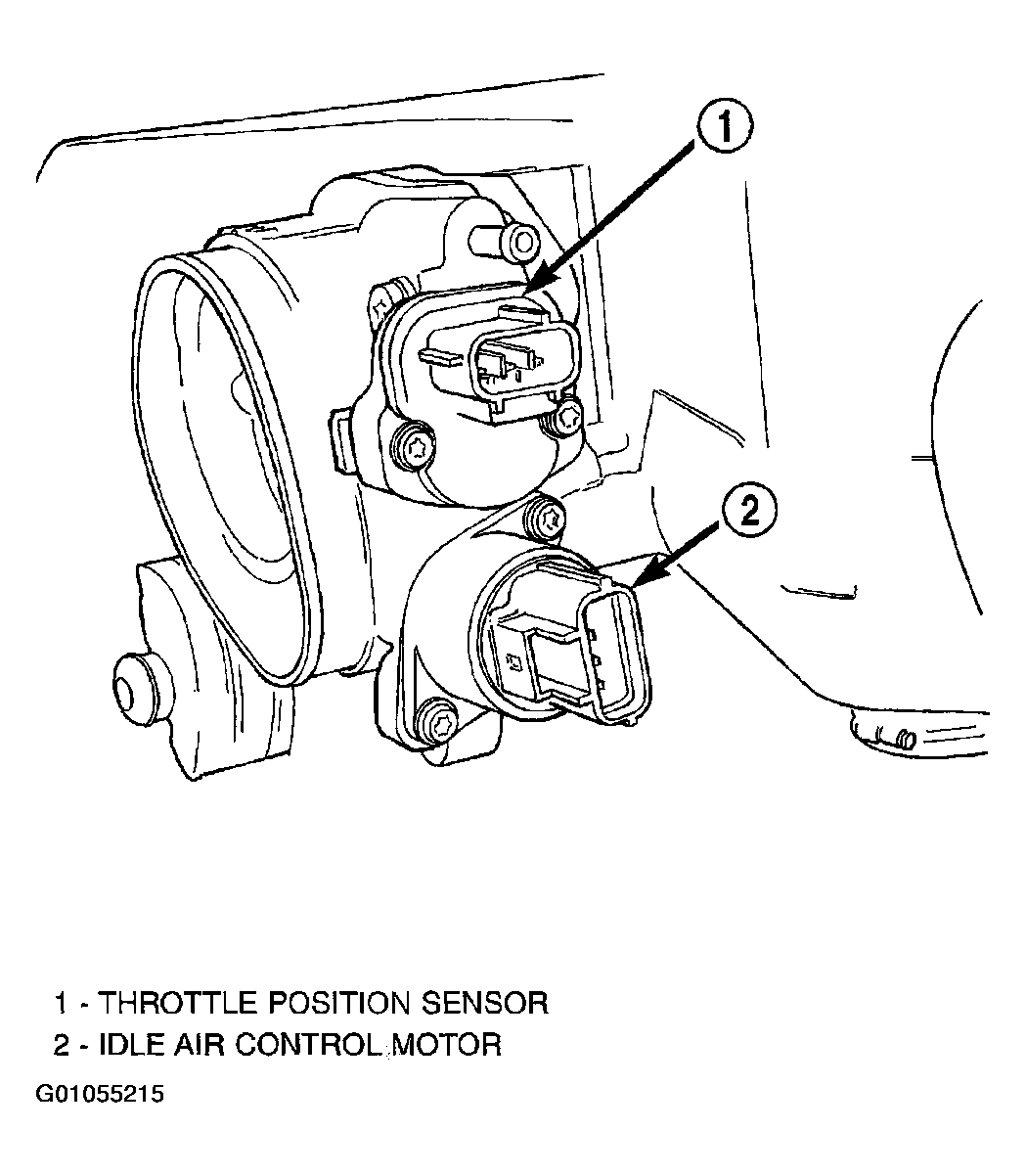

Fig 1: Identifying Idle Air Control Motor
G01055215Courtesy of DAIMLERCHRYSLER CORP.
