Removal & Installation: Speedometer/Odometer: Removal

Disconnect and isolate negative battery cable. Remove instrument panel top cover. Remove Cluster. Remove back cover and release flex circuit strips. Release mask/lens retaining lock tabs by depressing and remove mask/lens. See Figure. Remove four cluster back cover retaining screws and remove cover.

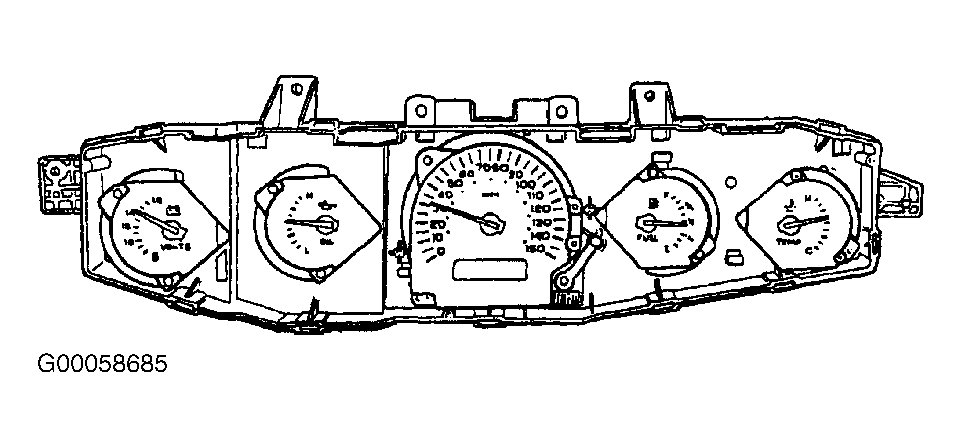

Disconnect speedometer wire connector. Remove three screws attaching speedometer to housing. See Figure. Release trip reset button. Pull speedometer free of PC board and use care removing wire connector through housing. See Figure.
