PDC Relays Terminal Identification

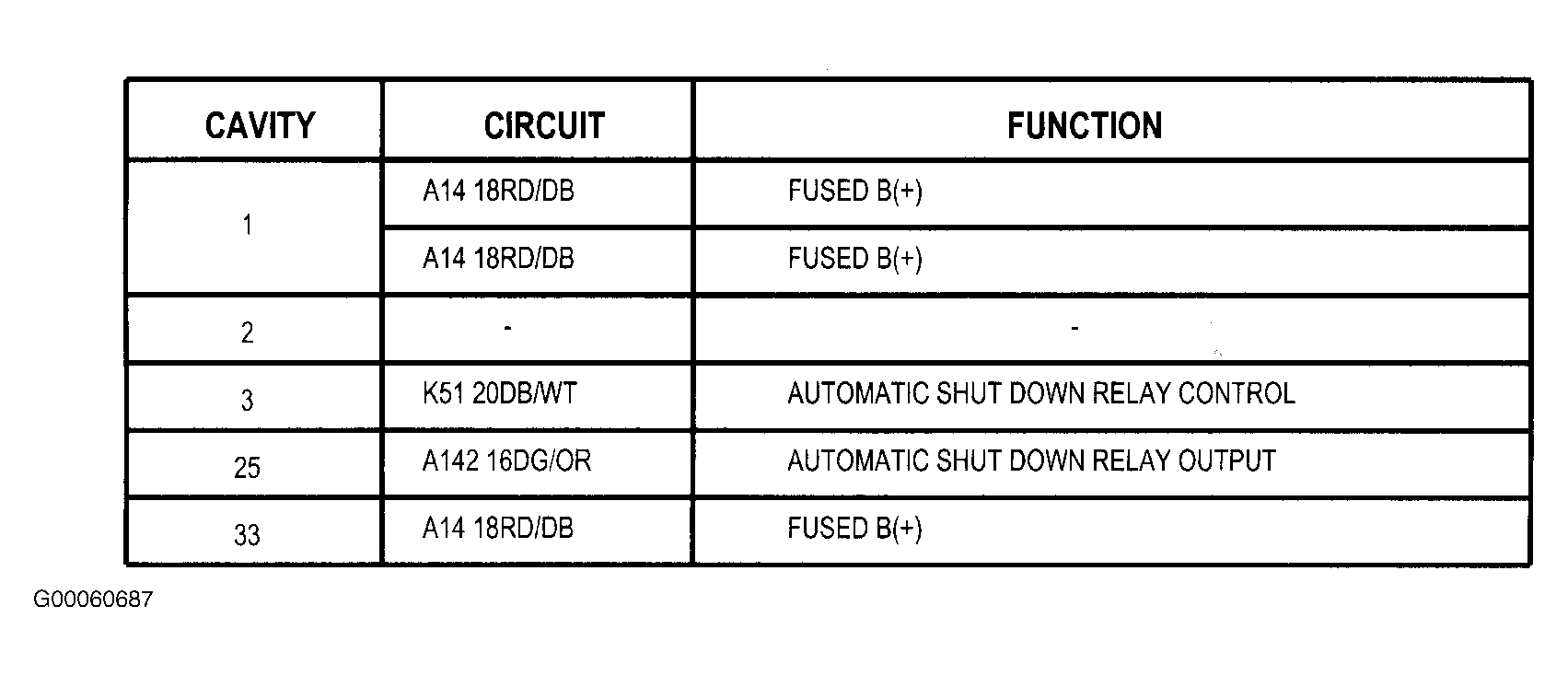

Fig 1: Automatic Shut Down Relay Terminal Identification

Courtesy of CHRYSLER CORP.

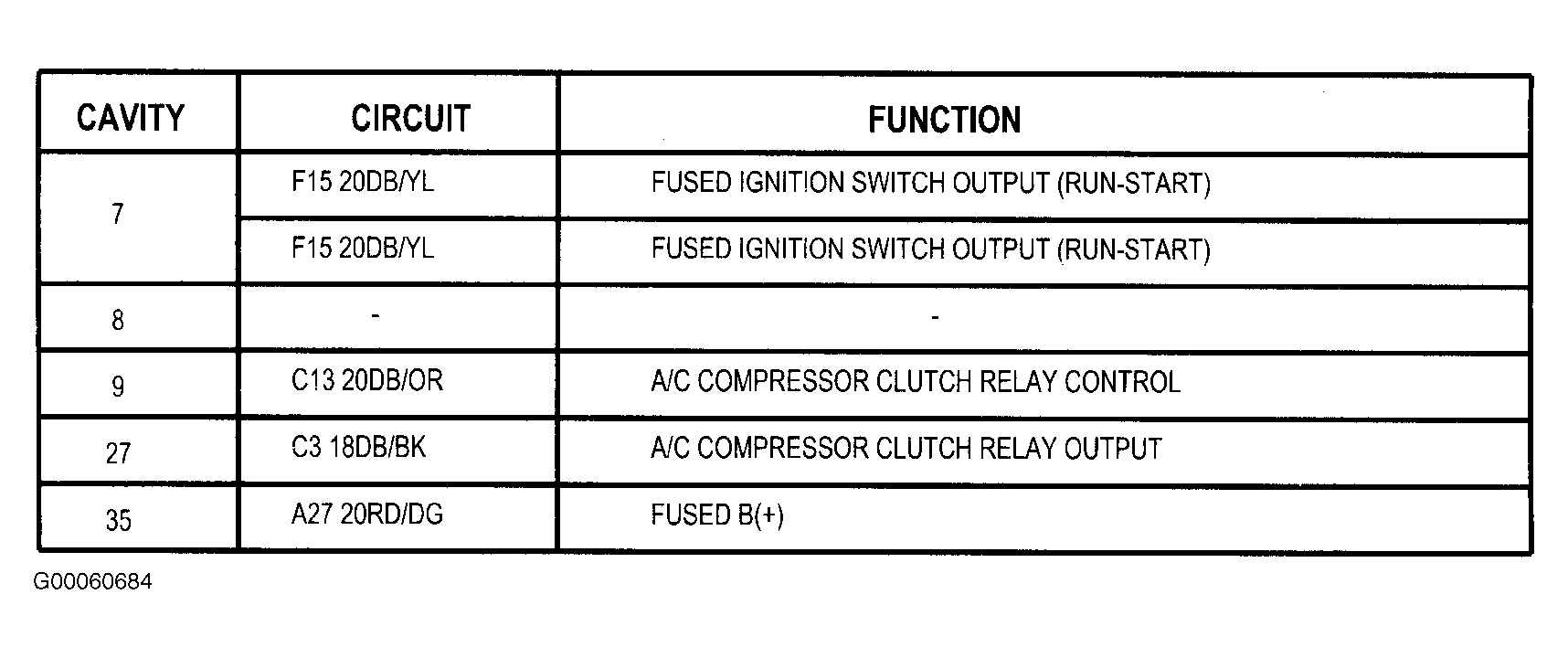

Fig 2: A/C Compressor Clutch Relay Terminal Identification

Courtesy of CHRYSLER CORP.

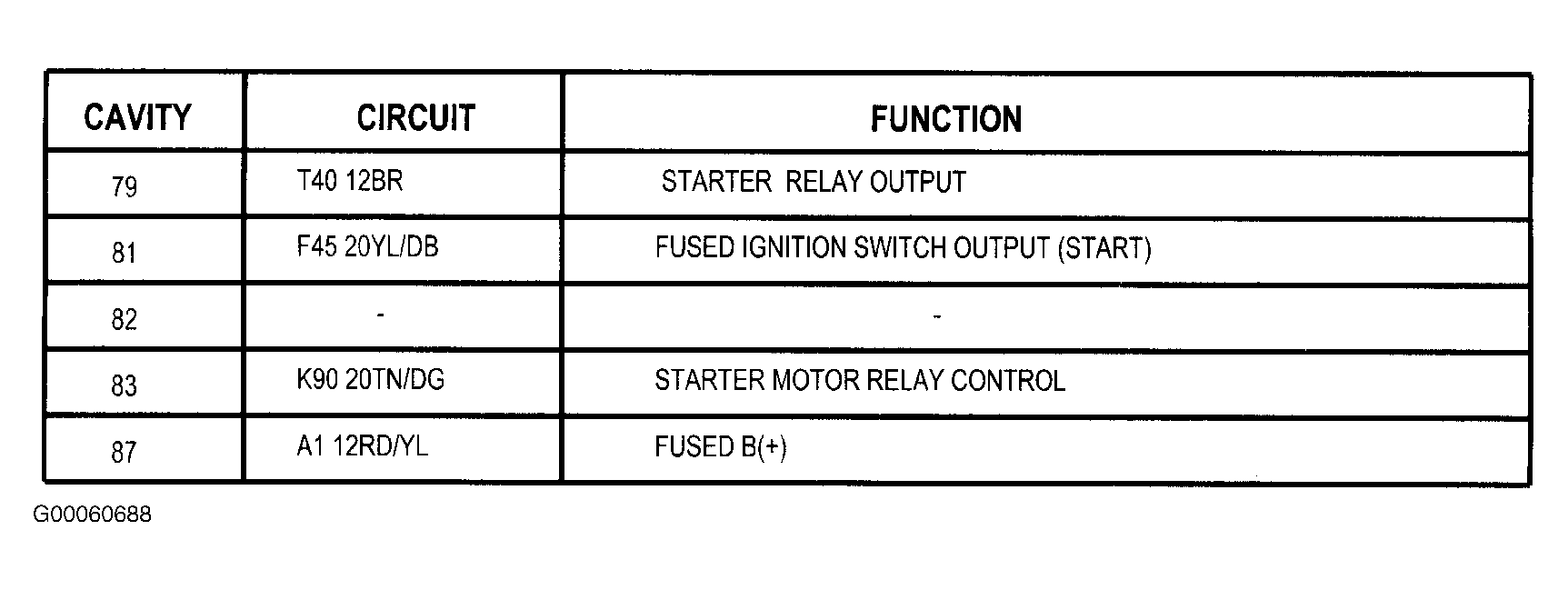

Fig 3: Engine Starter Motor Relay Terminal Identification

Courtesy of CHRYSLER CORP.

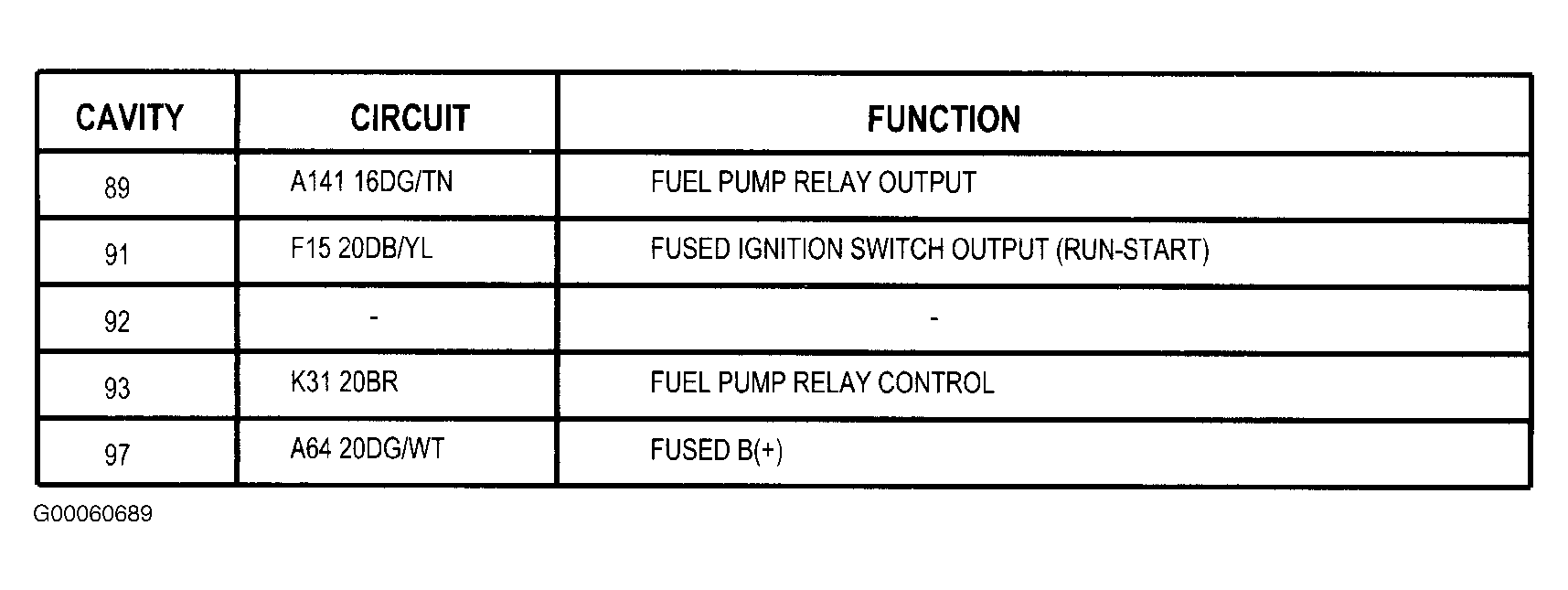

Fig 4: Fuel Pump Relay Terminal Identification

Courtesy of CHRYSLER CORP.

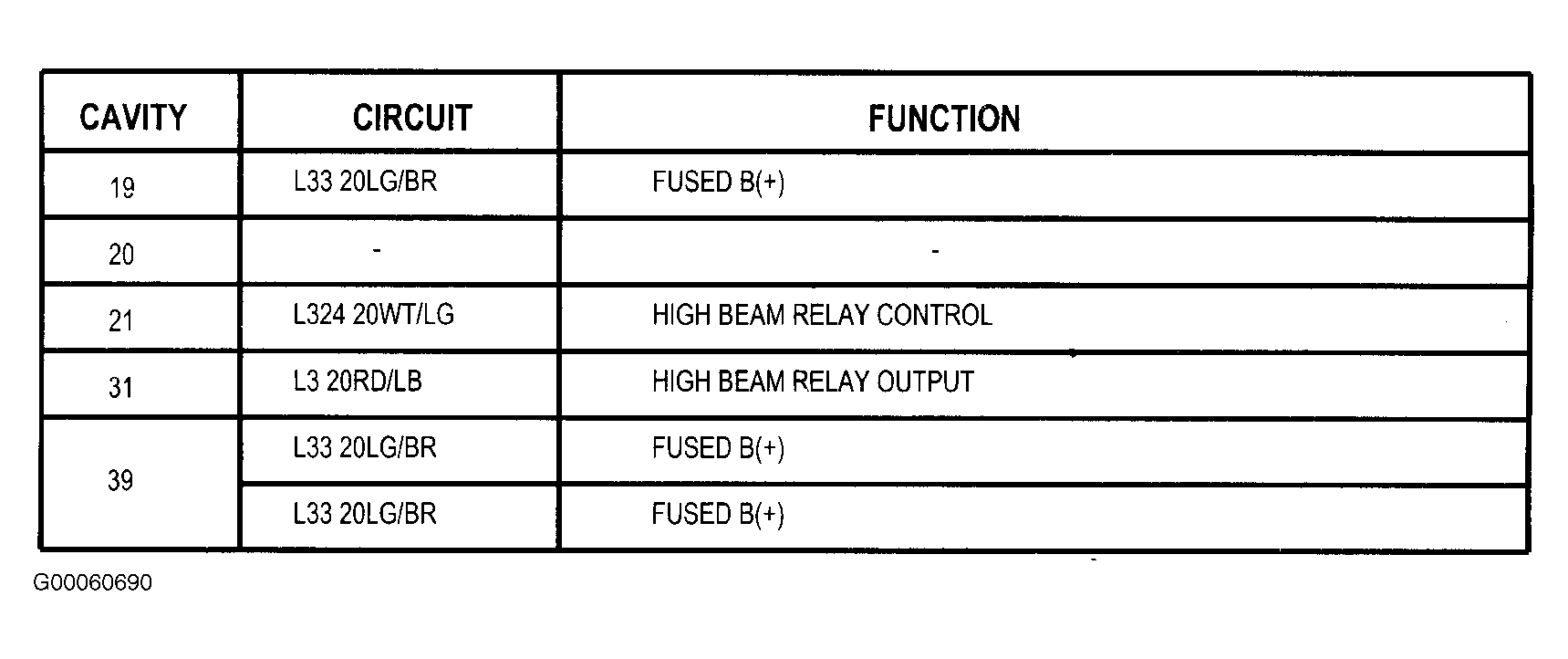

Fig 5: High Beam Relay Terminal Identification

Courtesy of CHRYSLER CORP.

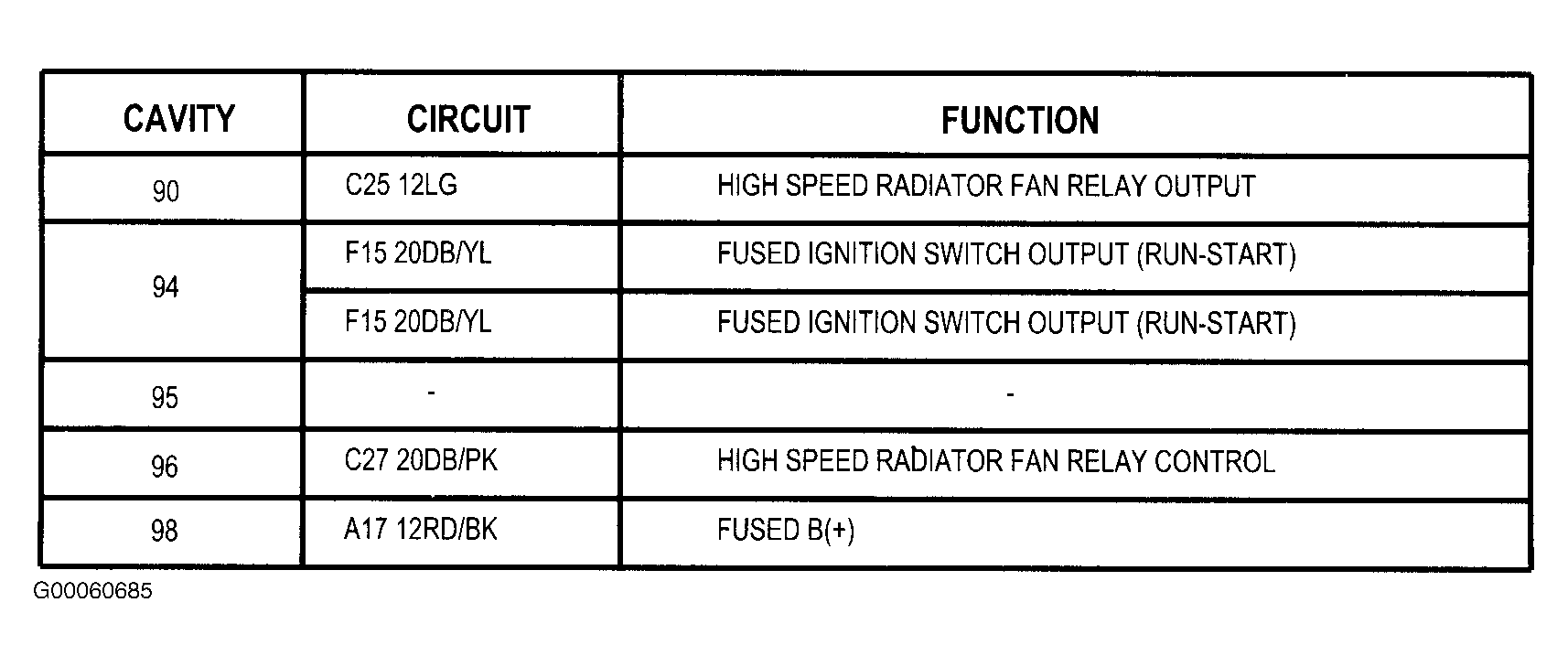

Fig 6: High Speed Radiator Fan Relay Terminal Identification

Courtesy of CHRYSLER CORP.

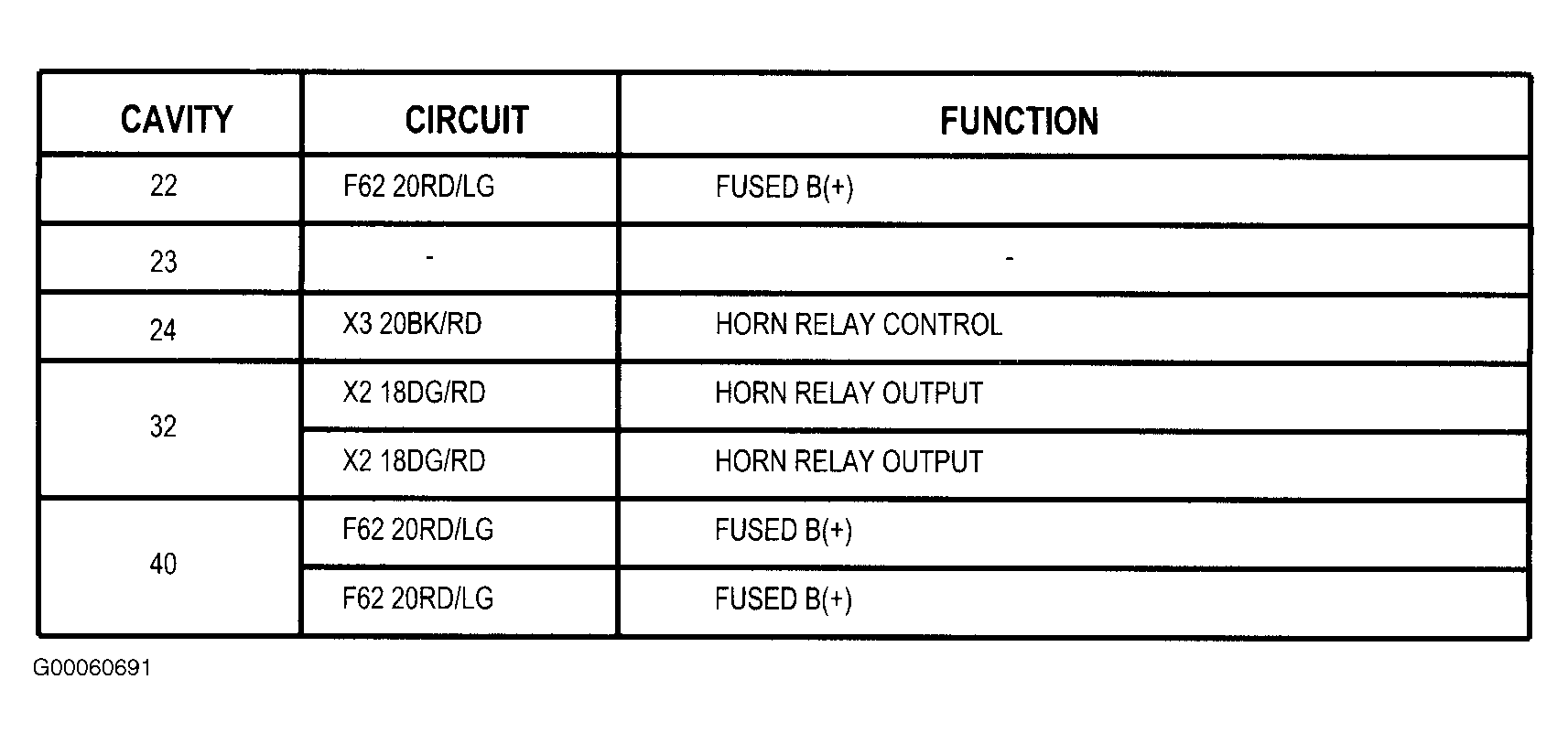

Fig 7: Horn Relay Terminal Identification

Courtesy of CHRYSLER CORP.

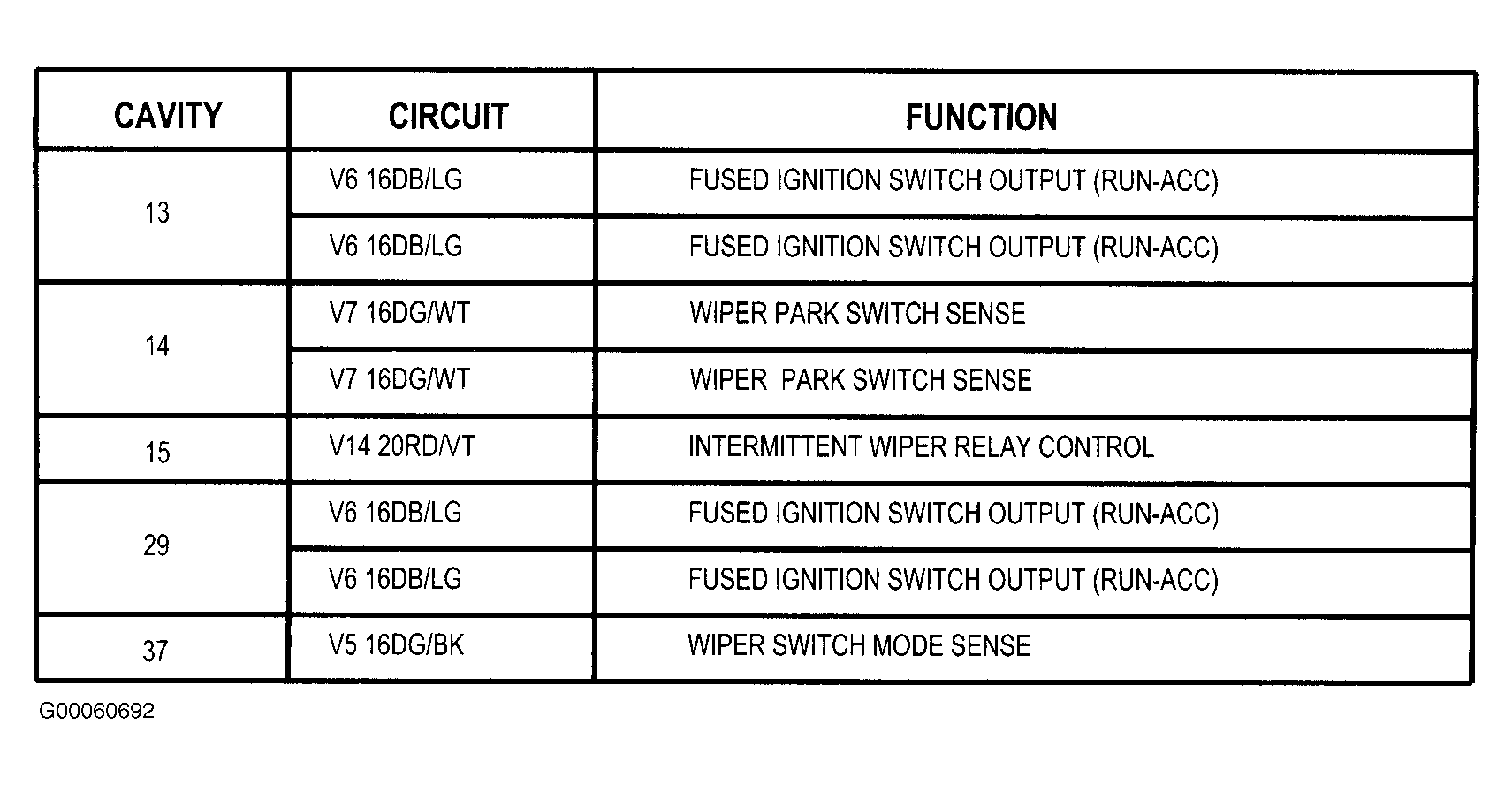

Fig 8: Intermittent Wiper Relay Terminal Identification

Courtesy of CHRYSLER CORP.

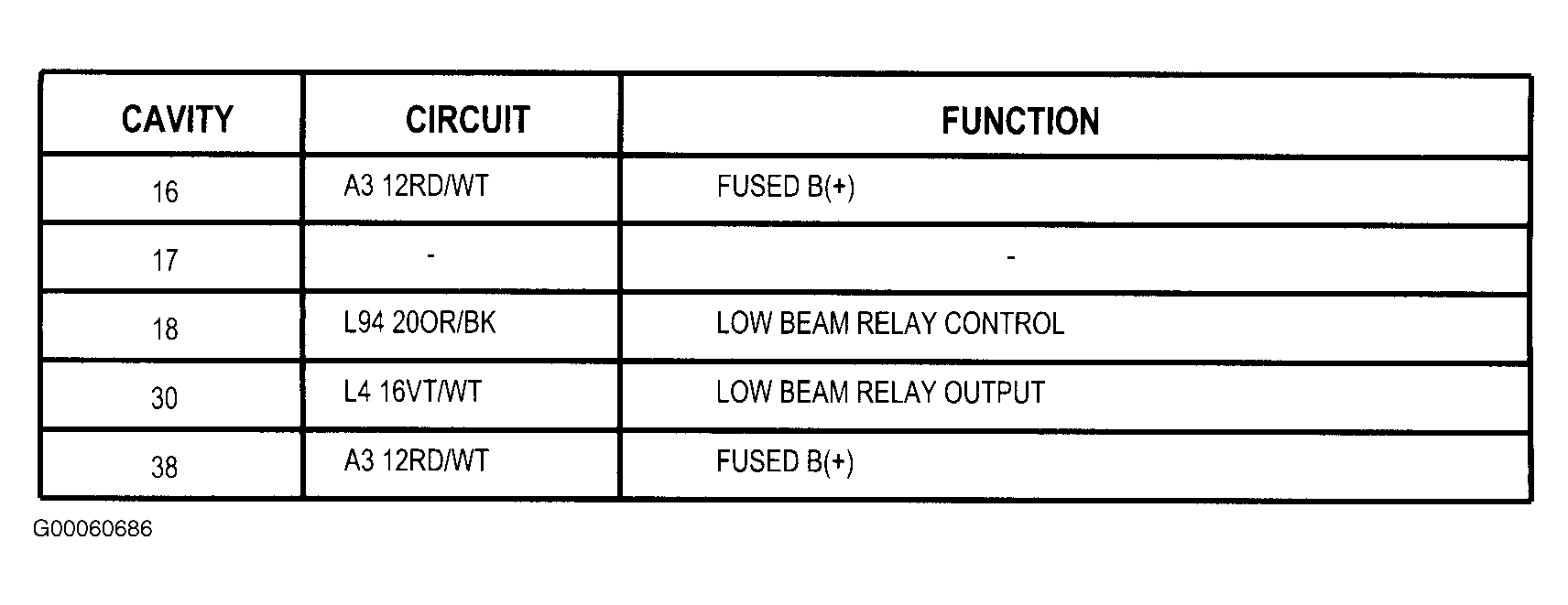

Fig 9: Low Beam Relay Terminal Identification

Courtesy of CHRYSLER CORP.

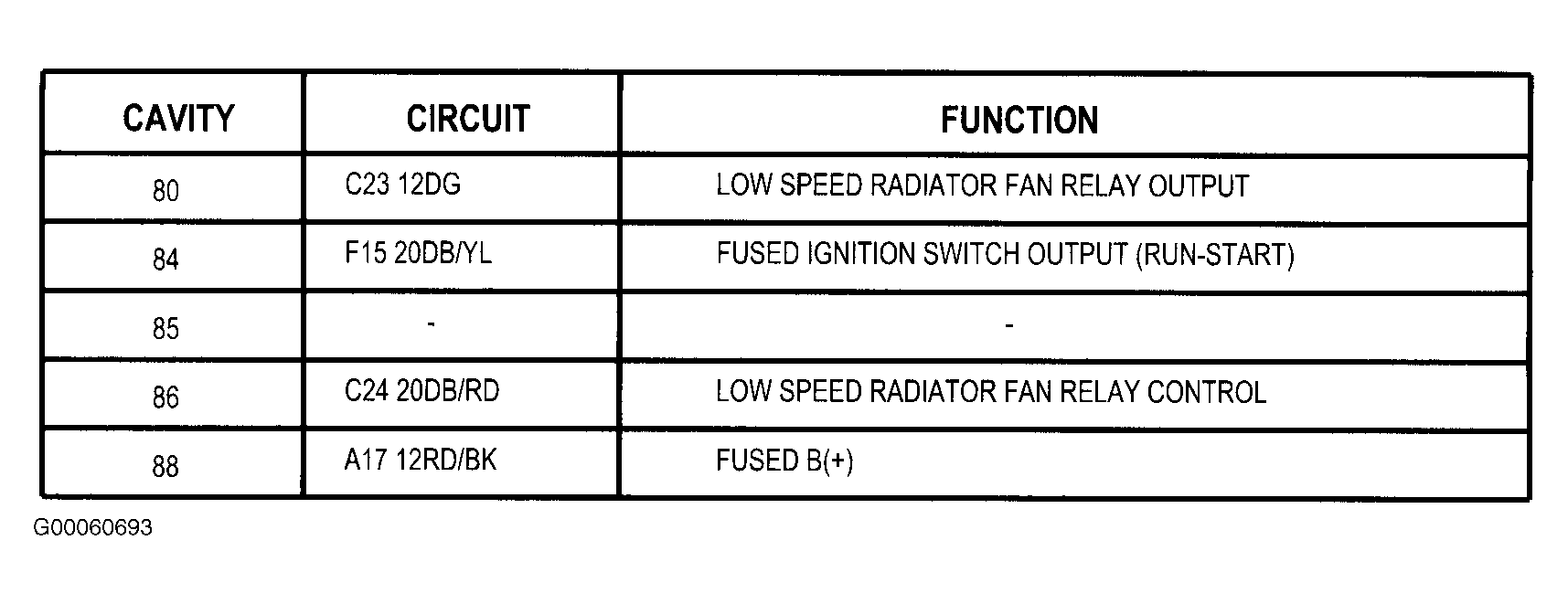

Fig 10: Low Speed Radiator Fan Relay Terminal Identification

Courtesy of CHRYSLER CORP.

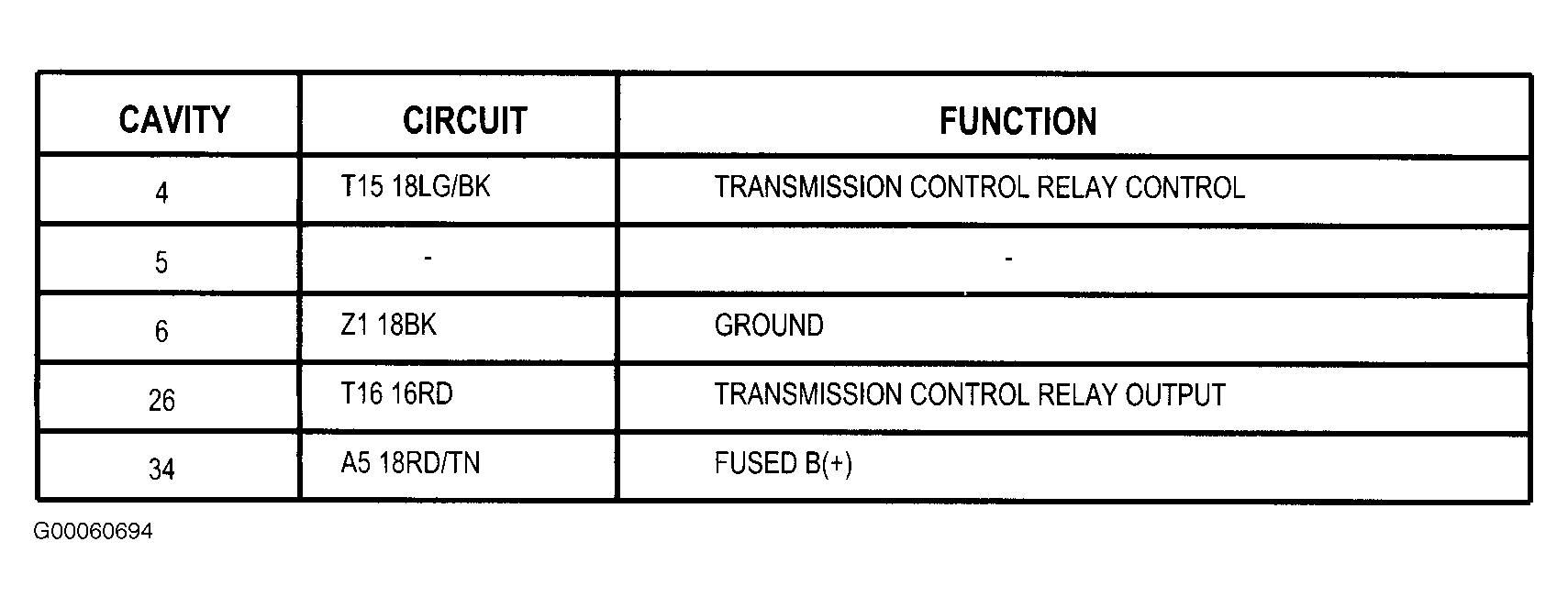

Fig 11: Transmission Control Relay Terminal Identification

Courtesy of CHRYSLER CORP.

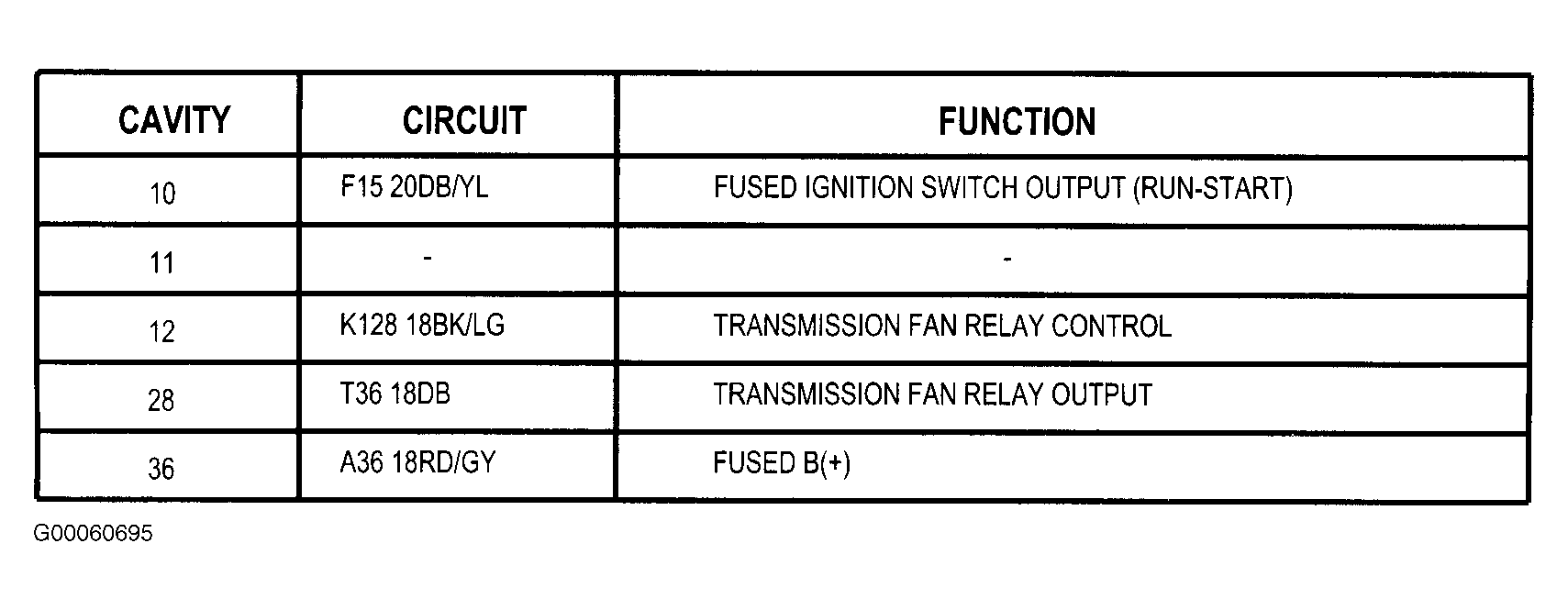

Fig 12: Transmission Cooler Fan Relay Terminal Identification

Courtesy of CHRYSLER CORP.
