Transmission Range Sensor Connector End View Terminals

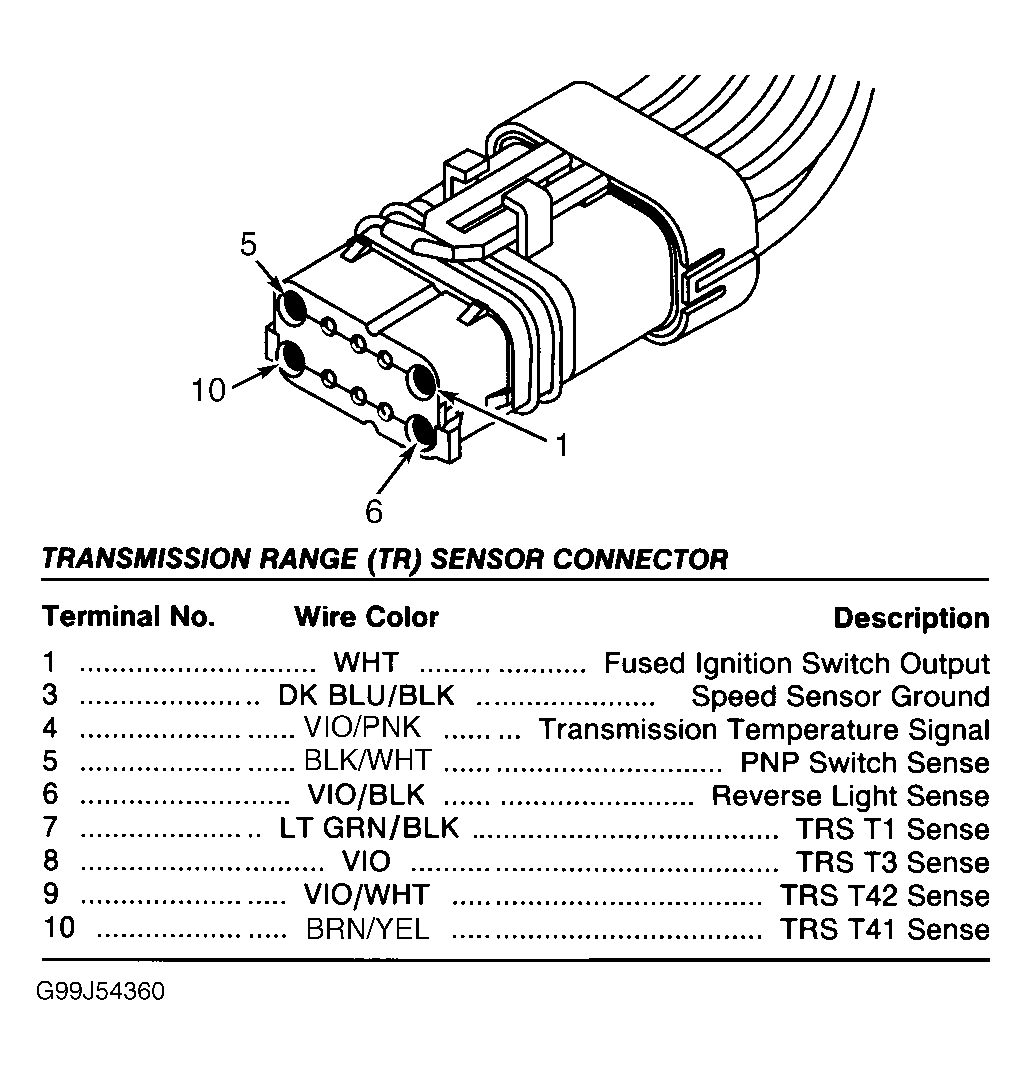

Fig 1: Transmission Range Sensor Connector End View Terminals

G99J54360

Courtesy of CHRYSLER GROUP, LLC
