Tachometer Connector End View
Tachometer Connector End View

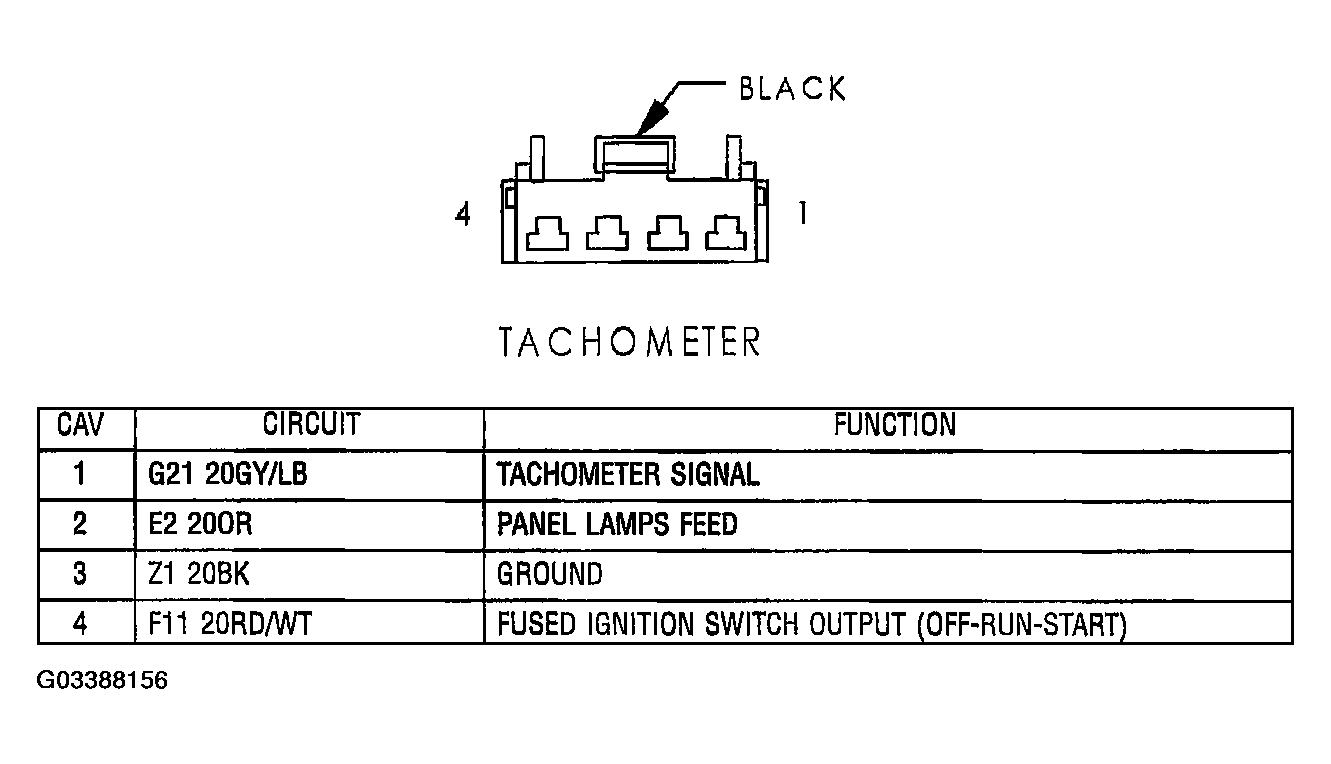

Fig 1: Tachometer Connector End View
Courtesy of CHRYSLER GROUP, LLC
