Power Mirror Switch Connector End View Pin-Out

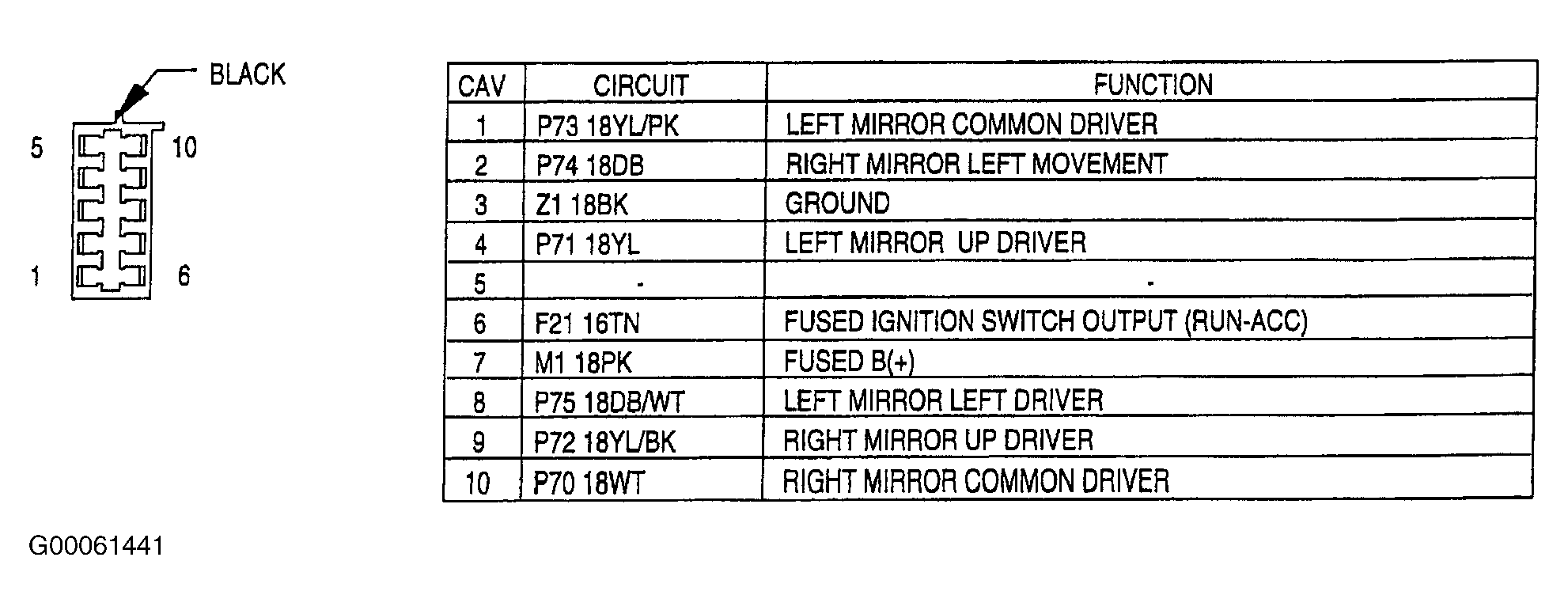

Fig 1: Power Mirror Switch Connector End View Pin-Out

G00061441

Courtesy of CHRYSLER GROUP, LLC
