Power Amplifier C2 Connector End View

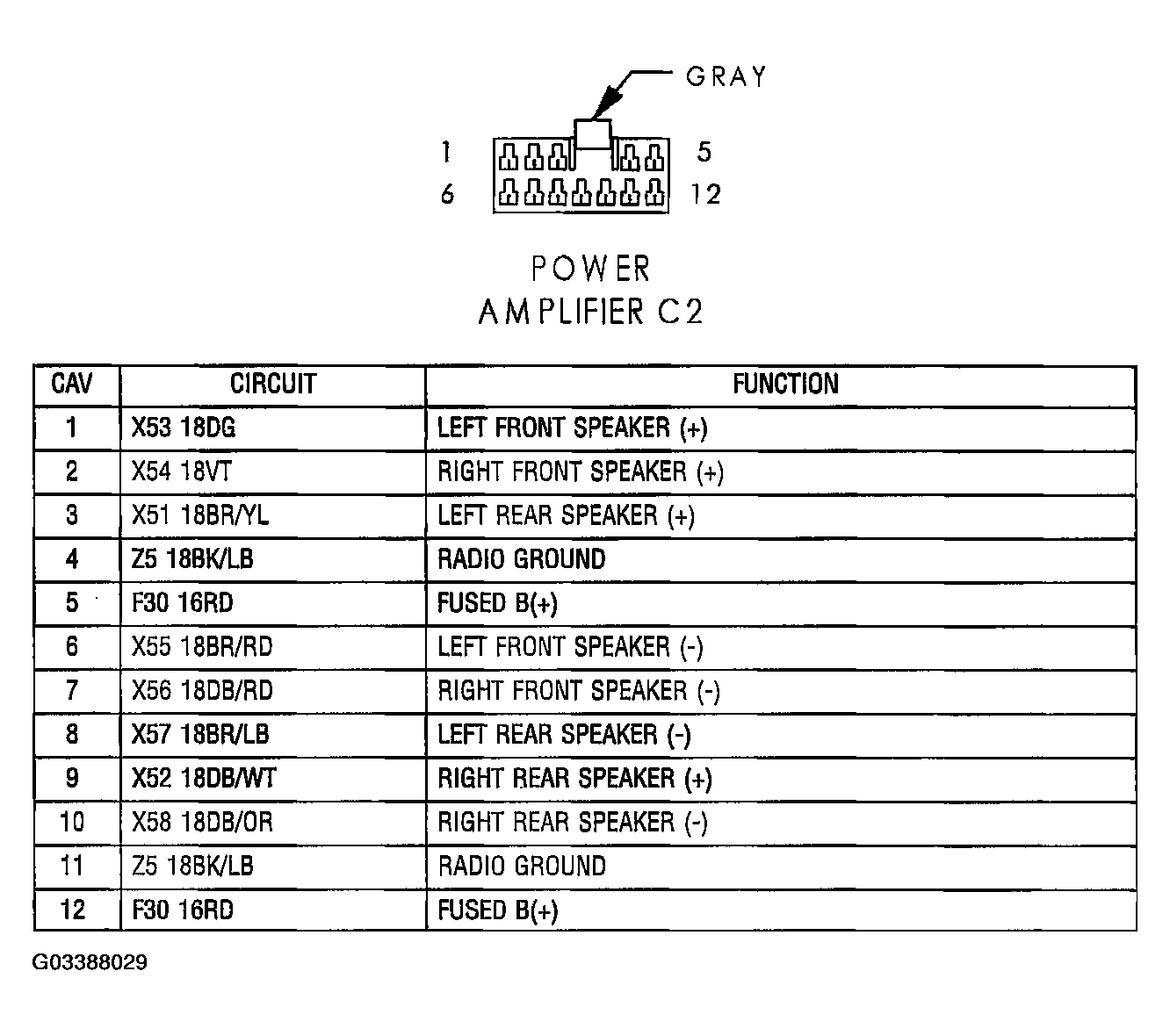

Fig 1: Power Amplifier C2 Connector End View

G03388029

Courtesy of CHRYSLER GROUP, LLC
