Passenger Power Window/Door Lock Switch Connector End View

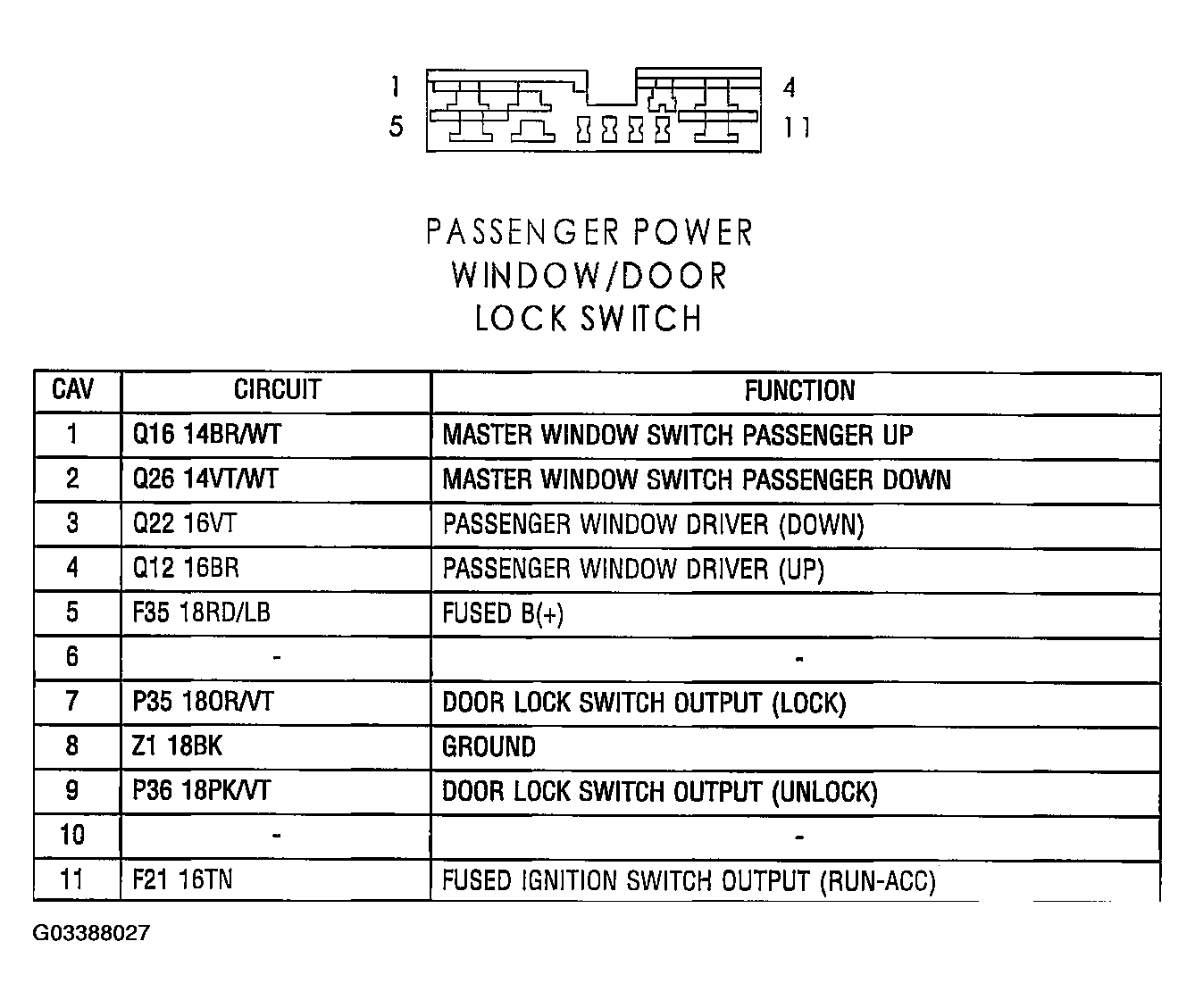

Fig 1: Passenger Power Window/Door Lock Switch Connector End View

G03388027

Courtesy of CHRYSLER GROUP, LLC
