Passenger Power Window/Door Lock Switch Connector End View Terminals

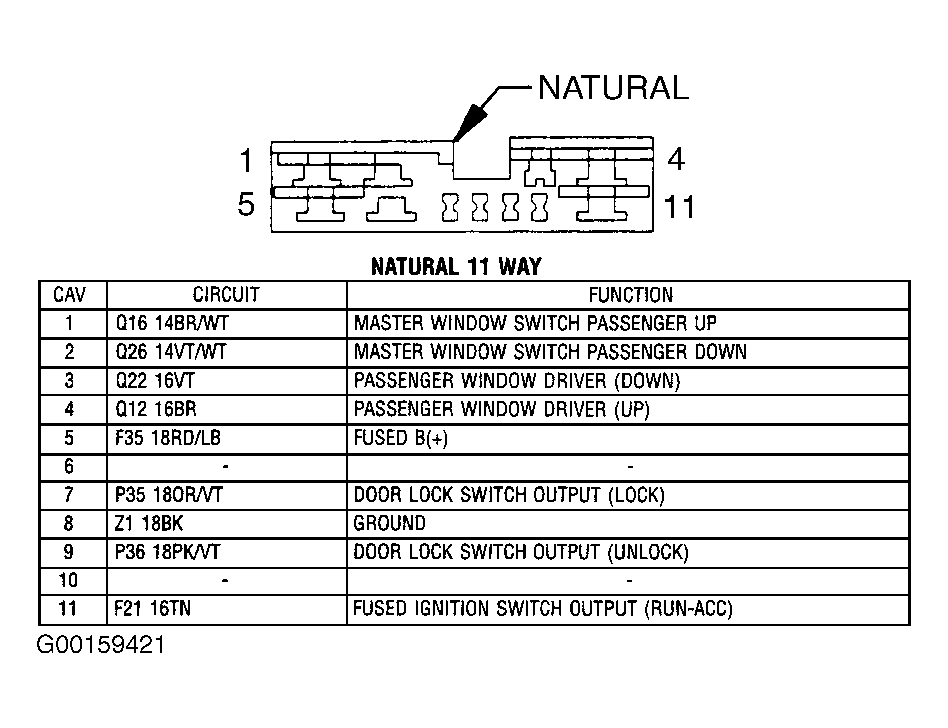

Fig 1: Passenger Power Window/Door Lock Switch Connector End View Terminals

G00159421

Courtesy of CHRYSLER GROUP, LLC
