Left Power Mirror Motor Connector End View Pin-Out

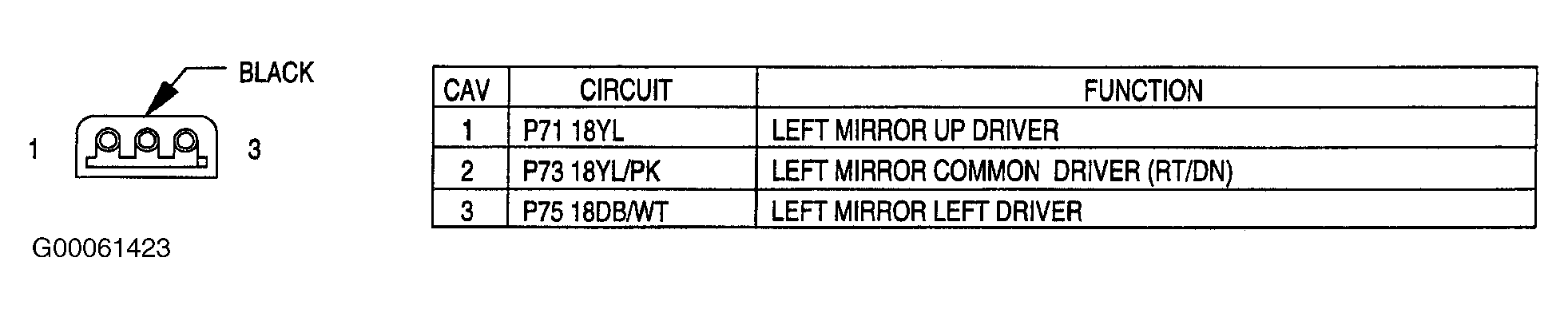

Fig 1: Left Power Mirror Motor Connector End View Pin-Out

G00061423

Courtesy of CHRYSLER GROUP, LLC
