Ignition Switch C2 Connector End View

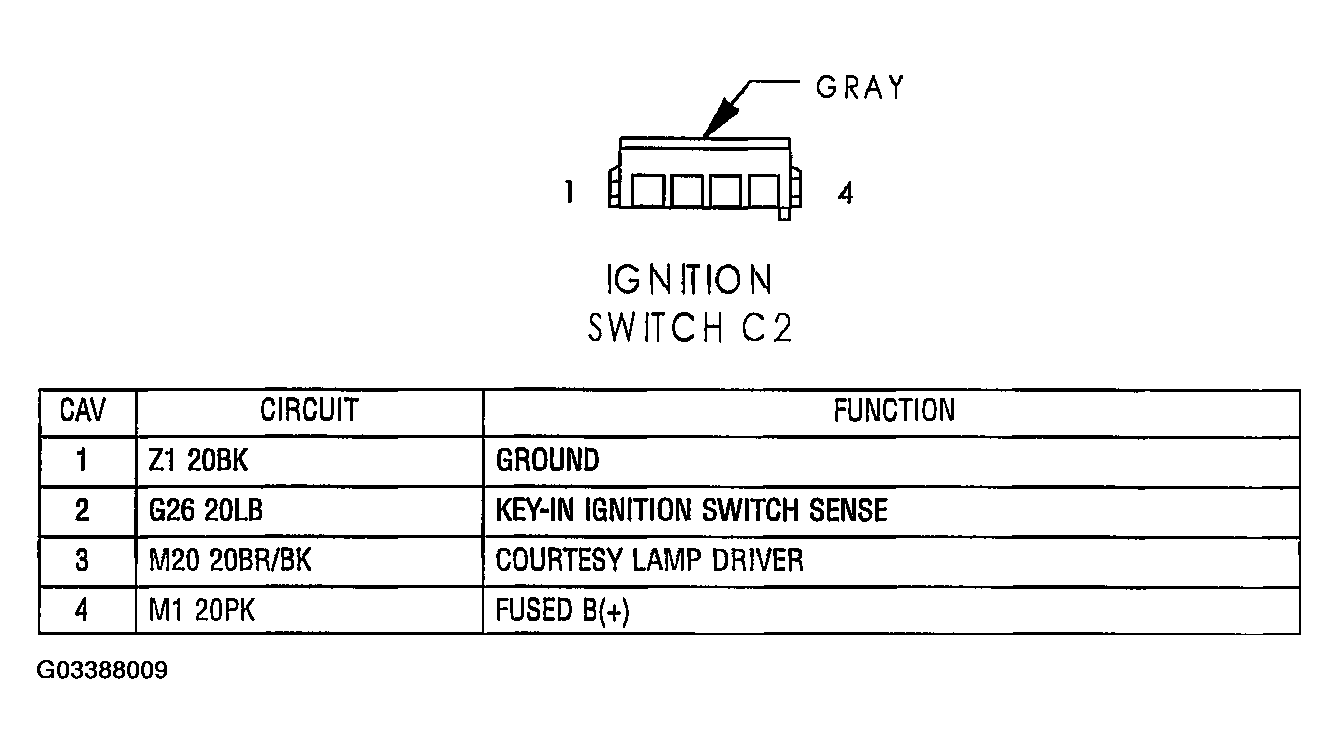

Fig 1: Ignition Switch C2 Connector End View

G03388009

Courtesy of CHRYSLER GROUP, LLC
