Ignition Switch C1 Connector End View

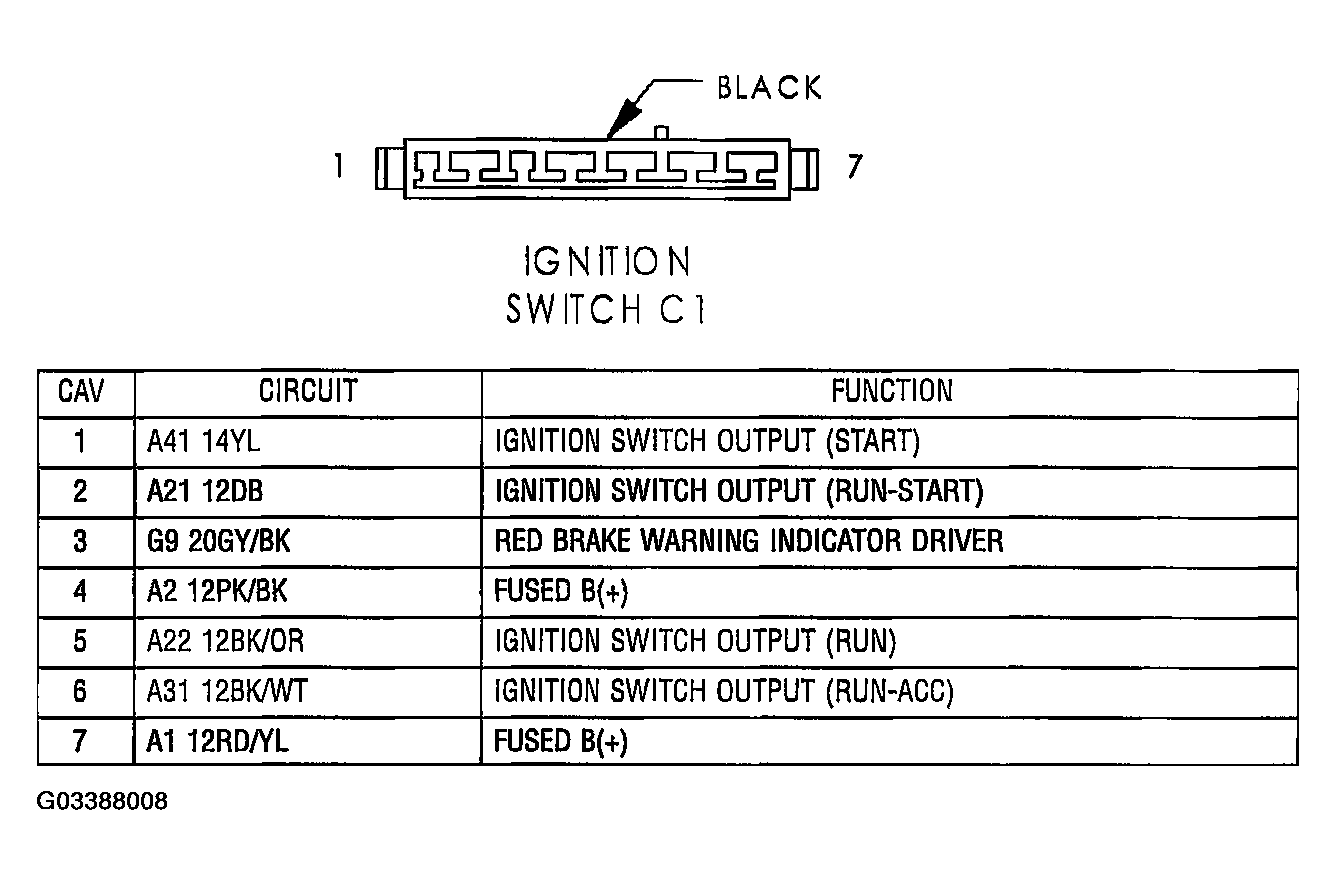

Fig 1: Ignition Switch C1 Connector End View

G03388008

Courtesy of CHRYSLER GROUP, LLC
