Daytime Running Lamp Module (DRL) Connector End View

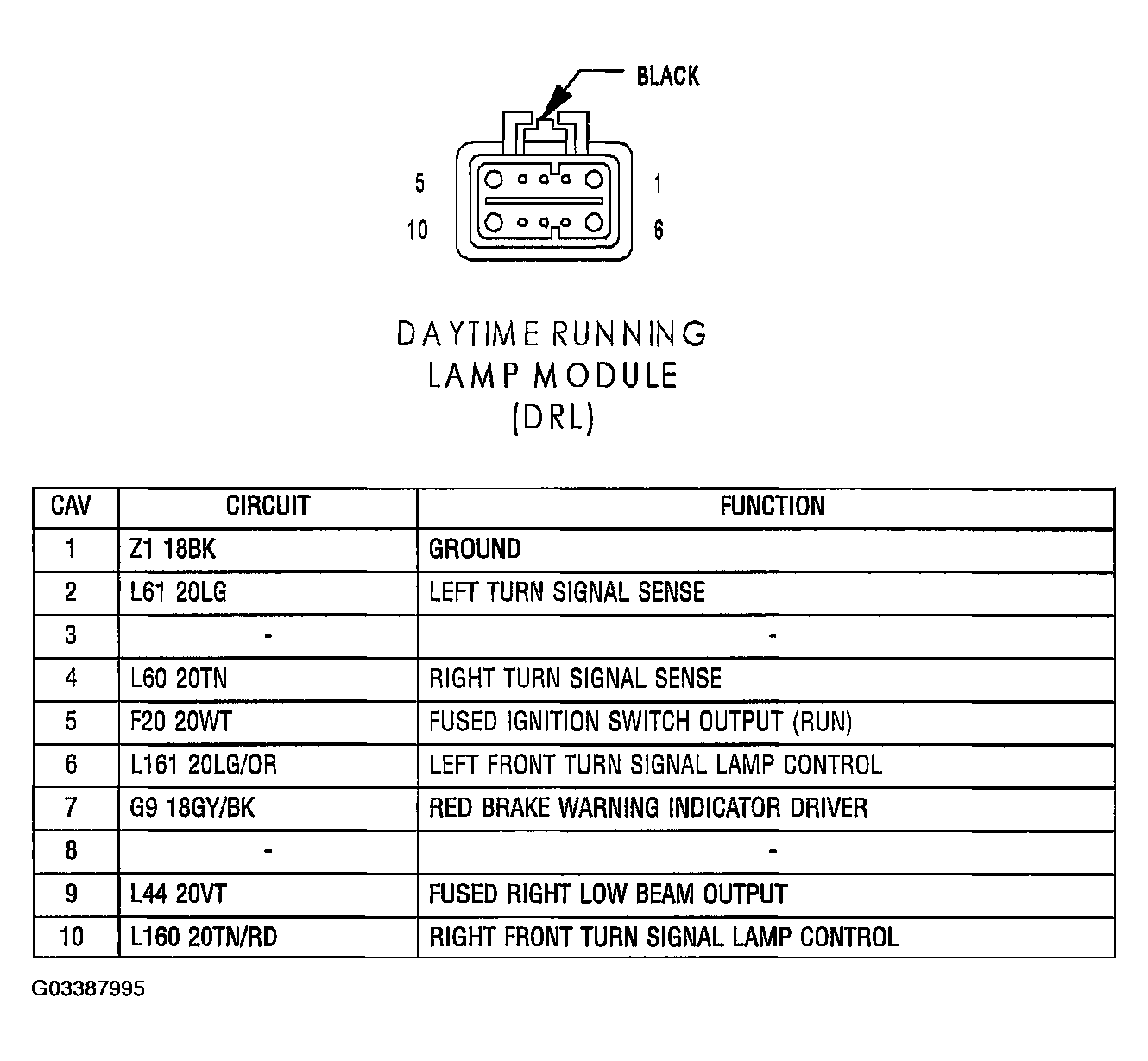

Fig 1: Daytime Running Lamp Module (DRL) Connector End View

G03387995

Courtesy of CHRYSLER GROUP, LLC
