Crankshaft Position Sensor Connector End View

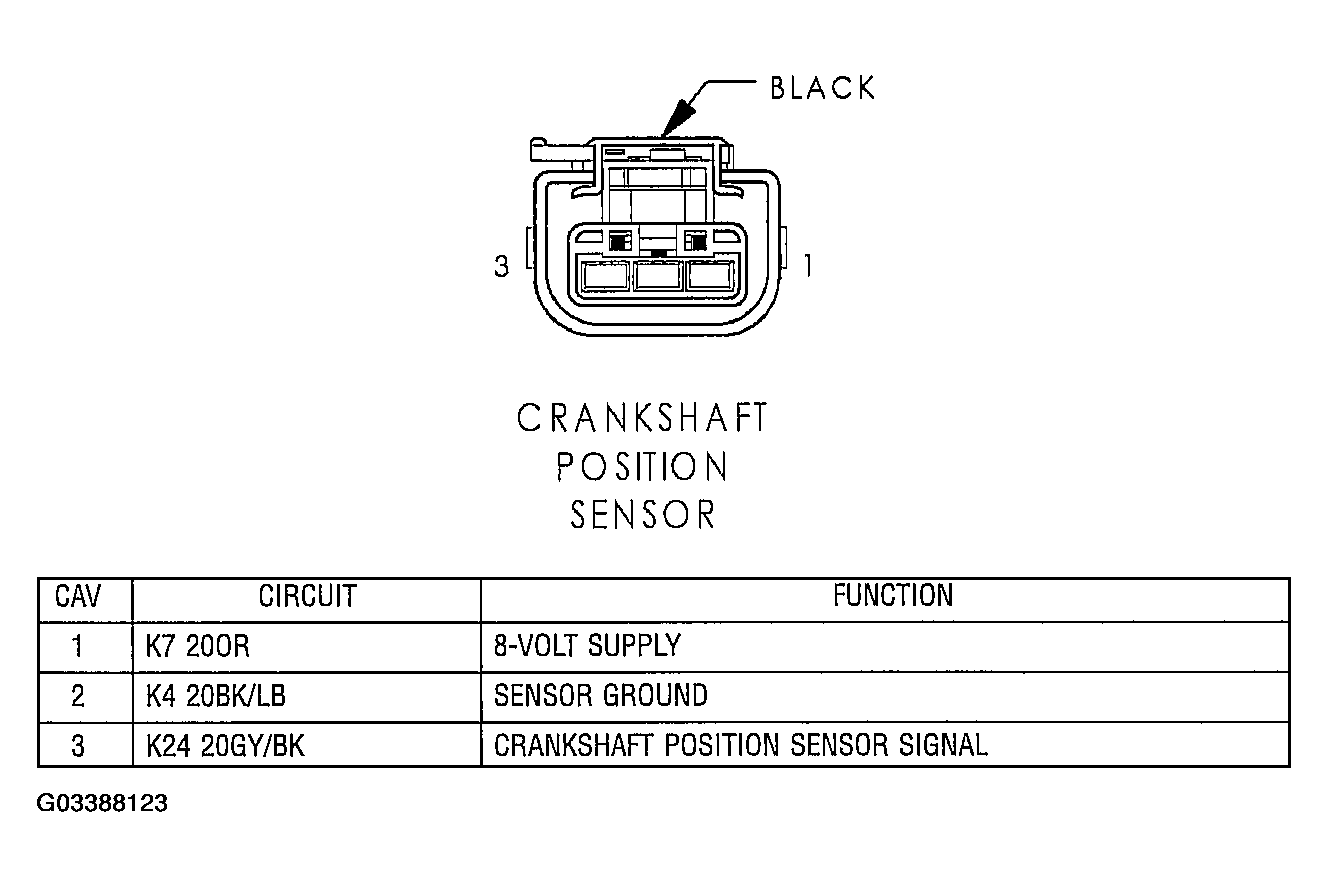

Fig 1: Crankshaft Position Sensor Connector End View

G03388123

Courtesy of CHRYSLER GROUP, LLC
