A/C-Heater Control C2 Connector End View

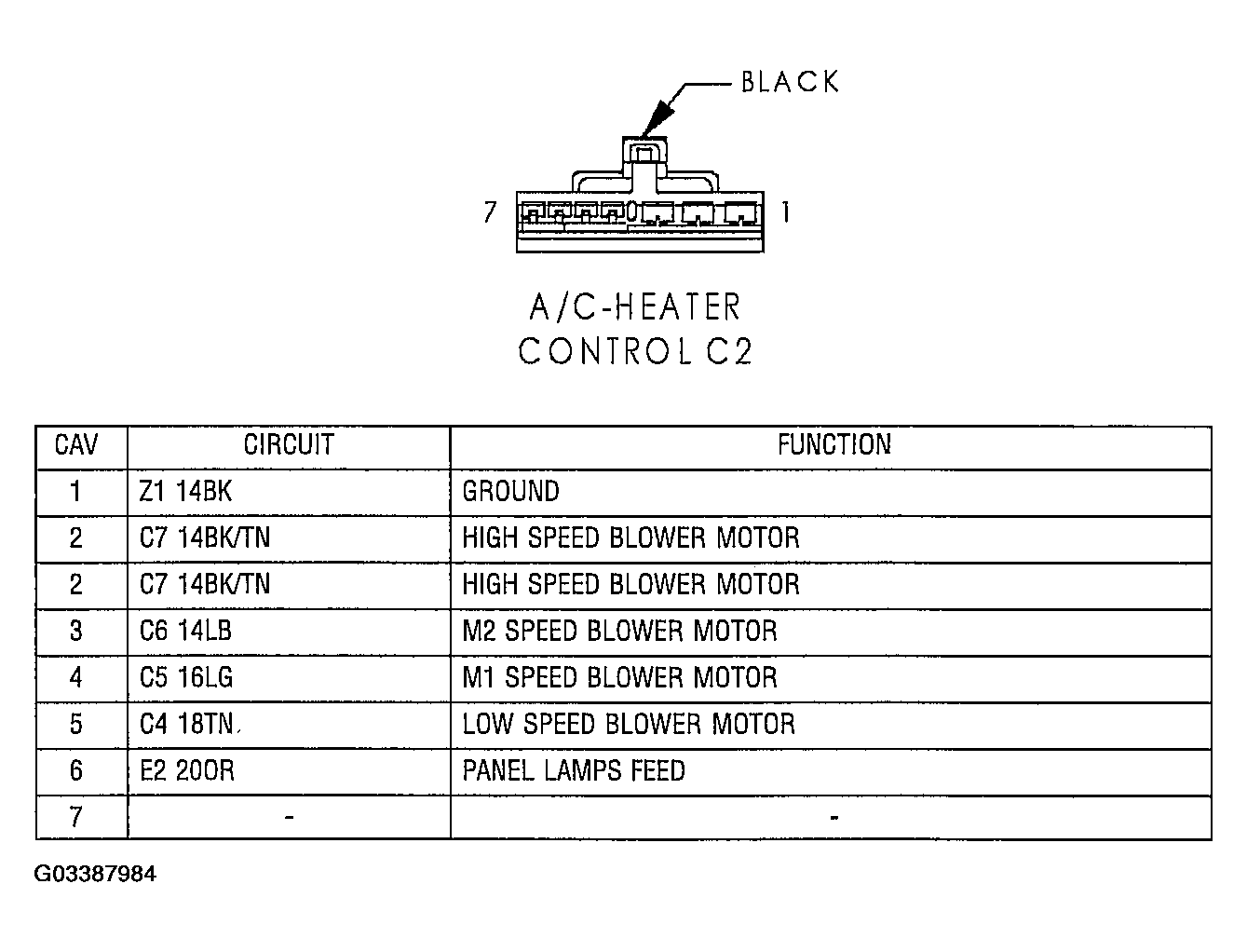

Fig 1: A/C-Heater Control C2 Connector End View

G03387984

Courtesy of CHRYSLER GROUP, LLC
