A/C-Heater Control C1 Connector End View

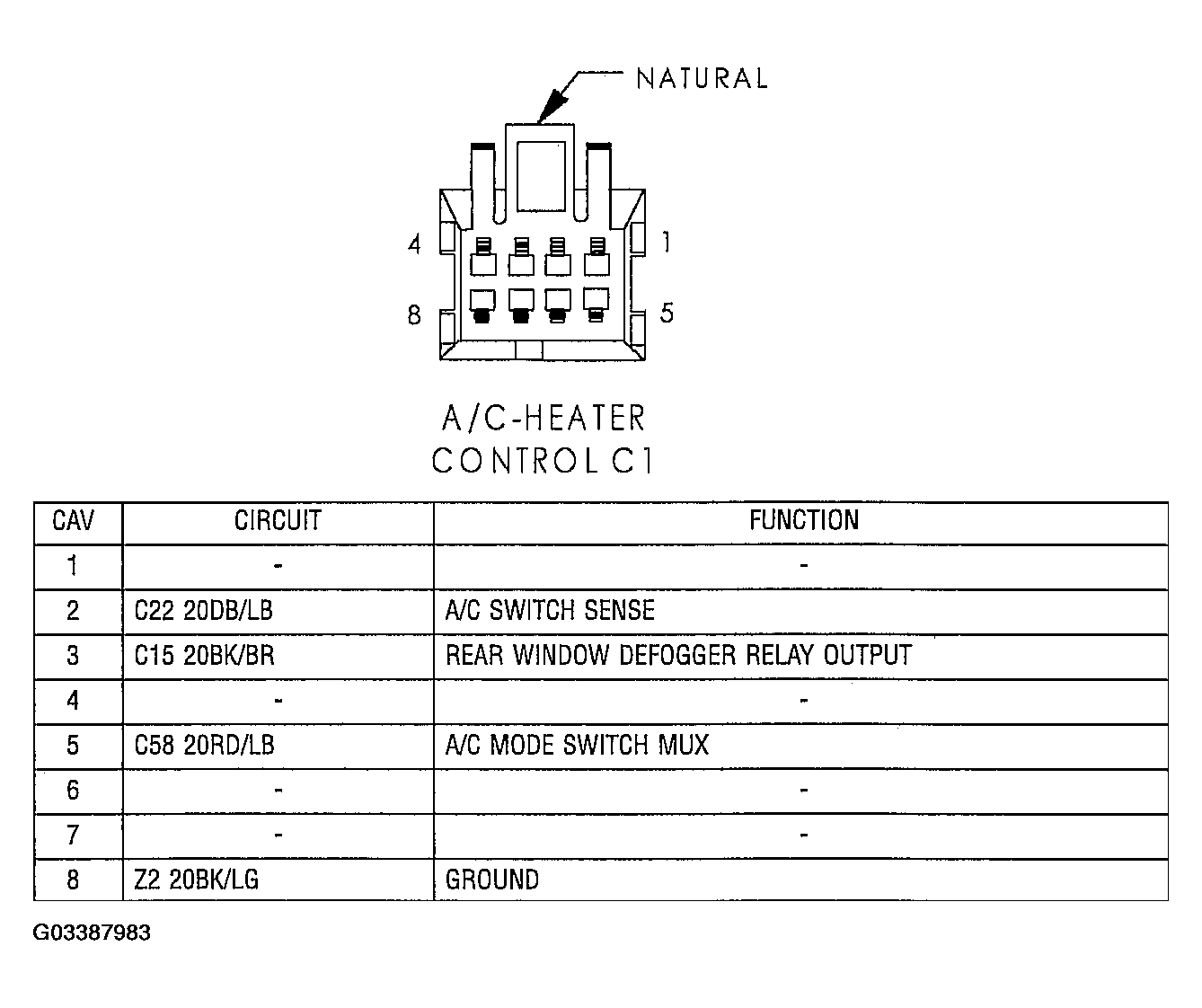

Fig 1: A/C-Heater Control C1 Connector End View

G03387983

Courtesy of CHRYSLER GROUP, LLC
