Diagnosis And Testing - SIDEVIEW Mirror

1. Remove door trim panel (Refer to TRIM PANEL ).
2. Disconnect wire connector from the switch.
3. Using two jumper wires, one connected to a 12 volt battery source, and the other connected to a good body ground. Refer to the Mirror Motor Test table for appropriate mirror response, using the mirror switch wiring harness connector (Fig 2 ).

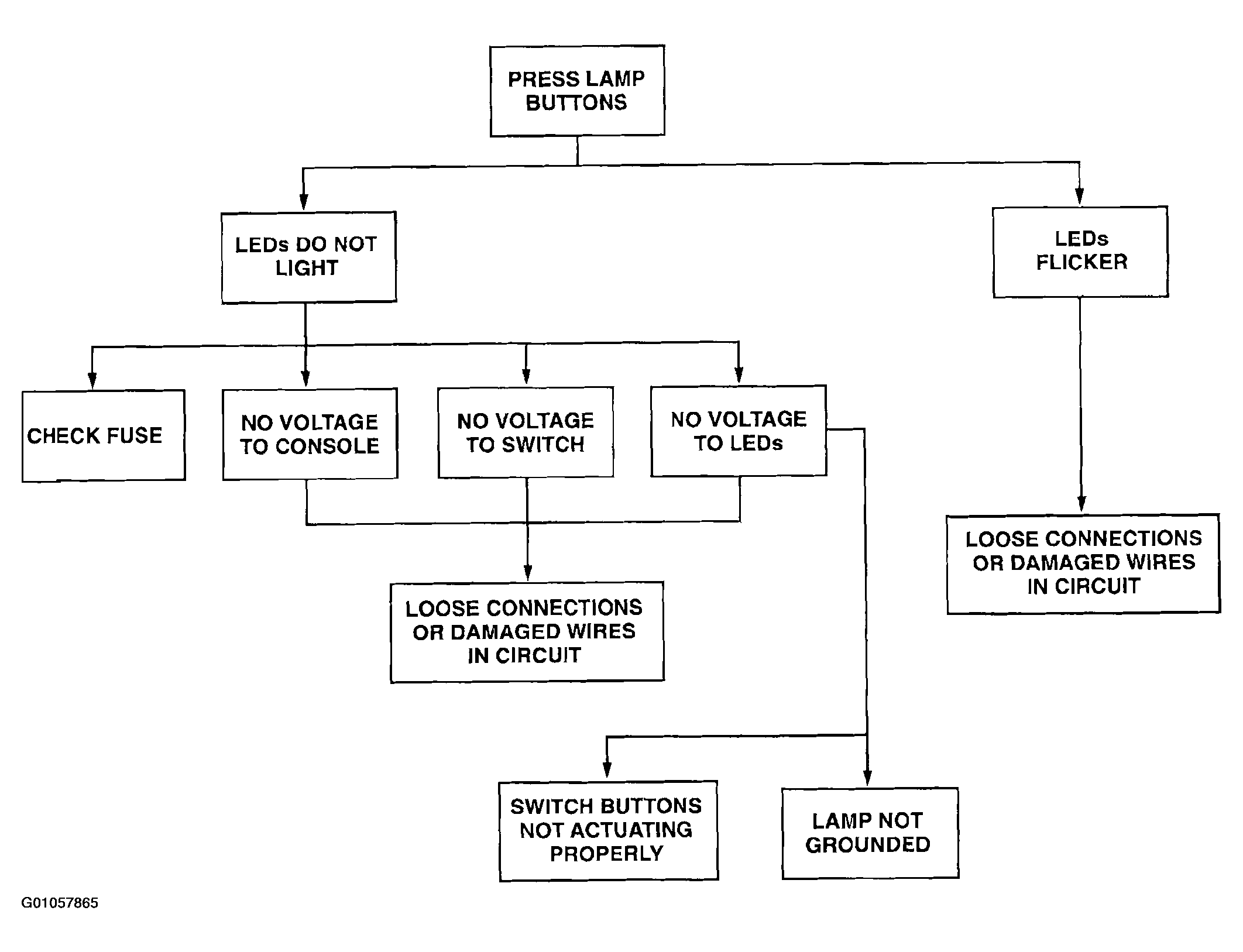

   Fig 1: Electrochromic Mini-Trip Mirror (EMTM) Lamp/Switch Diagnosis Flow Chart

   Courtesy of DAIMLERCHRYSLER CORP.
   Fig 2: Identifying Mirror Switch Harness Connector

   Courtesy of DAIMLERCHRYSLER CORP.

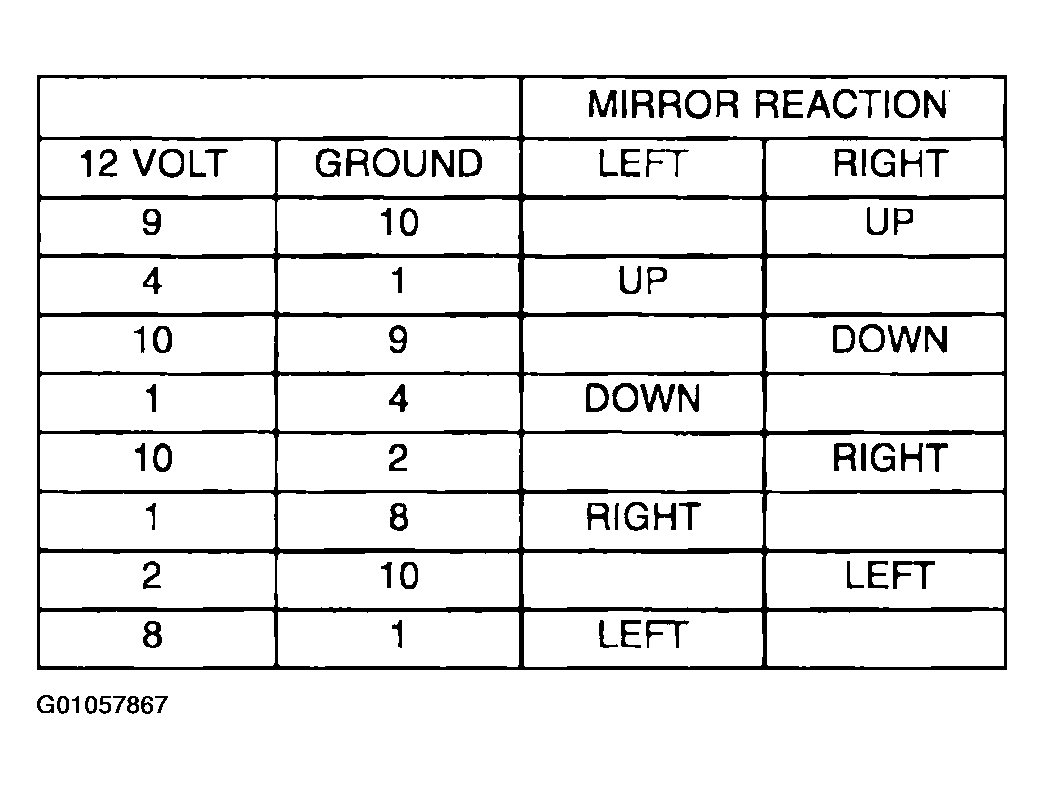

   Fig 3: Mirror Motor Test Table

   Courtesy of DAIMLERCHRYSLER CORP.
4. If test results are not obtained as shown in the Mirror Motor Test table, check for open or shorted circuit, or replace mirror assembly as necessary.

If mirror motor tests OK, go to DIAGNOSIS AND TESTING - MIRROR SWITCH  .
