Cylinder Lock Switch: Removal

  1. Disconnect and insolate the battery negative cable.
  2. Remove the door trim panel and water shield.
  3. Close the door window.
  4. Disconnect the door cylinder lock switch wire connector from the door harness and wiring clips from the inner door impact beam.
  5. Remove the outer handle from the door.
  6. Disengage the lock tab holding switch to the back of the lock cylinder (Fig 1 ).

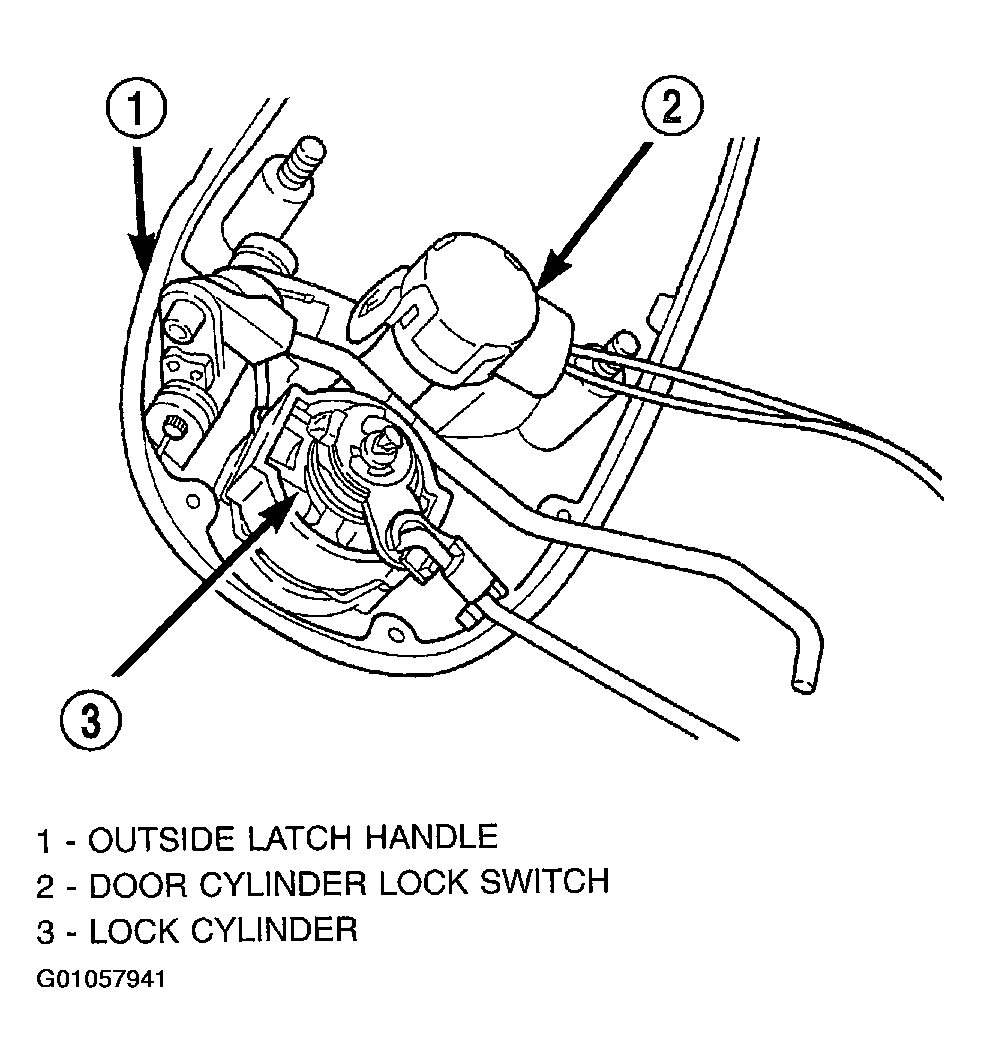

    Fig 1: Identifying Door Cylinder Lock Switch
    G01057941Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the switch from the door handle.
