Audio System

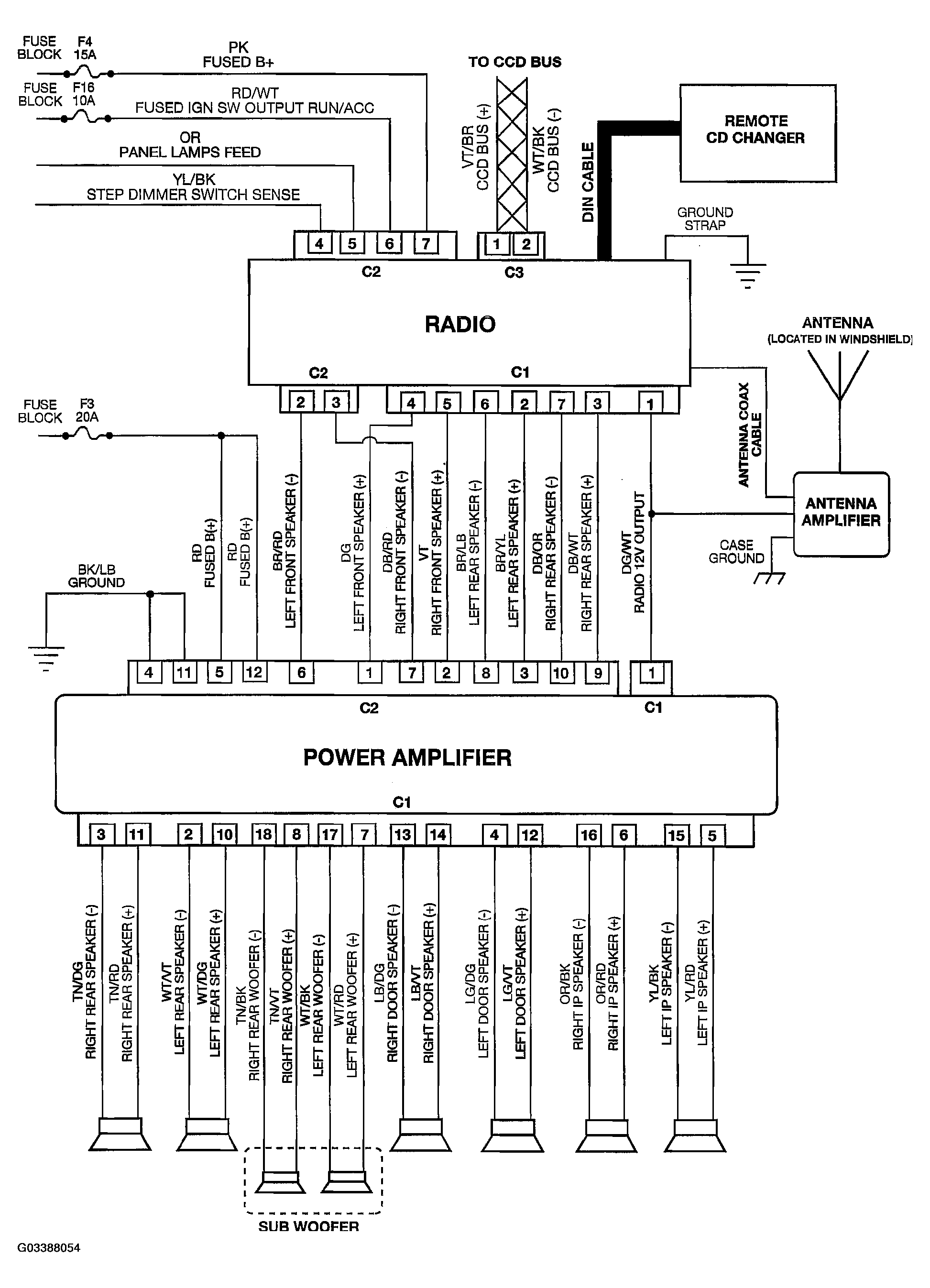

Fig 1: Audio System Schematic Diagram
G03388054Courtesy of DAIMLERCHRYSLER CORP.

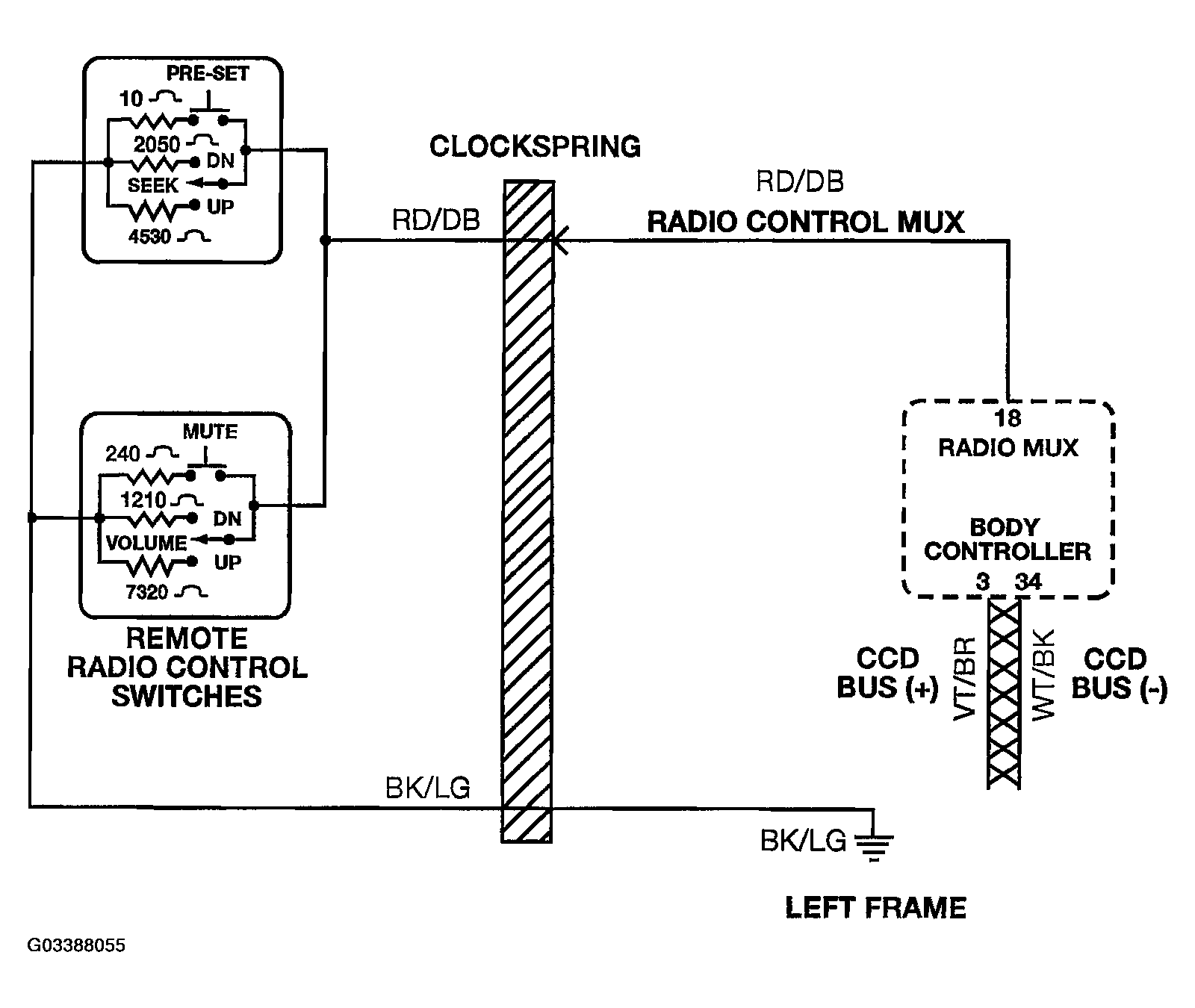

Fig 2: Radio Remote Controls Schematic Diagram
G03388055Courtesy of DAIMLERCHRYSLER CORP.

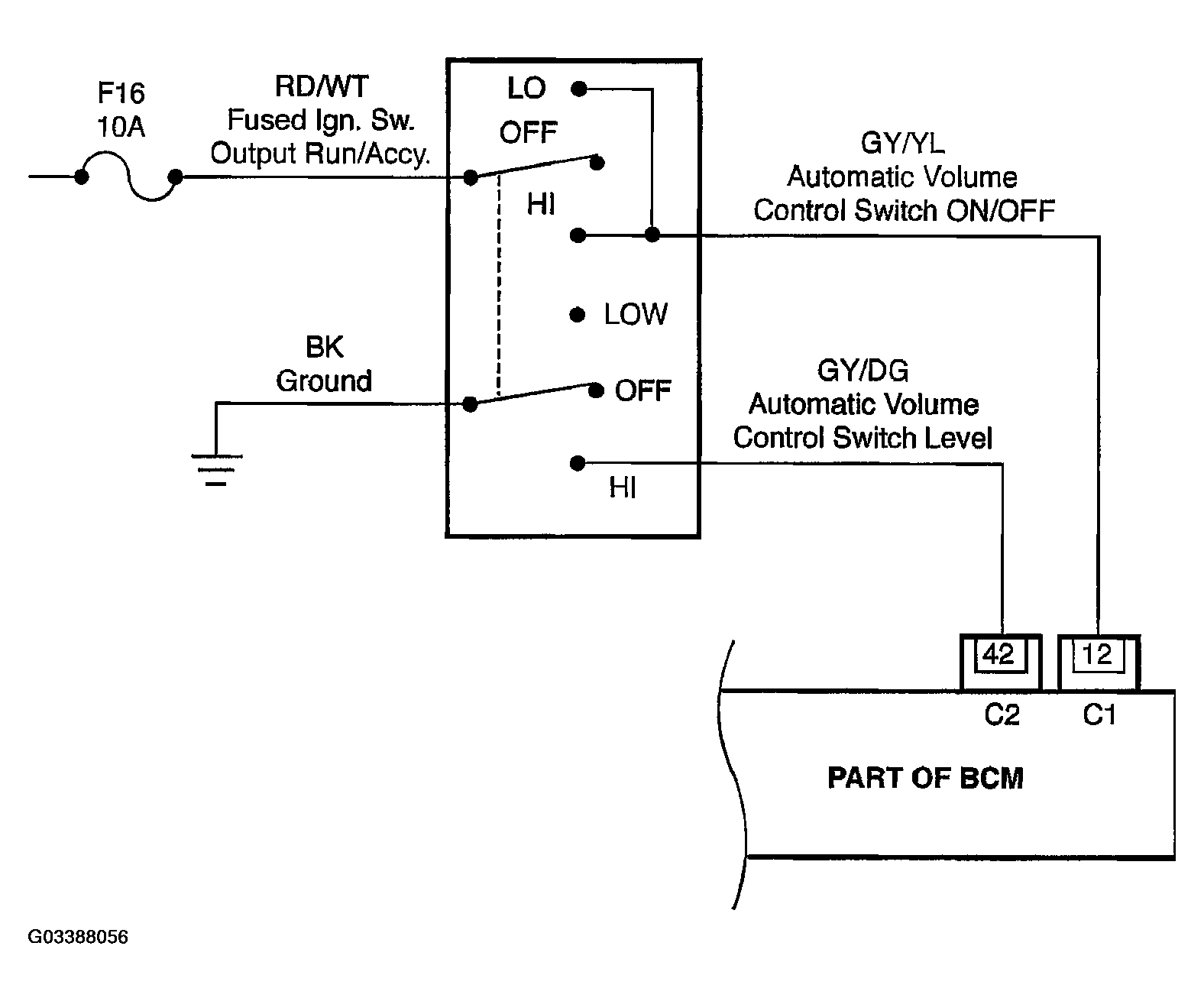

Fig 3: Automatic Volume Control Circuit Schematic Diagram
G03388056Courtesy of DAIMLERCHRYSLER CORP.
