Power Distribution Center

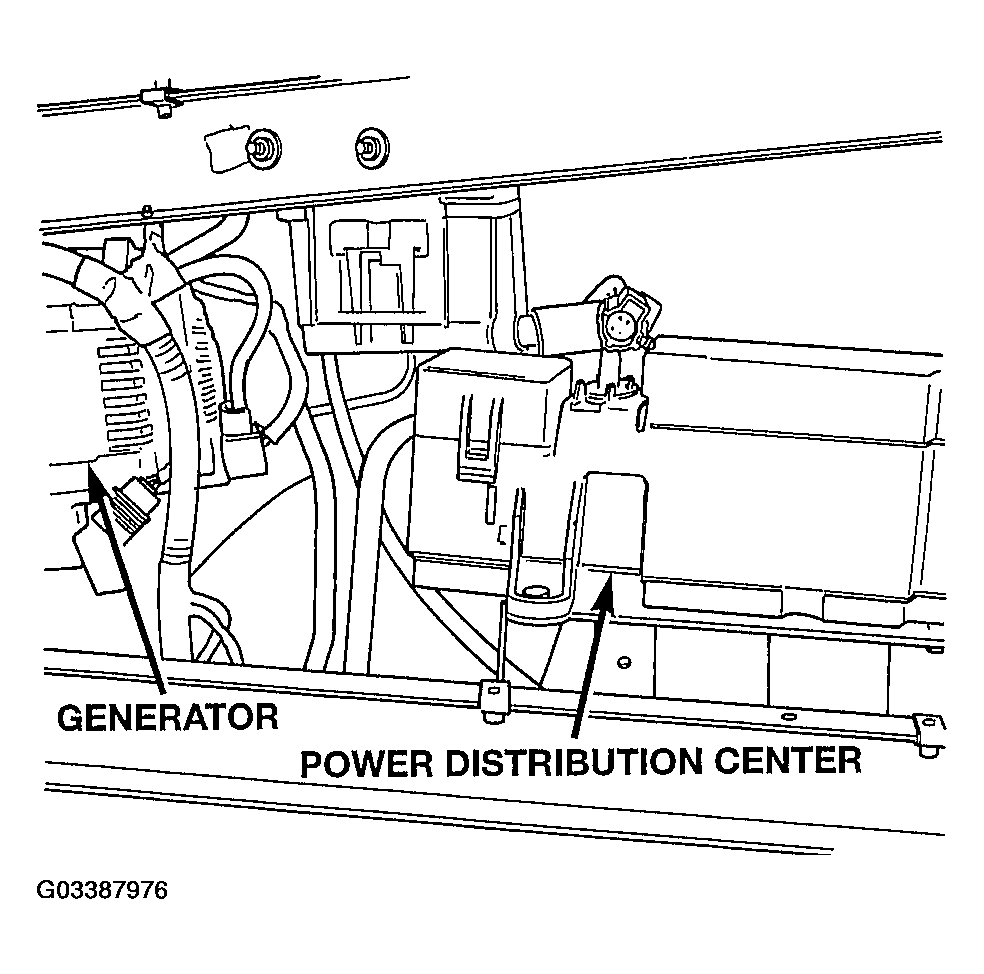

Fig 1: Identifying Power Distribution Center (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

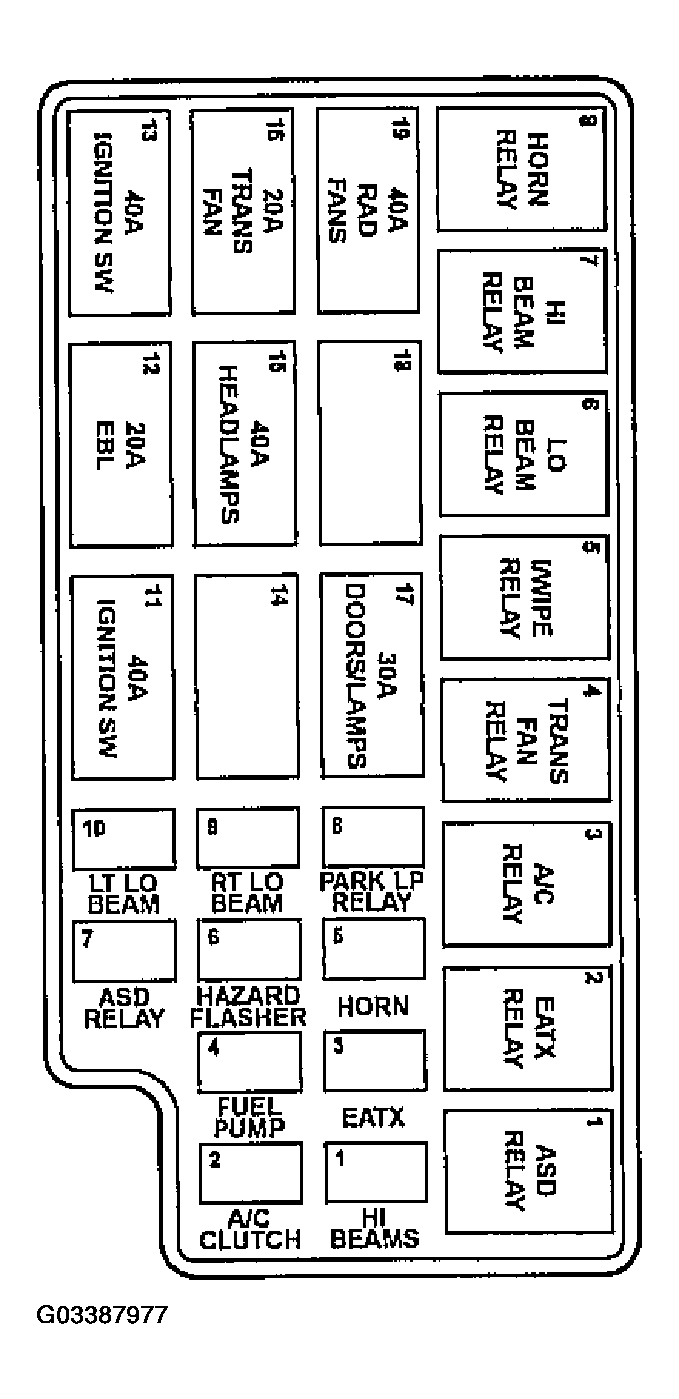

Fig 2: Identifying Power Distribution Center (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
