Micro Relay Center

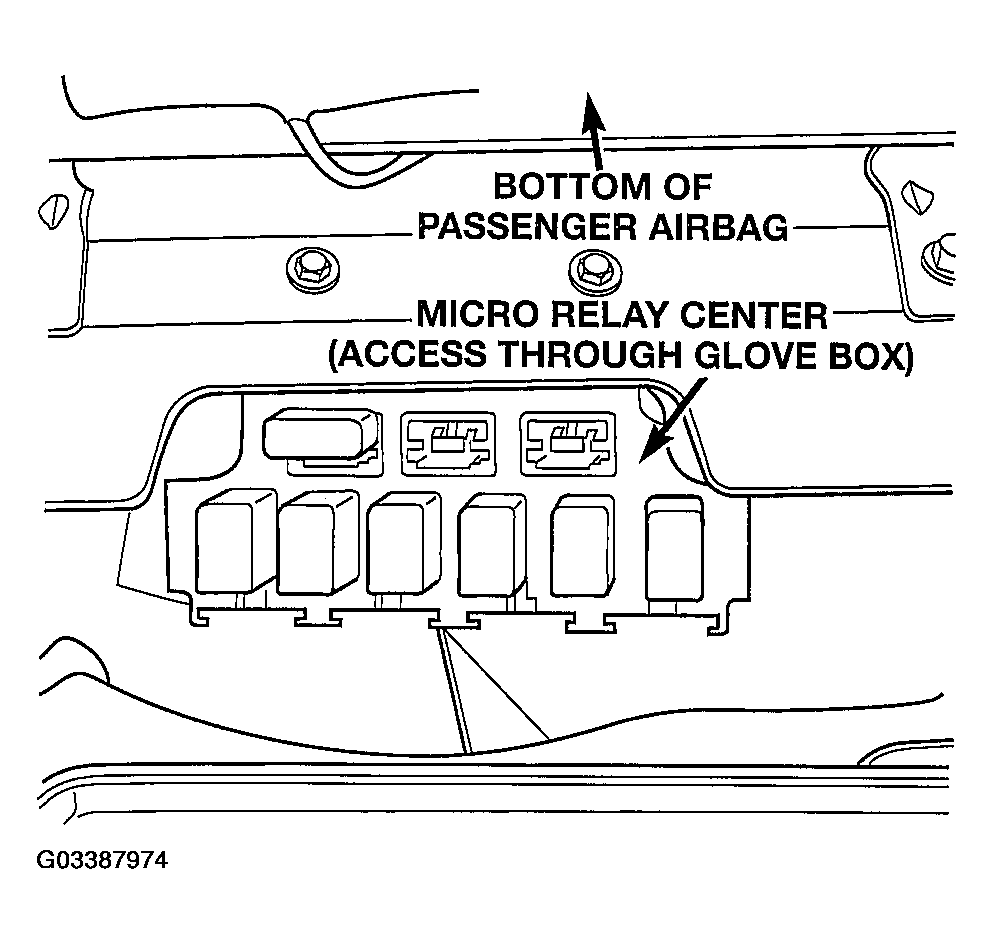

Fig 1: Identifying Micro Relay Center (1 Of 2)

G03387974

Courtesy of DAIMLERCHRYSLER CORP.

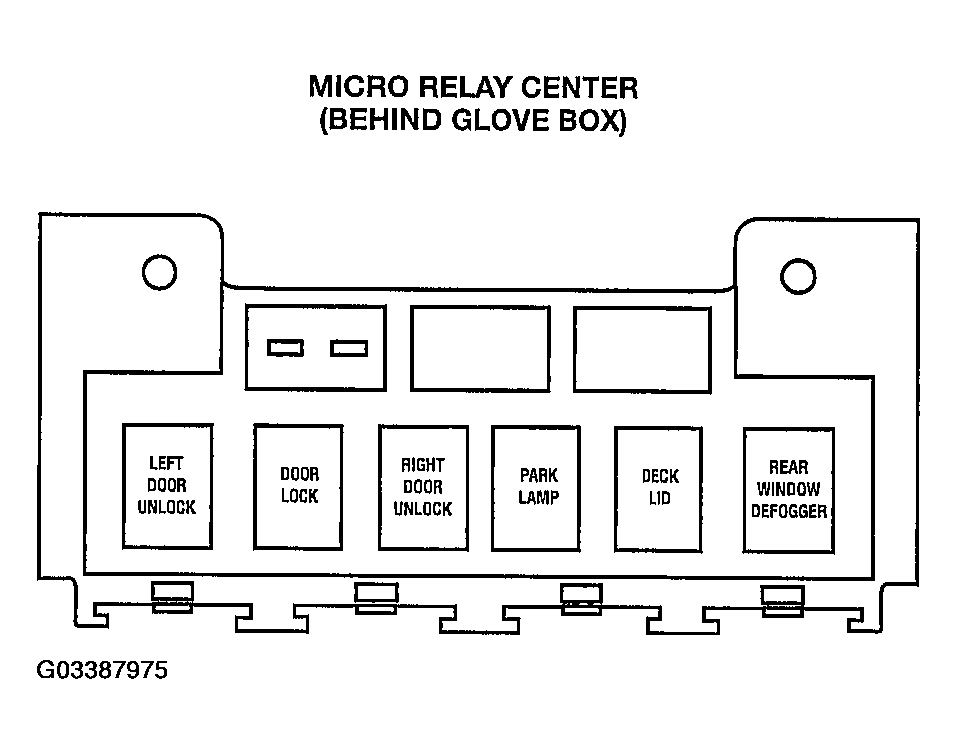

Fig 2: Identifying Micro Relay Center (2 Of 2)

G03387975

Courtesy of DAIMLERCHRYSLER CORP.
