Trailer Tow Package Connector End View

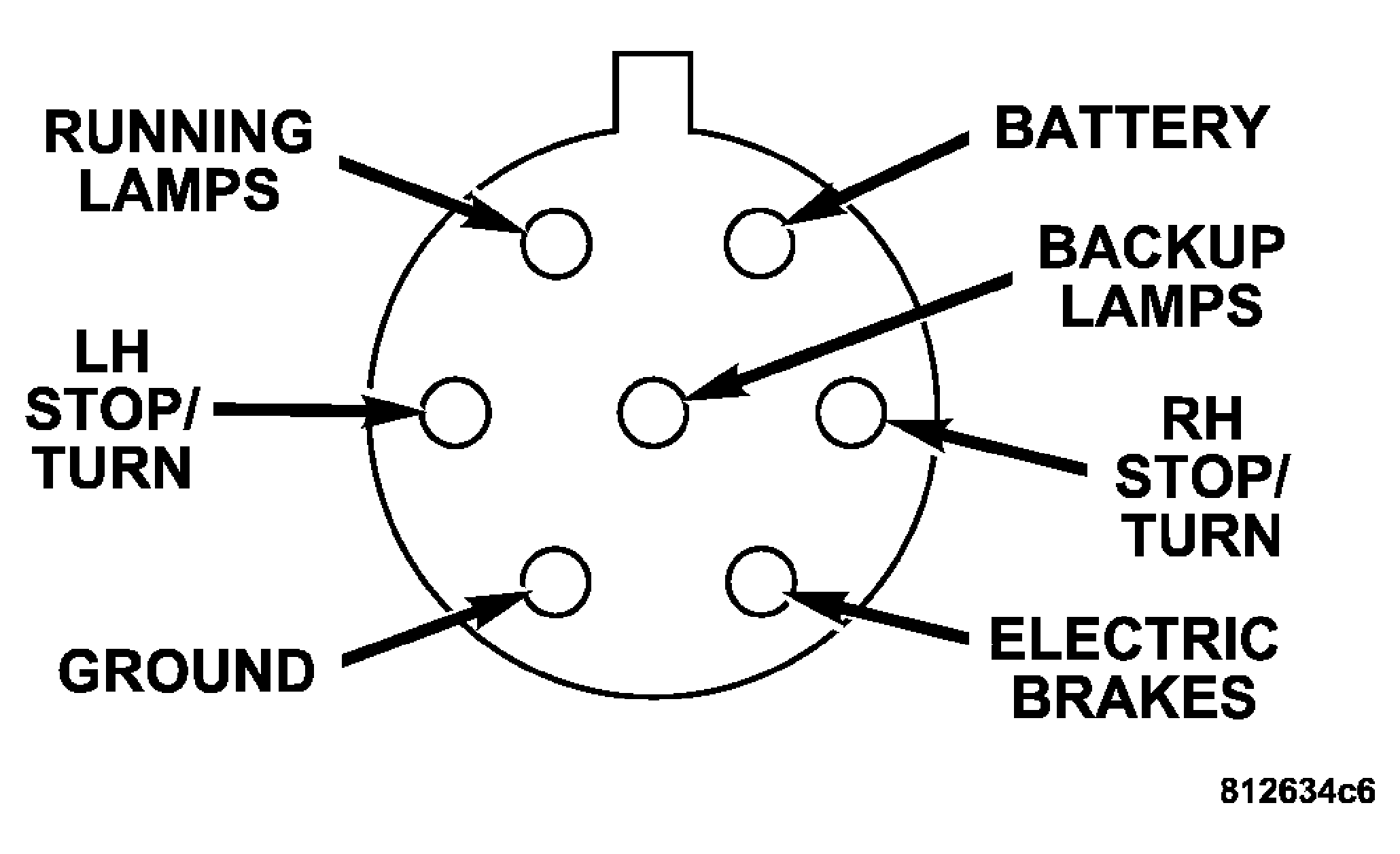

Fig 1: Trailer Tow Package Connector End View

GC0043373

Courtesy of CHRYSLER GROUP, LLC
