Driver Heated Seat Switch Connector End View

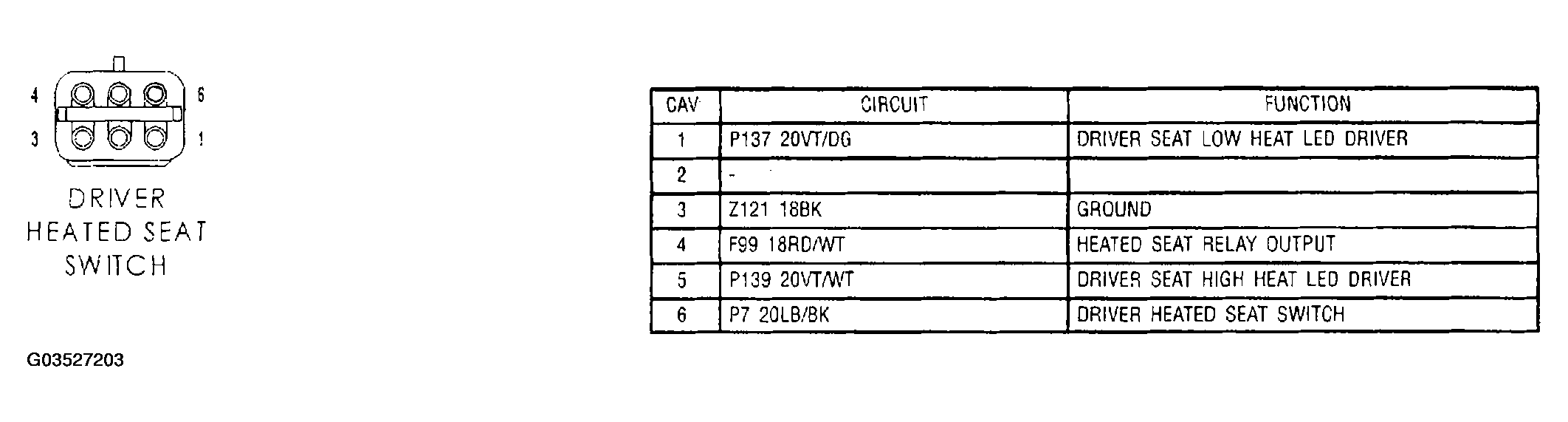

Fig 1: Driver Heated Seat Switch Connector End View

G03527203

Courtesy of CHRYSLER GROUP, LLC
