Blower Motor Connector End View
Blower Motor Connector End View

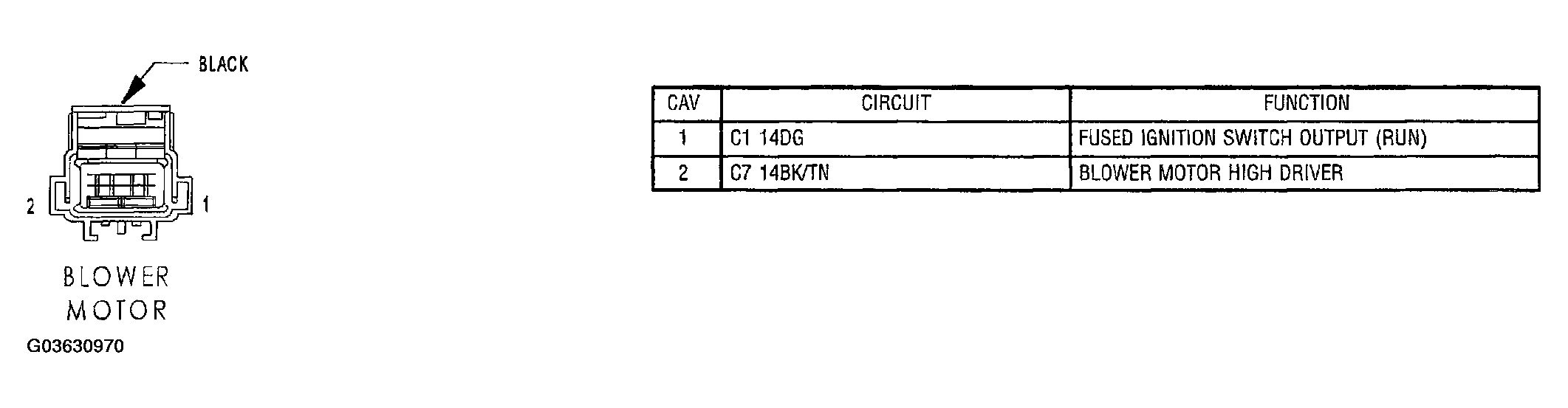

Fig 1: Blower Motor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
