Amplifier Audio C1 Connector End View
Amplifier Audio C1 Connector End View

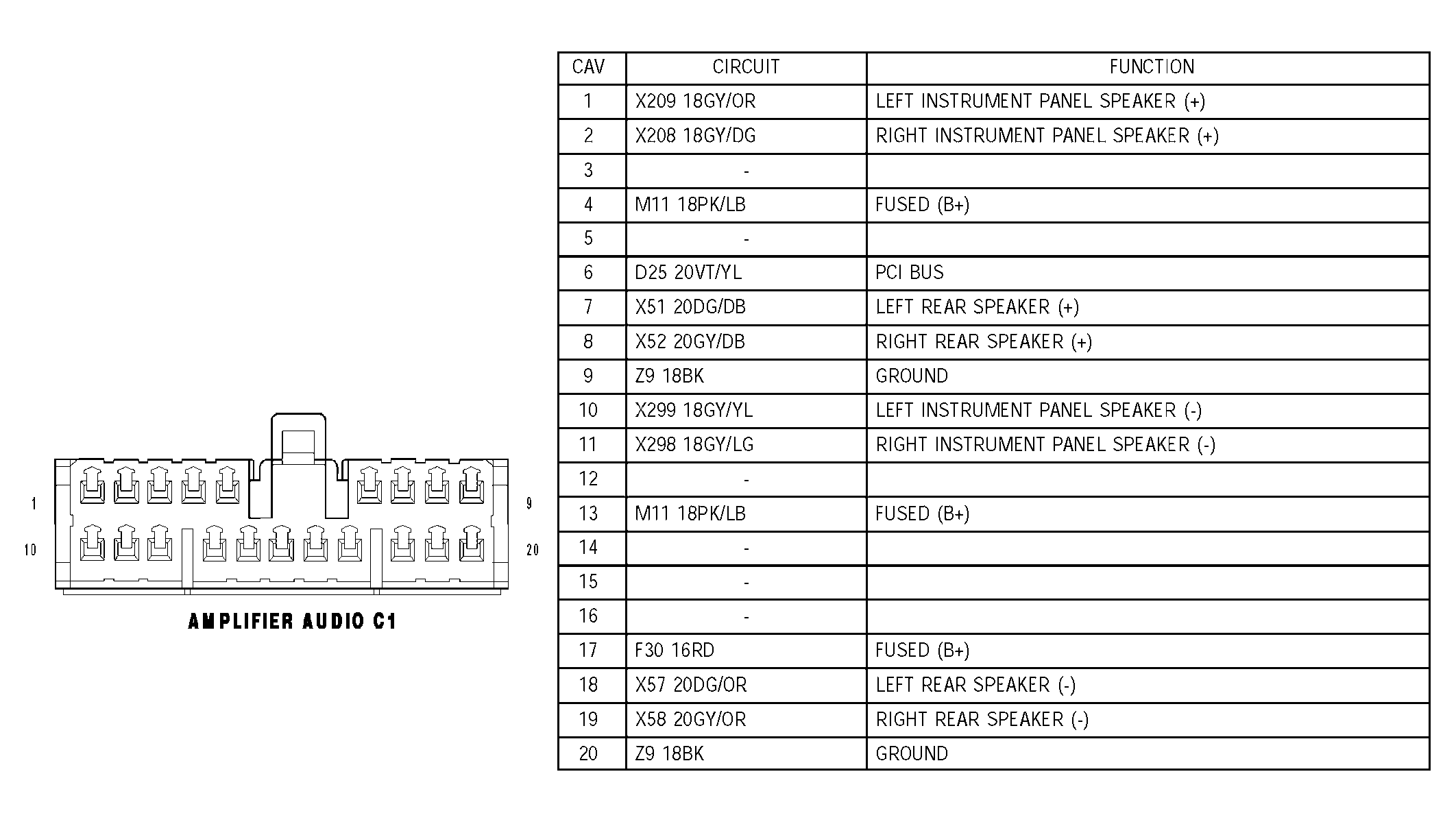

Fig 1: Amplifier Audio C1 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
