Radiator Fan: Installation

  1. Install the radiator fan into position on the radiator.
  2. Install the upper and right side radiator fan retaining screws and tighten to 6 N.m (55 INCH lbs). See Figure.
  3. Raise vehicle and install the remaining fan attaching screws. Tighten to 6 N.m (55 INCH lbs). See Figure.
  4. Connect radiator fan electrical connector.
  5. Lower vehicle and install the upper radiator hose to radiator. Align hose and position clamp so it will not interfere with the engine or the hood.
  6. Install upper radiator support crossmember.
  7. Install grille.
  8. Install battery tray and battery.
  9. Connect cables to battery.

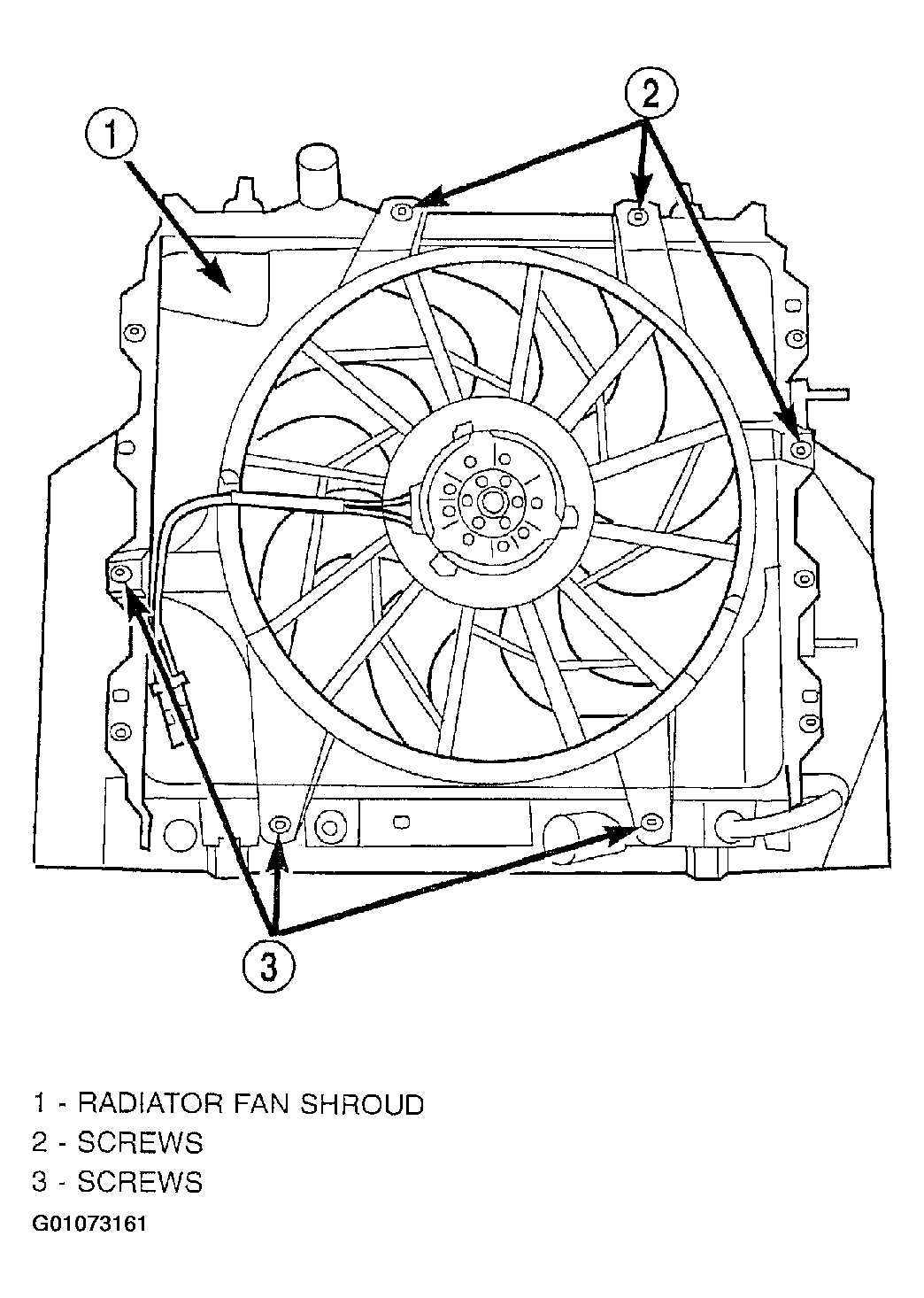

    Fig 1: Mounting Radiator Fan
    G01073161Courtesy of DAIMLERCHRYSLER CORP.
  10. Fill cooling system. See STANDARD PROCEDURE - FILLING COOLING SYSTEM .
