Anti-Lock Brake System - Diagnosis
>>
Verification Test
Verification Test

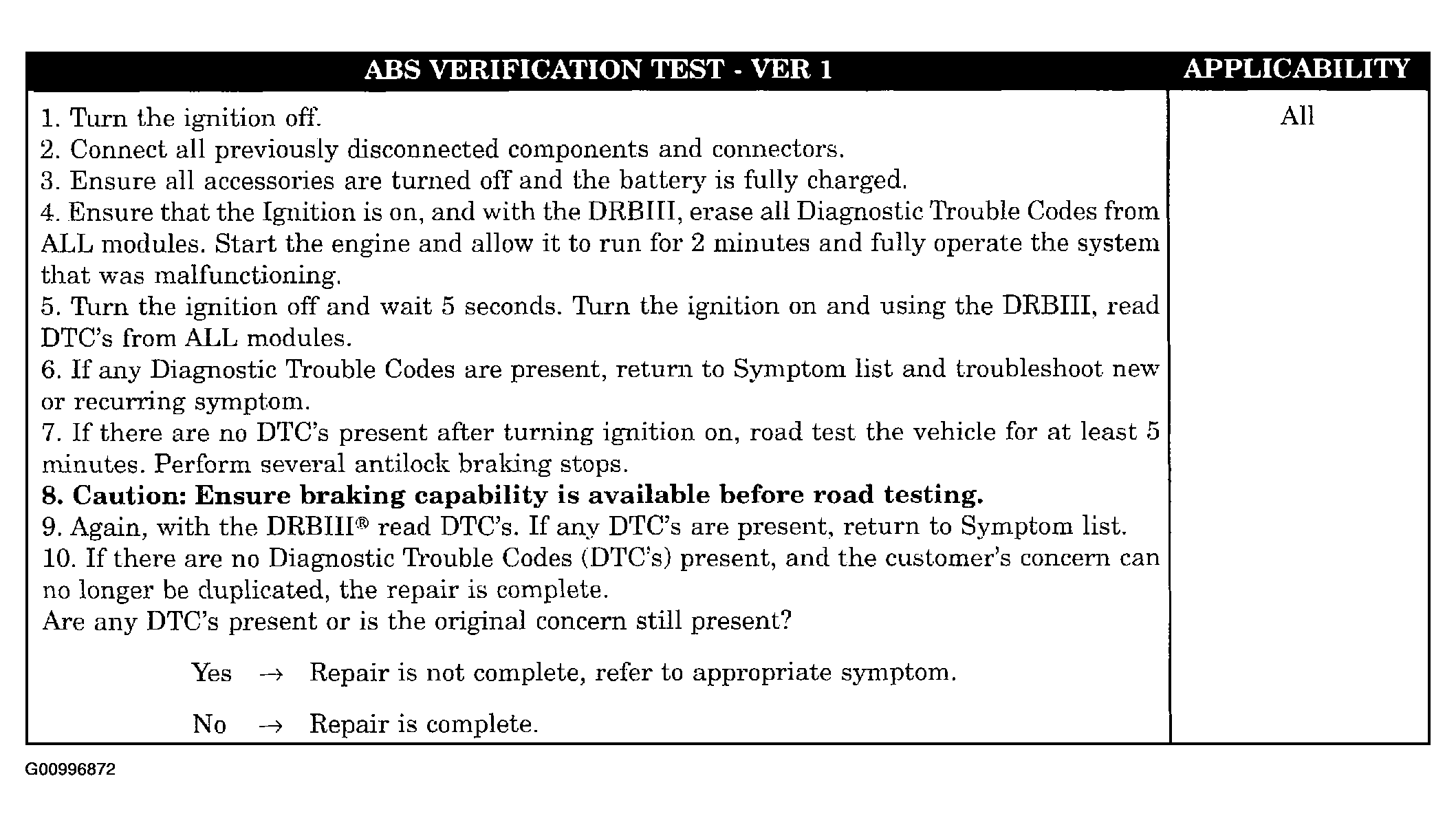

Fig 1: ABS Verification Test Chart - VER 1
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
