Traction Control Switch Connector End View

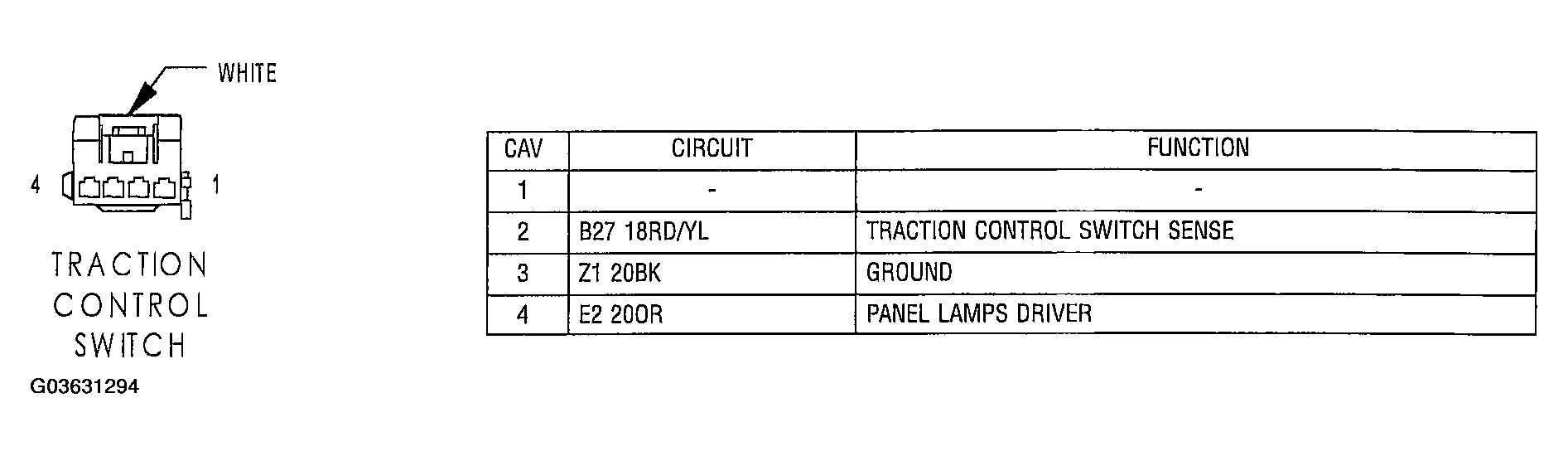

Fig 1: Traction Control Switch Connector End View

G03631294

Courtesy of CHRYSLER GROUP, LLC
