Rear Window Defogger Switch Connector End View

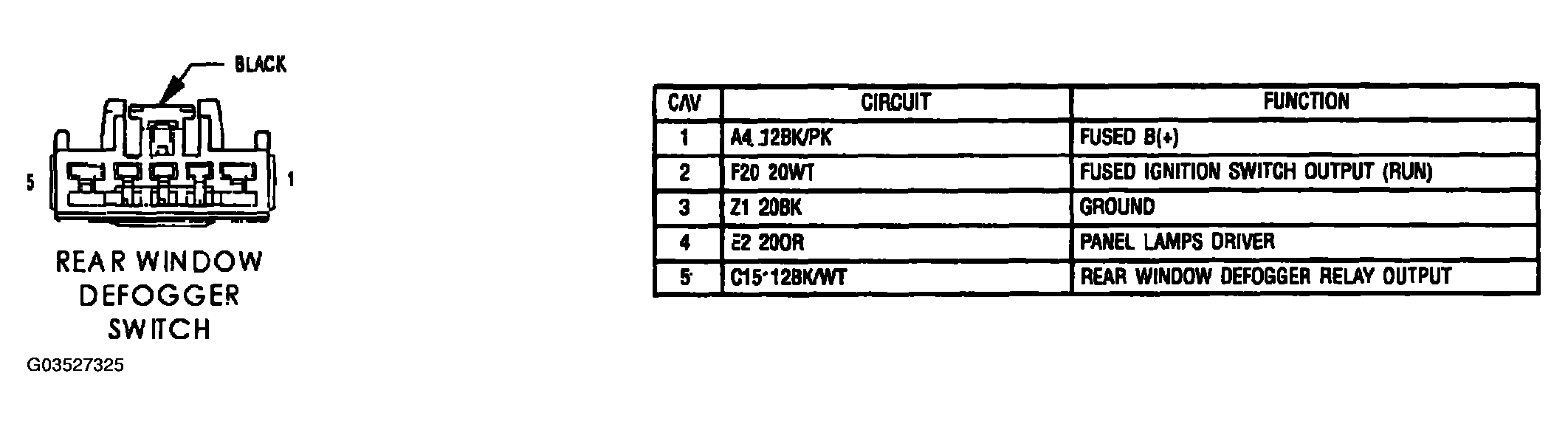

Fig 1: Rear Window Defogger Switch Connector End View

G03527325

Courtesy of CHRYSLER GROUP, LLC
