Powertrain Control Module C4 (NGC) Connector End View

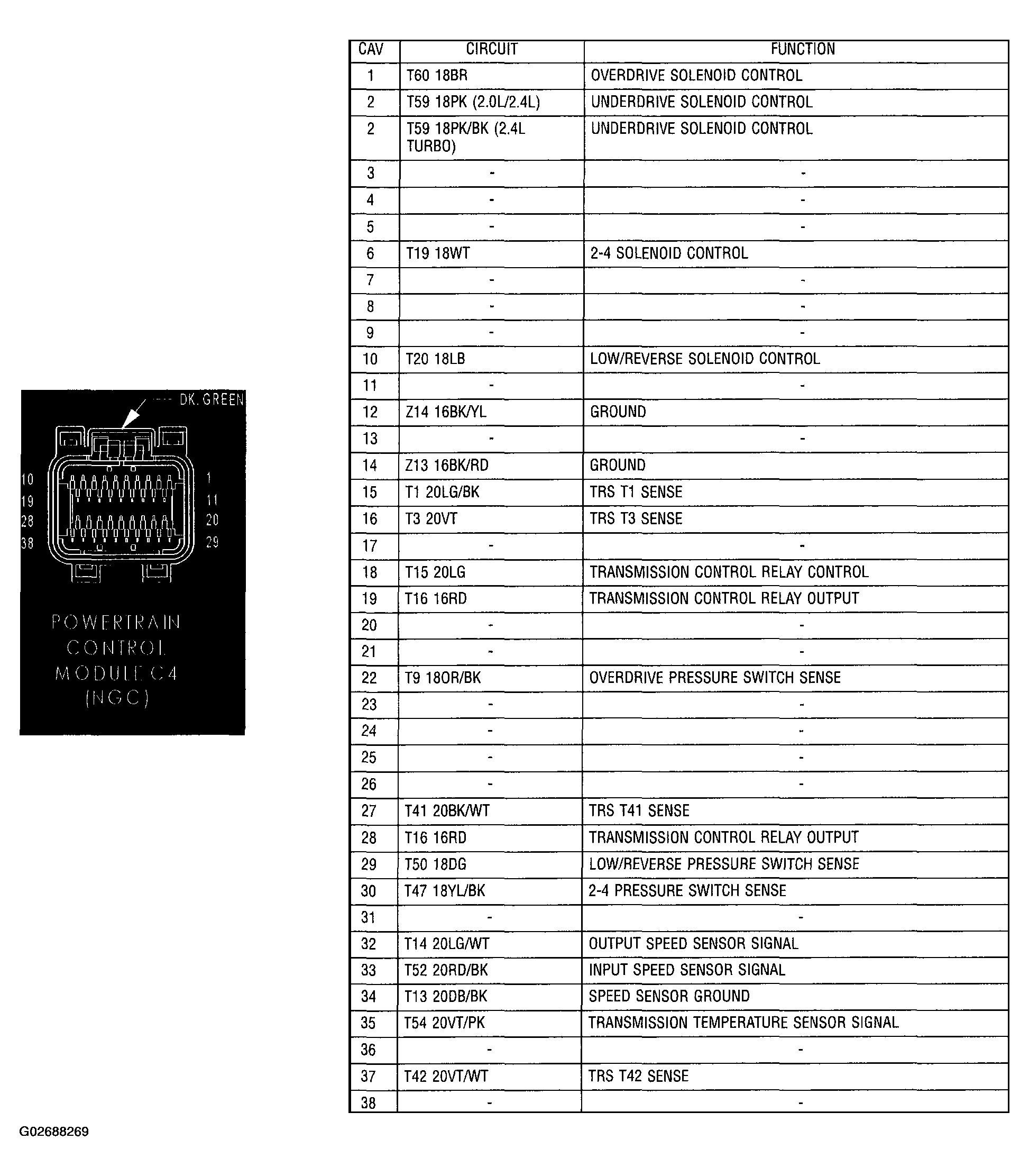

Fig 1: Powertrain Control Module C4 (NGC) Connector End View

G02688269

Courtesy of CHRYSLER GROUP, LLC
