Powertrain Control Module C1 (NGC) Connector End View

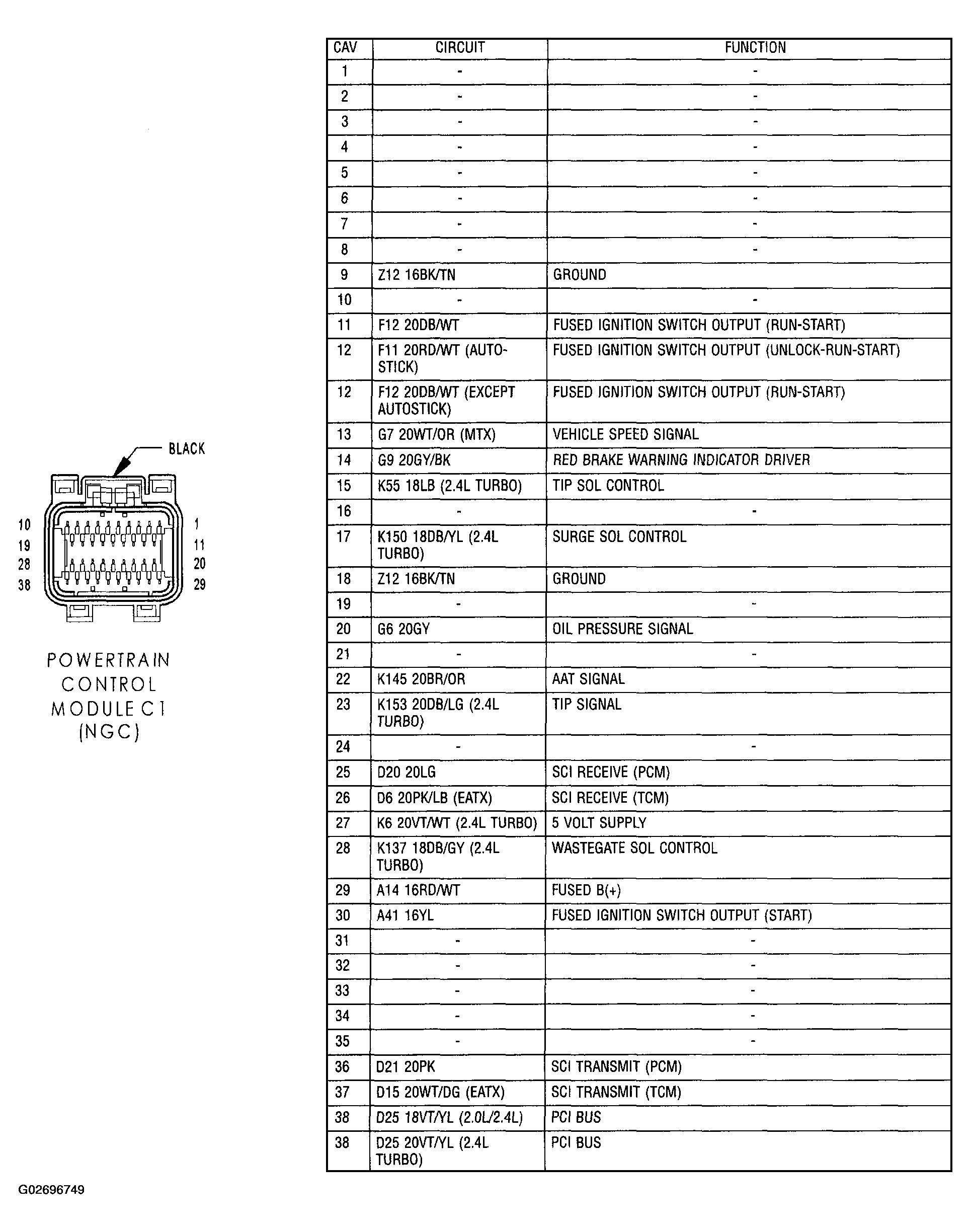

Fig 1: Powertrain Control Module C1 (NGC) Connector End View

G02696749

Courtesy of CHRYSLER GROUP, LLC
