Powertrain Control Module (Next Generation Controller) Connector End View (C3)

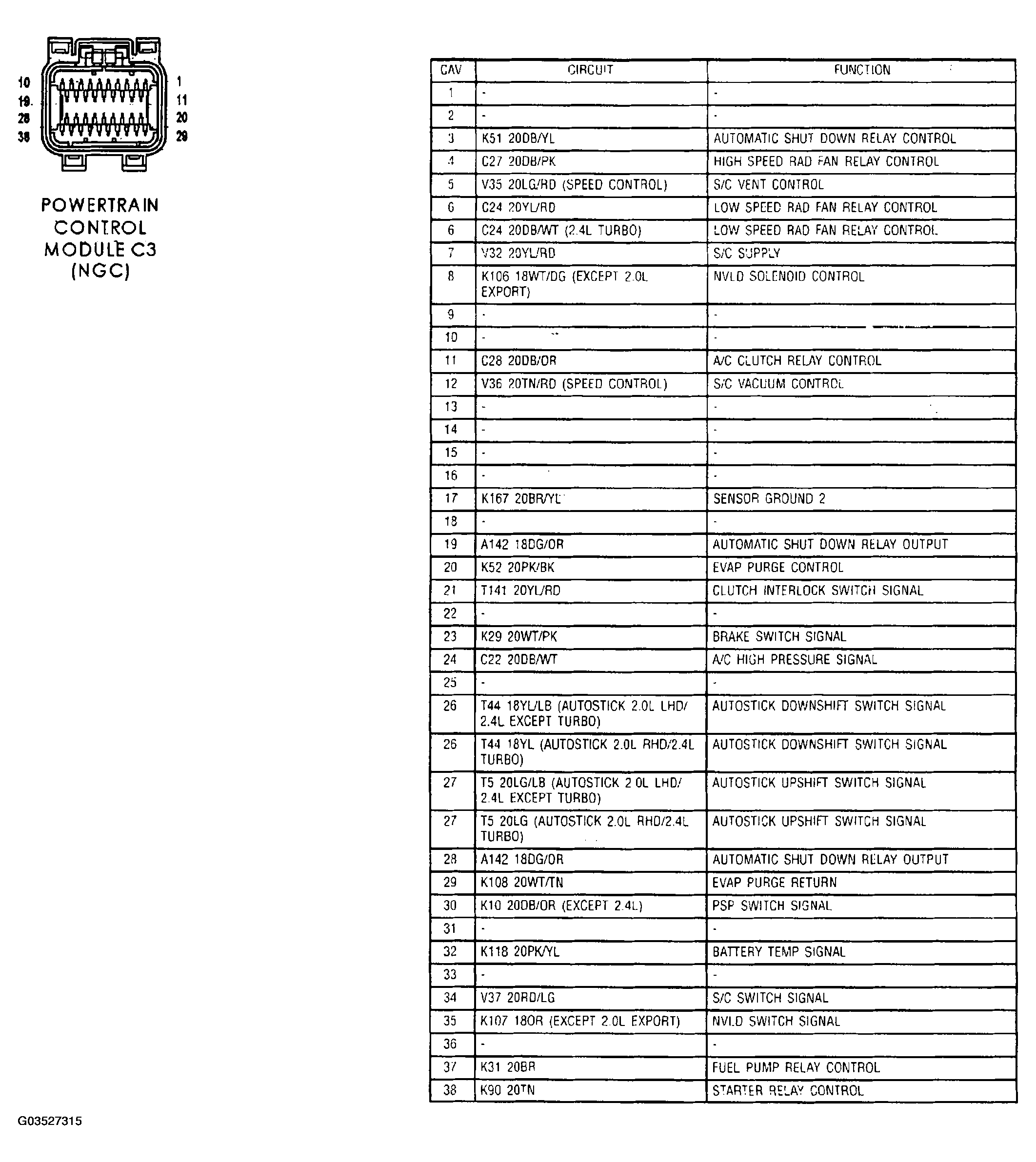

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C3)

G03527315

Courtesy of CHRYSLER GROUP, LLC
