Powertrain Control Module (Next Generation Controller) Connector End View (C1)

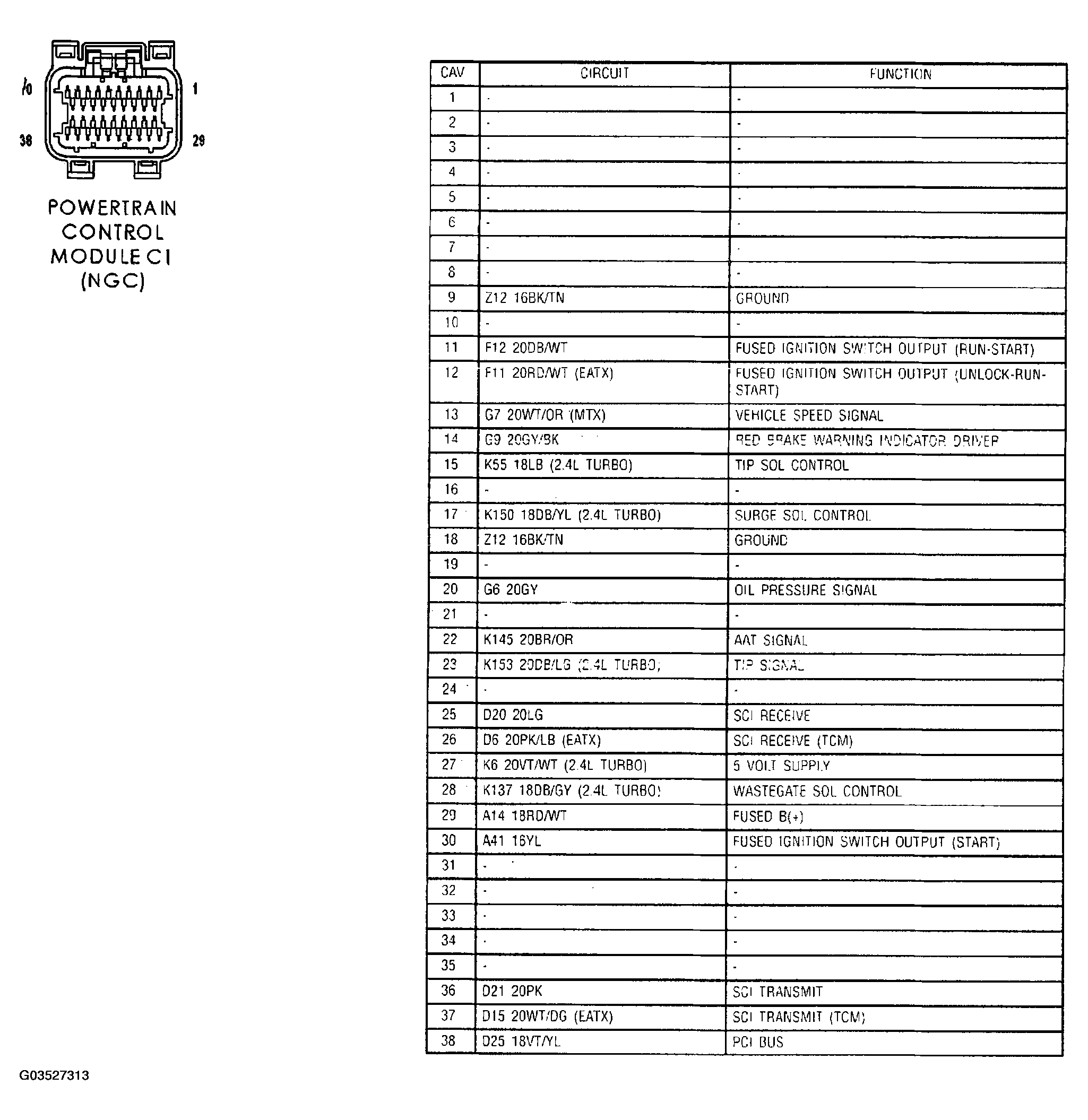

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C1)

G03527313

Courtesy of CHRYSLER GROUP, LLC
