Powertrain Control Module (1.6L) Connector End View

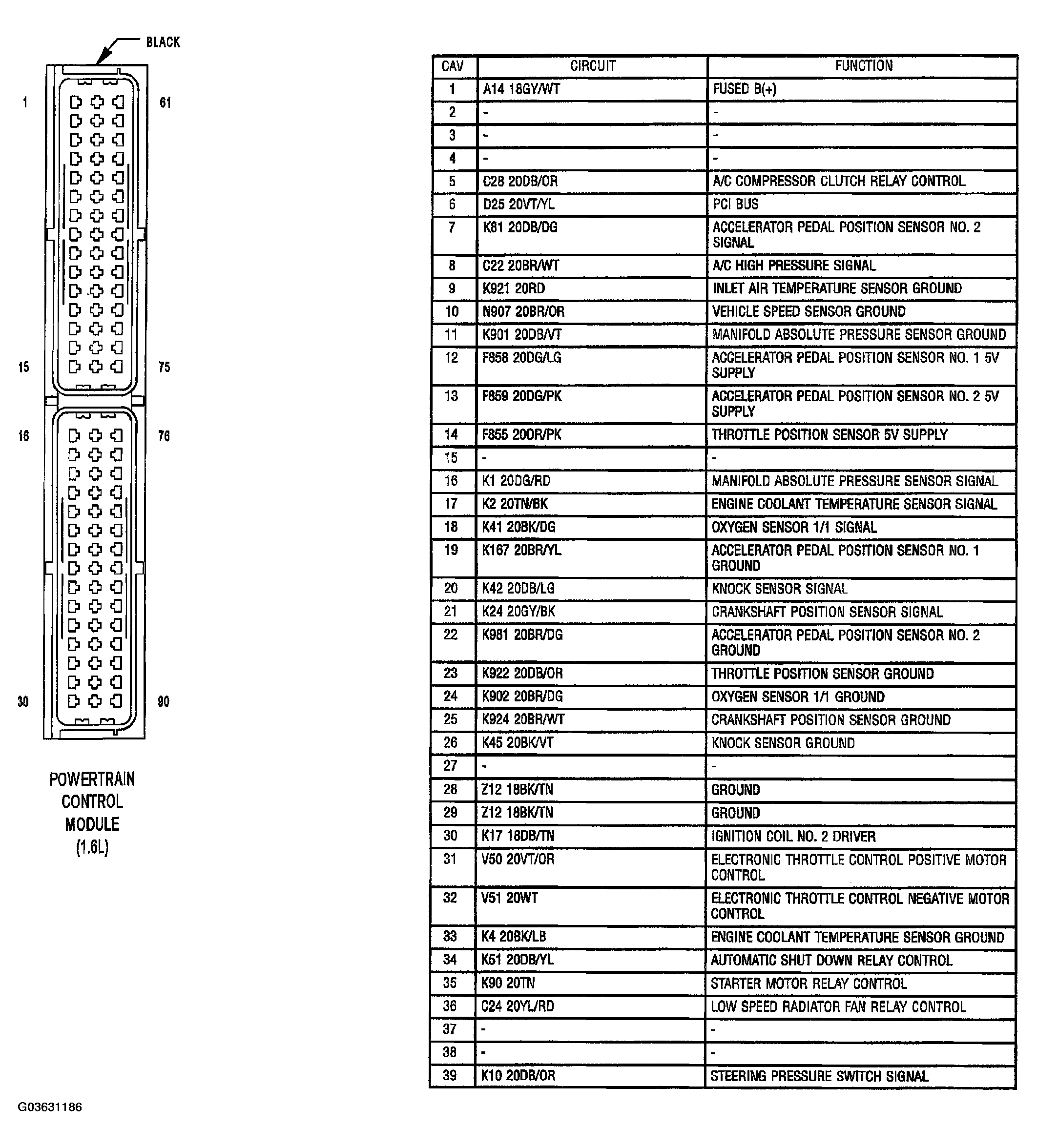

Fig 1: Powertrain Control Module (1.6L) Connector End View
G03631186Courtesy of CHRYSLER GROUP, LLC

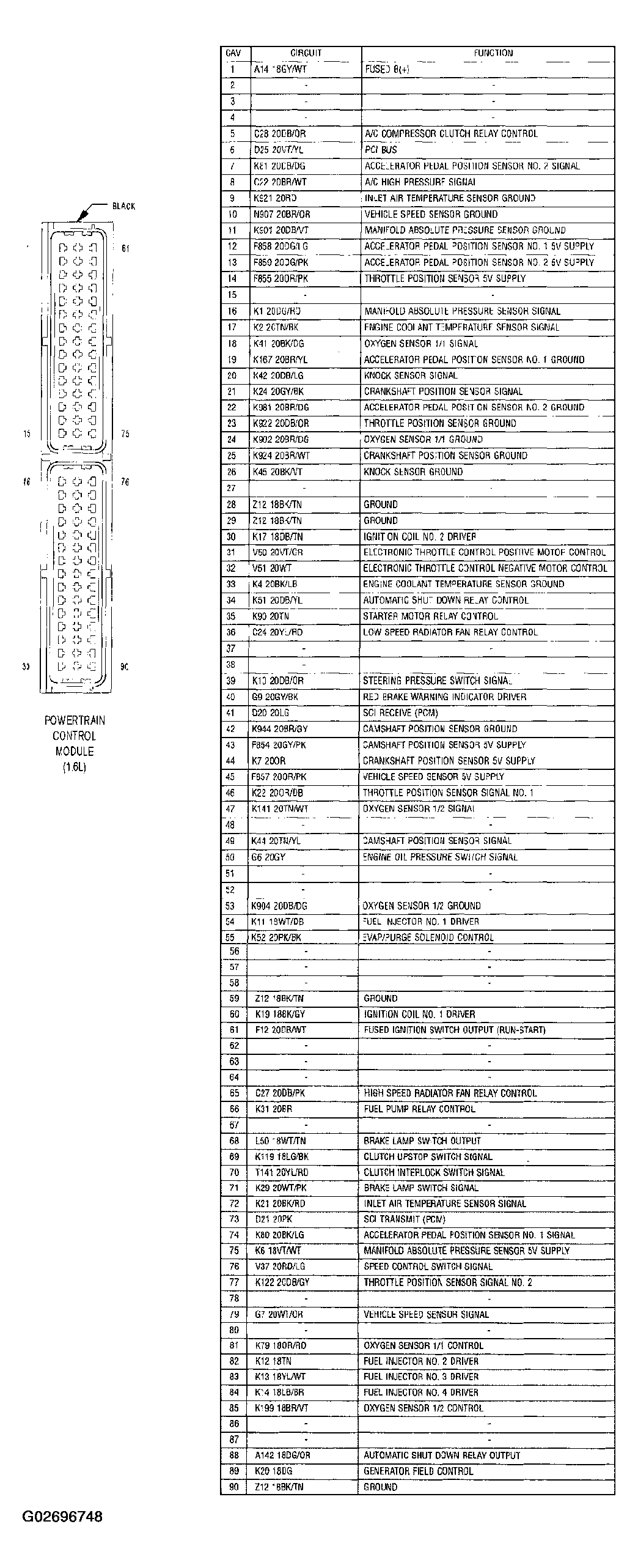

Fig 1: Powertrain Control Module (1.6L) Connector End View
G02696748Courtesy of CHRYSLER GROUP, LLC
