Power Sunroof Module Connector End View (C2)

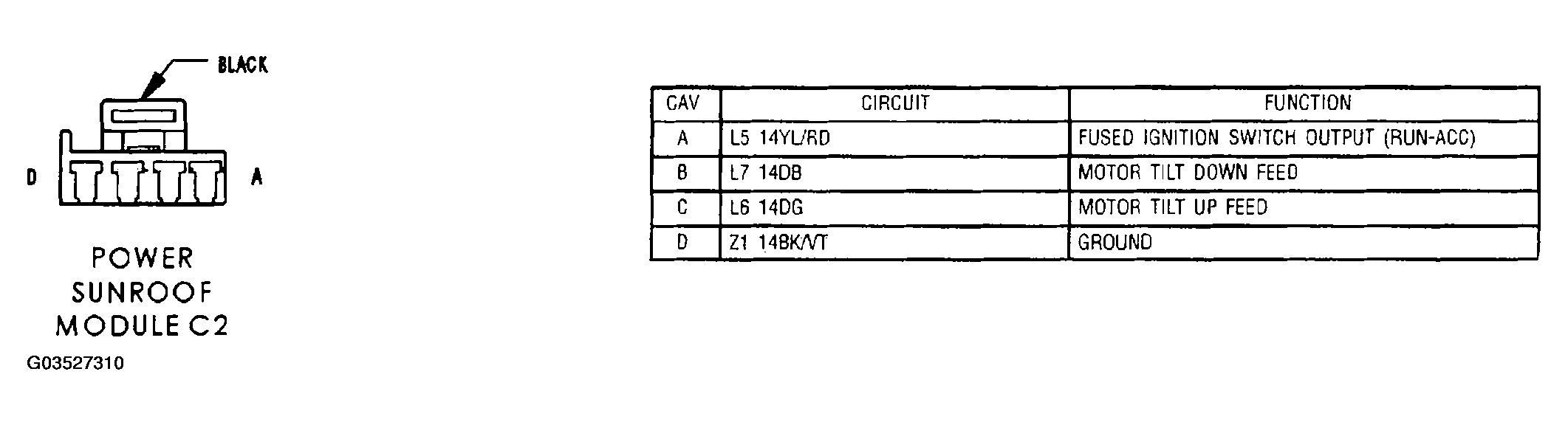

Fig 1: Power Sunroof Module Connector End View (C2)

G03527310

Courtesy of CHRYSLER GROUP, LLC
