Overhead Console Module Connector End View

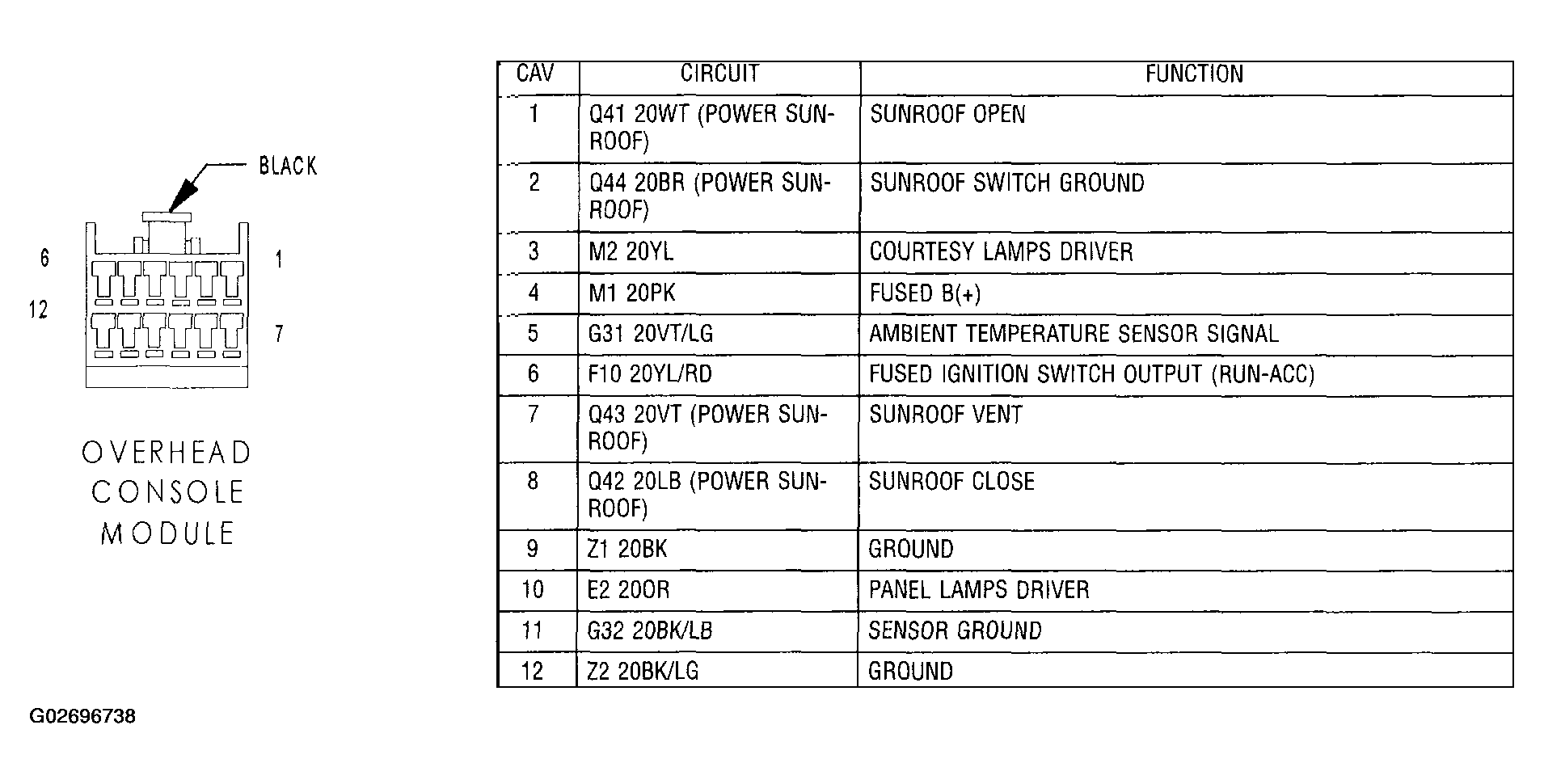

Fig 1: Overhead Console Module Connector End View

G02696738

Courtesy of CHRYSLER GROUP, LLC
