ORC Airbag Control Module (Base) Connector End View

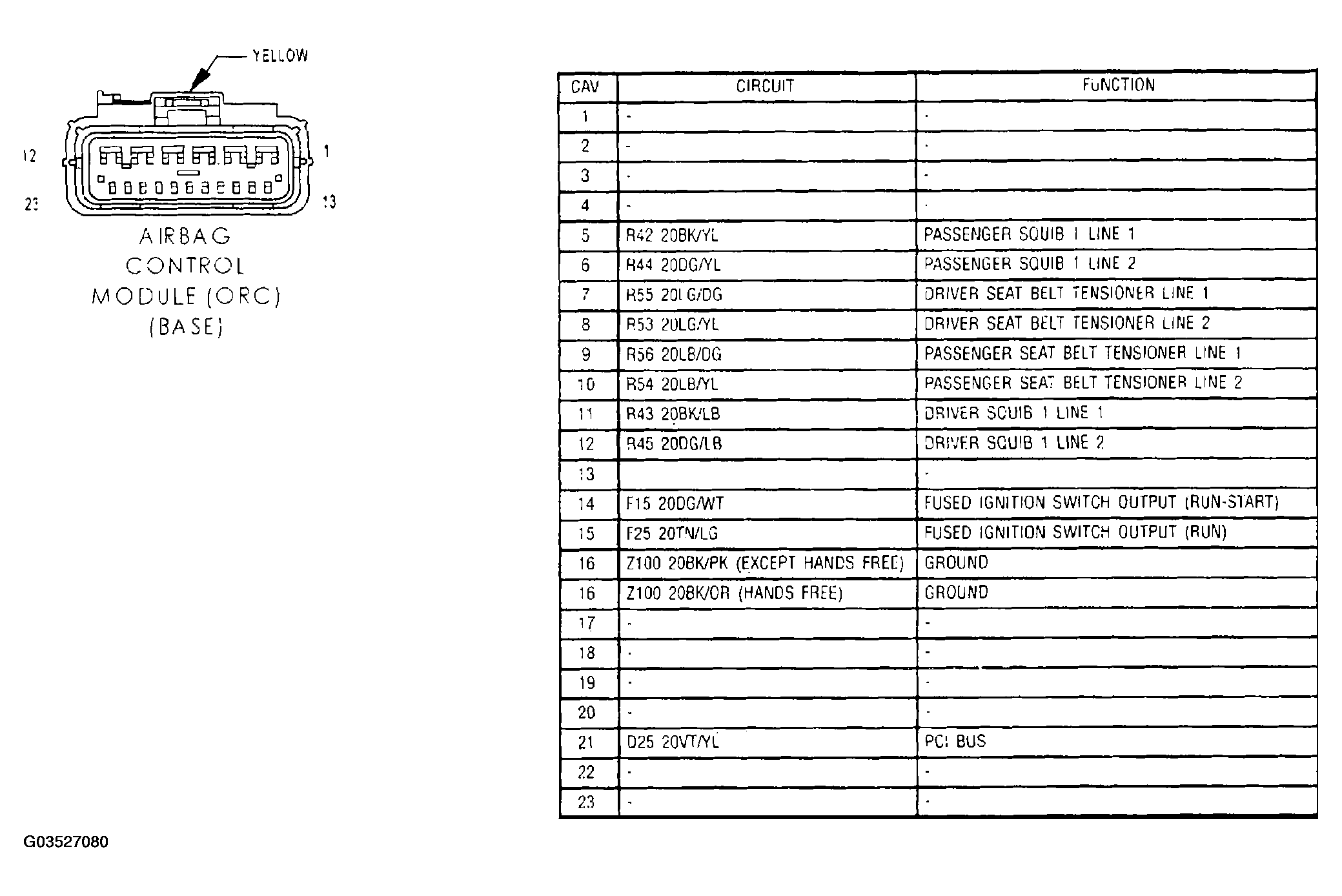

Fig 1: ORC Airbag Control Module (Base) Connector End View

G03527080

Courtesy of CHRYSLER GROUP, LLC
