Hands Free Module C3 Connector End View
Hands Free Module C3 Connector End View

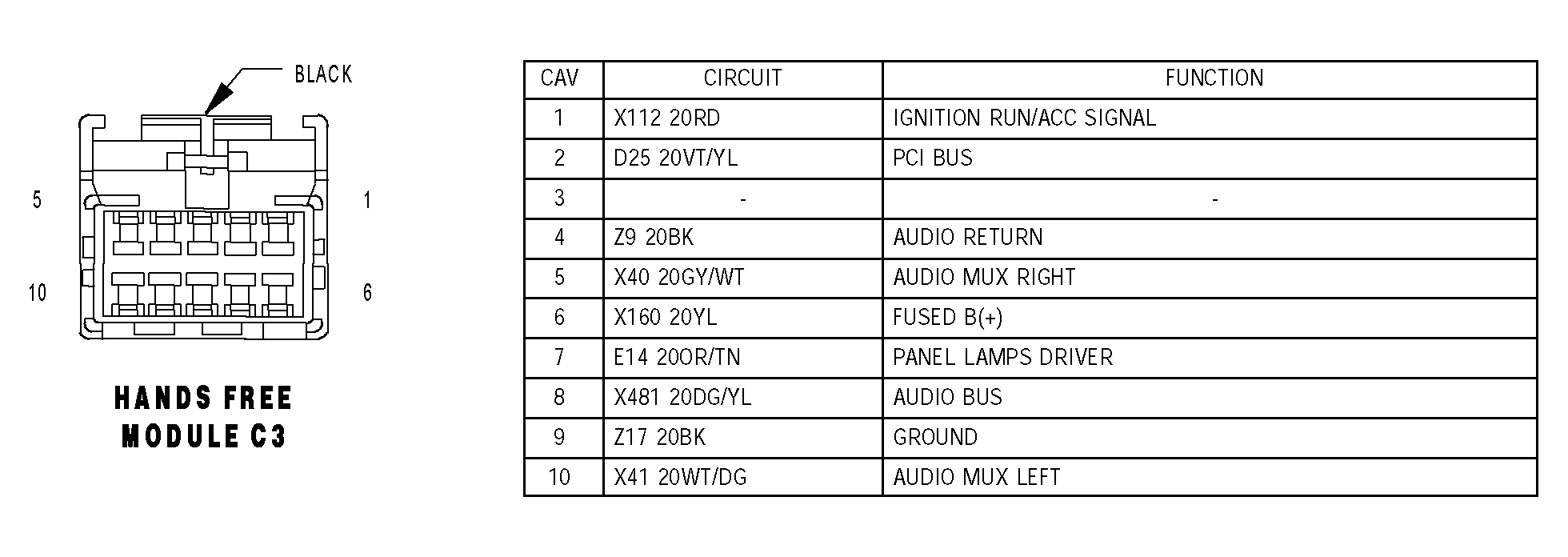

Fig 1: Hands Free Module C3 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
