Front Power Window Switch Connector End View

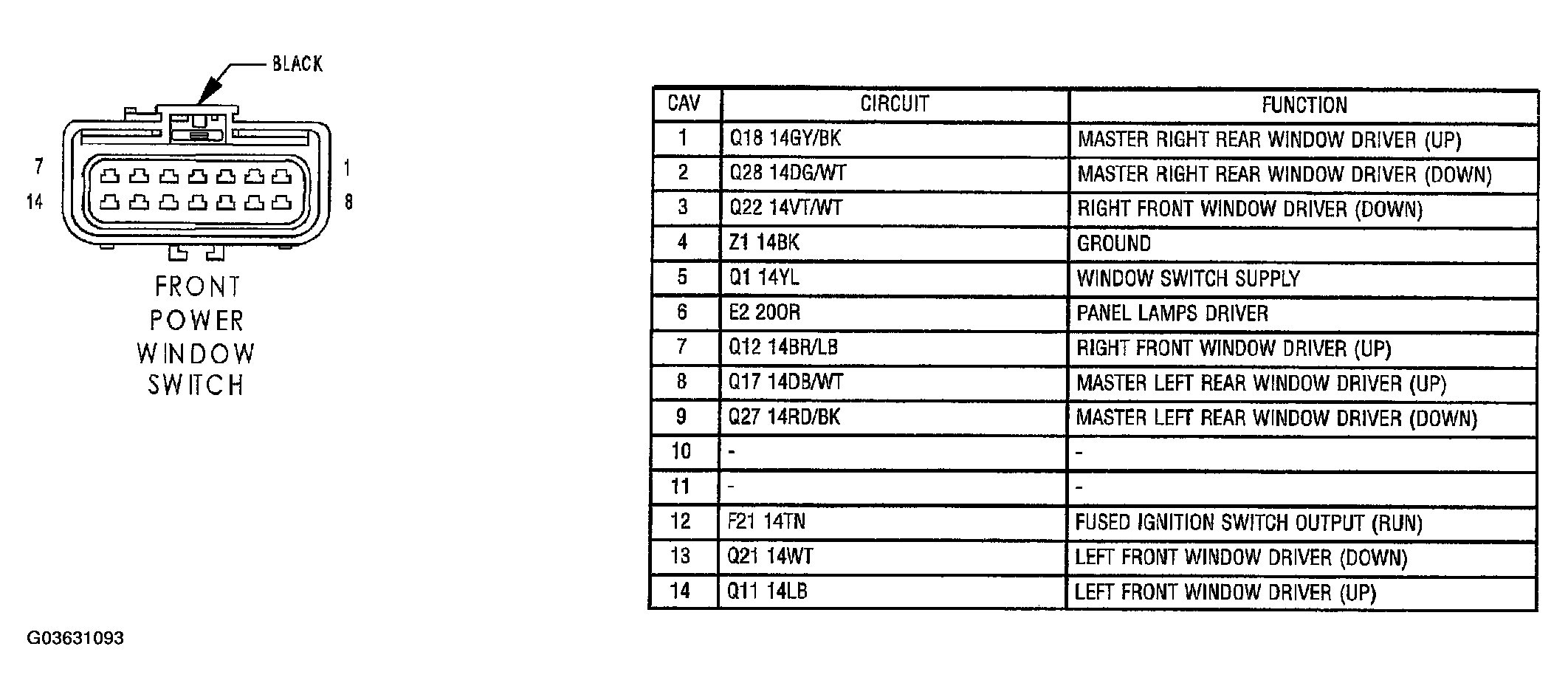

Fig 1: Front Power Window Switch Connector End View

G03631093

Courtesy of CHRYSLER GROUP, LLC
