Electronic Throttle Control Module (1.6L) Connector End View

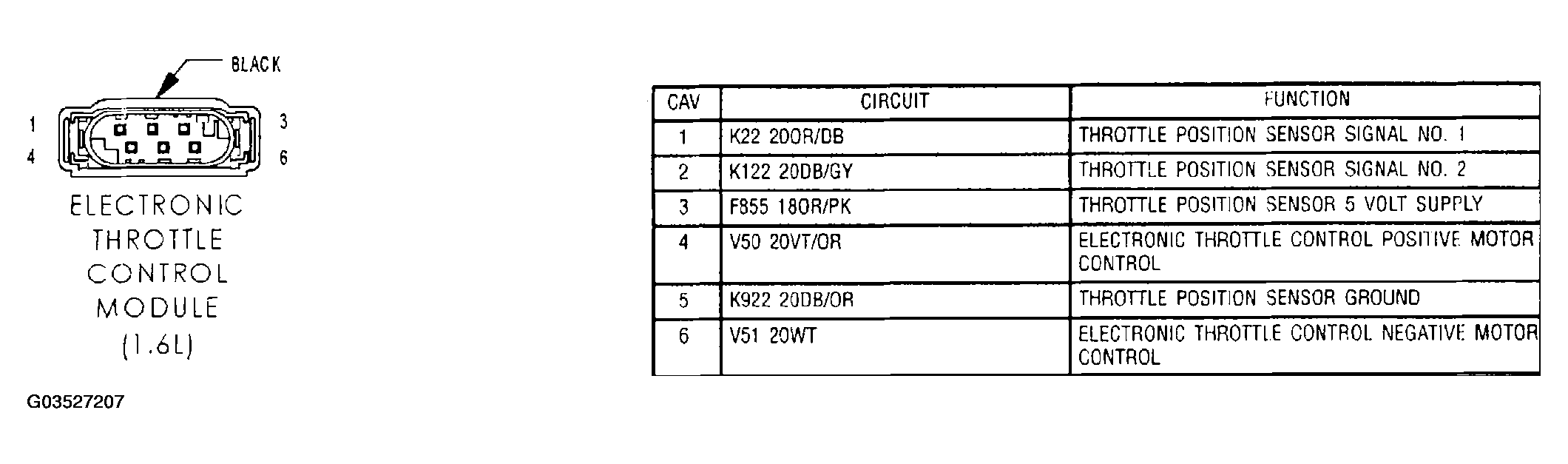

Fig 1: Electronic Throttle Control Module (1.6L) Connector End View
G03527207Courtesy of CHRYSLER GROUP, LLC
