Controller Antilock Brake Connector End View

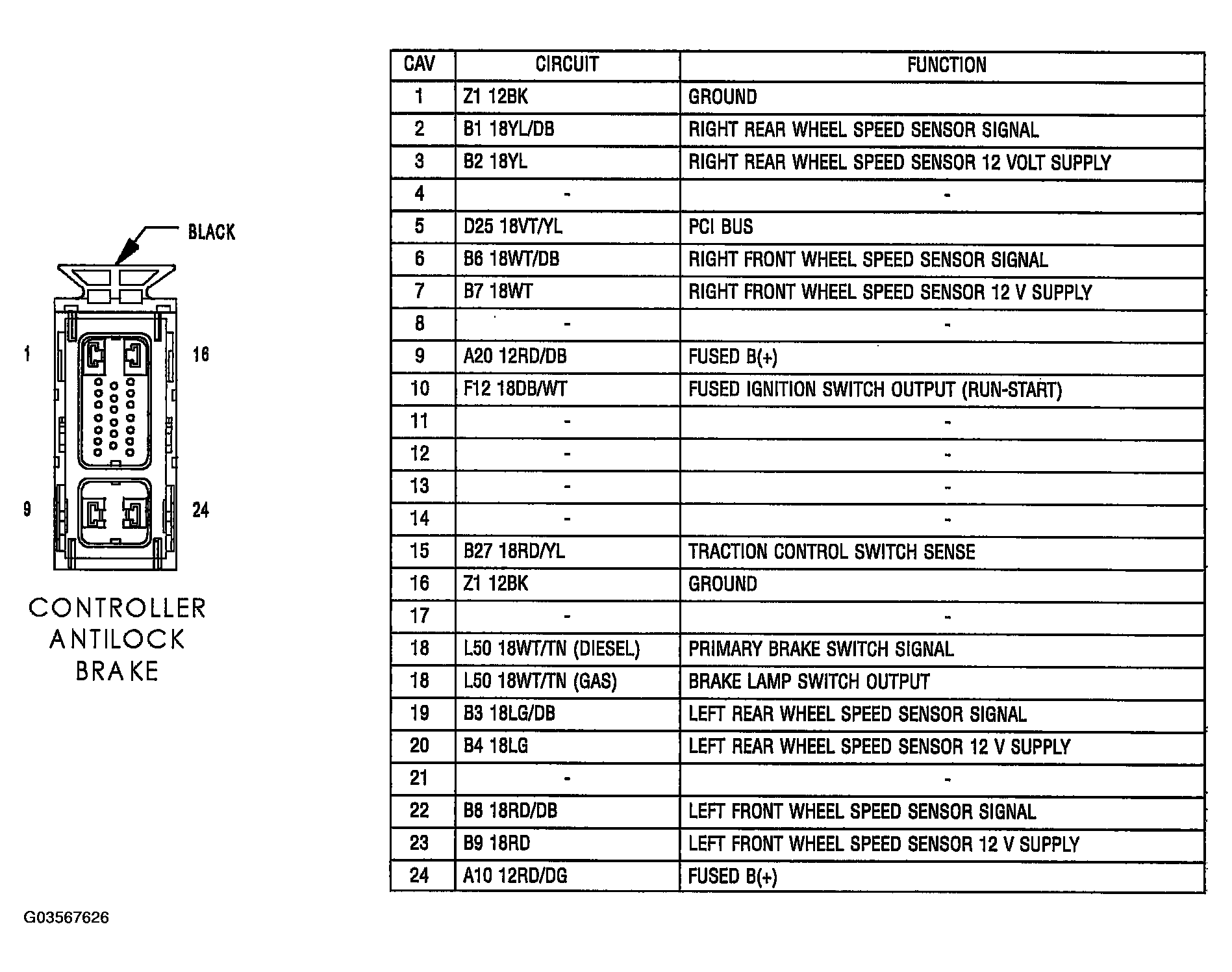

Fig 1: Controller Antilock Brake Connector End View

G03567626

Courtesy of CHRYSLER GROUP, LLC
