Airbag Control Module (ORC) (Base) Connector End View

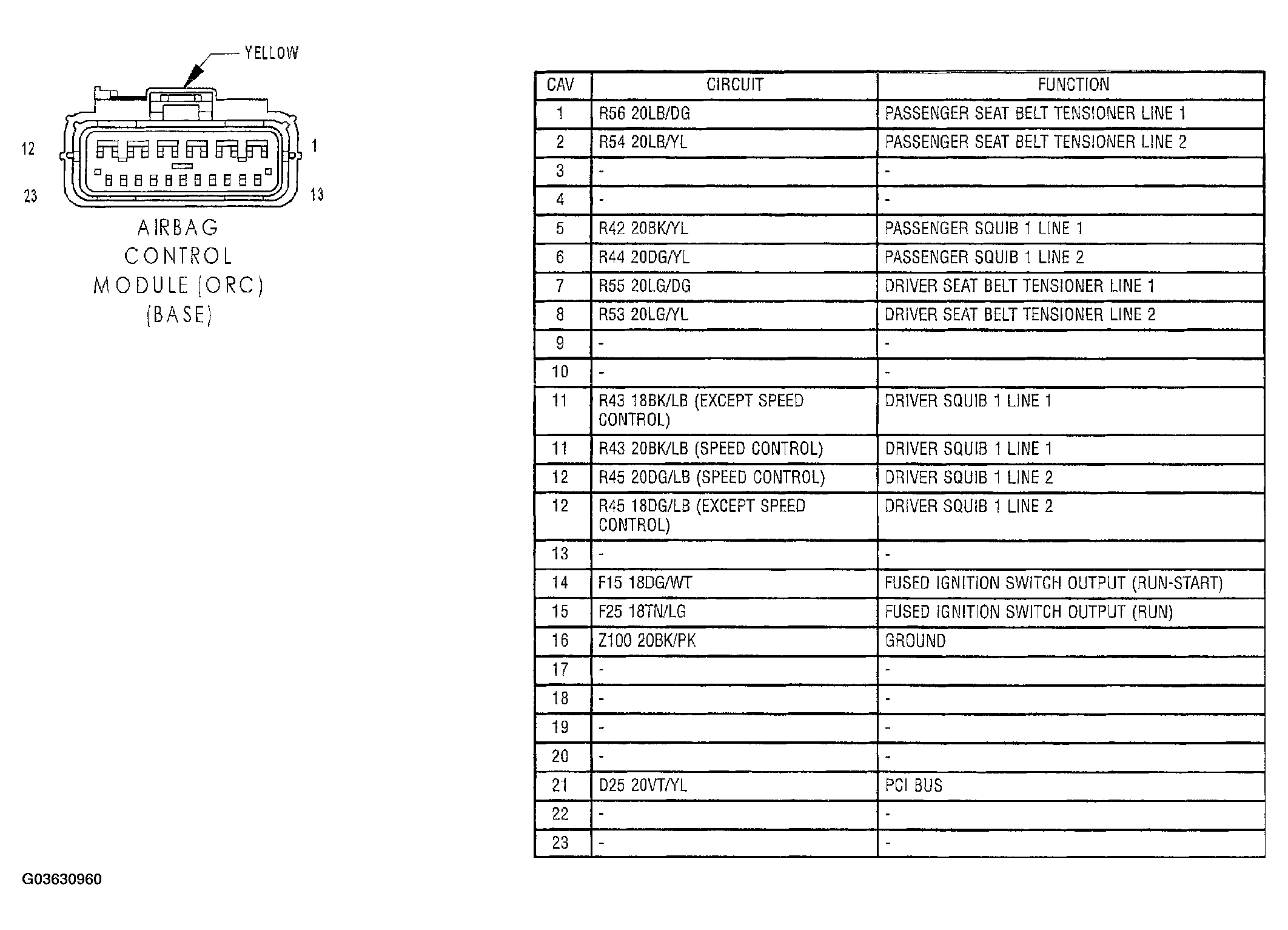

Fig 1: Airbag Control Module (ORC) (Base) Connector End View

G03630960

Courtesy of CHRYSLER GROUP, LLC
